Wireless LCD Display Remote Monitoring Radar Instrument Water Liquid Level for Manhole

📊 Basic Information

Model NO.

SR500-L-Y0-YF

Range

0.2~10m

Measurement Accuracy

±2mm

Accuracy

0.1%

Kind

Static Pressure

Structure

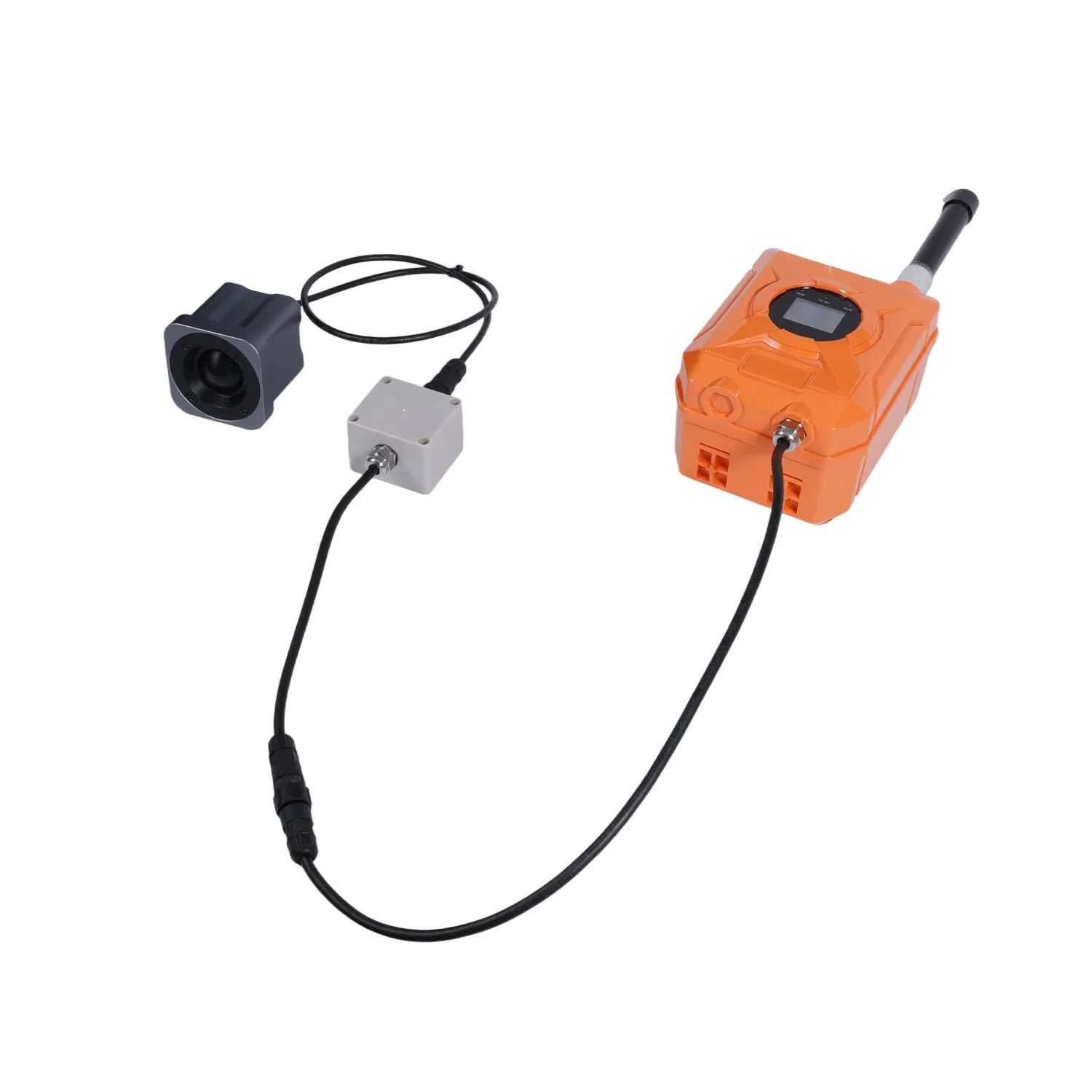

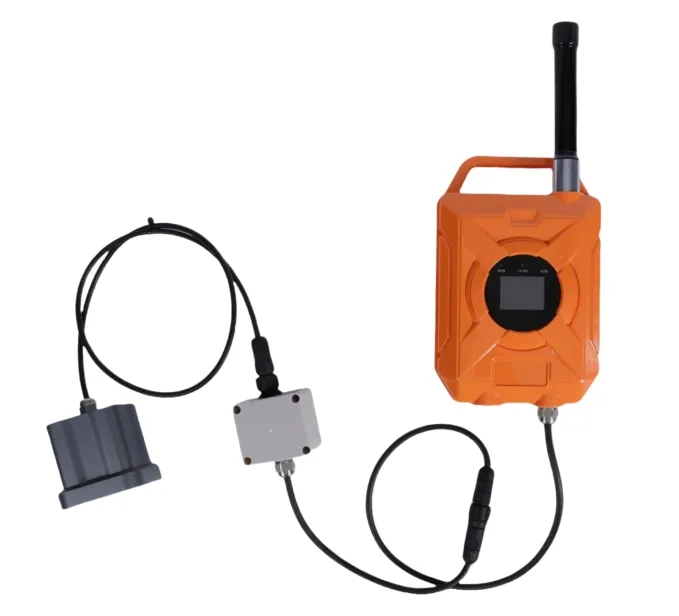

Split Type

Warranty

3 Year

Certification

CE, RoHS

Material

PC

Process Temperature

-20°-70°

Feature

Wireless, Non-Contact

Origin

China

💡 What's this product?

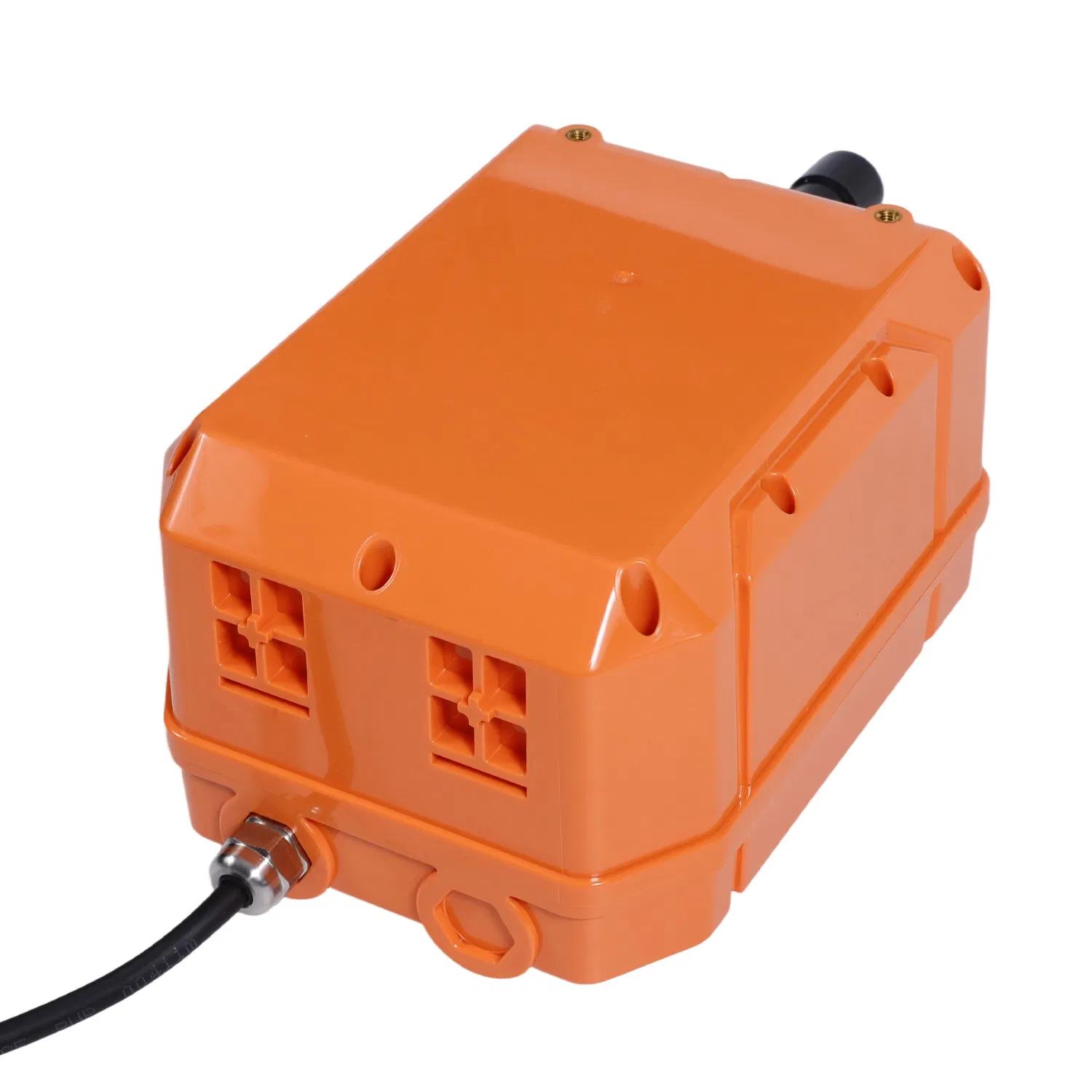

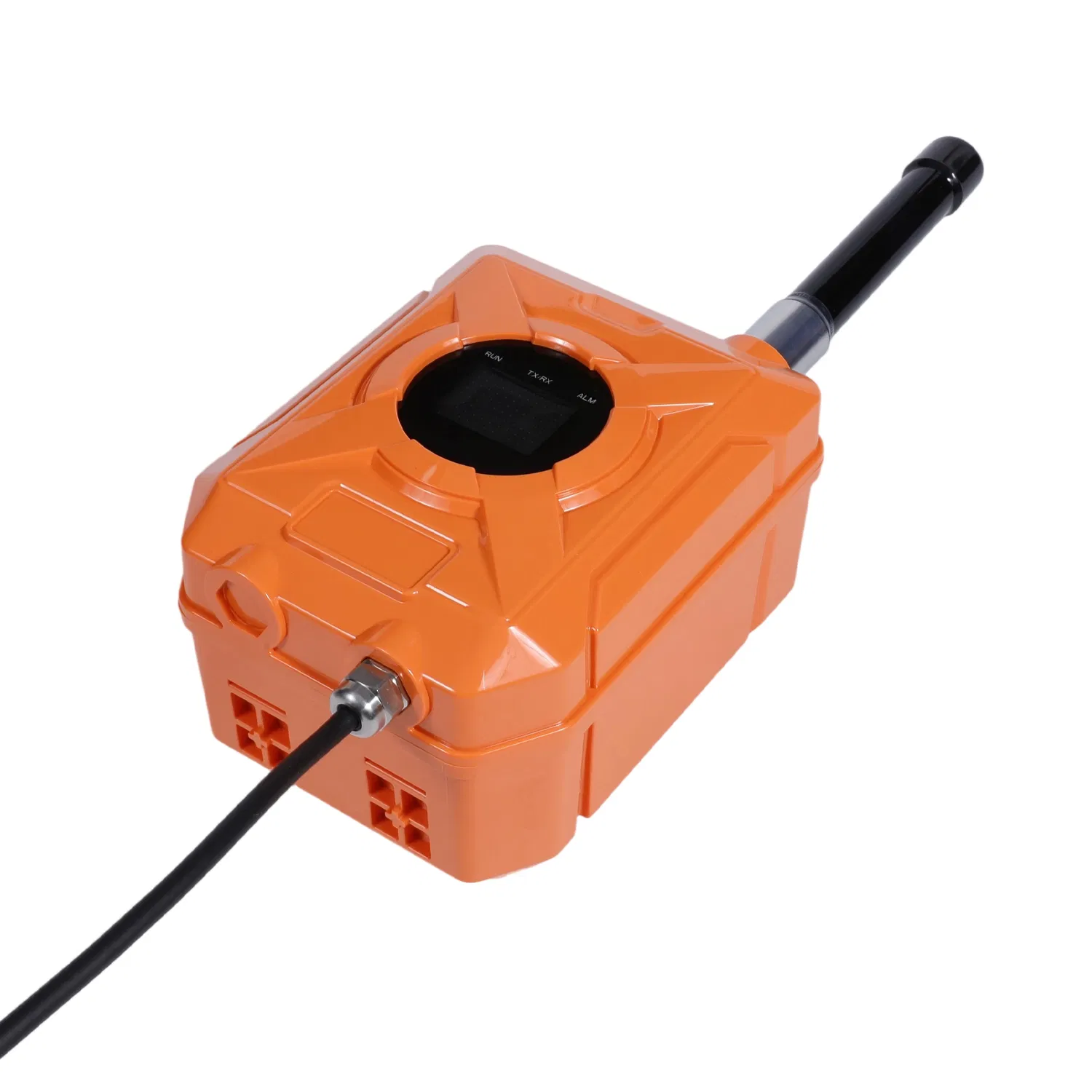

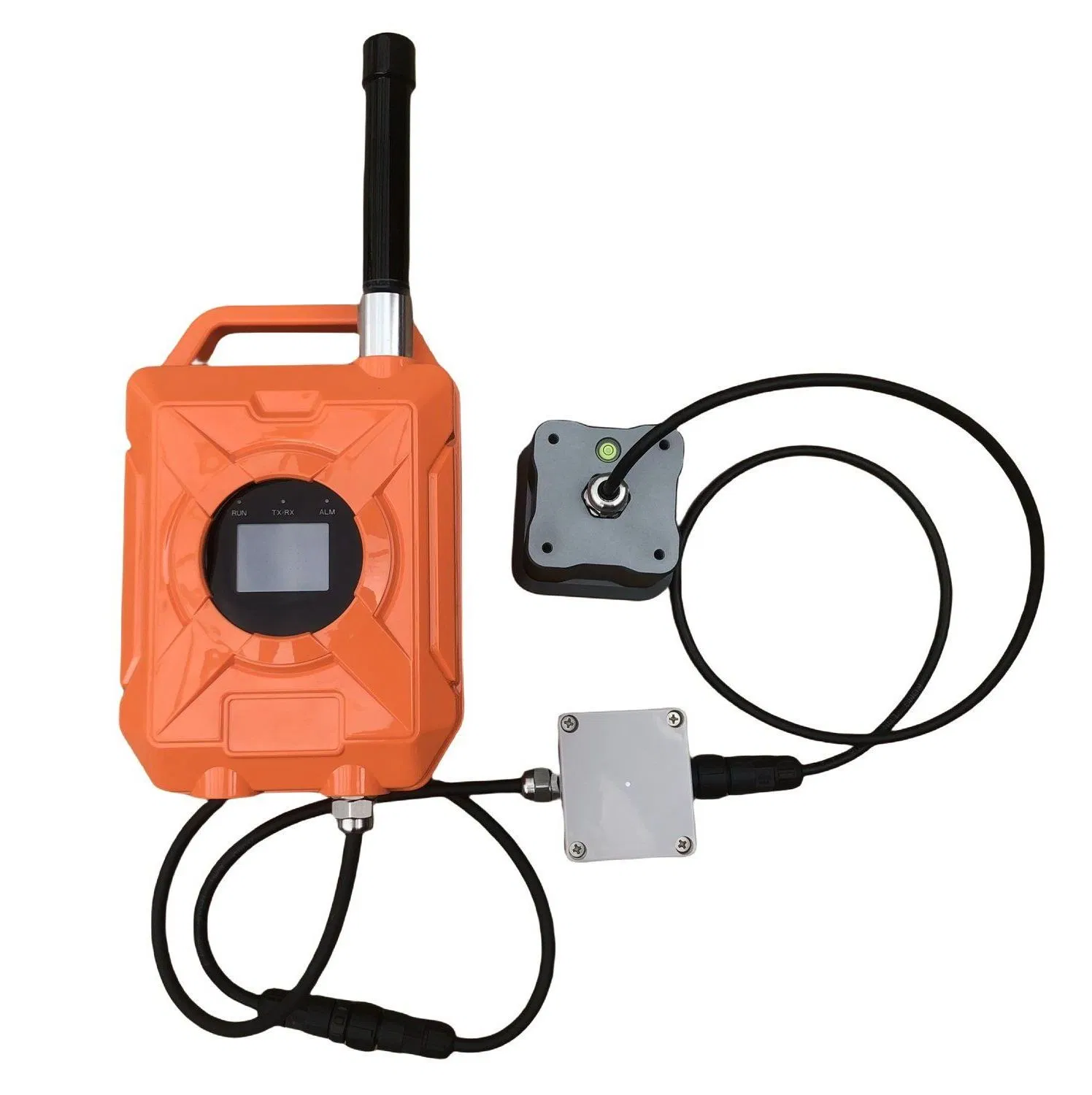

The manhole water level monitor is a battery-powered device featuring ultra-low power consumption, IP68-rated protection, and wireless communication capabilities. It is specifically designed for monitoring applications in harsh environments such as manholes where power supply infrastructure is unavailable.

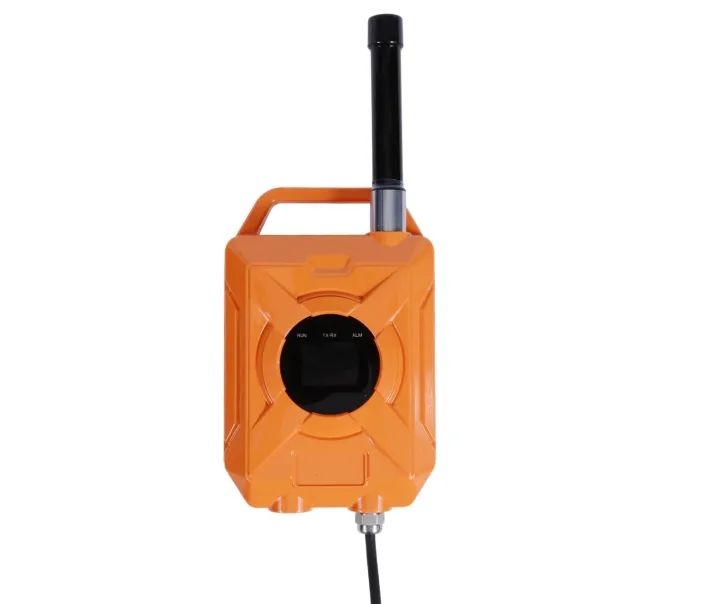

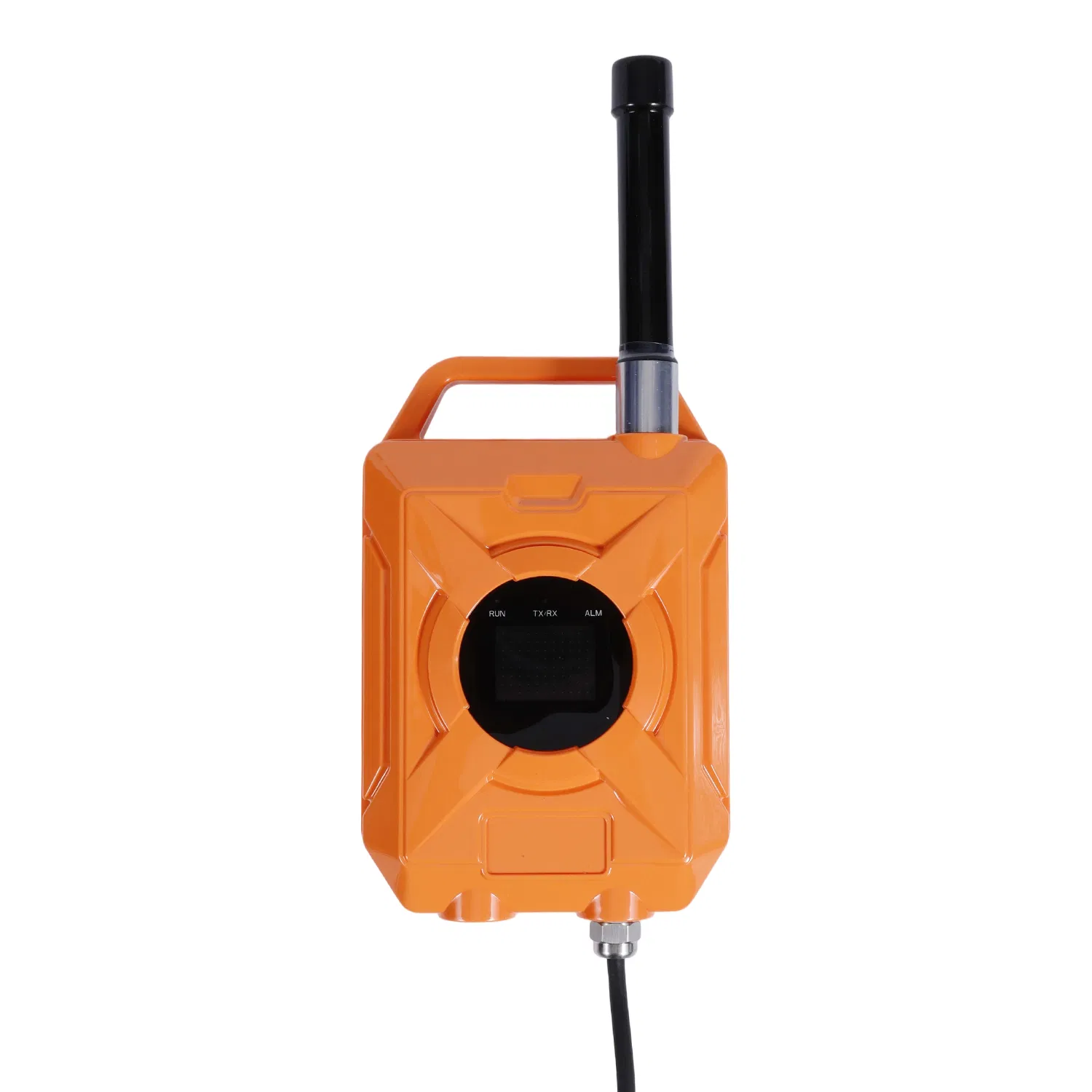

The device is equipped with a high-definition LCD screen for real-time data viewing and supports 4G wireless communication. Users can remotely monitor data through a cloud platform. Powered by long lifespan battery, it features easy installation and stable operation.

🛠️ Solutions for Your Pain Points

✔ Real time monitor the water level in the manhole, configure alarm parameters.

✔ Remote monitoring of reservoir water levels, avoid overflow and flood.

✔ Water tank leak warning.

Key Features

1. Wide applicability across multiple environments.

2. Real-time alerting and remote configuration.

3. Ultra-low power consumption and long lifespan.

4. IP68 protection, waterproof and moisture-resistant.

5. Non-contact measurement reduces maintenance.

Core Functions

🔹 Data Sampling

🔹 Parameter configuration

🔹 External wake-up

🔹 Data breakpoint resume

🔹 Remote operation and maintenance

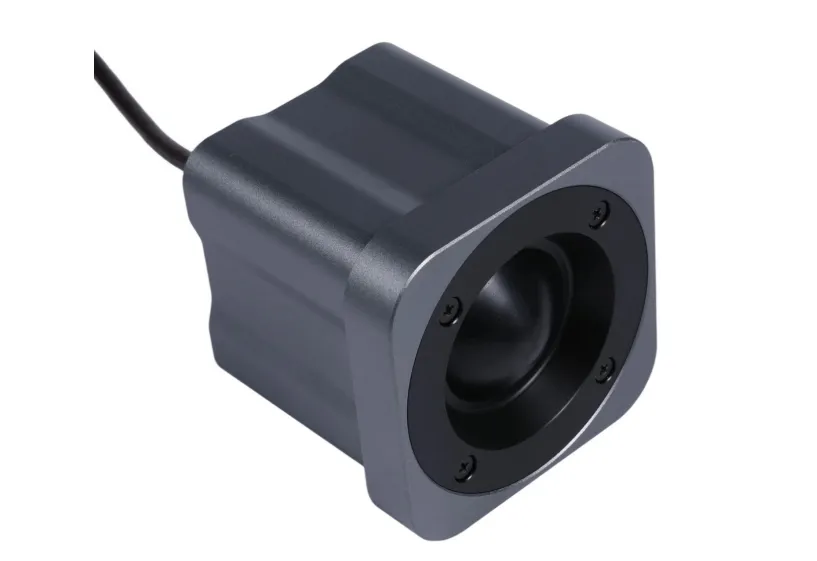

📡 Advanced Radar Technology

Utilizing FMCW (Frequency-Modulated Continuous Wave) technology with a 60GHz millimeter-wave radar signal. This sensor provides high accuracy and stability, remaining unaffected by temperature, air pressure, dust, or pollutants. The optimized algorithm ensures precision even in harsh wind and vibration conditions.

📋 Technical Specifications

Parameter	Specification	Parameter	Specification
Model	SR500-L-YO-YF	Transmission interval	300~65535s(configurable)
Measurement principle	Millimeter-wave radar	Sampling interval	60~65535s(configurable)
Measurement range	0.2~10m	Protection rating	IP68
Measurement accuracy	±2mm	Battery lifespan	≥3 years
Battery capacity	76AH	Explosion proof	Ex ia IIC T3 Ga
Communication mode	4G / MQTT	LCD display	1.77" LCD TFT Color

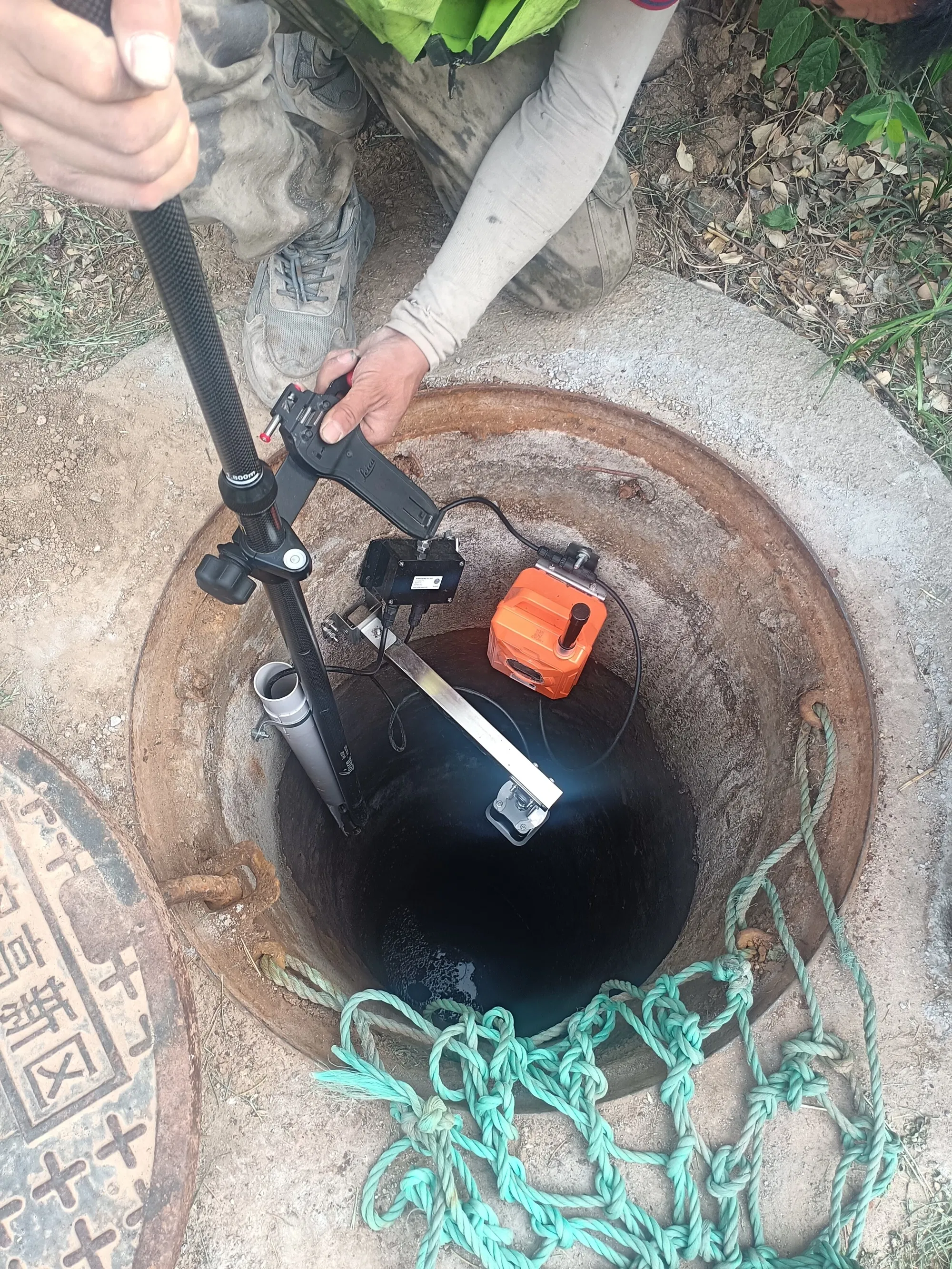

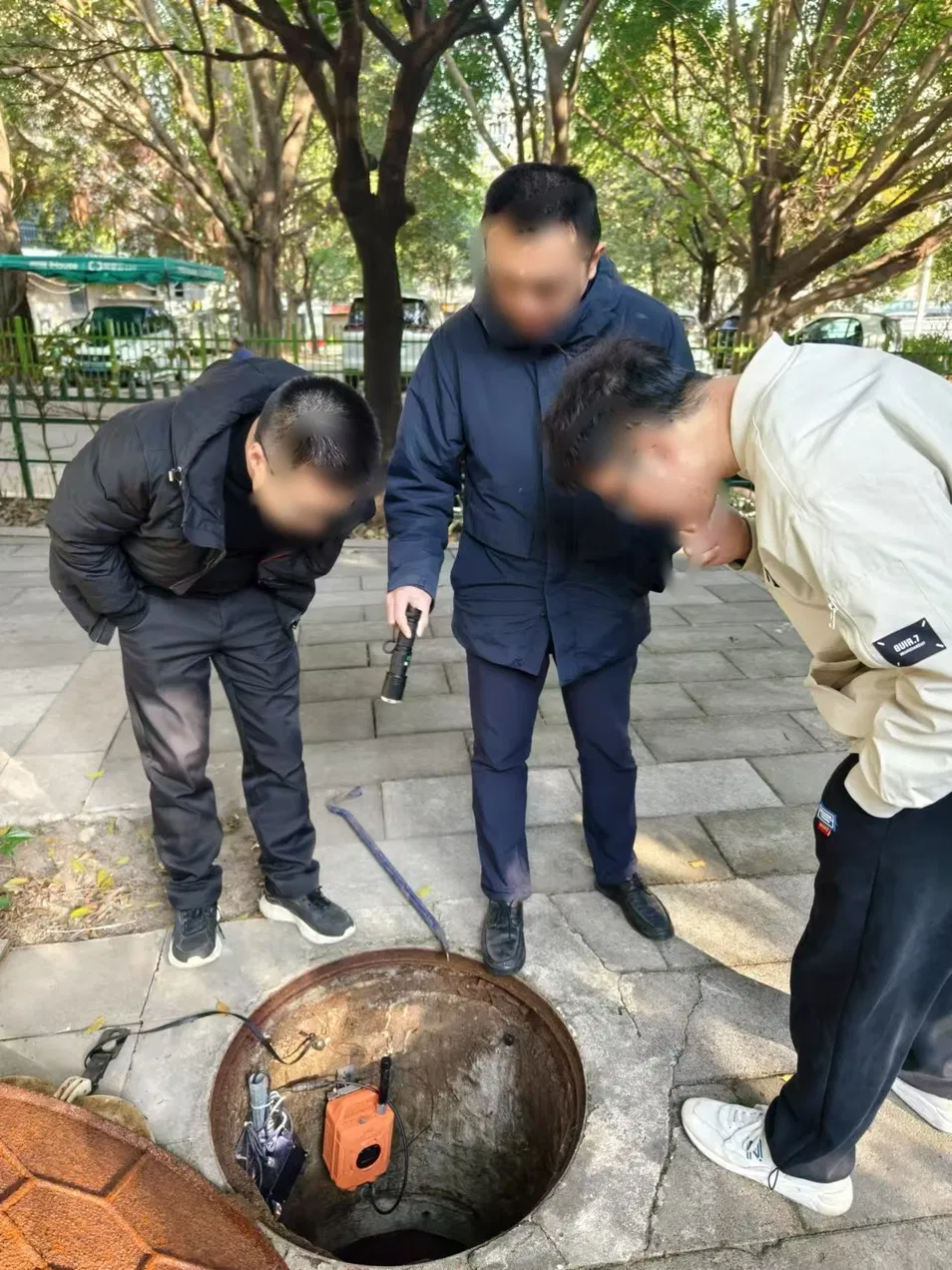

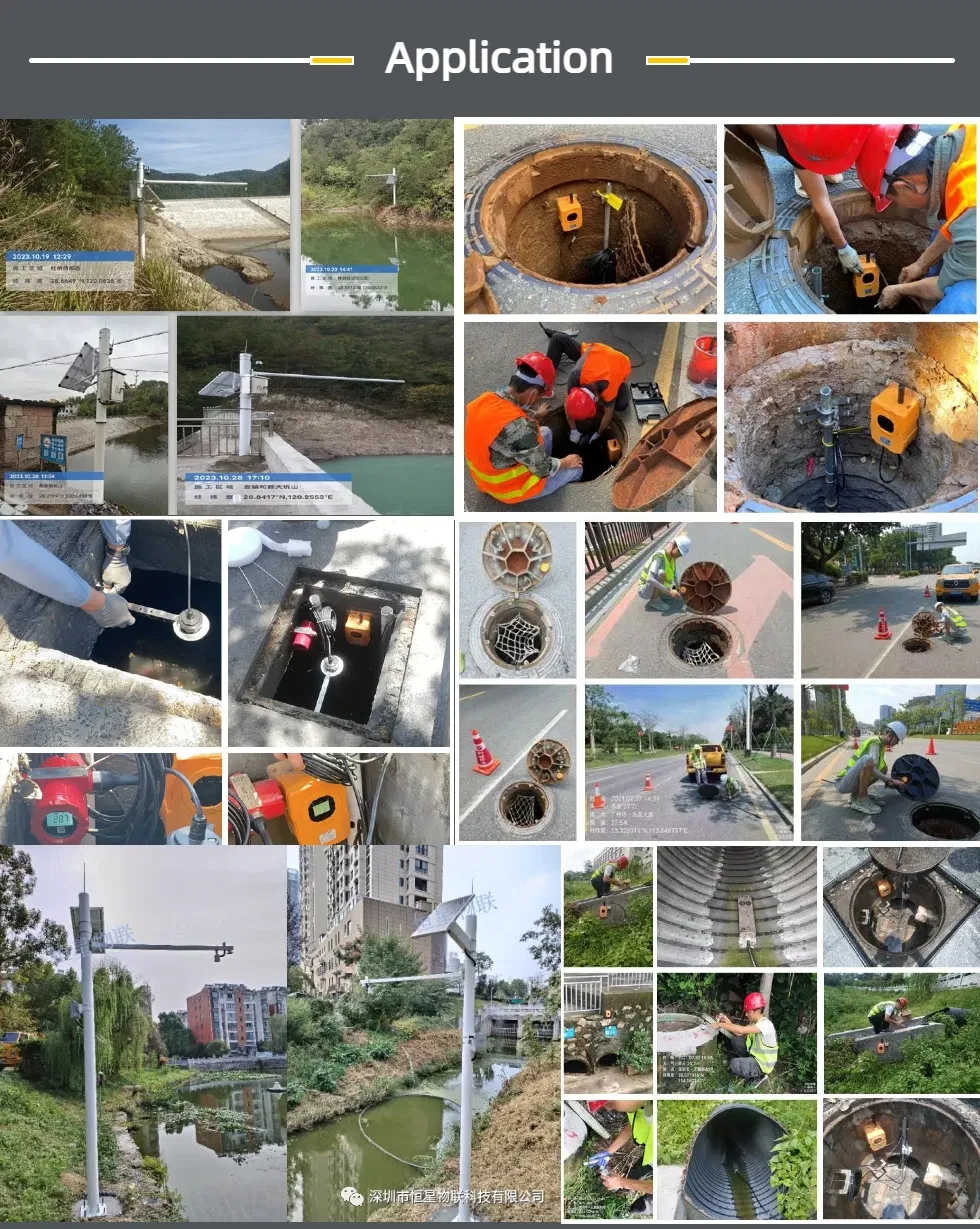

🌍 Field Applications

📦 Packaging & Delivery

Package Size

40.00cm * 40.00cm * 30.00cm

Gross Weight

10.000kg

Lead Time

7 days (1 - 10 Sets); To be negotiated (> 10 Sets)

❓ Frequently Asked Questions

Q: What's the measurement principle of the sensor?

A: It uses 60GHz FMCW millimeter-wave radar technology for non-contact, high-precision measurement.

Q: What is the typical lead time for orders?

A: Standard models typically ship in 15–30 days, while customized units require approximately 30–45 days.

Q: Can I request a customized order for specific requirements?

A: Absolutely! We offer comprehensive OEM and ODM services to meet your specific application needs.

Q: How long does the battery last?

A: The device is designed with ultra-low power consumption, providing a battery lifespan of 3 years or more depending on sampling intervals.

Q: What export documents do you provide?

A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.

Q: Is the device suitable for outdoor flooding conditions?

A: Yes, with an IP68 protection rating, the monitor is fully waterproof and designed to operate in harsh manhole and reservoir environments.
