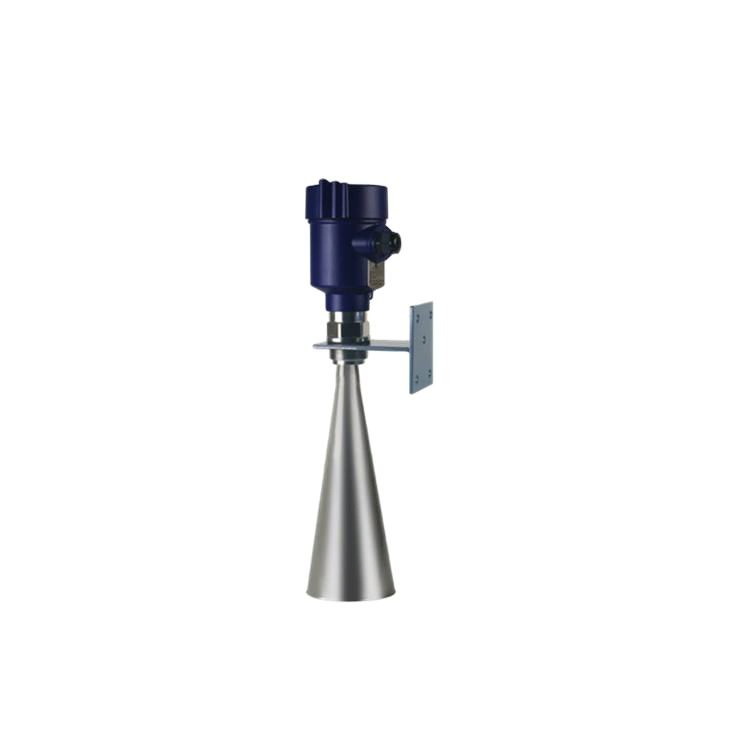

Water Gauge Radar Level Measurement for Water Tanks

Customization:	Available
After-sales Service:	1 Year
Principle:	Vibration Sensor

Send Inquiry

Product Description

Basic Specifications

Model NO.

Radar level indicator

Range

>0-30m

Measurement Accuracy

±3mm

Accuracy

0.1%

Kind

Radar

Structure

Split Type

Warranty

1 Year

Certification

CE, RoHS

Material

SS360L

Process Temperature

-40~250℃

Origin

China

Product Description

Radar level transmitter emits a very narrow microwave pulse, the pulse travels at the speed of light in space. When it encounters the surface of the measured medium, part of its energy is reflected back and received by the same antenna. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium.

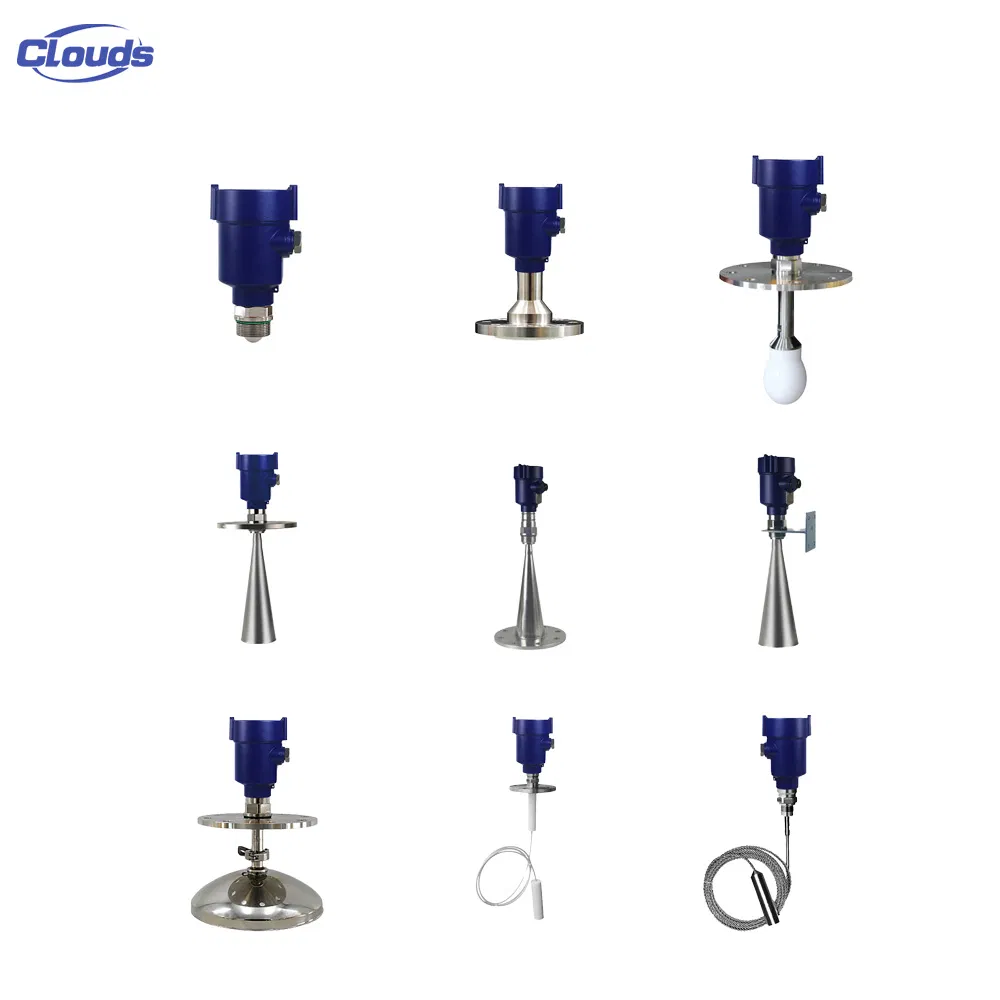

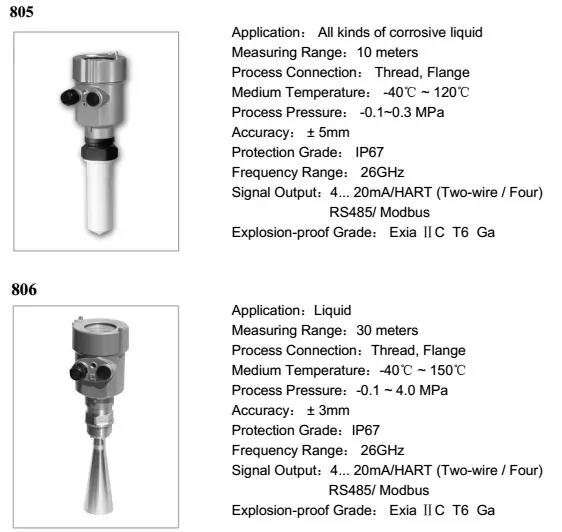

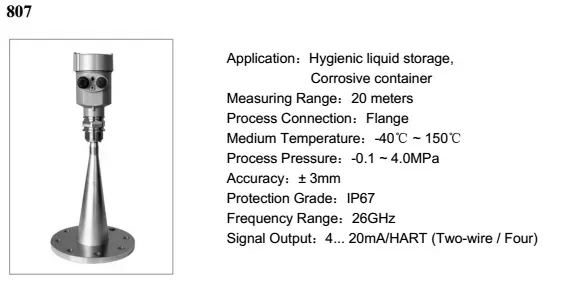

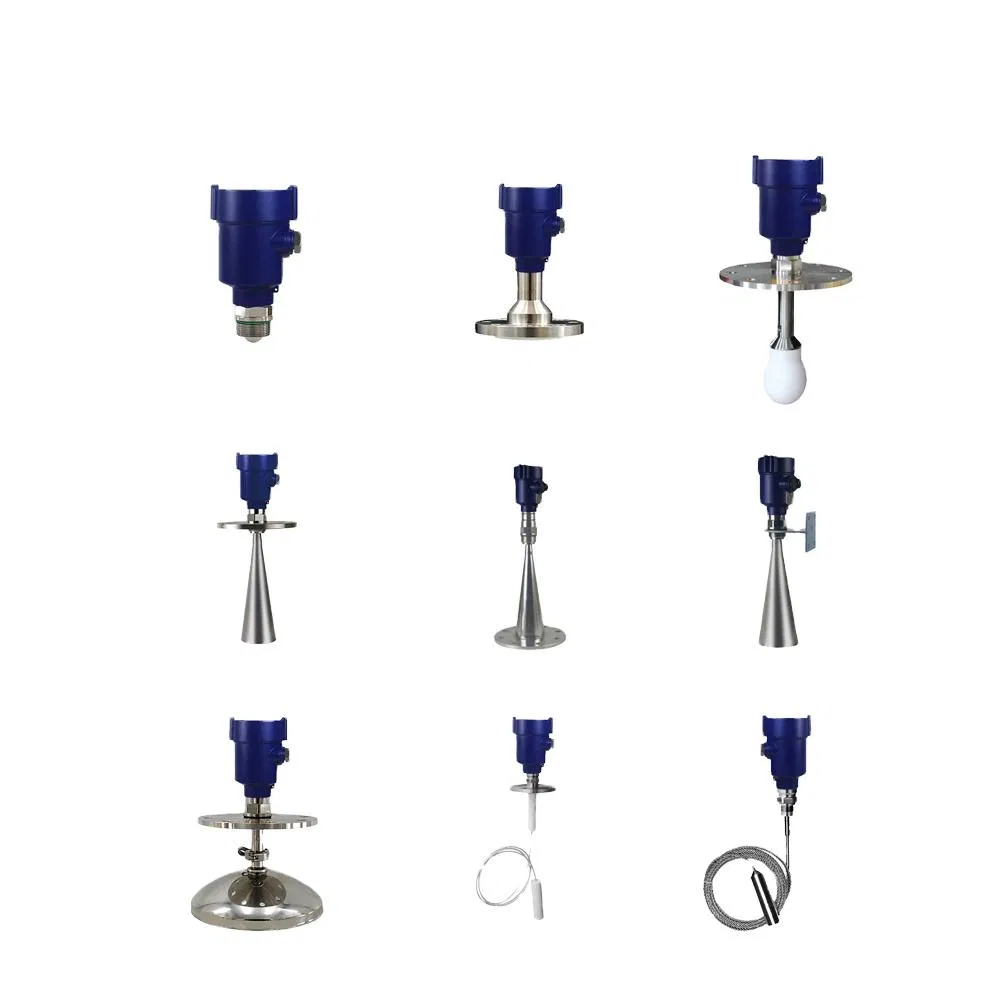

Model	YLR805	YLR806	YLR807	YLR808	YLR809	YLR810
Application	Corrosive liquid	Temp/pressure resistance	Hygienic storage	Solid material	Solid particles	Strong dust
Range	10m	30m	20m	70m	35m	70m
Pressure	-0.1~0.3 MPa	-0.1~4.0 MPa	-0.1~0.1 MPa	-0.1~0.1 MPa	-0.1~4.0MPa	-0.1~4.0MPa
Accuracy	±5mm	±3mm	±15mm	±15mm	±10mm	±3mm

Key Features

Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Almost no corrosion or bubble effect; unaffected by water vapor, temperature, or pressure changes.
Minimal impact from serious dust environments on high-level meter performance.
Shorter wavelength provides better reflection on solid surface inclinations.
Small beam angle with concentrated energy to enhance echo and avoid interference.
High signal-to-noise ratio for better performance in level fluctuation states.
High frequency, ideal for measurement of solids and low dielectric constants.
