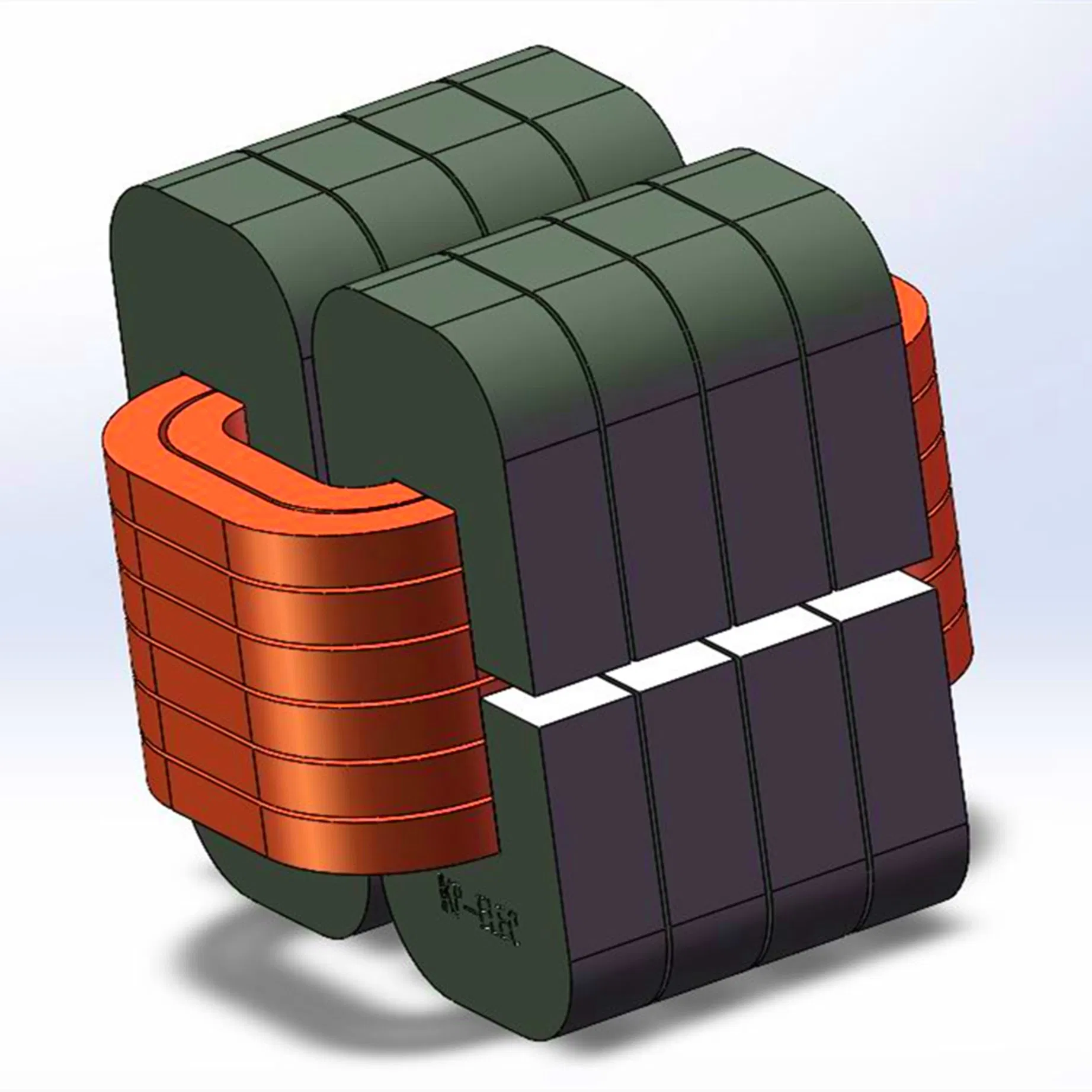

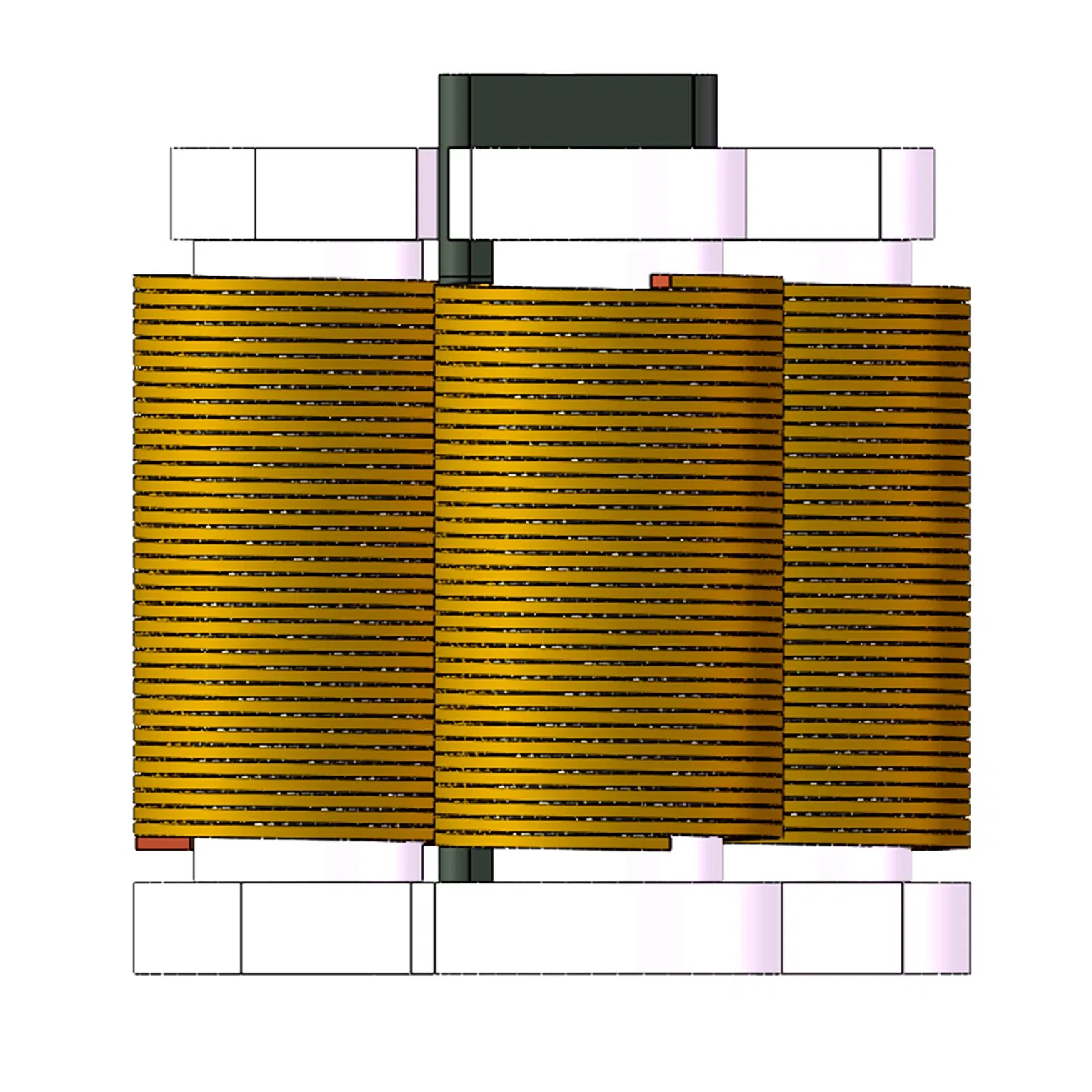

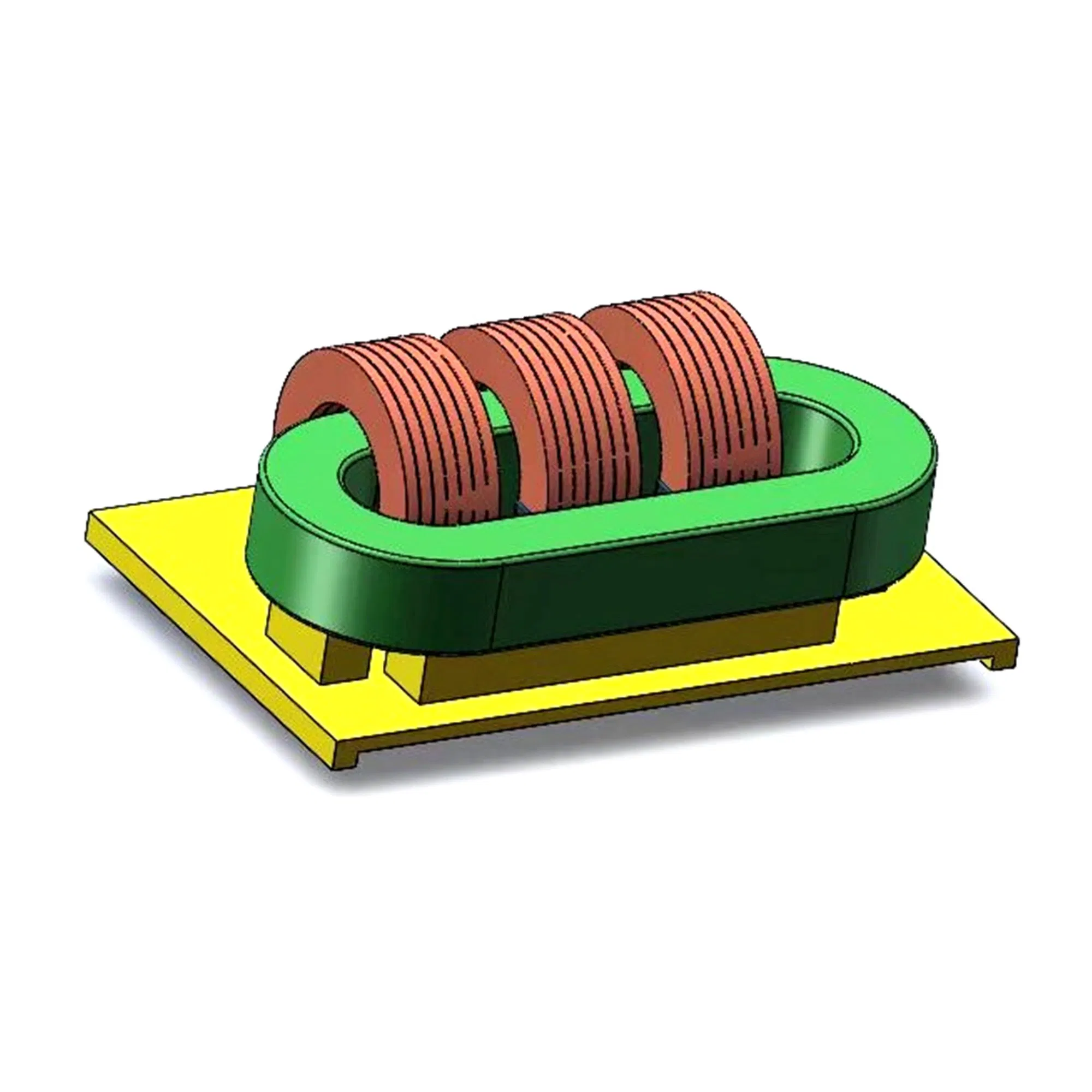

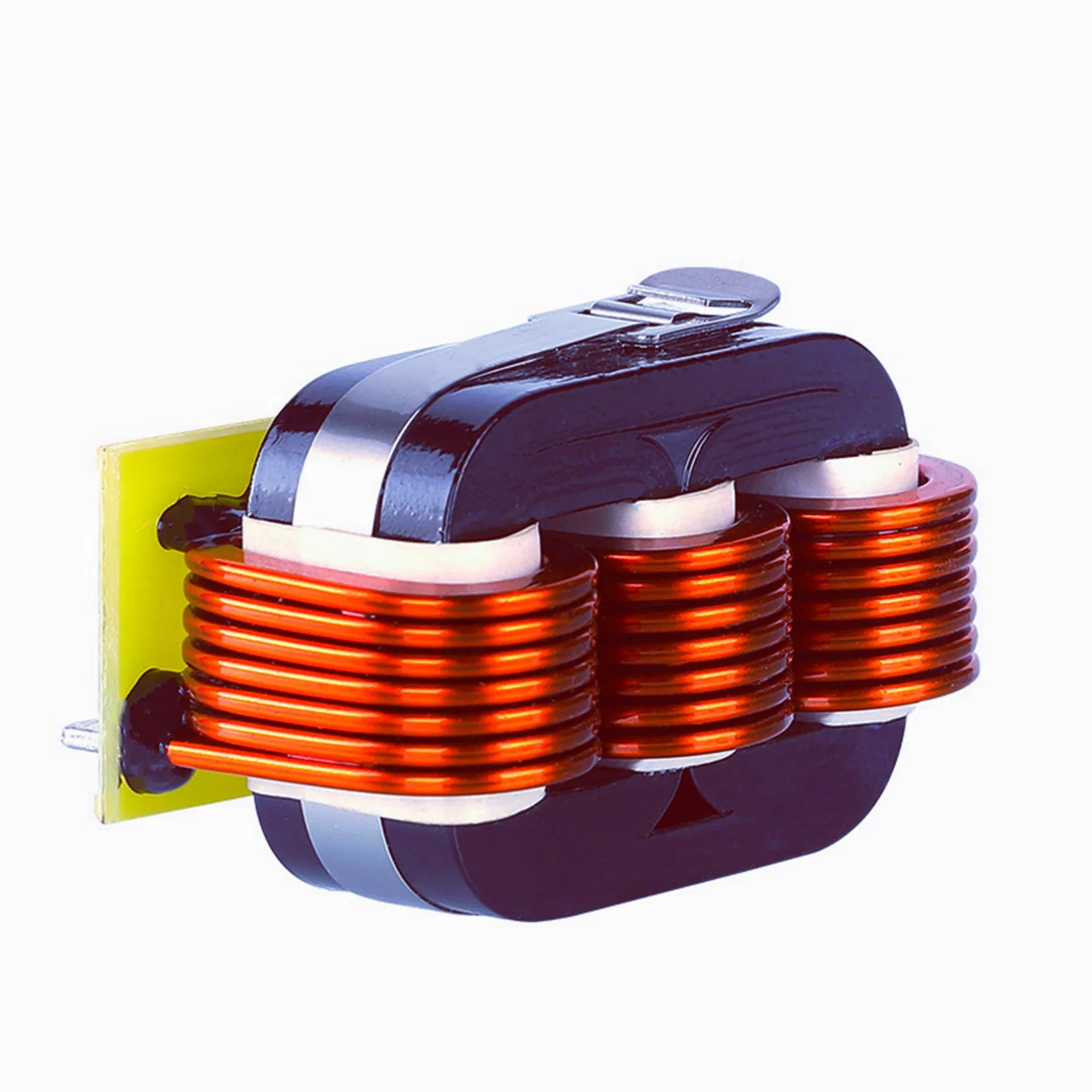

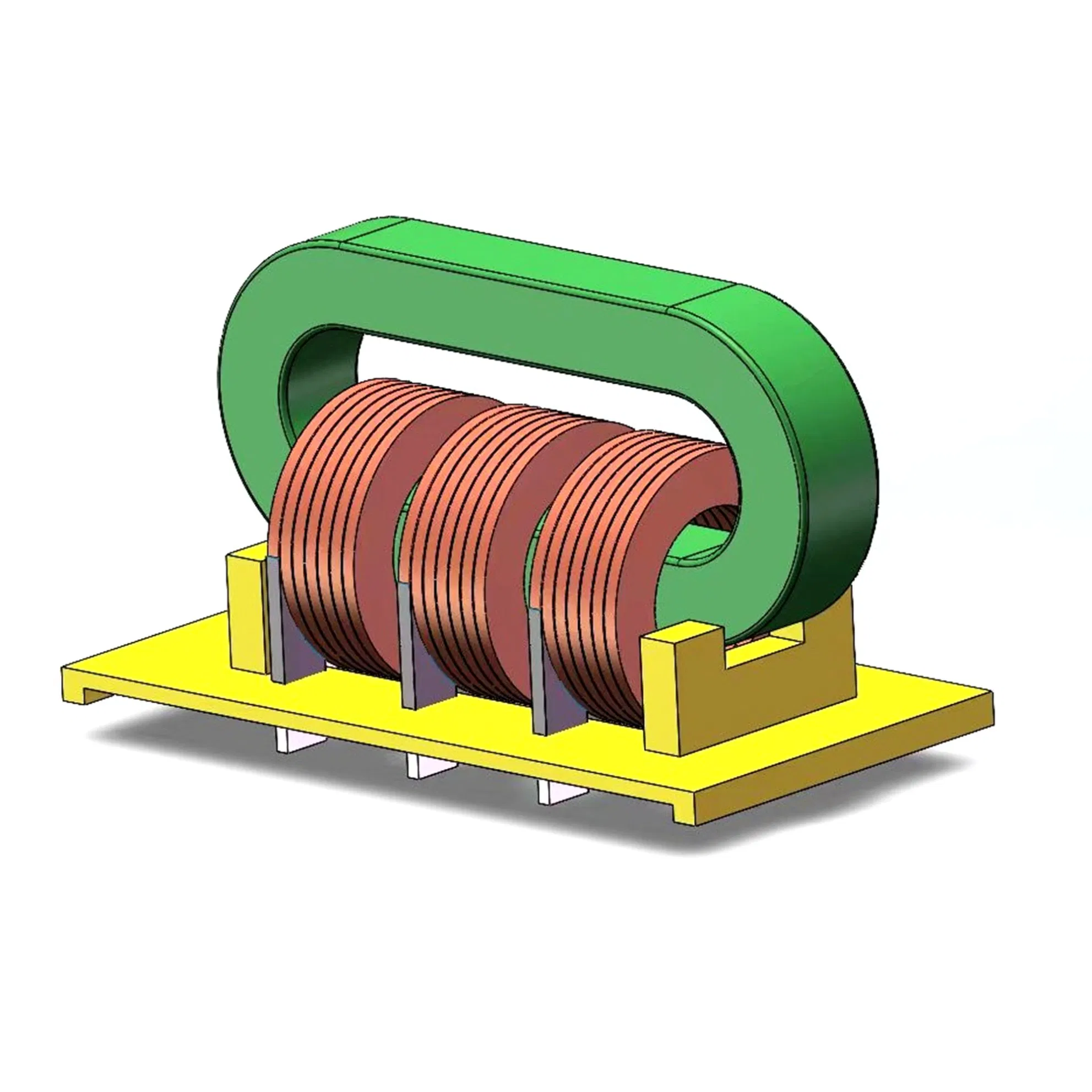

Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
1 / 5
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke
Extra Low Audio Noise Power Coils Wireless Charger Coil Choke

Extra Low Audio Noise Power Coils Wireless Charger Coil Choke

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
IKP-REACTOR-FLAT-WIRE-WOUND-05
Working Frequency
Low Frequency
Structure of Winding
Single Coil
Nature of Operation
Choke Coil
Magnetizer Structure
Ferrite Coil
Range of Application
Choke
Packaging Form
Power Coils
Inductor Value
Fixed Inductor
Noise Level
Extra Low Audio Noise
Design
Open Structure Modification
Transport Package
Carton
HS Code
850431
Production Capacity
100,000 pieces/Year

Product Performance & Features

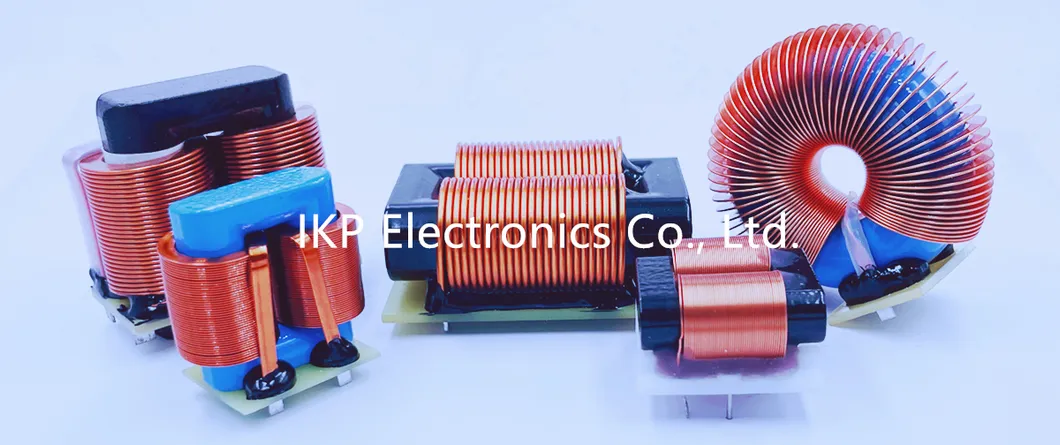

Power Coils

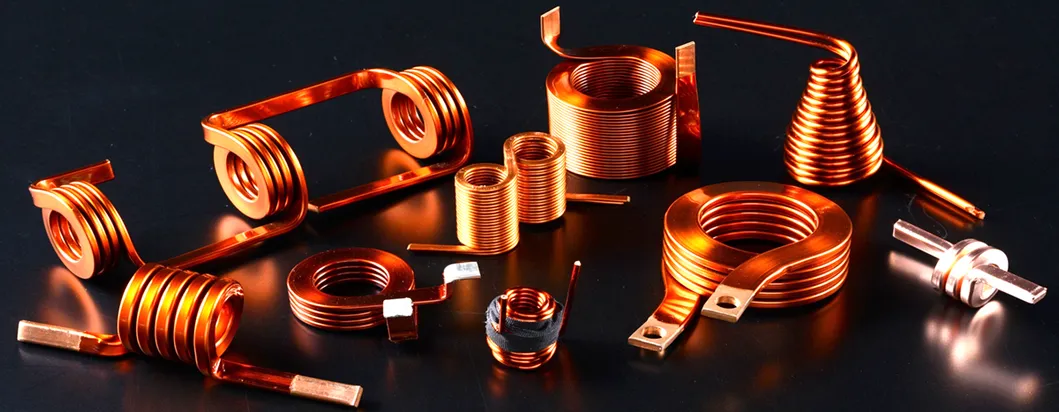

Wireless Charger Coil Choke
  • ✓ Power Range: 20~300kW
  • ✓ Grade: Premium-S
  • ✓ Superior EMC/EMI Performance
  • ✓ H-mounting & V-mounting options
  • ✓ High Frequency 20~50KHz
  • ✓ Extra Low Audio Noise
  • ✓ Competitive Cost Performance
  • ✓ Open Structure for Easy Modification

Applications & Scope

Primary Fields: PV (Photovoltaic), Energy Storage, Charge Piles, Inverter, PFC, UPS, Server, Wind Power.

Single and three phase inductors specifically designed for photovoltaic inverters:

  • Compact inverters
  • Modular inverters
  • Inverters with or without galvanic insulation

Reactor Types:

1. DC common mode Reactors (Panel side): Attenuate harmonic components of common mode between photovoltaic panels and inverter input.

2. Reactors for LCL filter (Network side): Filter voltage harmonics caused by PWM modulation, adjusting output voltage to a sine wave for network connection.

Reactor Diagram
Product Specifications

Frequently Asked Questions

What is the power range for these reactors?
The power range covers from 20kW up to 300kW, suitable for various industrial applications.
How does the "Extra Low Audio Noise" feature benefit the application?
The low audio noise design ensures quiet operation in sensitive environments like server rooms or residential PV installations.
Are there different mounting options available?
Yes, the product supports both H-mounting and V-mounting configurations to fit different mechanical layouts.
Can the structure be modified for specific project needs?
The open structure of the reactor is specifically designed to allow for easy modifications based on customer requirements.
What are the primary applications for the LCL filter reactors?
They are used on the network side to filter voltage harmonics from PWM modulation, ensuring a clean sine wave connection to the grid.
What is the annual production capacity for this model?
The facility has a production capacity of 100,000 pieces per year for this product line.
