Low Frequency Single Ikp Carton Wireless Charging Coil Boost Choke

1 / 5

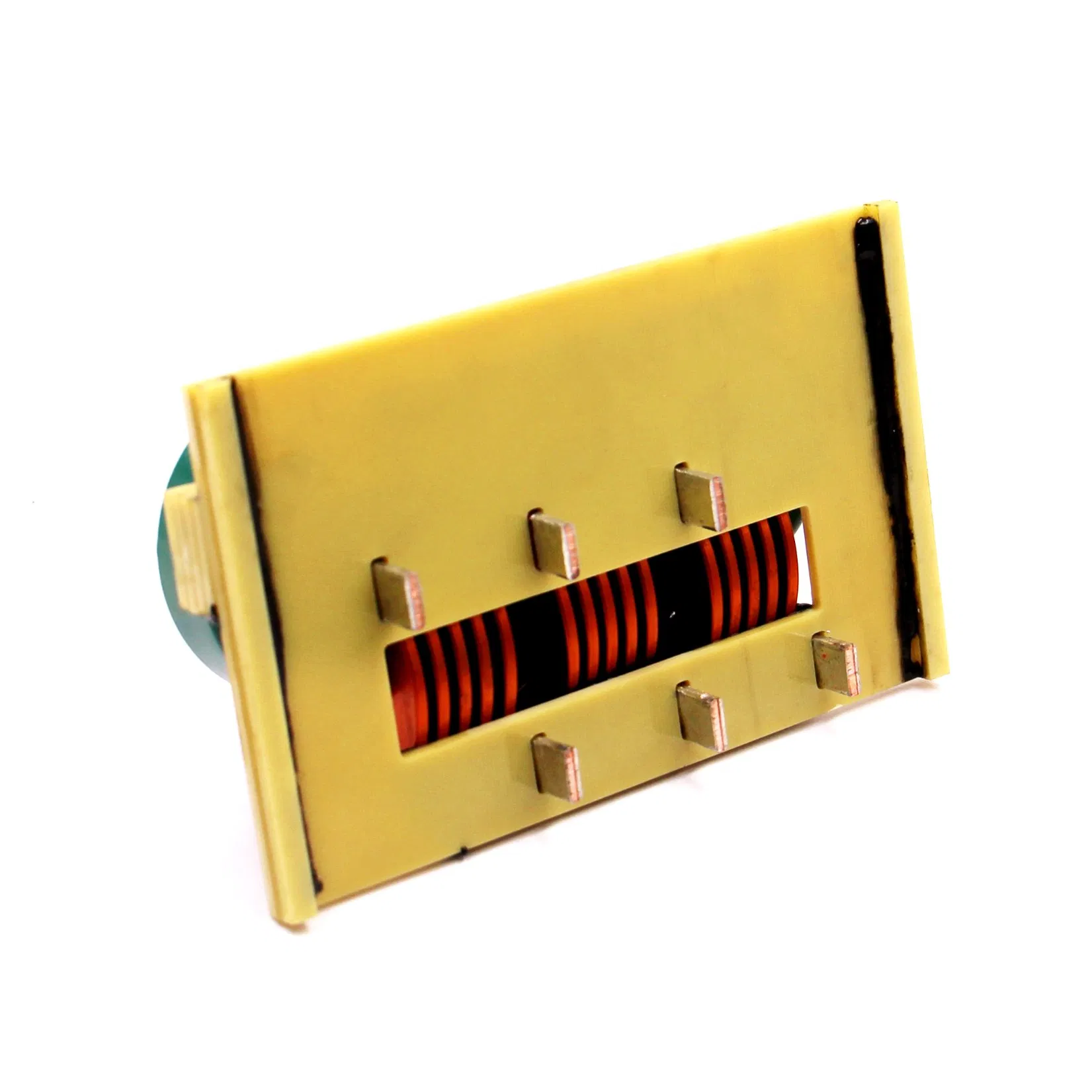

Low Frequency Single Ikp Carton Wireless Charging Coil Boost Choke

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

IKP-REACTOR-FLAT-WIRE-WOUND-05

Working Frequency

Low Frequency

Structure

Single Coil

Operation

Choke Coil

Magnetizer

Ferrite Coil

Application

Choke / Power Coils

Inductor

Fixed Inductor

Noise Level

Extra Low Audio Noise

Capacity

100,000 pieces/Year

Origin

China

Core Features

Power Range: 20~300kW

Premium-S Grade Quality

Superior EMC/EMI Performance

Flexible H-mounting & V-mounting

High Frequency Support: 20~50KHz

Extra Low Audio Noise Level

Competitive Cost Performance

Open Structure for Easy Modification

⚡ Primary Applications

This high-performance reactor is engineered for demanding industrial environments, including:

Photovoltaic (PV) Systems

Energy Storage Solutions

EV Charging Piles

Inverters & PFC Units

UPS & Server Power Supplies

Wind Power Generation

In-depth Performance

Photovoltaic Inverter Integration: Specifically designed for single and three-phase inductors in compact and modular inverters, with or without galvanic insulation.

DC Common Mode Reactors: Positioned at the panel side to attenuate harmonic components of common mode noise between PV panels and inverter inputs.

LCL Filter Reactors: Network-side filtering that smooths voltage harmonics caused by PWM modulation, ensuring a clean sine wave output for stable grid connection.

❓ Frequently Asked Questions

1. What is the power capacity range for this series? These reactors are designed to handle high power requirements ranging from 20kW up to 300kW.

2. How does the "Open Structure" benefit my design? The open structure allows for easier physical modification and adjustments during the integration process, making it highly adaptable for custom projects.

3. Can this reactor reduce noise in sensitive environments? Yes, it is specifically engineered for "Extra Low Audio Noise," making it ideal for environments where acoustic quietness is required.

4. What mounting options are supported? The unit supports both Horizontal (H-mounting) and Vertical (V-mounting) orientations to fit various spatial constraints in your cabinet.

5. Is it compatible with LCL filters in grid-tie systems? Absolutely. It is designed to filter PWM-induced harmonics on the network side, adjusting output voltage to a pure sine wave for grid connection.

6. What is the working frequency range? It supports high-frequency operations between 20KHz and 50KHz, specifically optimized for modern power conversion systems.
