Technical Specifications
Model NO.

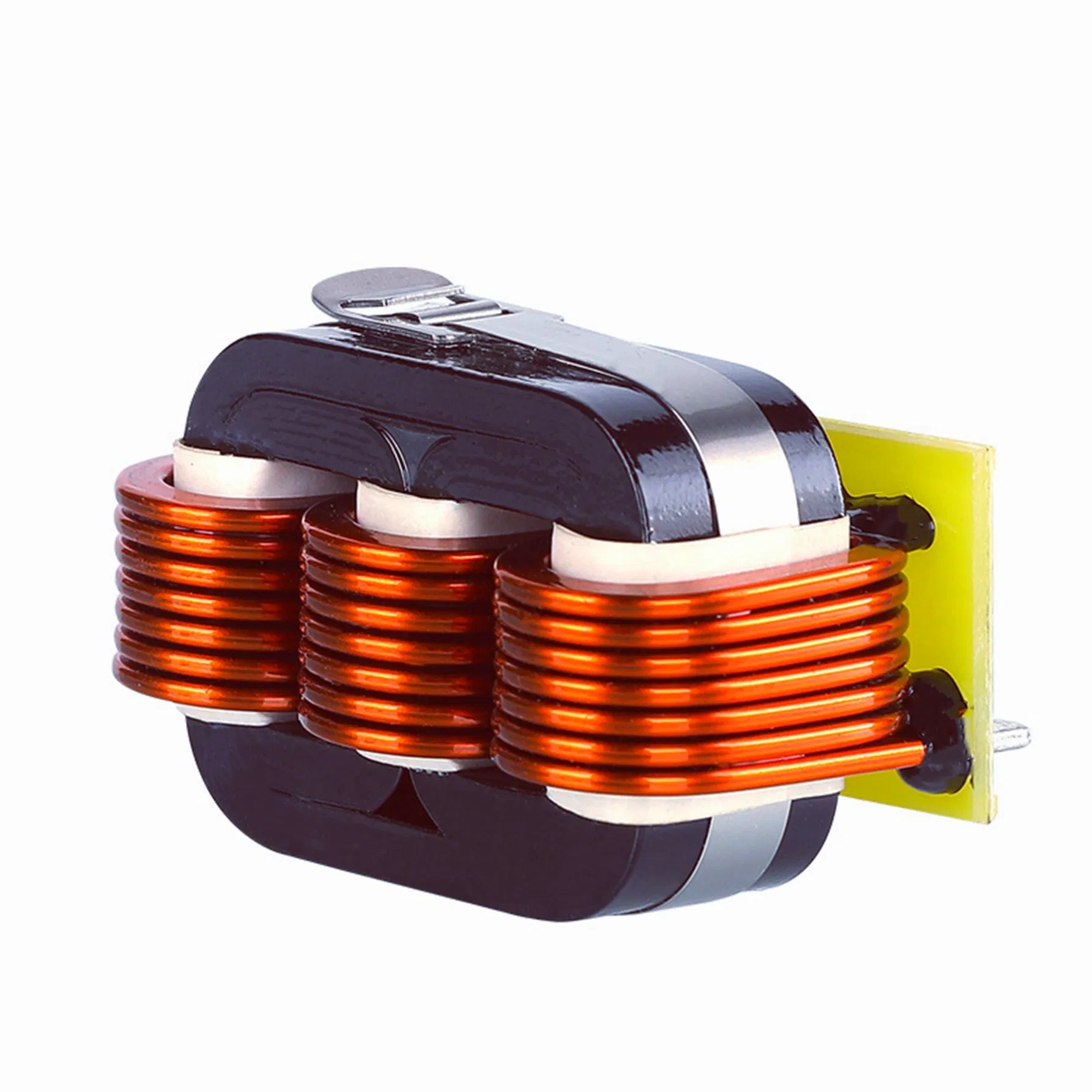

IKP-REACTOR-FLAT-WIRE-WOUND-05
Working Frequency
Low Frequency
Structure of Winding
Single Coil
Nature of Operation
Choke Coil
Structure of Magnetizer
Ferrite Coil
Range of Application
Choke
Packaging Form
Power Coils
Inductor Value
Fixed Inductor
Noise
Extra Low Audio Noise
Price Performance
Open Structure Modification
Production Capacity
100,000 pieces/Year
Key Features
🛡️
EMC/EMI
Enhanced Performance
🔊
Quiet Operation
Extra Low Audio Noise
⚙️
Frequency
20 ~ 50KHz High Frequency
Grade: Premium-S Quality Control
Flexible Mounting: H-mounting and V-mounting available
Competitive Cost Performance
Open Structure: Designed for easy modification
Industry Applications
This series of reactors is specifically engineered for high-demand power electronics including:
PV Systems
Energy Storage
Charging Piles
Inverters
PFC / UPS
Wind Power
Photovoltaic Inverter Solutions
Single and three phase inductors specifically designed for photovoltaic inverters:
- Compact Inverters
- Modular Inverters
- Inverters with or without galvanic insulation
Reactor Types:
1. DC Common Mode Reactors: Positioned at the panel side to attenuate harmonic components of common mode between photovoltaic panels and inverter input.
2. LCL Filter Reactors: Positioned at the network side to filter voltage harmonics caused by PWM modulation, adjusting output voltage to a sine wave for network connection.
Frequently Asked Questions
What is the power range supported by these reactors?
The flat wire wound reactors support a wide power range from 20kW up to 300kW.
Are there different mounting options available?
Yes, the product supports both Horizontal (H-mounting) and Vertical (V-mounting) configurations to suit different cabinet layouts.
How does the reactor handle acoustic noise?
These units are specifically designed for extra low audio noise, making them ideal for environments where noise pollution is a concern.
What is the primary function of the LCL filter reactor?
At the network side, the LCL filter reactor filters voltage harmonics caused by PWM modulation, ensuring the output is a clean sine wave for grid connection.
Can the structure be modified for custom needs?
Absolutely. The product features an open structure designed specifically to allow for easy modification and customization.
What industries commonly use this type of choke coil?
It is widely used in Photovoltaic (PV) power, energy storage systems, EV charging piles, UPS, and wind power applications.
