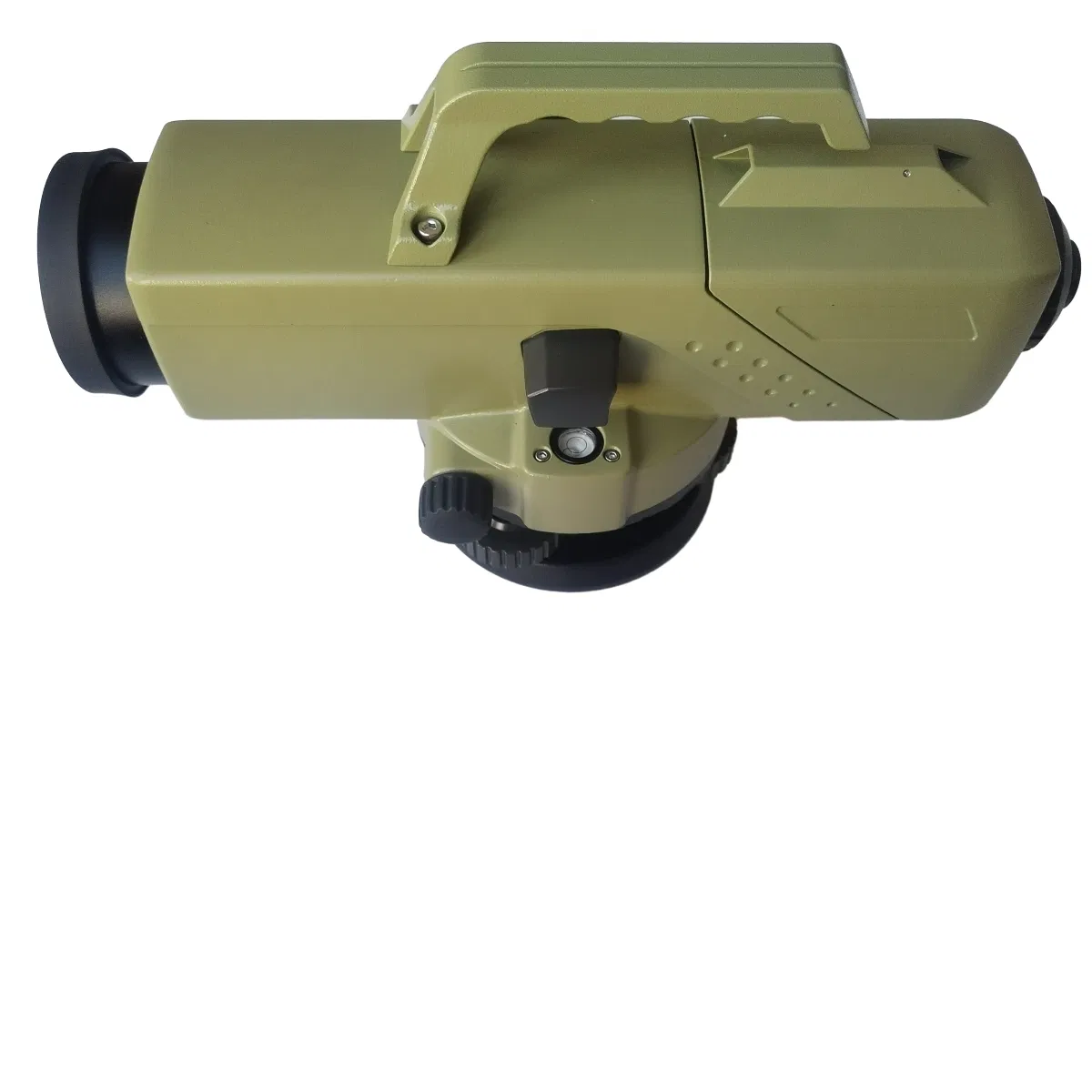

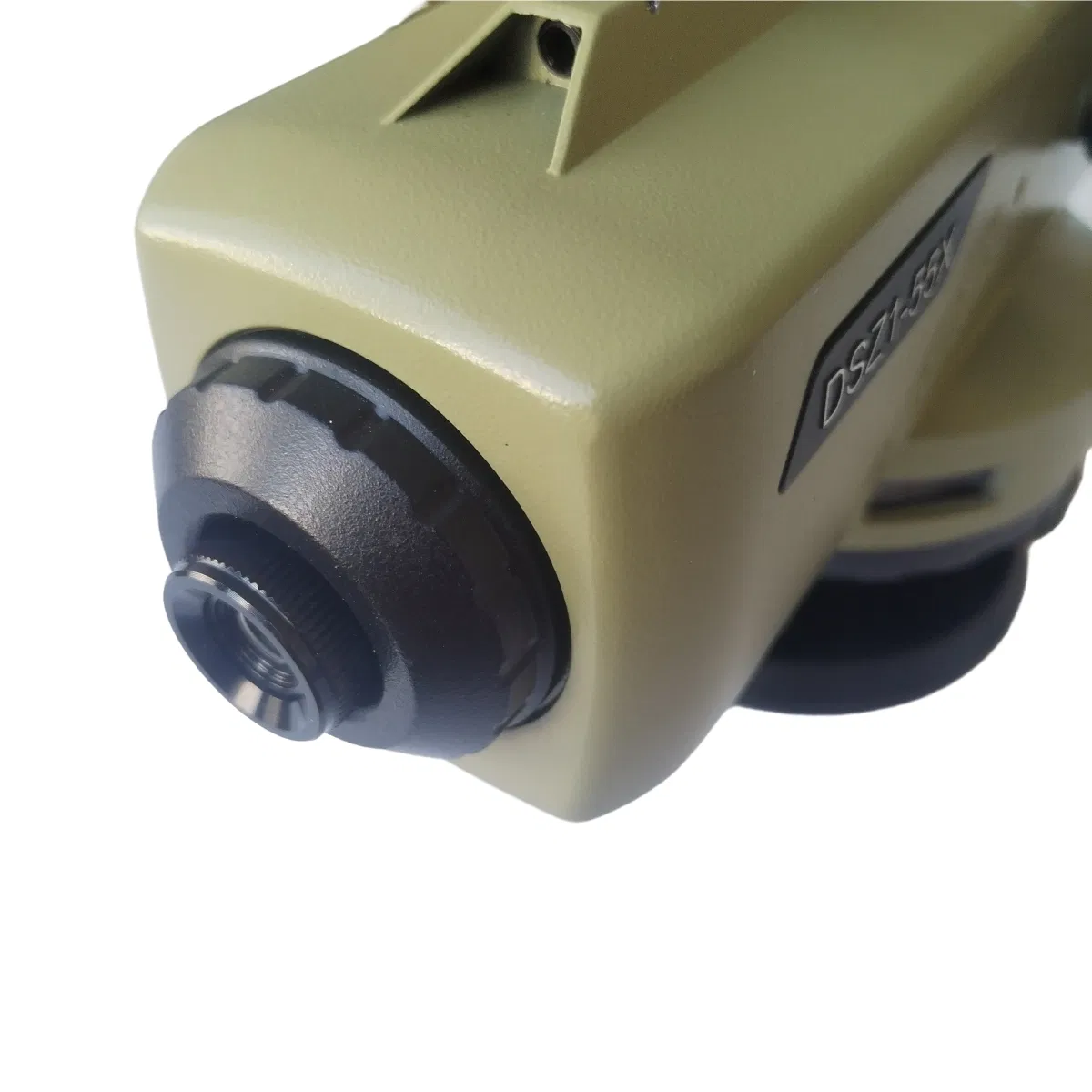

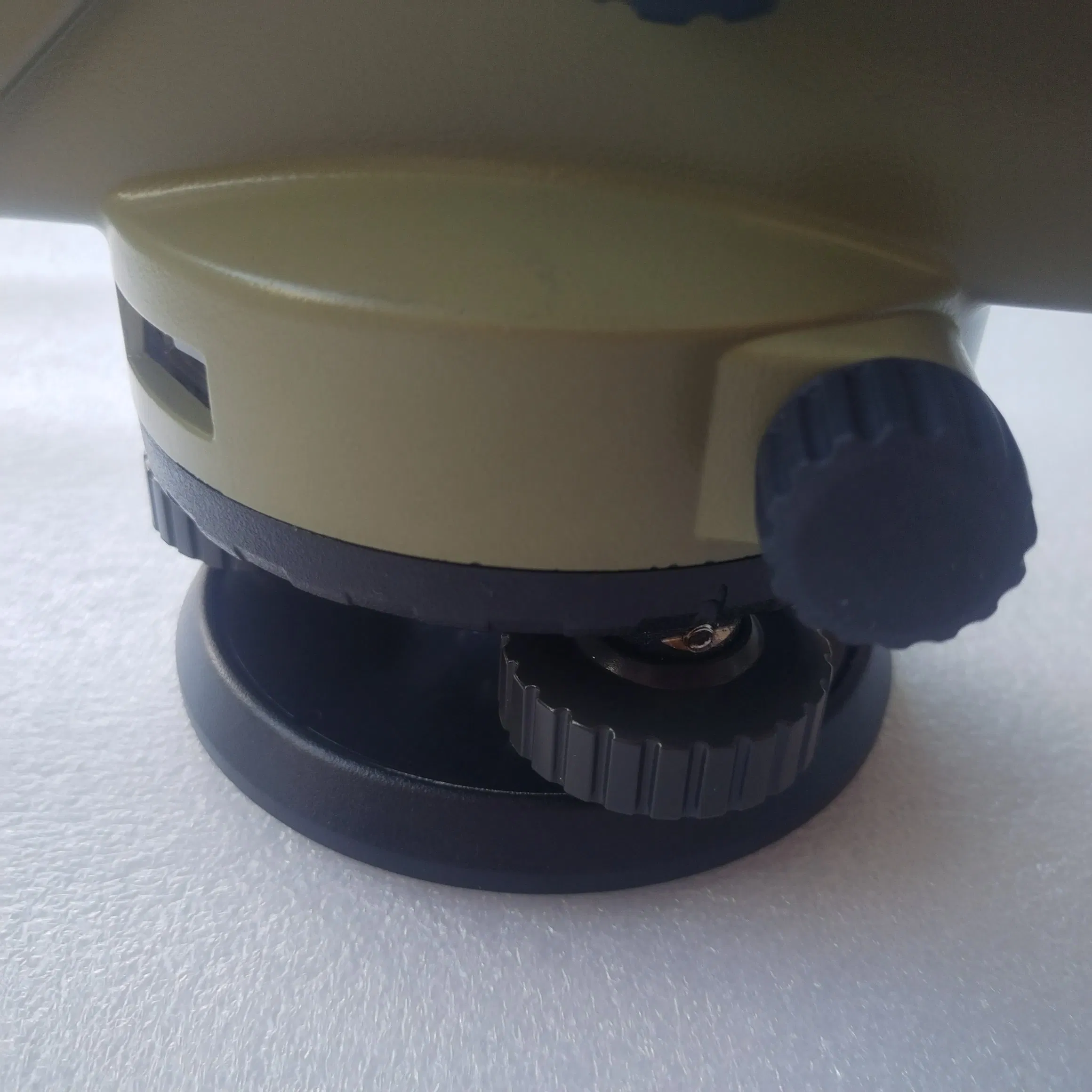

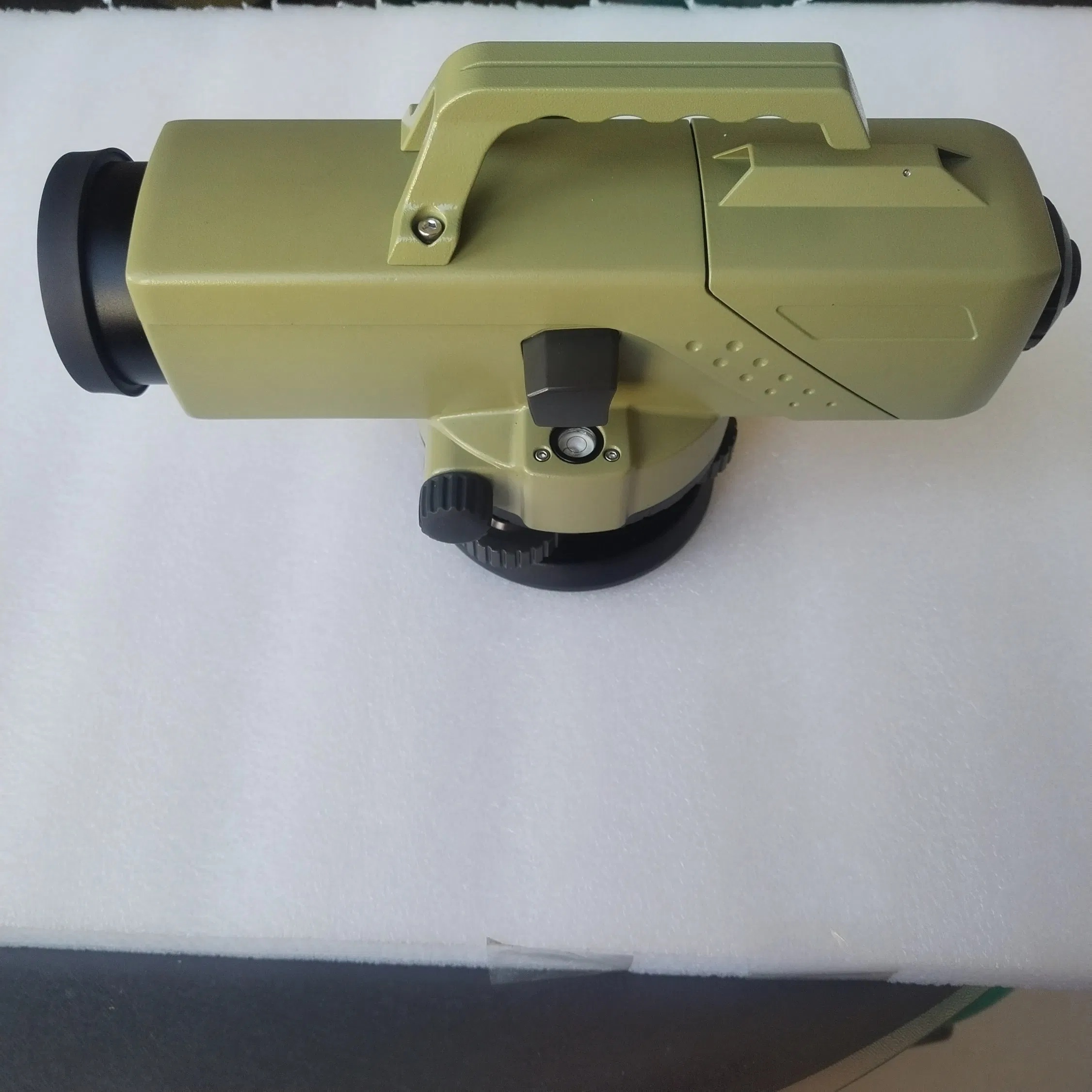

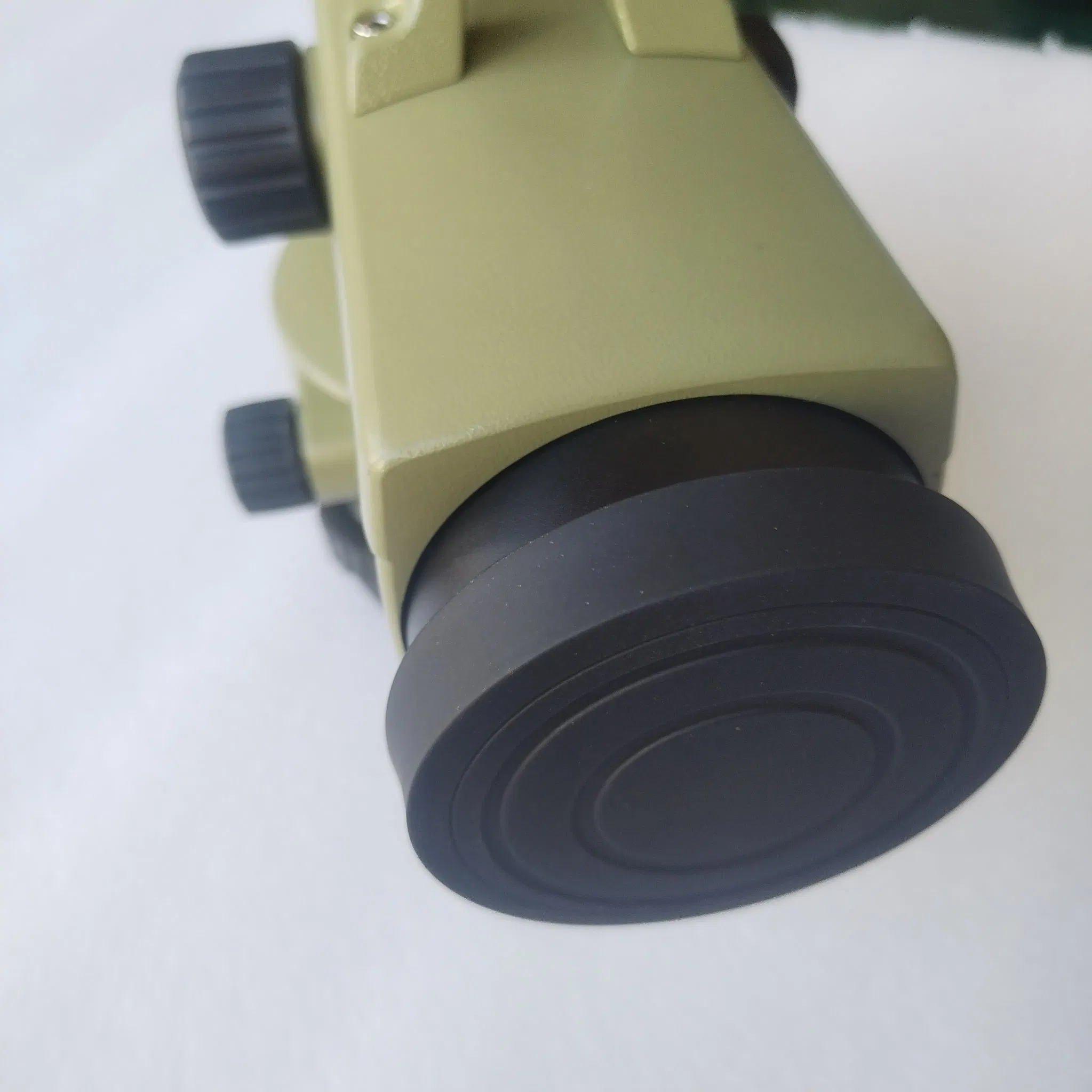

Low Price DSZ1-65X Surveying instrument Automatic Auto Level with 65X
| MODEL | DSZ1-48X | DSZ1-55X | DSZ1-65X |
|---|---|---|---|
| Mangnification | 48X | 55X | 65X |
| Image | ERECT | ||
| Reticle | Wedge | ||
| Objective Aperture | 56MM | ||
| Angel Of View | 1.1° | ||
| Resolution | ≤ 2.0" | ||
| Min View Distance | <1.0M | ||
| View Distance Error | ≤ ±0.4% | ||
| Focus Error | ≤ 0.5MM | ||
| Scale | 1° or 1gon | ||
| Compensator | Magnetic damper | ||
| Working Range | ≥ ±15′ | ||
| Bubble | 8′ / 2mm | ||
| 1KM Error | ≤ 0.7MM | ||
| Compensating Error | ≤ 0.2" | ||
| Setting Accuracy | ≤ 0.3" | ||
| Setting Time | ≤ 2s | ||
| Water Impervious | IP54 | ||
| Accessories | Manual, Plumb bob, Allen Key, Adjusting pin, Downy Cloth, Sicdative | ||
Our team is a professional manufacturer for all kinds of surveying instruments and surveying accessories such as total station collimators, RTK theodolites, auto levels, laser instruments, and accessories like batteries, chargers, and cables for total stations and GPS, as well as mini prisms, prism poles, tribrachs, adapters, wood tripods, aluminum tripods, and leveling staffs.
Providing a One Stop Solution for survey instruments and survey accessories. We supply almost all survey accessories in the field, including:
To meet various needs from different customers, we offer OEM or ODM services to facilitate business development. Our products are widely approved by many local and overseas companies and are exported globally to countries including the US, Canada, UK, Germany, Australia, and many more. We are committed to providing the best quality and most comprehensive products and services.
