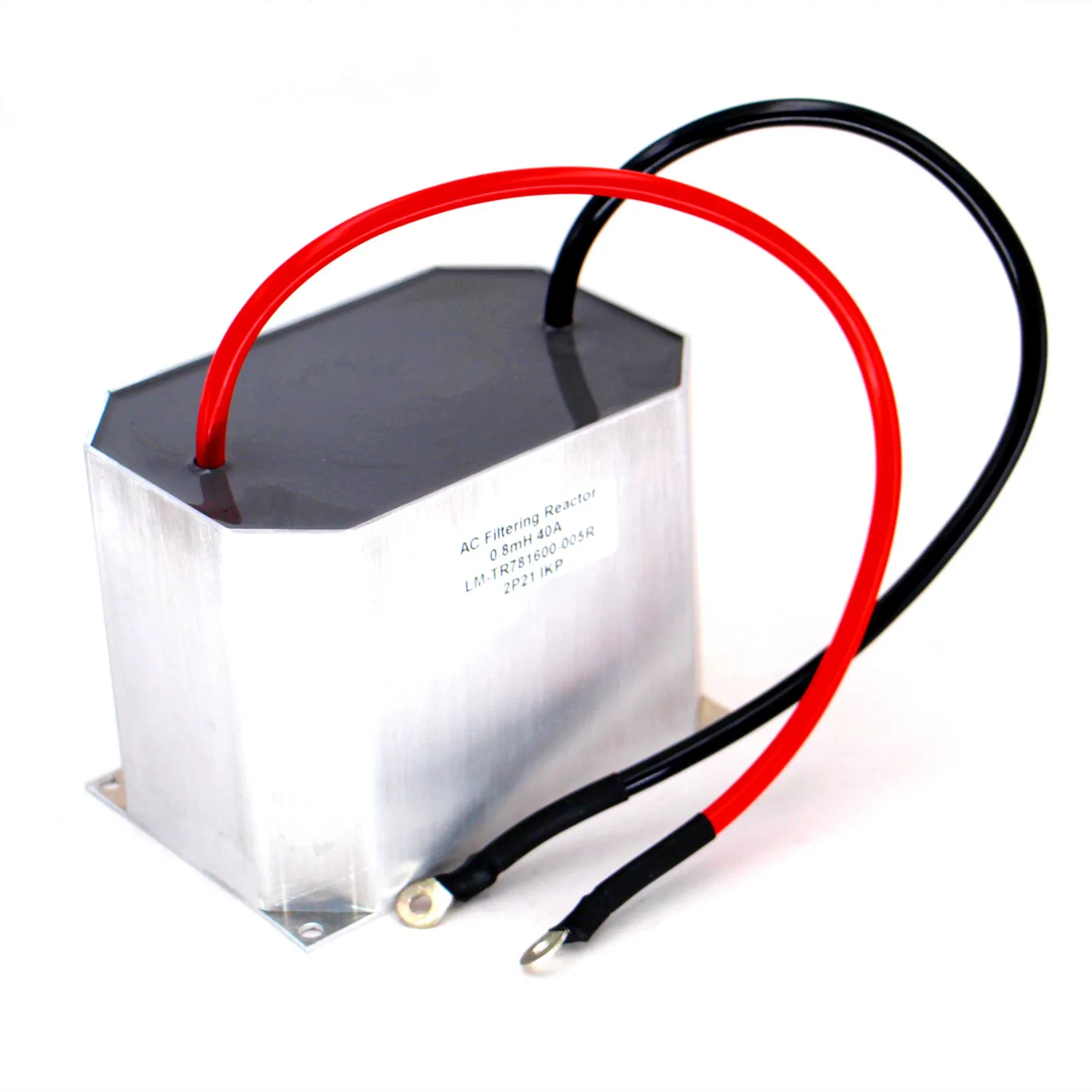

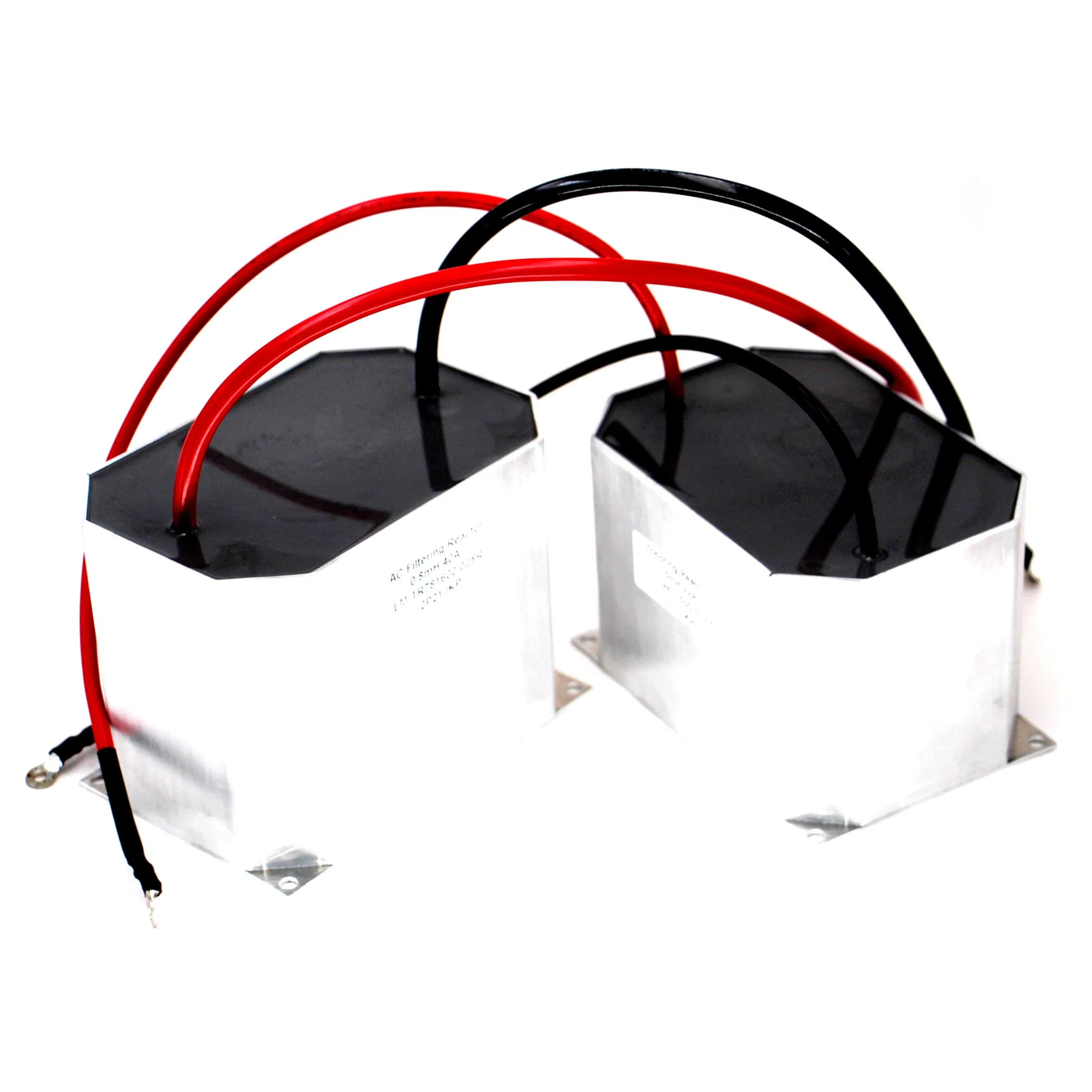

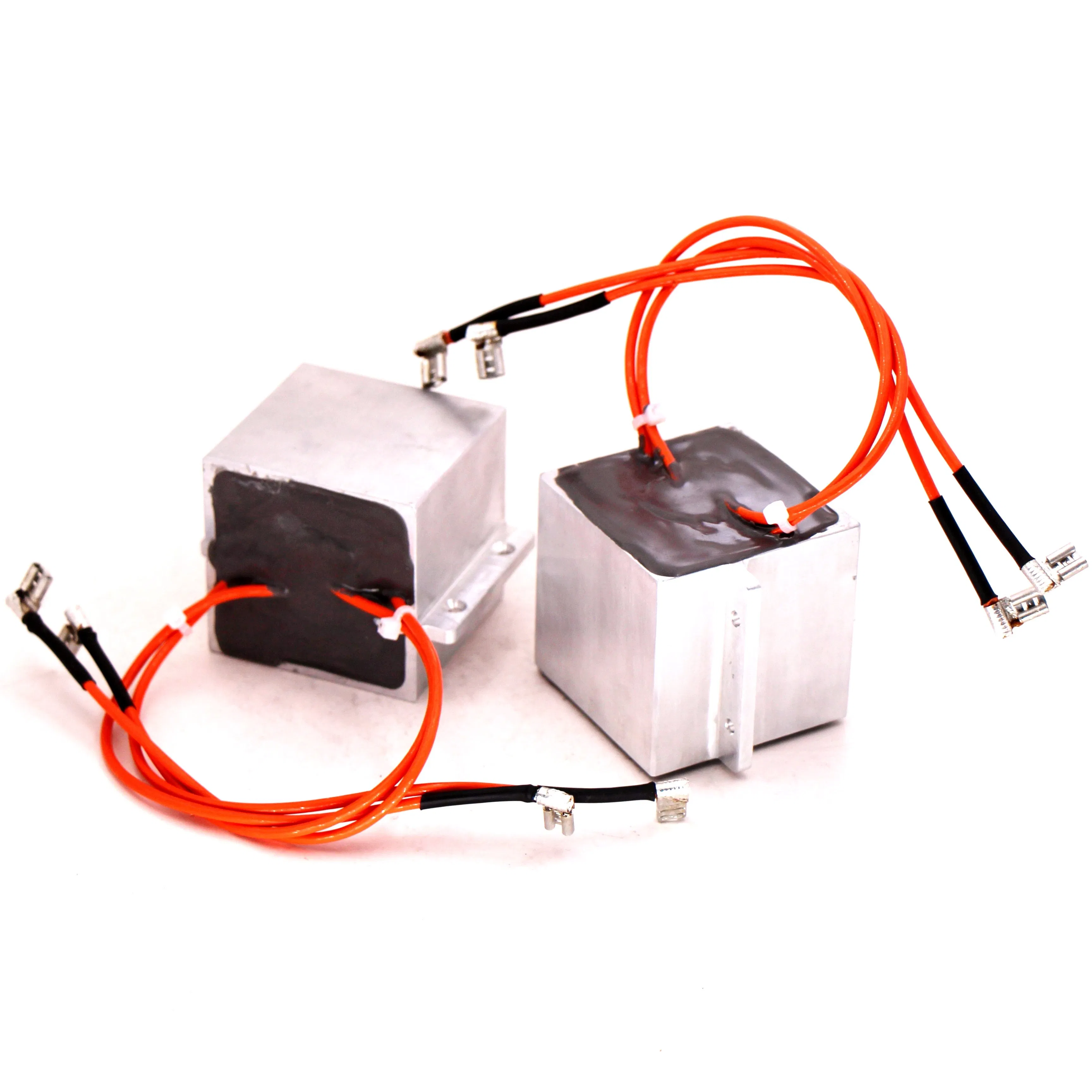

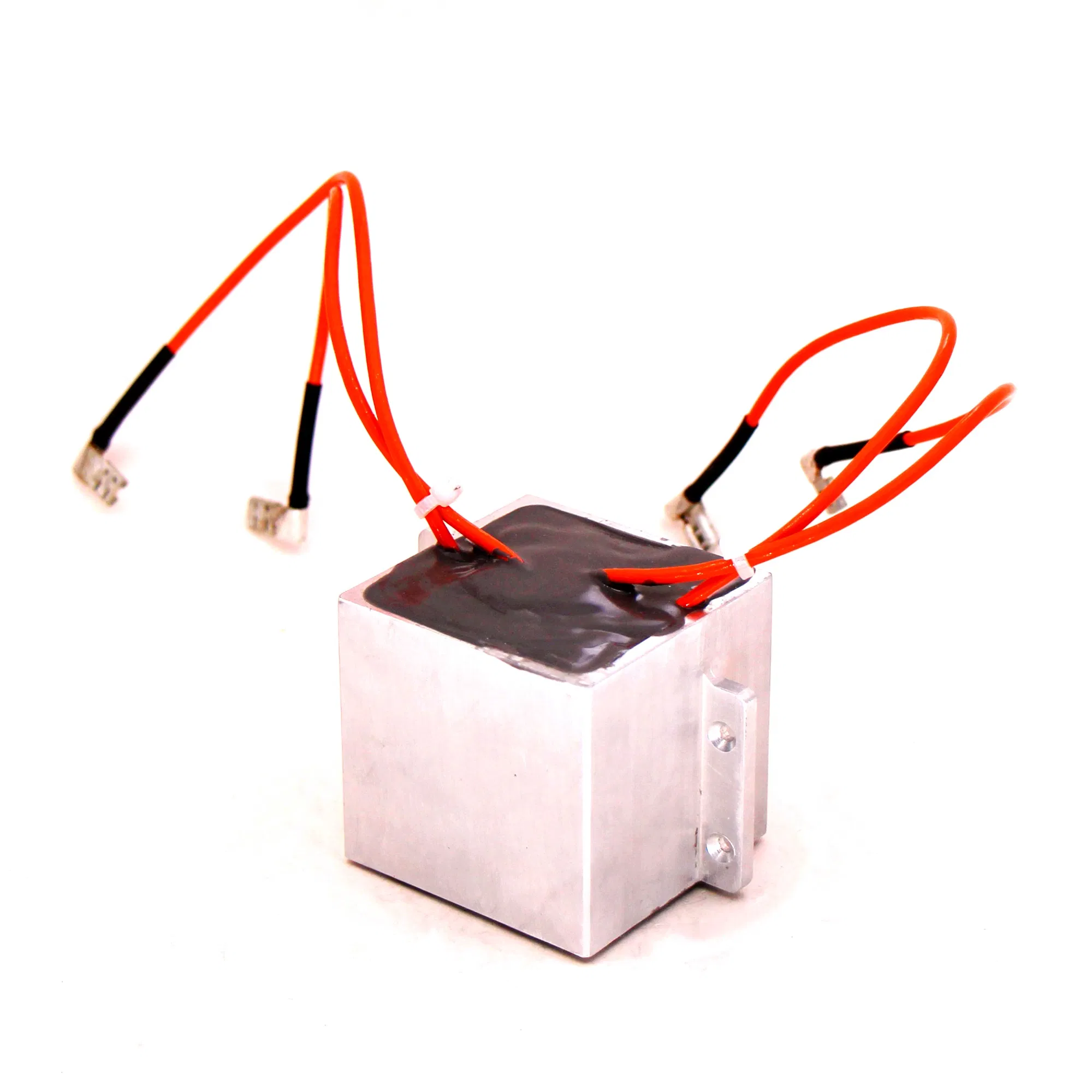

Organic silicone potting, soft material, good shock absorption and protection effect.
Stable physical and chemical properties; high and low temperature resistance (-50°C to 200°C).
Excellent electrical performance and insulation ability with long service life.
Soft potting compound allows for quick repair or replacement of components.

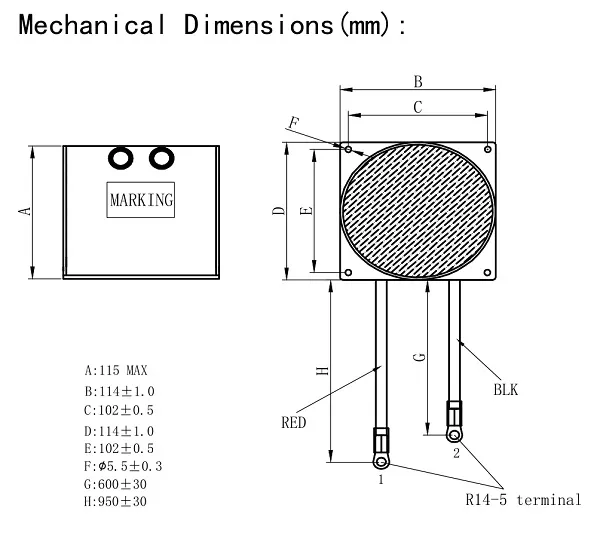

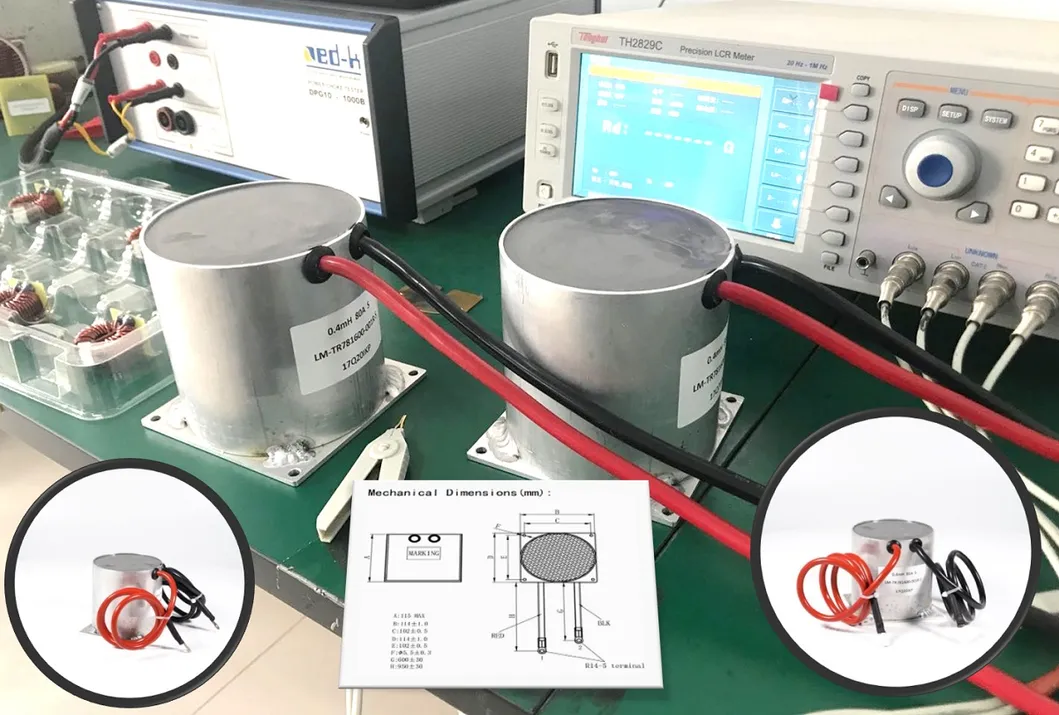

P.N: LM781600-001R

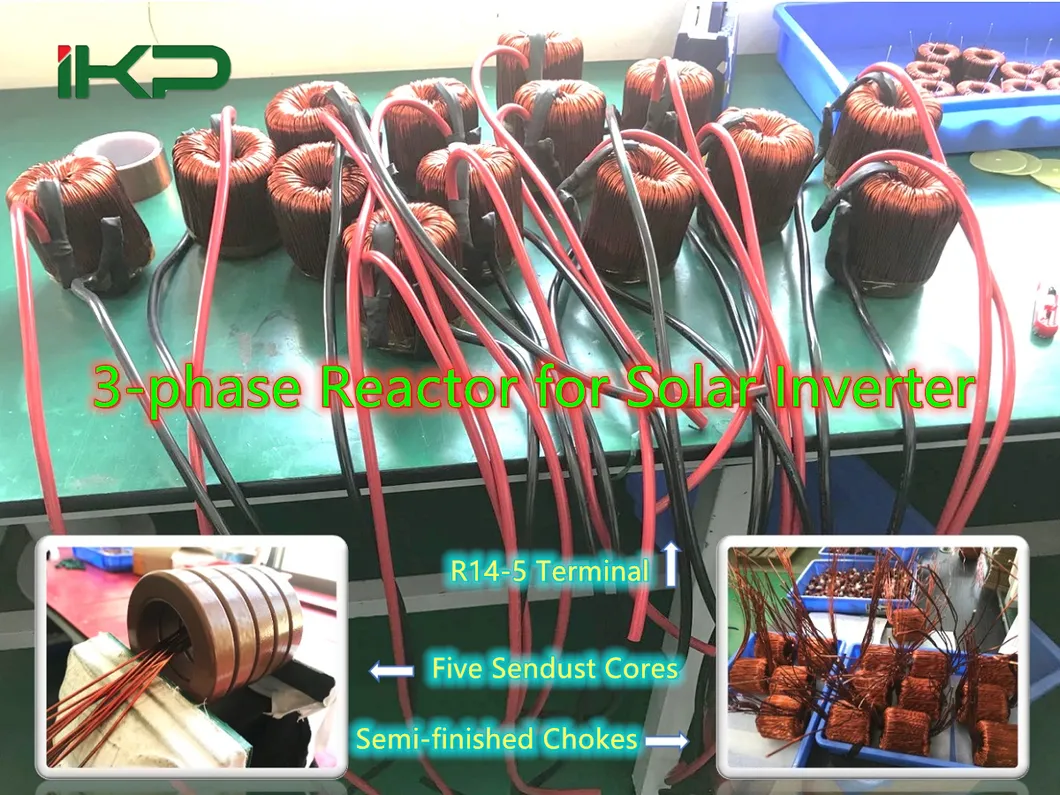

Core: Sendust core*5
Inductance: 0.4mH
Rated Current: 80A
Copper Wire: Φ1.5mm*14
Winding: 1 start, 2 finish
Insulation System: Class B 130°C
Operation Temp: -40°C ~ 130°C
OCL: pins(1-2)=0.4mH±10% @1kHz, 0.1v
DCR: pins(1-2)=15.0mΩ MAX
Hipot: WDG to CASE 1.5kVac 60Hz 60s
Compliance: RoHS compliant
Ideal for Solar inverters, Wind inverters, PFC filters, Choke coils, EV inverters, ABS systems for cars, car generators, and inverter air conditioners.
Frequently Asked Questions
What is the operating temperature range for this inductor?
The LM781600-001R is designed to operate reliably between -40°C and 130°C, with storage capability from -40°C to 80°C.
What kind of core material is used in this product?
This model utilizes a high-quality Sendust core (5 units) to ensure stable magnetic performance and low core losses.
Is the product compliant with environmental standards?
Yes, the product is fully RoHS compliant and compatible with modern environmental protection requirements.
What are the main benefits of the organic silicone potting?
The silicone potting provides excellent shock absorption, moisture protection, and high-temperature stability, while allowing for easier component repair compared to rigid resins.
What is the daily production capacity for this model?
We have a stable production capacity of approximately 5,000 pieces per day to meet large-scale industrial demands.
In what applications is this choke coil typically used?
It is widely used in solar and wind power inverters, EV inverters, PFC filters, and automotive electronics like ABS systems.
