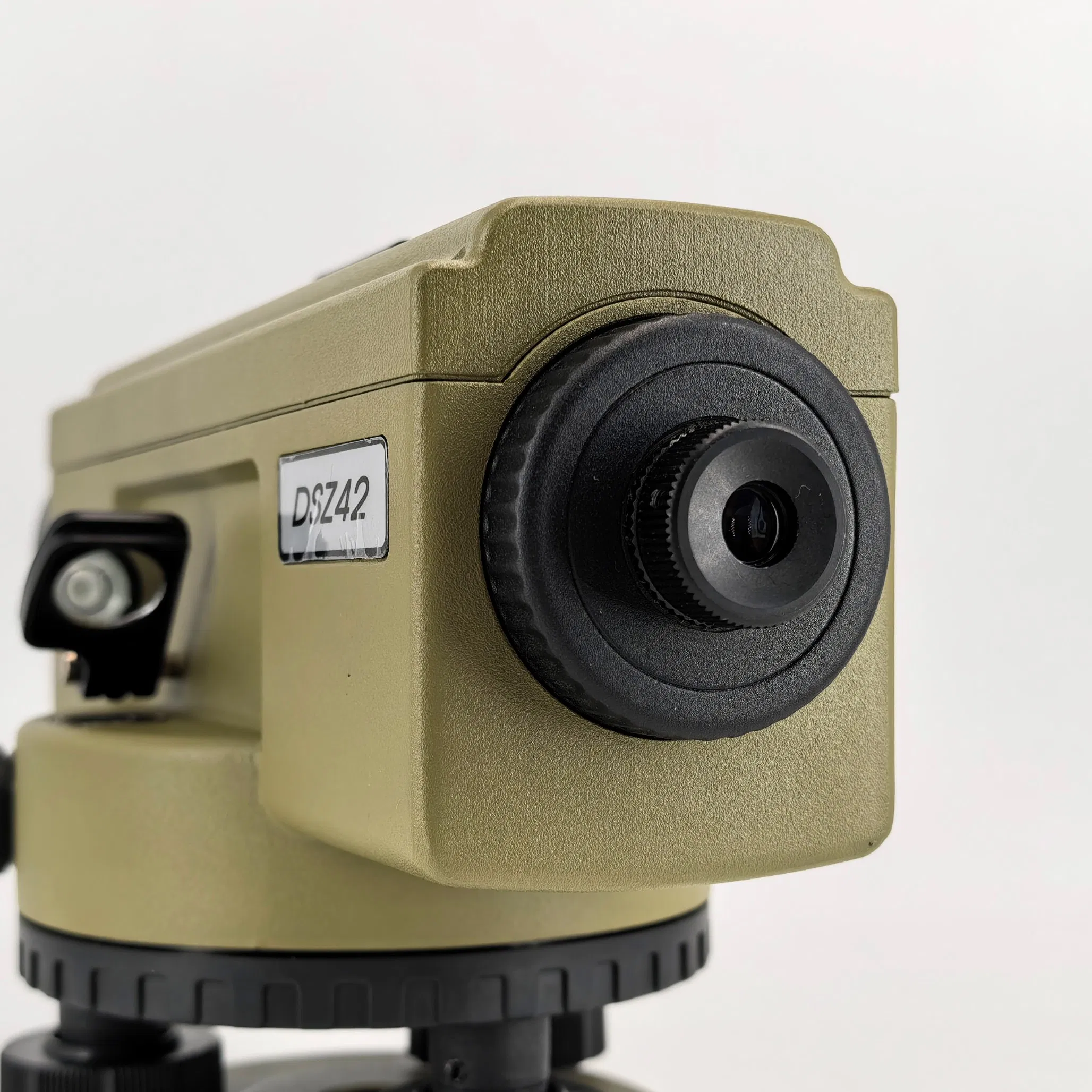

42X Automatic Level with Optical Coarse Aiming for Land Measuring

1 / 5

42X Automatic Level with Optical Coarse Aiming for Land Measuring

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.DSZ42

Standard Deviation (1km)0.7mm

Magnification42X

Objective Aperture45mm

Shortest Focusing0.65m

Ingress ProtectionIP66

Weight2kg

Dimensions260X130X190mm

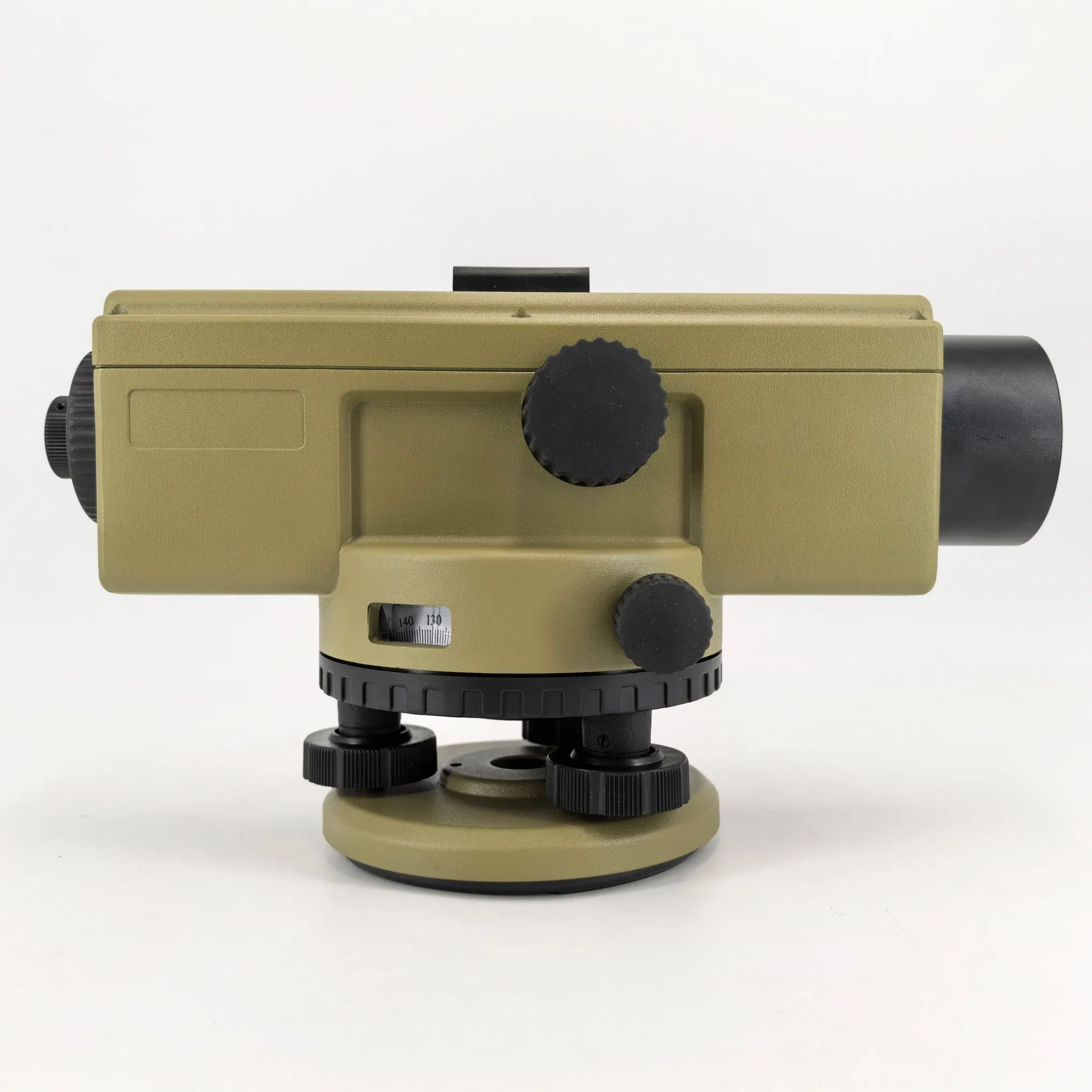

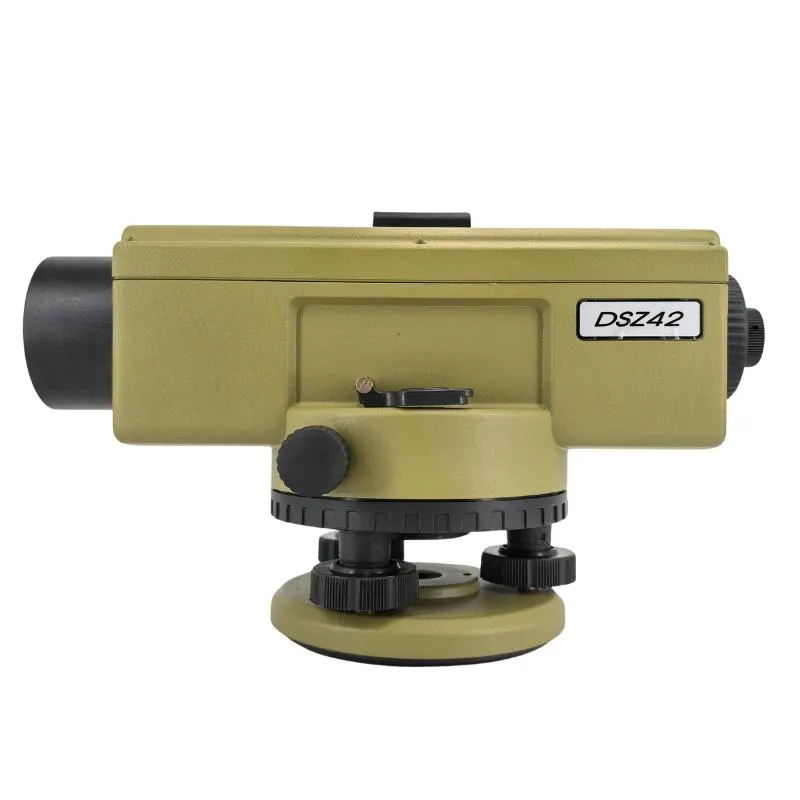

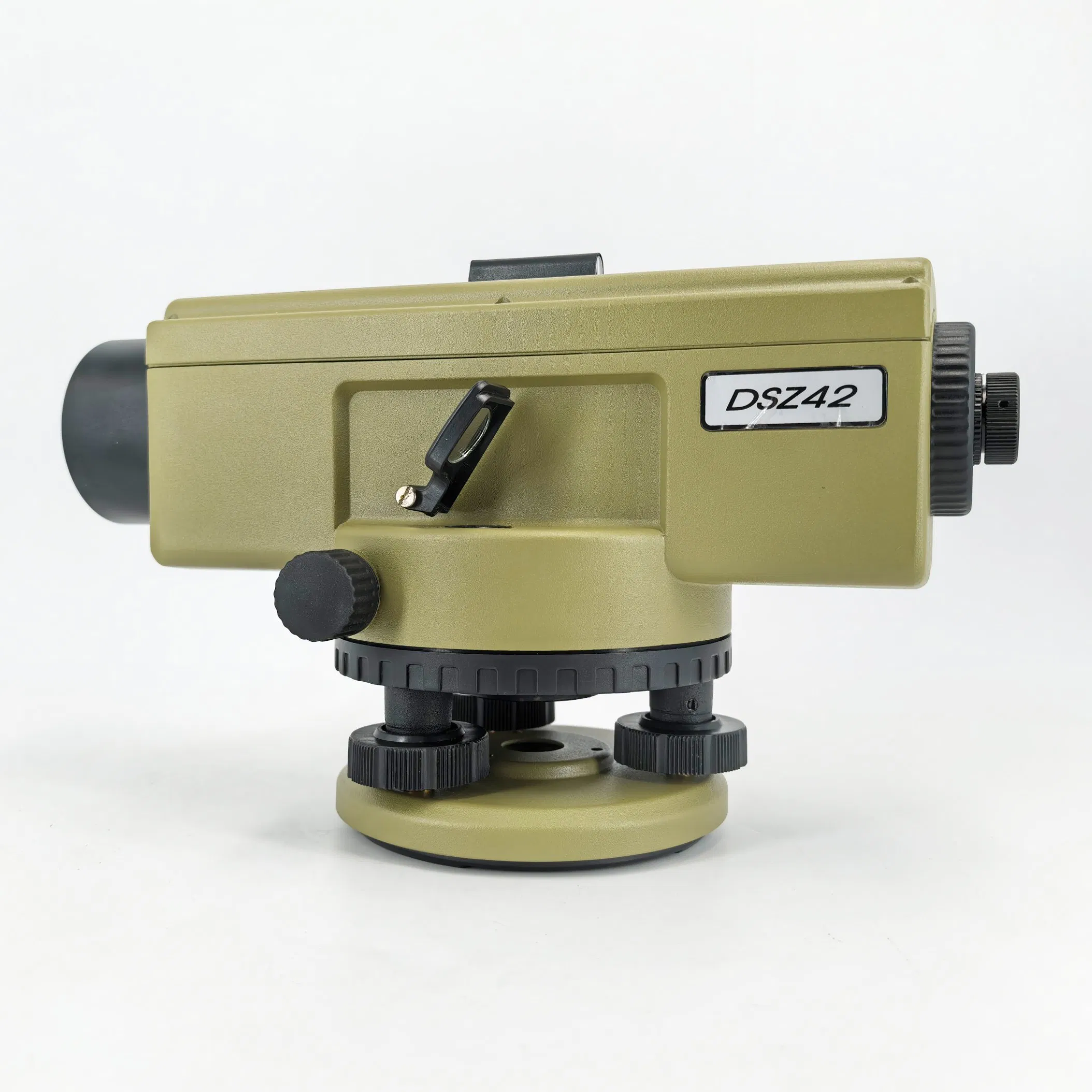

42X Magnification Automatic Level

The DSZ42 high-precision automatic level is designed for rigorous land surveying and engineering tasks. It provides exceptional stability and accuracy even in challenging environmental conditions.

Key Features

◈

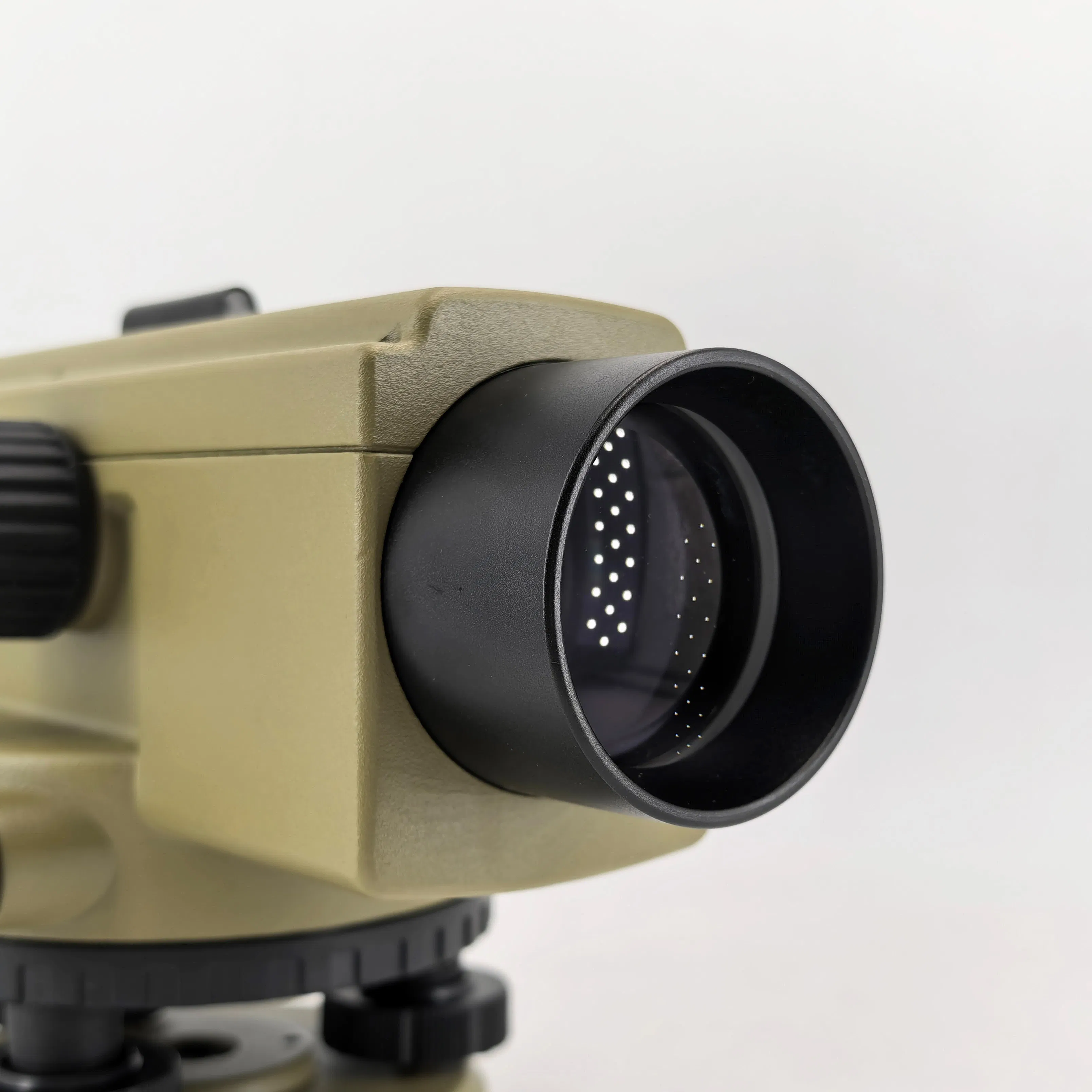

Superior Optics: 42X magnification with a clear 45mm objective aperture for sharp, erect images.

◈

Advanced Compensator: Features an X-shaped wire suspension magnetic damping compensator with ±0.3″ setting accuracy.

◈

Rugged Durability: IP66 rated for protection against dust and water, combined with an all-metal body for maximum stability.

◈

User-Centric Design: Includes a Bigfoot spiral for enhanced adjustment and a chassis compatible with various tripod connections (M16 or 5/8″).

Product Advantages

✓ Automatic compensation and high-end workmanship.
✓ Stylish and innovative appearance with all-metal robustness.
✓ Stable, high-precision performance for accurate surveying.
✓ Shockproof and waterproof construction for greater longevity.
✓ Printed internal dial with anti-counterfeit features.

Detailed Specifications

Parameter	Specification Details
Field of View	1°20′
Stadia Multiplying Constant	100
Stadia Additive Constant	0
Sensitivity of Circular Level	8′/2mm
Graduation Interval of Circle	1° or 1gon
Working Range	≥±15′
Setting Accuracy	±0.3″
Connecting Size	M16 or 5/8″

Professional Engineering Solutions

We provide a comprehensive range of surveying equipment and accessories. Our focus is on technological innovation and market-oriented solutions to deliver excellent products to the engineering sector.

Frequently Asked Questions

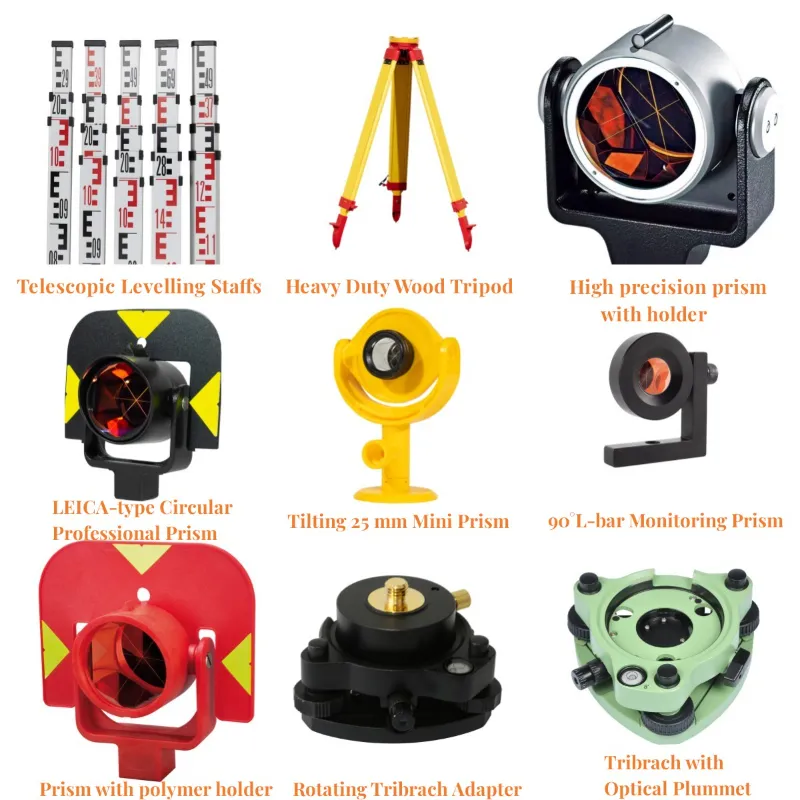

Q1: What are your primary product categories? We specialize in professional prisms, prism poles, tribrachs, tripods, leveling staffs, and GPS accessories.

Q2: What is the magnification and accuracy of the DSZ42? The DSZ42 features 42X magnification and a standard deviation of 0.7mm for 1km double-run leveling.

Q3: Is the equipment suitable for harsh outdoor environments? Yes, with an IP66 ingress protection rating and an all-metal body, the device is both waterproof and shockproof.

Q4: What types of tripod connections are supported? The base is designed to connect with standard surveying tripods using M16 or 5/8″ threading.

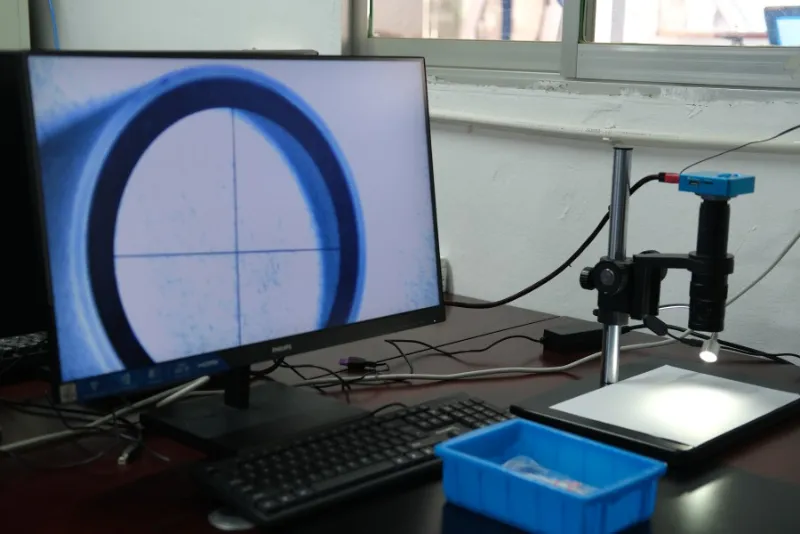

Q5: How is product quality controlled? All products undergo strict quality control according to international management systems to ensure precision and reliability.

Q6: What payment methods are commonly accepted? Accepted methods include T/T, L/C at sight, Western Union, and secure online payment options.
