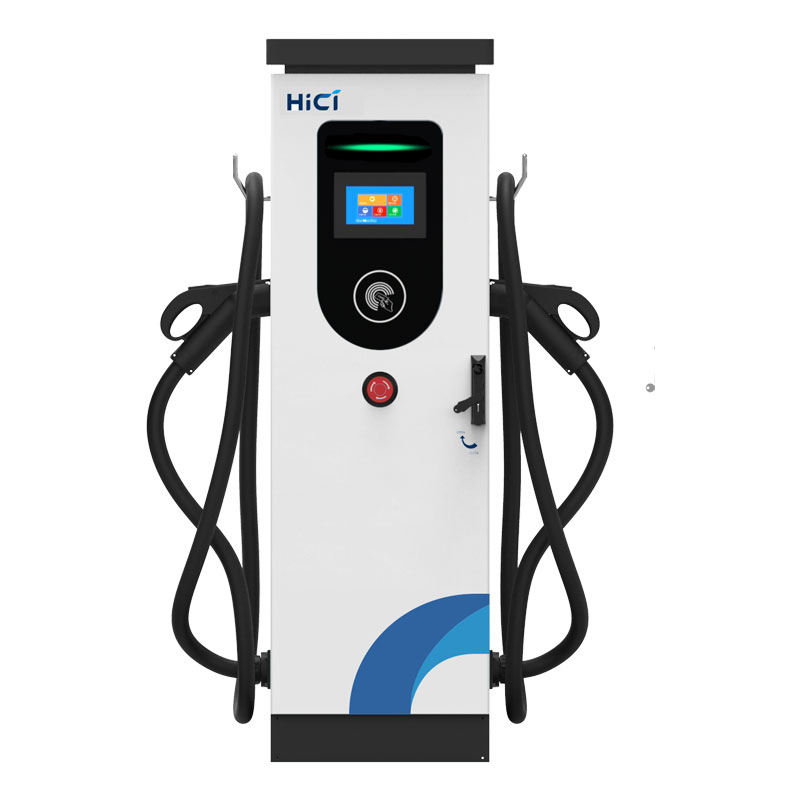

Versatile Public EV Charging Station with Multiple Charging Ports

1 / 5

Versatile Public EV Charging Station with Multiple Charging Ports

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📌 Basic Information

Model NO.

HK-60-750-AE2-1

Installation

Wall Mounted

Charge Method

Quick Charge

Function

RFID, Mac, Screen Button Supported

Ocpp

Ocpp1.6j Supported

IP Class

IP54, Ik10

Screen

7 Inch Touch Screen

Standards

CCS1, CCS2, Chademo

Max. Power

60kw, 120kw, 180kw

Type

Fast EV Charging Station

Certification

CE, ISO, TUV

Warranty

12 Months

📘 Product Description

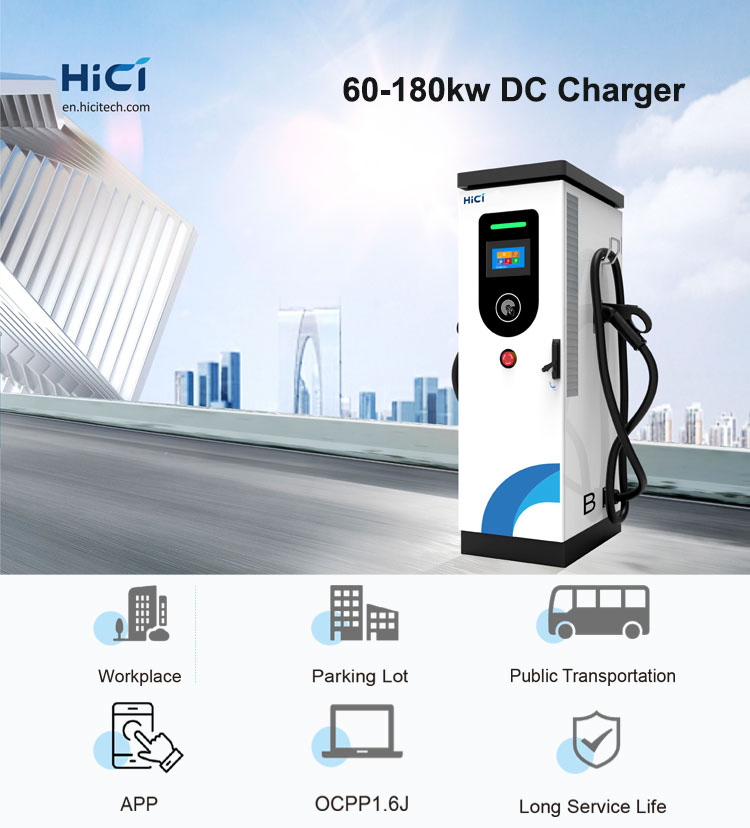

Type 60KW 120KW 180KW High Power DC EV Charging Station With CE

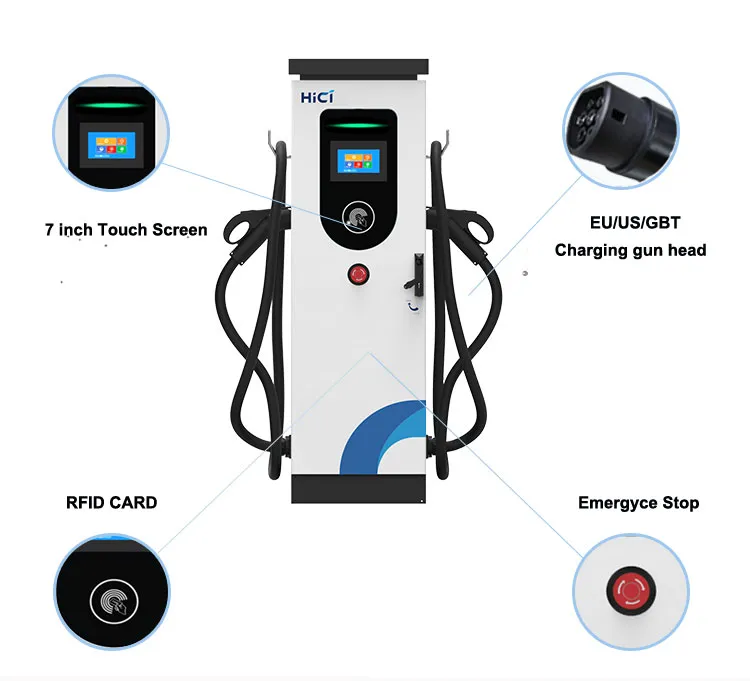

This high-power DC charging station is designed for modern electric vehicle needs, featuring a 7-inch highlight screen (900 nit) for easy operation. Utilizing a constant power module, the charging efficiency exceeds 95%.

Flexible Startup Methods:
Swipe card, Scan code, Screen Button, Vin code, and Reservation startup options are available to meet diverse user requirements.

Safety is prioritized with 21 active safety tests and 24-hour platform detection. Features include an emergency stop button, data power-off save function, and charging gun lock detection to ensure total user security.

📊 Product Parameters

Electrical Specifications
Charging Type	DC Charger
Max DC Output Power	180kW, 240kW, 300kW, 360kW
Input Voltage Range	400 VAC +/- 15% (50 Hz or 60 Hz)
Connector Types	3P + N + PE
Power Factor	> 0.99 (Full Load)
Efficiency	> 95% (Peak)
DC Output Voltage	200 - 1000 Vdc
Outlet Current	CCS 125A/200A; GB/T 125A/200A/250A; Chademo 125A
Network Connection	4G, Ethernet
User Interface	7" LCD touch screen
Operating Temp	-30°C to + 55°C
Protection Class	IP54, IK10

🌟 Our Advantages

✔

Rapid Charging: Charge up to 80% within 30 minutes.

✔

Multi-Standard Support: Compatible with CHAdeMO, GB/T, CCS1, and CCS2.

✔

High Efficiency: Efficiency > 94% at nominal power; PF > 0.99.

✔

Smart Connectivity: OCPP 1.6 JSON supported for cloud management.

✔

Multi-Language: Interface supports English, French, Spanish, and Russian.

✔

Robust Design: IK10 impact resistance and IP54 weather protection.

🏭 Manufacturing Excellence

With over 20 years of experience in the development and production of electric vehicle charging infrastructure, our facilities ensure the highest quality standards and reliable performance for global markets.

❓ Frequently Asked Questions

Q1: How fast can this station charge an EV?

The station is designed for rapid charging, capable of reaching 80% battery capacity within approximately 30 minutes, depending on the vehicle model.

Q2: Which charging standards are supported?

It supports all major global standards, including CCS1, CCS2, CHAdeMO, and GB/T, making it compatible with almost any electric vehicle.

Q3: Is the charging station suitable for outdoor installation?

Yes, it features an IP54 rating for dust and water resistance and IK10 for high impact protection, making it ideal for outdoor public environments.

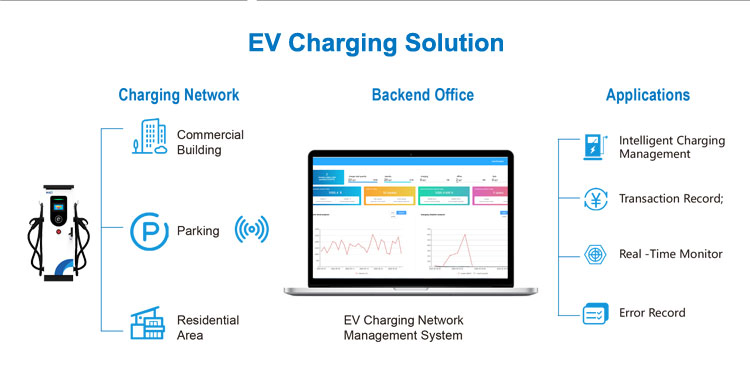

Q4: Can the station be managed remotely?

Yes, it fully supports OCPP 1.6J protocols, allowing for remote monitoring, management, and firmware upgrades via 4G or Ethernet.

Q5: What safety protections are included?

It includes overcurrent, overvoltage, undervoltage, and ground fault protection, along with 21 active safety tests and an emergency stop button.

Q6: Does the interface support multiple languages?

Yes, the 7-inch touch screen interface supports English, French, Spanish, Russian, and Chinese.
