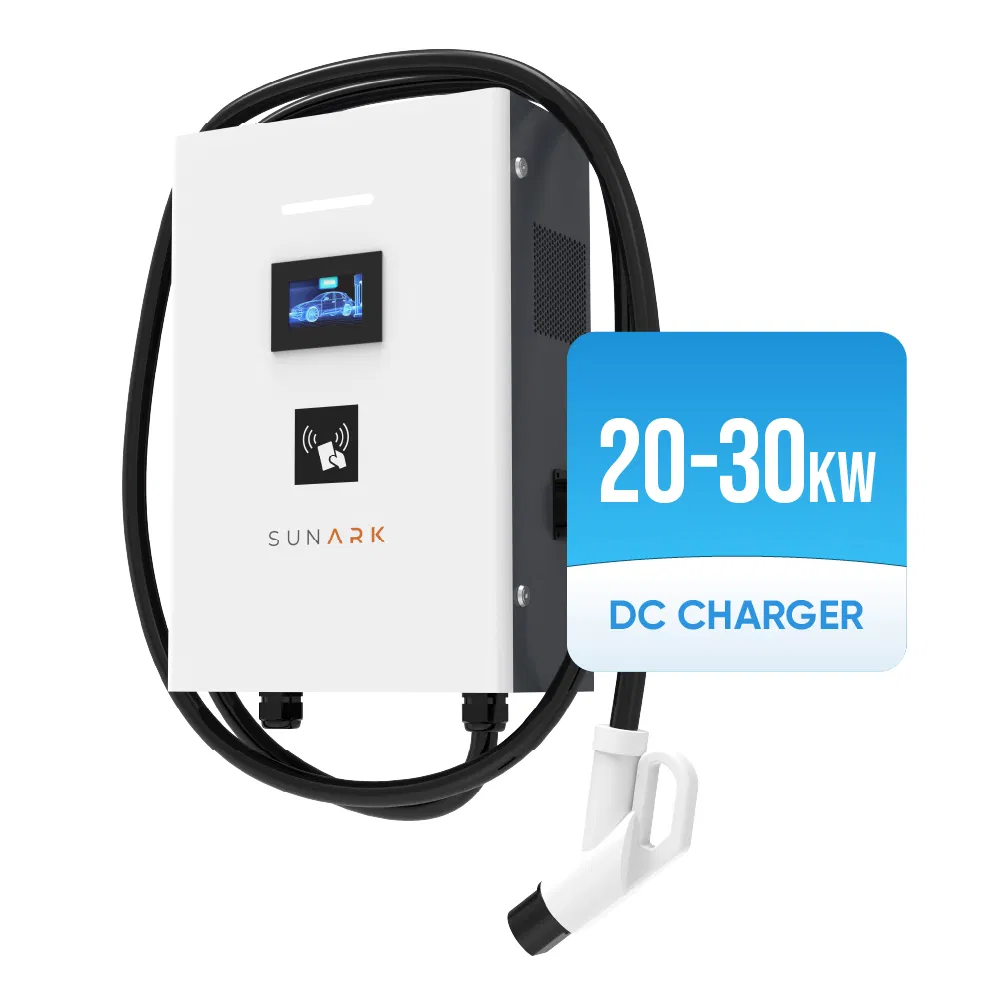

Amp Link Charger
1 / 5

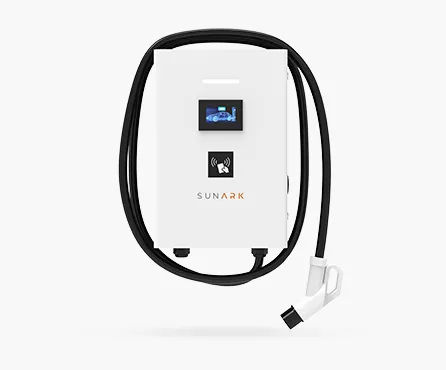

| Model NO. | EV Charger DC 20-30KW |
| Location | Private Use / Public Use |
| Number of Charging Interfaces | One Pile with Multiple Charges |
| EV Charger Type | DC |
| Charger Capacity | 20/30kw |

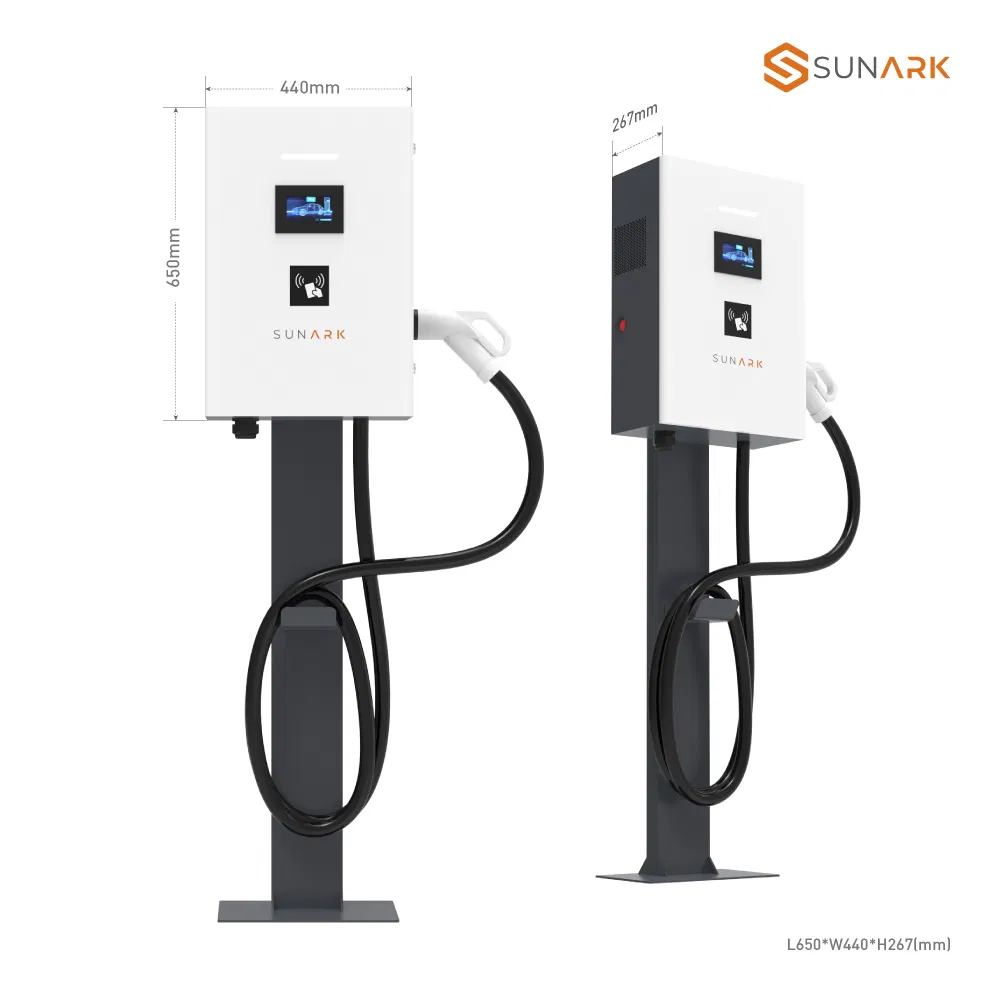

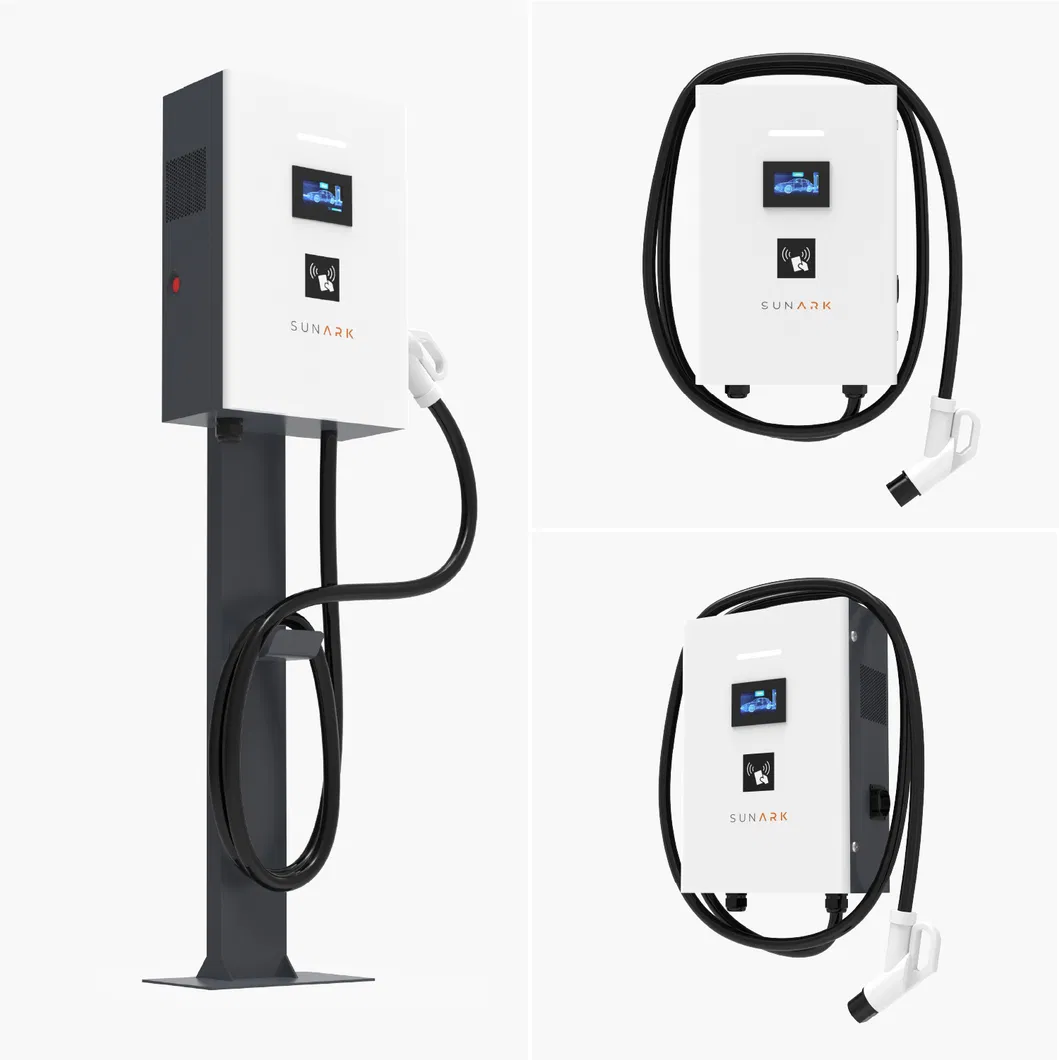

| Mounting | Wall-Mounted / Pile Type |
| Cooling | Air-Cooled |
| IP Ratings | IP 54 |
| Display | 7 Inches Touch Screen with Shell |
| User Authentication | QR Code / RFID Card / Password Login |
| Communication Protocol | OCPP 1.6j Protocol (Optional) |
| Interface | Ethernet / 3G / 4G / WiFi (Optional) |

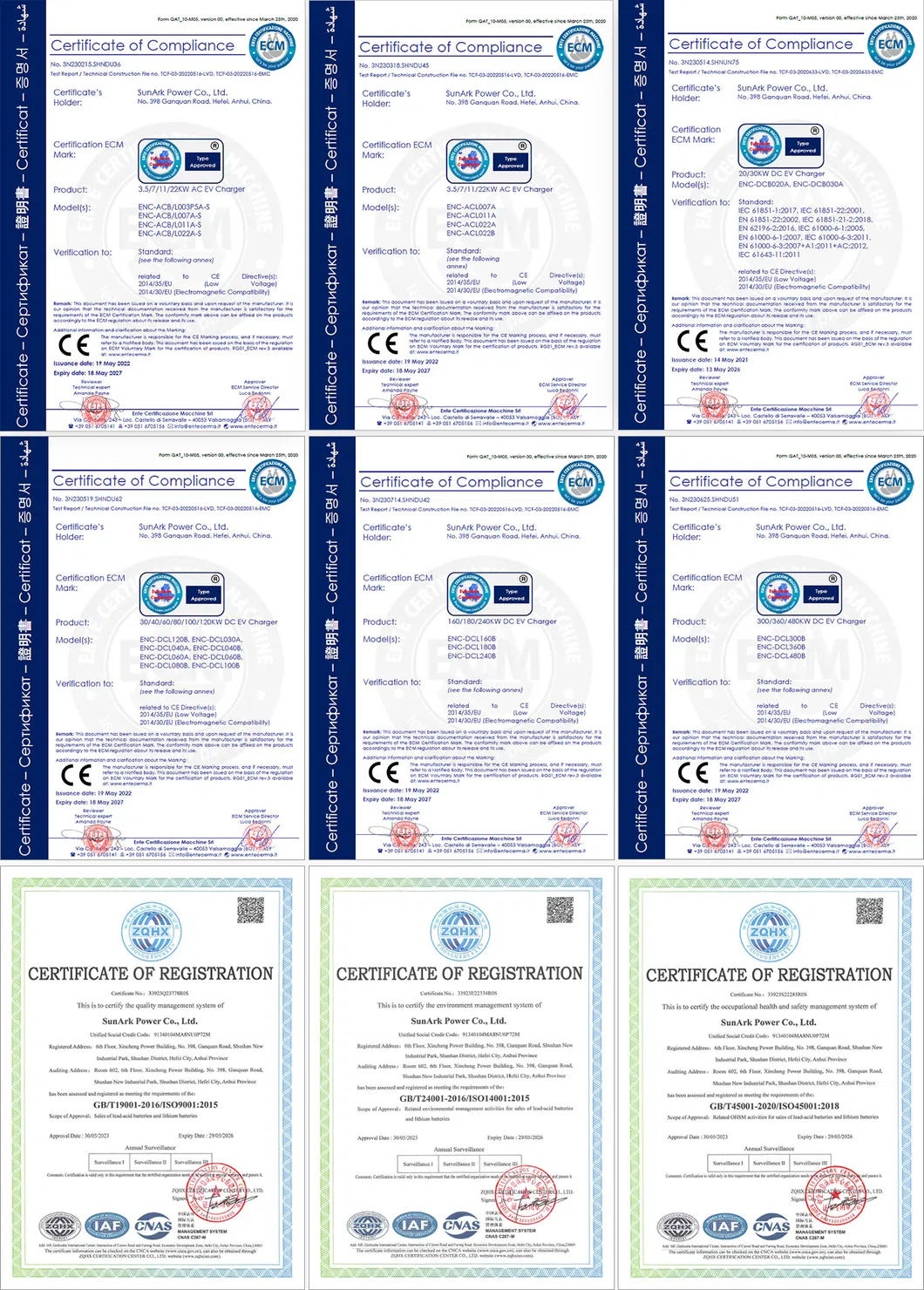

| Certificates | IEC 62196, IEC 61851, SAE J1772 |
| Origin | China |
| Parameters | Requirements | |
| Input Requirements | ||
| AC Supply System | Three-Phase, 5 Wire AC system | |
| Nominal Input Voltage | AC380V±15% | |
| Input Frequency | 45-65Hz | |
| Output Requirements | ||
| Charger Capacity | 20KW | 30KW |
| Output Voltage | DC200-750V / DC150-500V(JIS) | |
| Max. Current | 80 Amp | 125 Amp |
| Protection & Safety | ||
| IP Ratings | IP 54 | |
| Safety Parameters | Over Current, Over Voltage, Under Voltage, Residual Current, Surge, Leakage, Short Circuit, Over Temperature | |

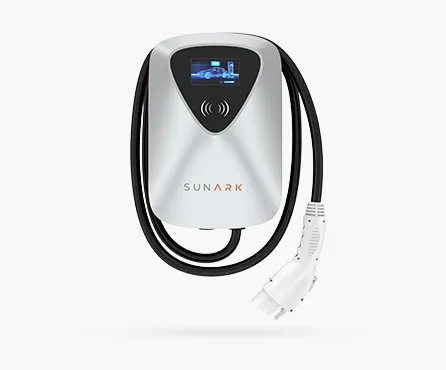

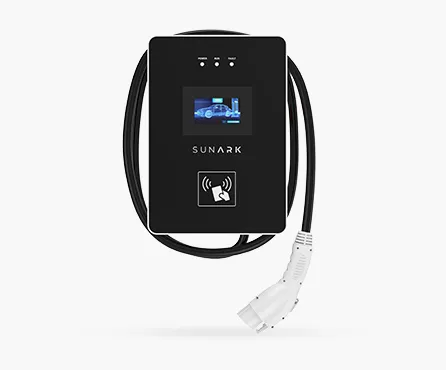

Rated Power: 3.5/7/11/22KW
Current: 16/32/50A

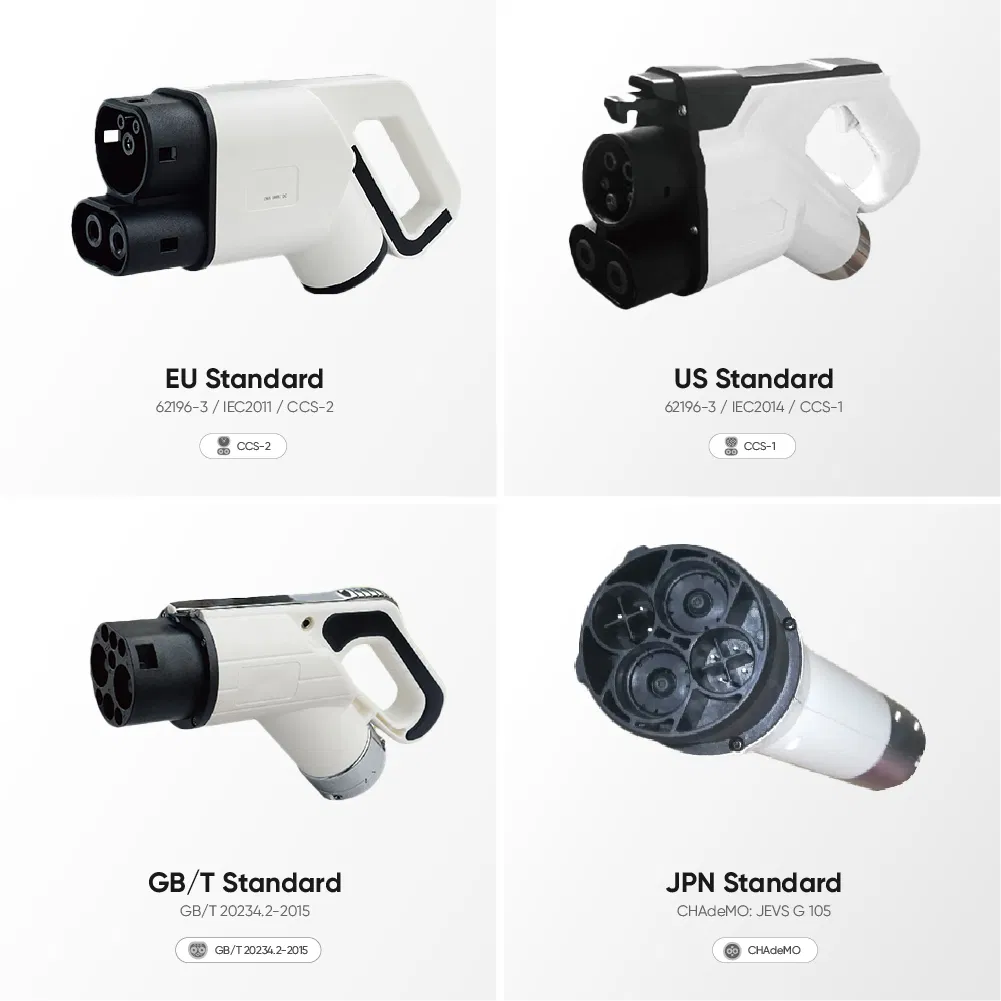

Connector: CCS1/2, CHAdeMO
Output Voltage: 220~240V, 380-415V
Rated Power: 3.5/7/11/22KW

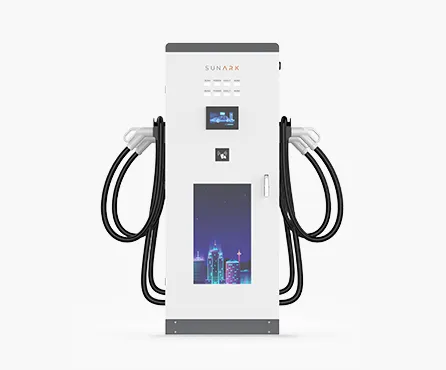

Current: 80/125A
Voltage: 200~750V, 150-500V

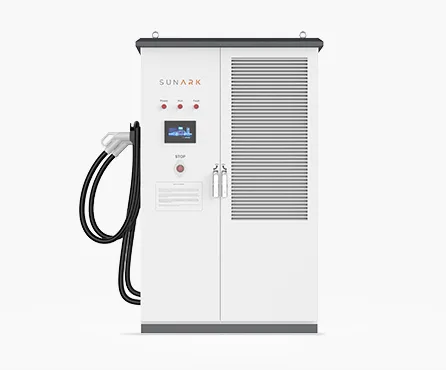

Current: 125/150/200A
Voltage: 200~750V
