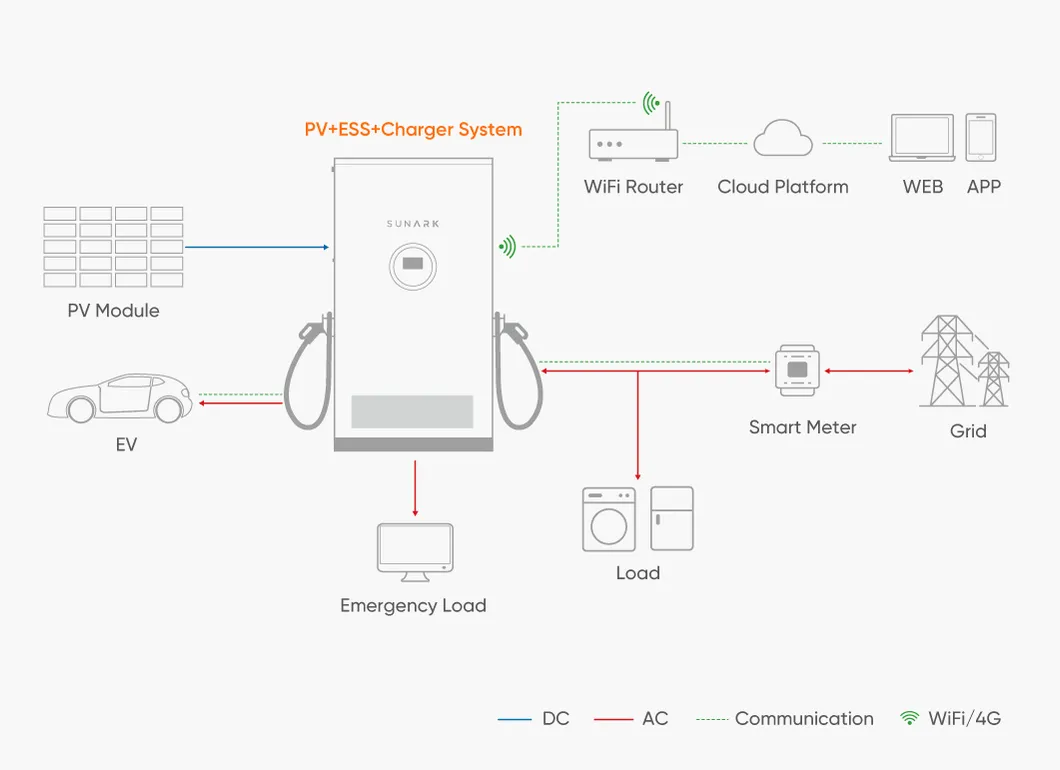

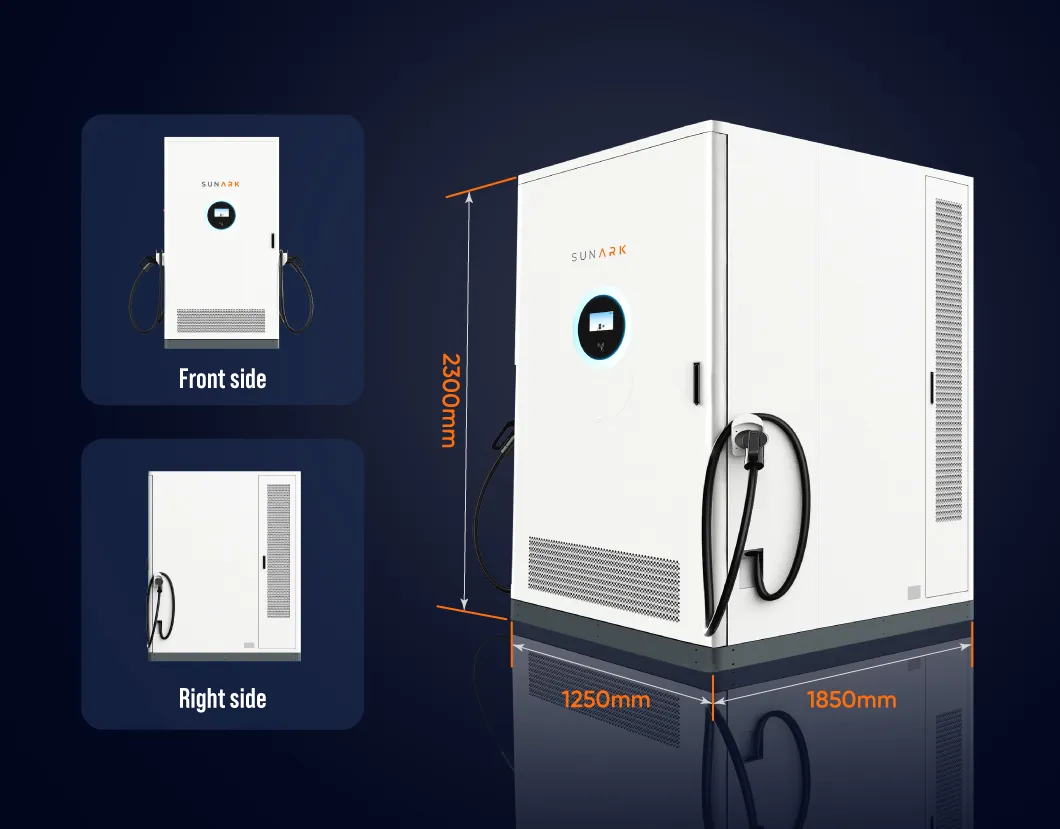

The PV-Storage-Charging Integrated Solution is built on the concept of clean energy self-sufficiency, intelligent scheduling, and zero-carbon mobility, seamlessly integrating solar generation, energy storage, and EV charging infrastructure to create truly zero-carbon smart charging stations. The system adopts a modular and highly integrated architecture, supporting both DC bus and AC coupling configurations. During the day, solar power directly supplies charging and loads, while surplus energy is stored in the battery; at night or during peak tariff periods, the energy storage system discharges or cooperates with the grid to achieve peak shaving, energy circulation, and overall efficiency optimization.

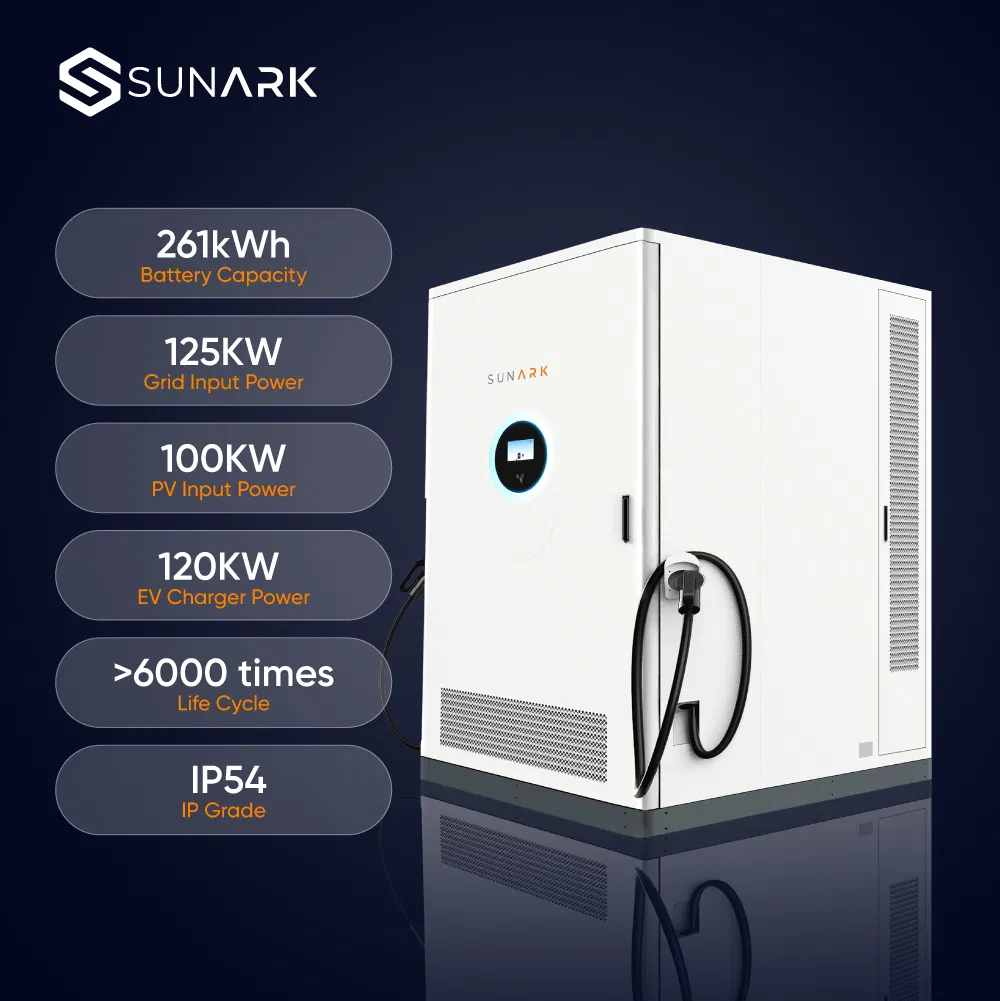

| Battery Capacity |
261kWh |
| Battery Voltage |
728~949Vdc |
Discharge Depth |
≤95% |
| Grid Input Power |
125kW |
Nominal Voltage |
3.2V |
| Photovoltaic Input |
100kW |
Group Mode |
1P52S |
| EV Charger Power |
120kW |
Pack Voltage |
166.4V |
| Grid Input Voltage |
400±15%VAC |
Pack Weight |
350kg |
| Cycle Times |
>6000 Times |
Work Temp |
-20~+50ºC |
| Charging Guns |
2 |
Noise |
<65db |

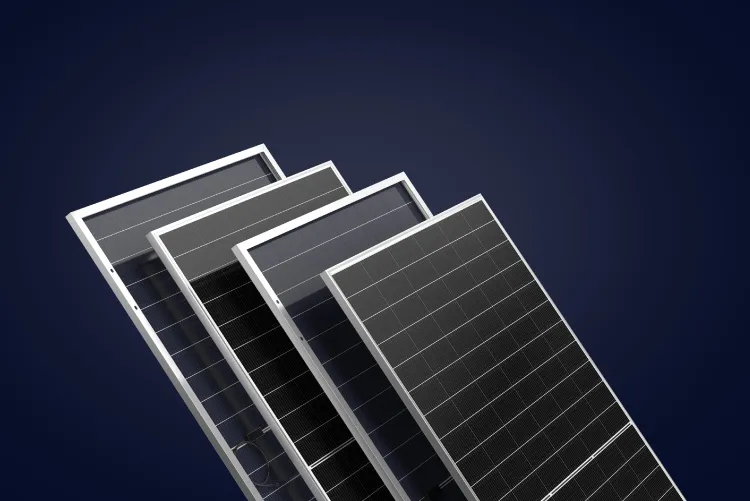

1. High Efficiency Solar Module
N Type HJT or TOPCon PV modules with high power, high efficiency, and excellent low-light performance.

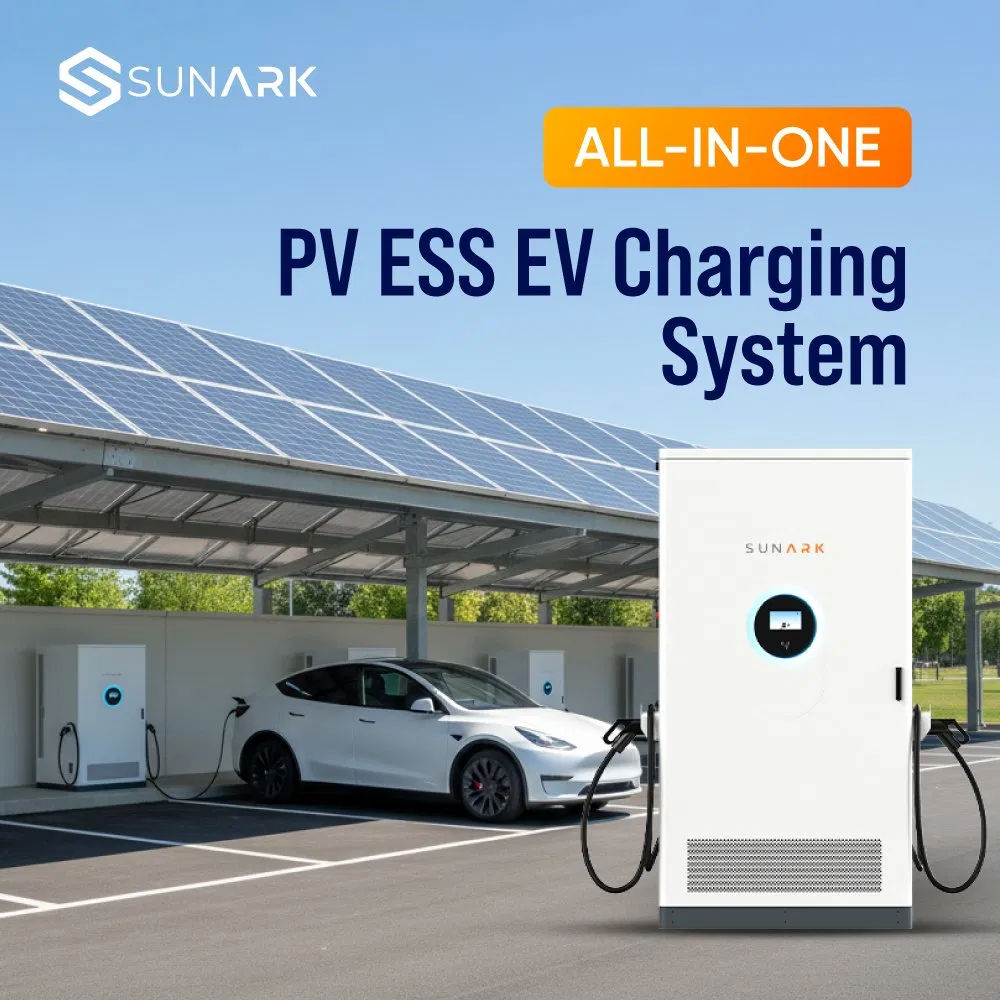

2. All-In-One PV + ESS + EV Charging
An intelligent energy solution that integrates solar generation, energy storage, and EV charging facilities.

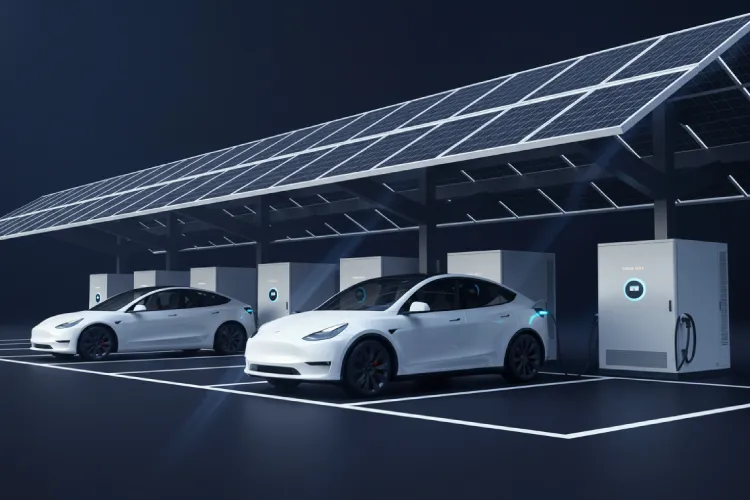

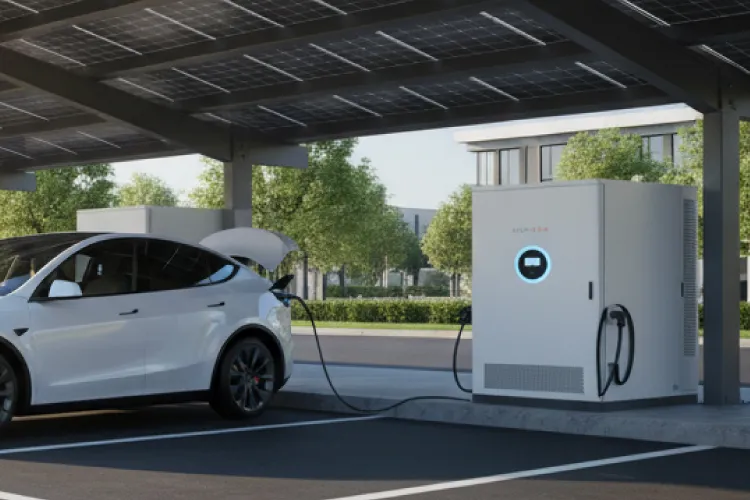

3. Solar Carport Mounting System
Customized solar carport solution seamlessly integrates parking shelter structures with PV generation.

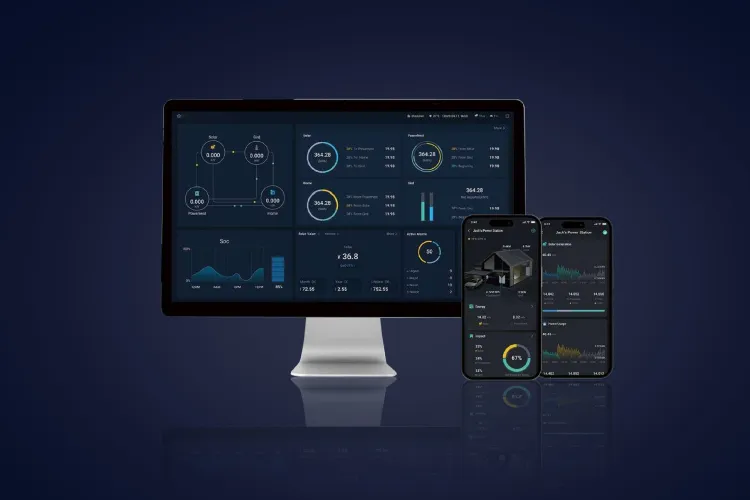

4. Energy Management System (EMS)
Supports data acquisition, plant monitoring, and smart scheduling for renewable power plants.
?
Frequently Asked Questions
What is a PV-Storage-Charging Integrated Solution?
It is a smart energy system that combines solar panels, battery energy storage, and EV chargers. It allows for clean energy generation, storage of surplus power, and efficient vehicle charging without relying solely on the grid.
How does the system handle night-time charging?
During the night, the system utilizes energy stored in the batteries during the day. If the battery is depleted, it can intelligently switch to grid power or cooperate with the grid for peak shaving.
What is the expected lifespan of the battery?
The system uses high-quality cells with a cycle life of over 6,000 times, ensuring reliable operation for many years under standard conditions.
Is the system suitable for outdoor installation?
Yes, the system is rated IP54, providing significant protection against dust and water, making it ideal for both private and public outdoor use.
Can I monitor energy production remotely?
Absolutely. The integrated Energy Management System (EMS) supports comprehensive data acquisition and remote monitoring via a mobile app or central control station.
Does the system support fast charging?
Yes, the system includes high-power DC fast charging capabilities (up to 120kW) with multiple charging interfaces to support efficient vehicle turnover.
