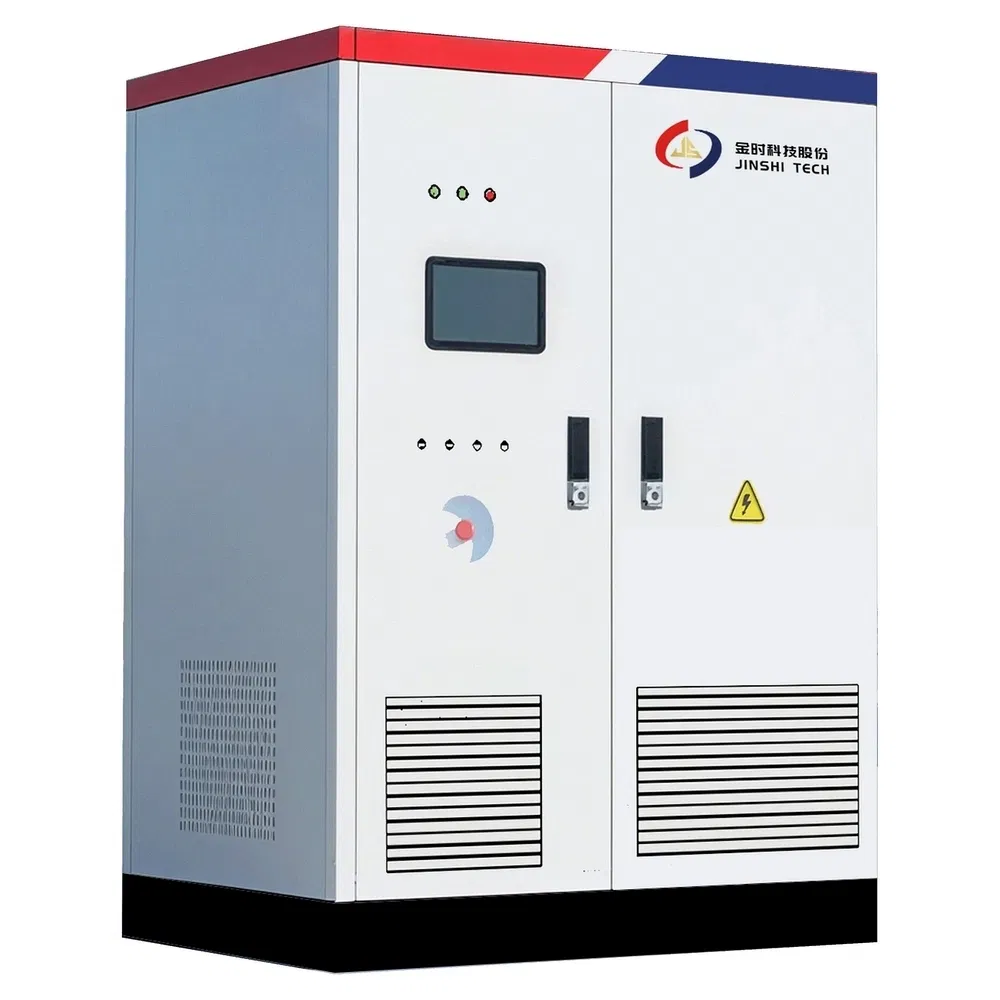

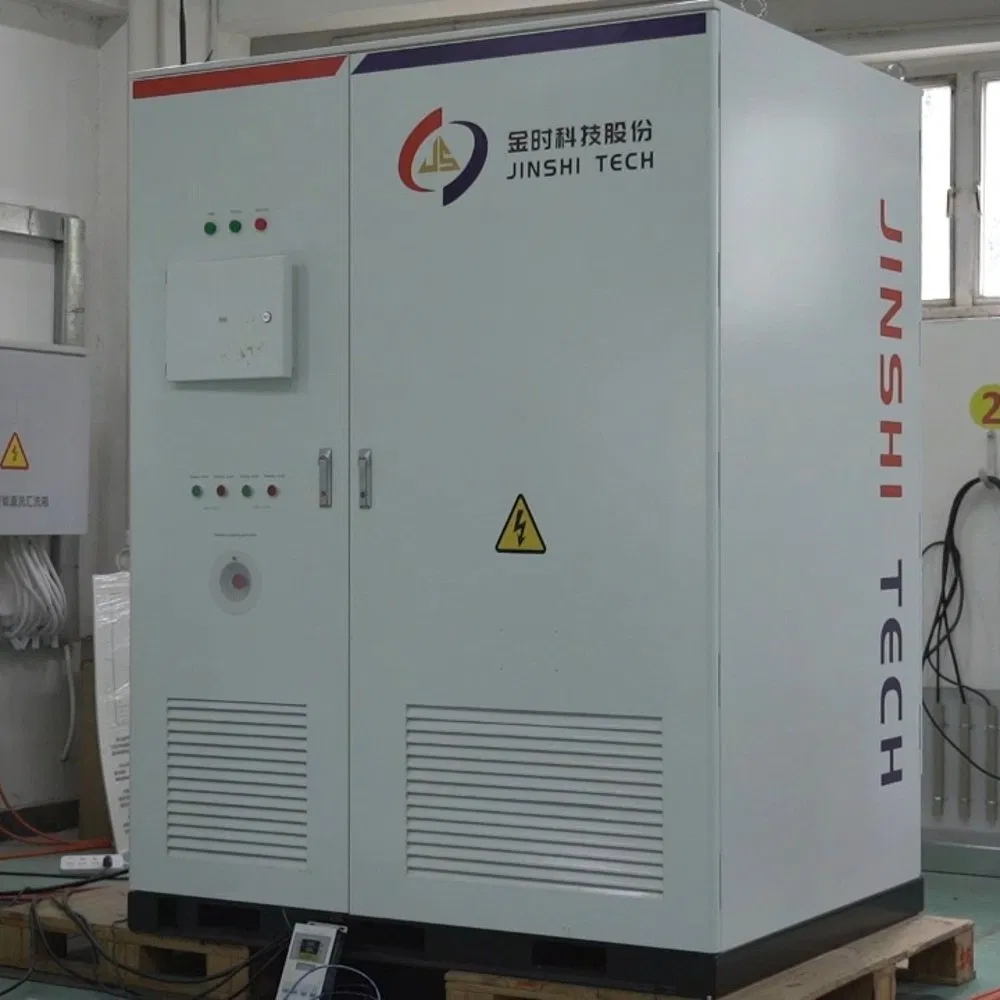

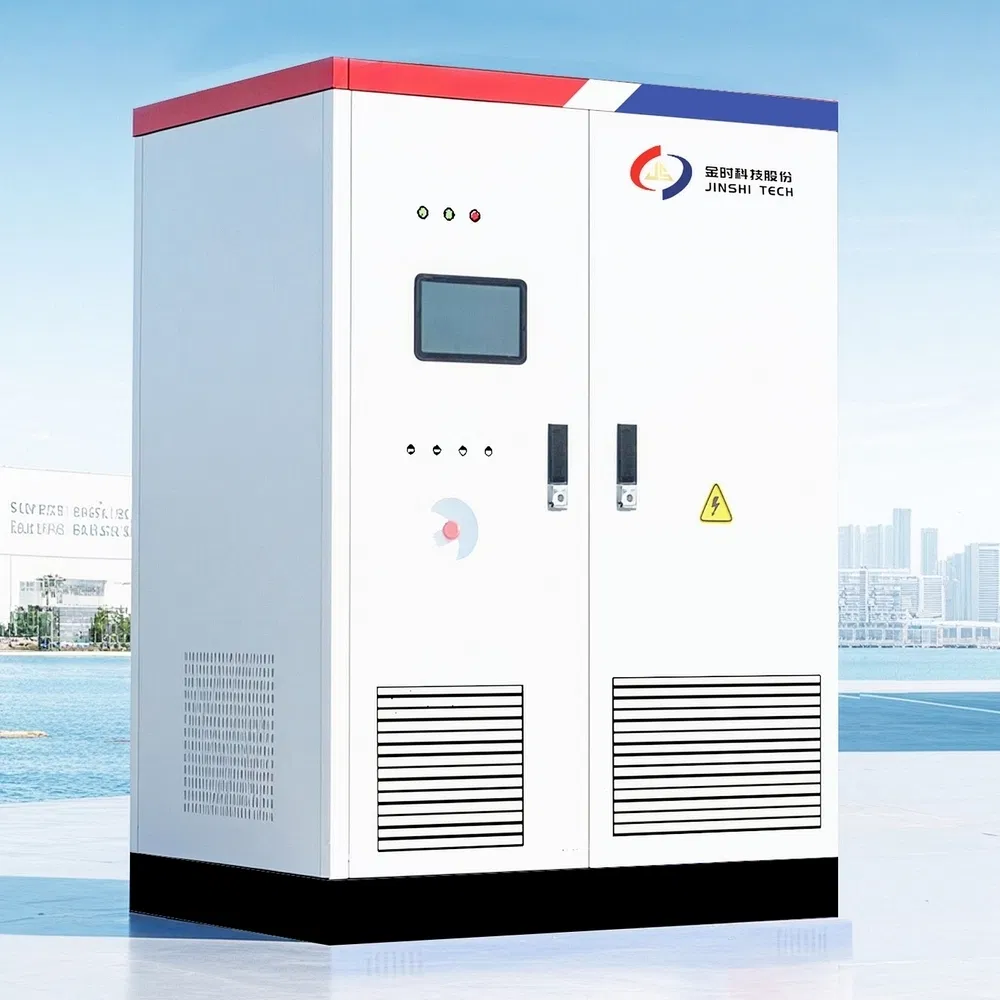

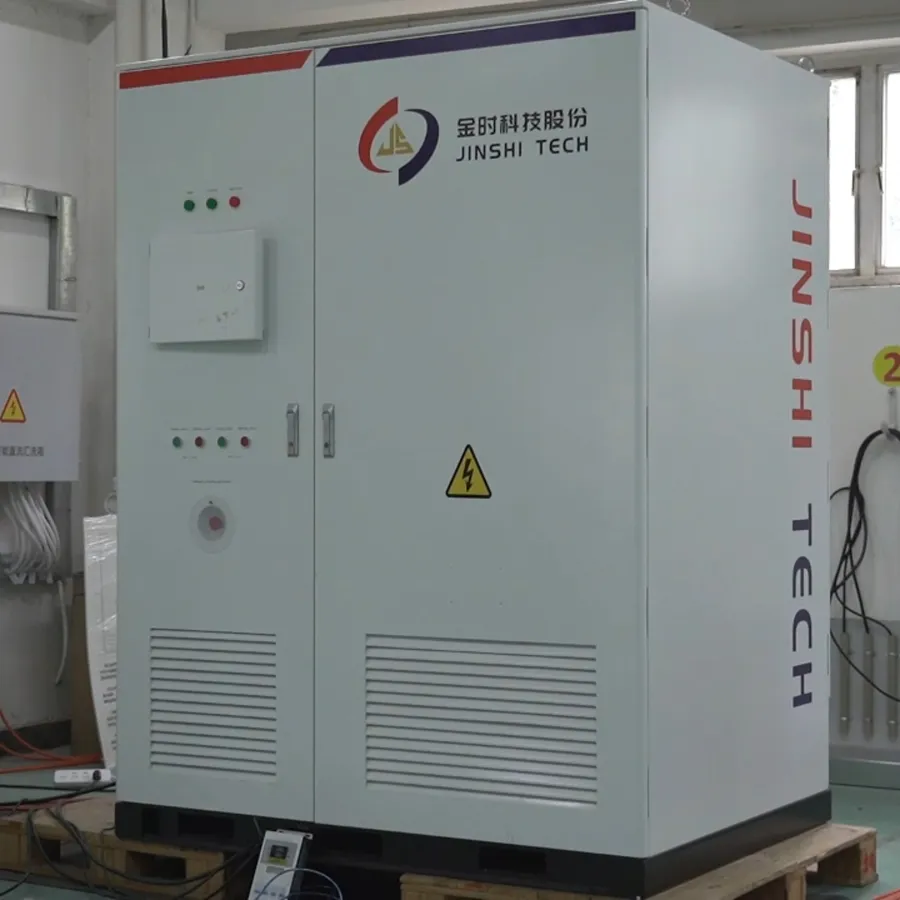

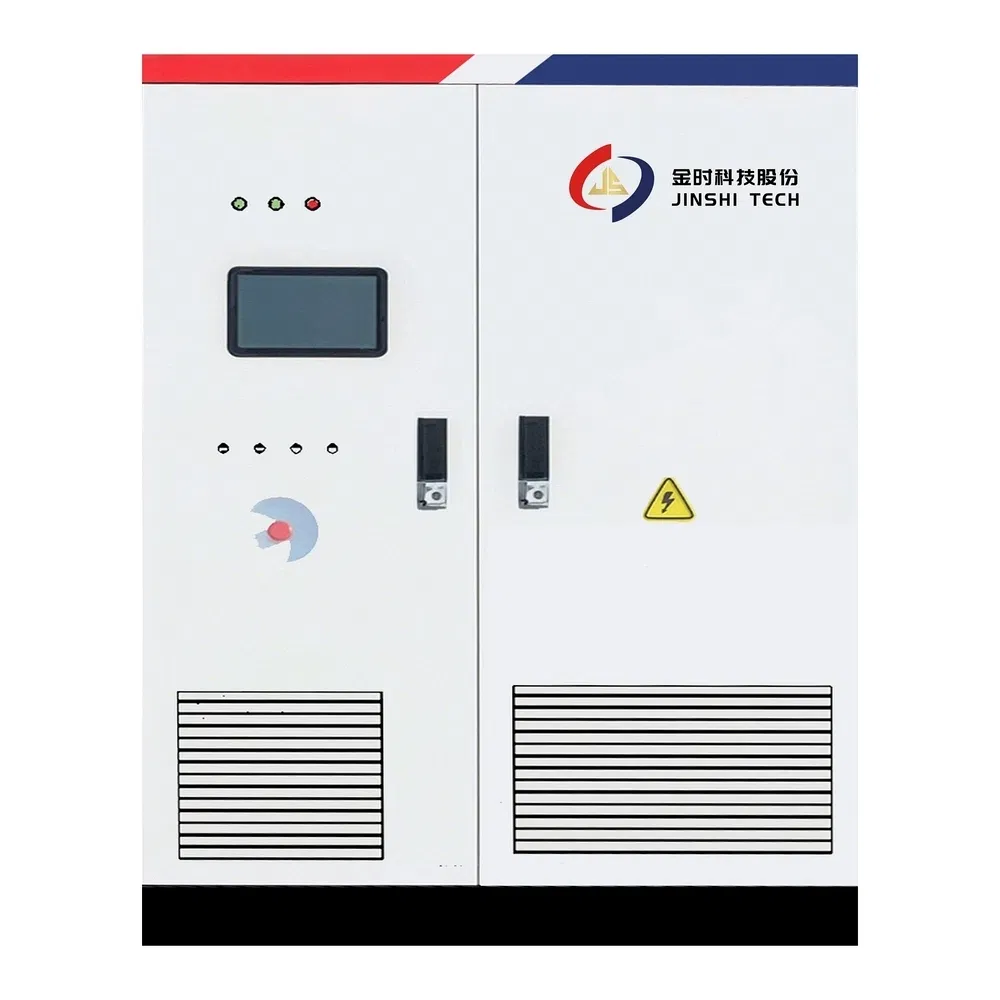

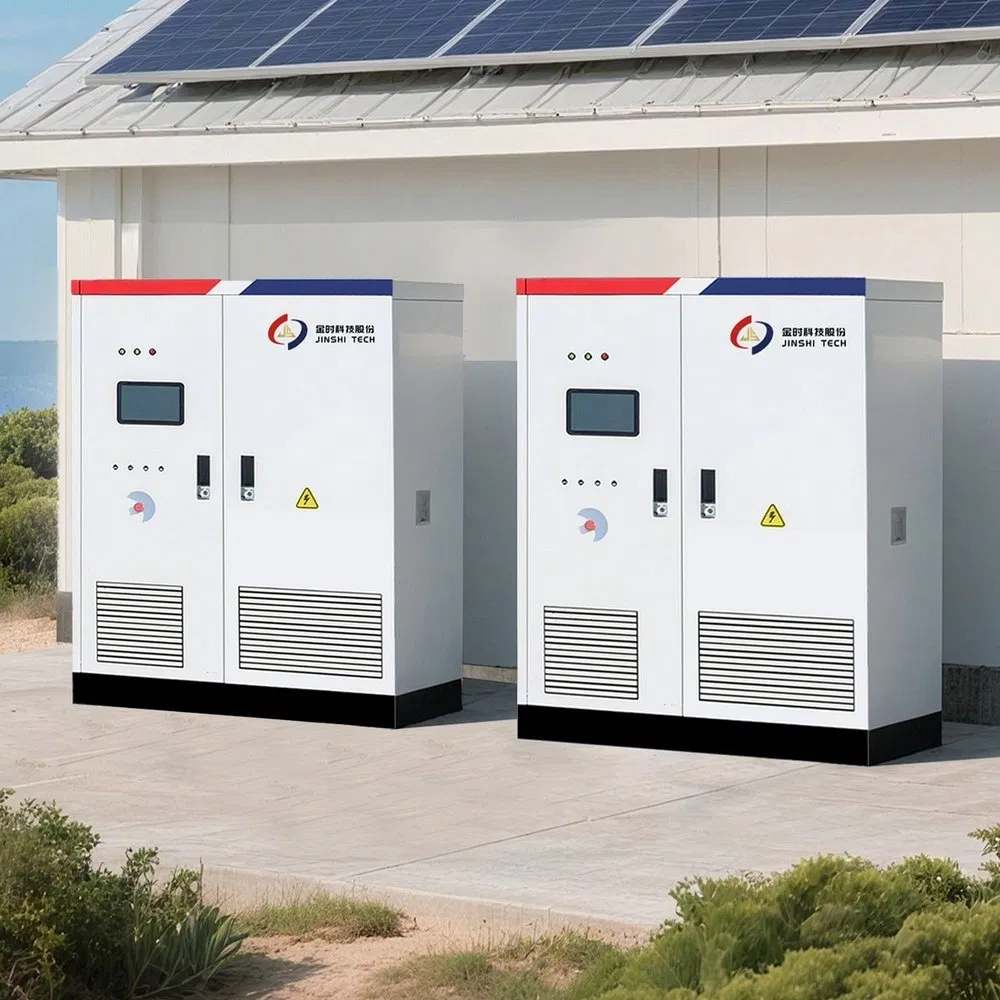

SMART PV-ESS ALL-IN-ONE UNIT
All-in-one systems integrate batteries, PCS, and EMS into a compact 1.3m² footprint. Equipped with intelligent liquid cooling, they support grid-tied operation for peak shaving, demand management, and energy arbitrage.
KEY FEATURES:
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Cell Type | LFP Battery |
| Configuration | 1P260S |
| Rated Capacity | 314Ah |
| Rated Energy | 261kWh |
| Rated Voltage | 832V |
| Rated Power | 125kW |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 728~936V |
| Cooling Method | Liquid Cooling |
| Maximum Efficiency | 99% |
261kWh rated energy capacity with 125kW rated power packed into a space-saving 1.3m² footprint, maximizing energy storage while minimizing floor space requirements.
State-of-the-art liquid cooling technology maintains optimal battery temperature, extending lifespan and ensuring consistent 99% maximum efficiency.
Industry-leading LFP cells with 314Ah capacity deliver superior safety, 6000+ cycle life, and stable performance across high operating voltage ranges.
