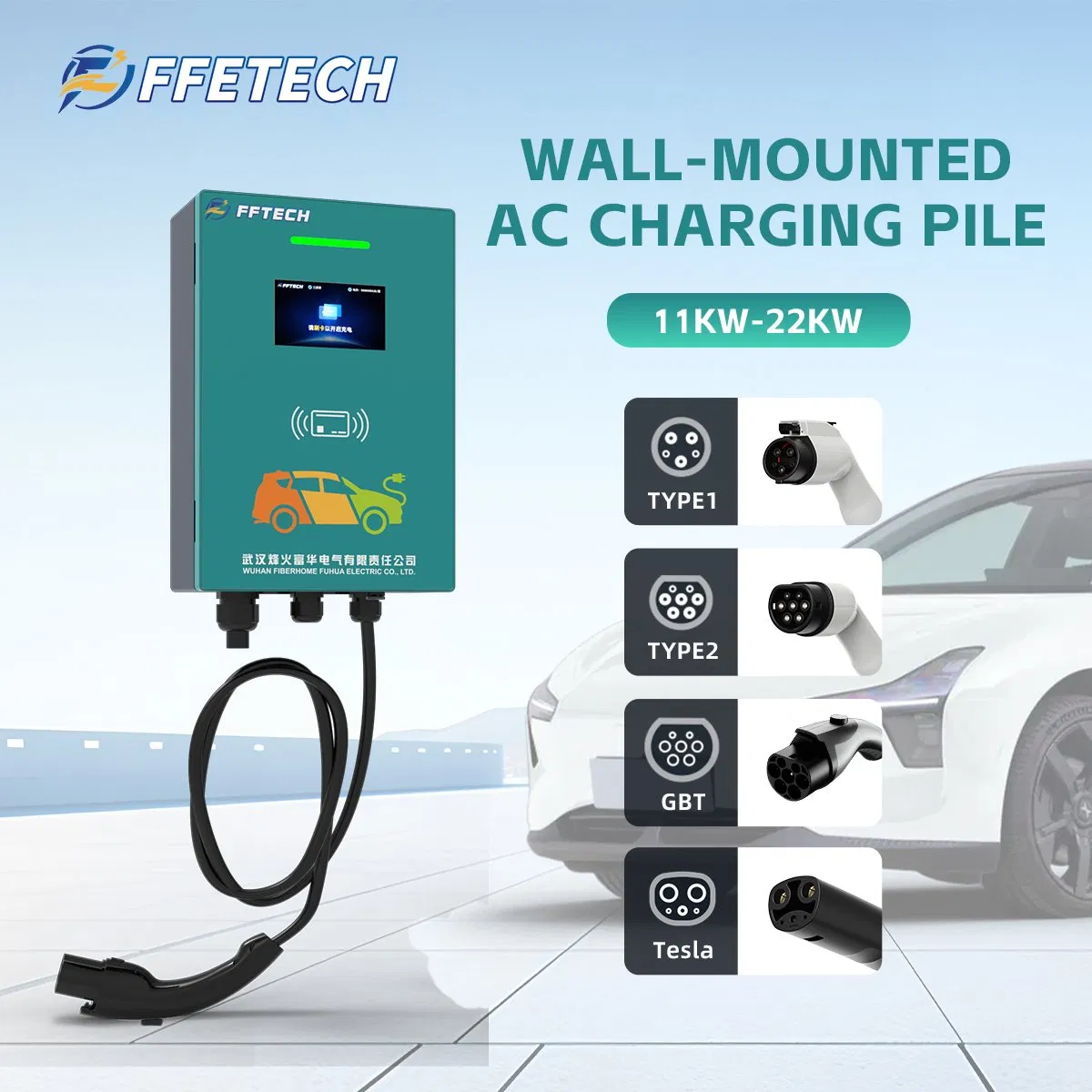

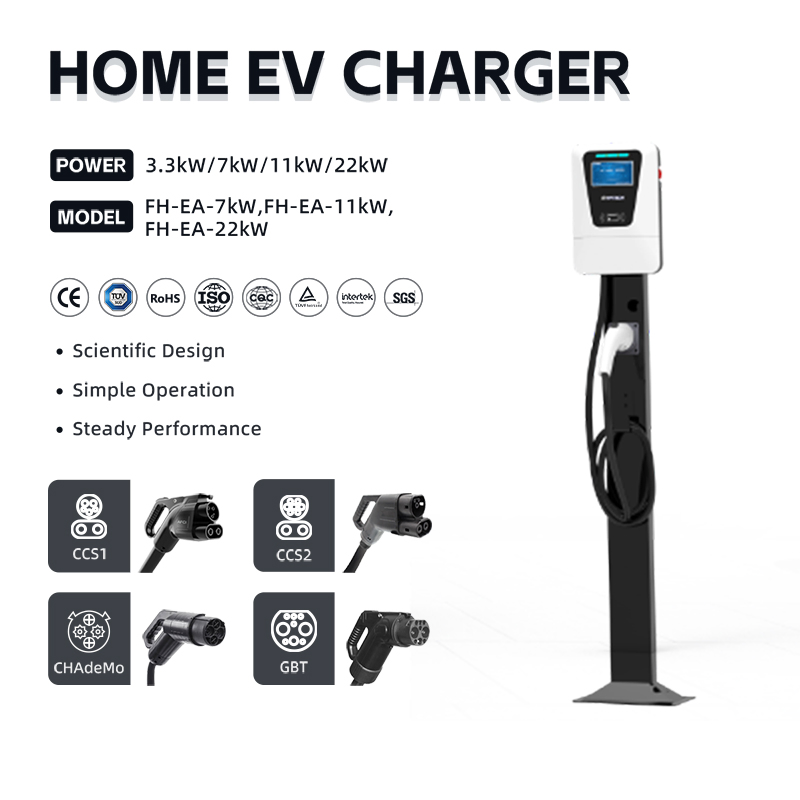

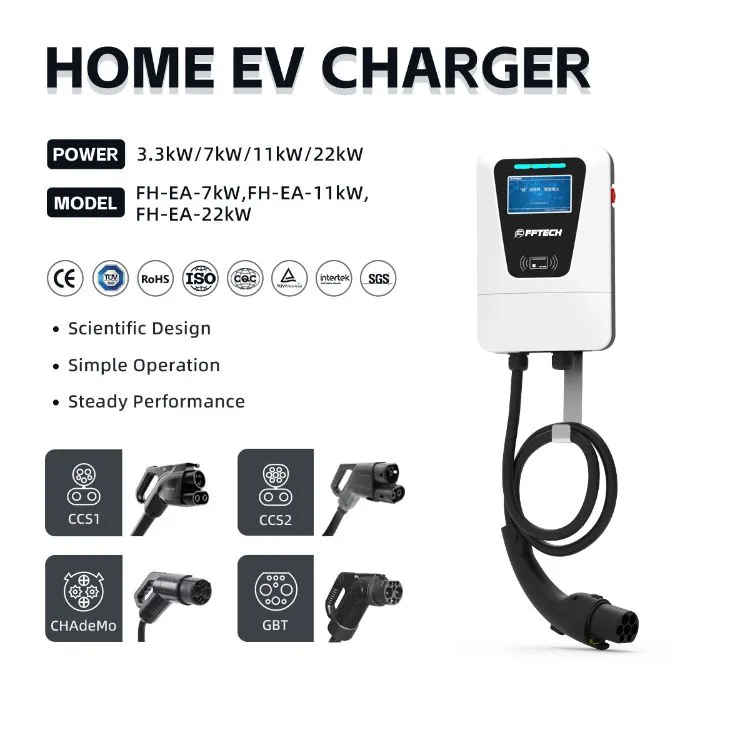

Smart Home 11/22kw Home EV Electric Car Charging Stations IEC62196 for Byd

Customization: Available
Connector Type: Type1, Type2, GB/T
Start Mode: APP Control, Book Charging, Remote Control, RFID Card

Product Description

1

Basic Information

Model
FH-EA Series (7kW, 11kW, 22kW)
Interface
One Pile with One Charge
Installation
Wall Mounted / Stand Column
AC Input
230VAC (1-Phase) / 400VAC (3-Phase)
Output Power
7kw / 11kw / 22kw
Cable Length
Rated 5m (Customized up to 10m)
Authentication
4G, Ethernet, WiFi, Bluetooth
Protection
IP54, EMC Class B
Certification
TUV CE, Cqm, ISO, UL
Package Size
29.00cm * 20.00cm * 41.50cm
2

Key Features & Advantages

This series is a bestselling electric vehicle charger featuring a combination of classic design and modern smart technology. It is ideal for both private and public use, providing high reliability under harsh environments.

  • Support for TYPE1, TYPE2, or GBT connectors.

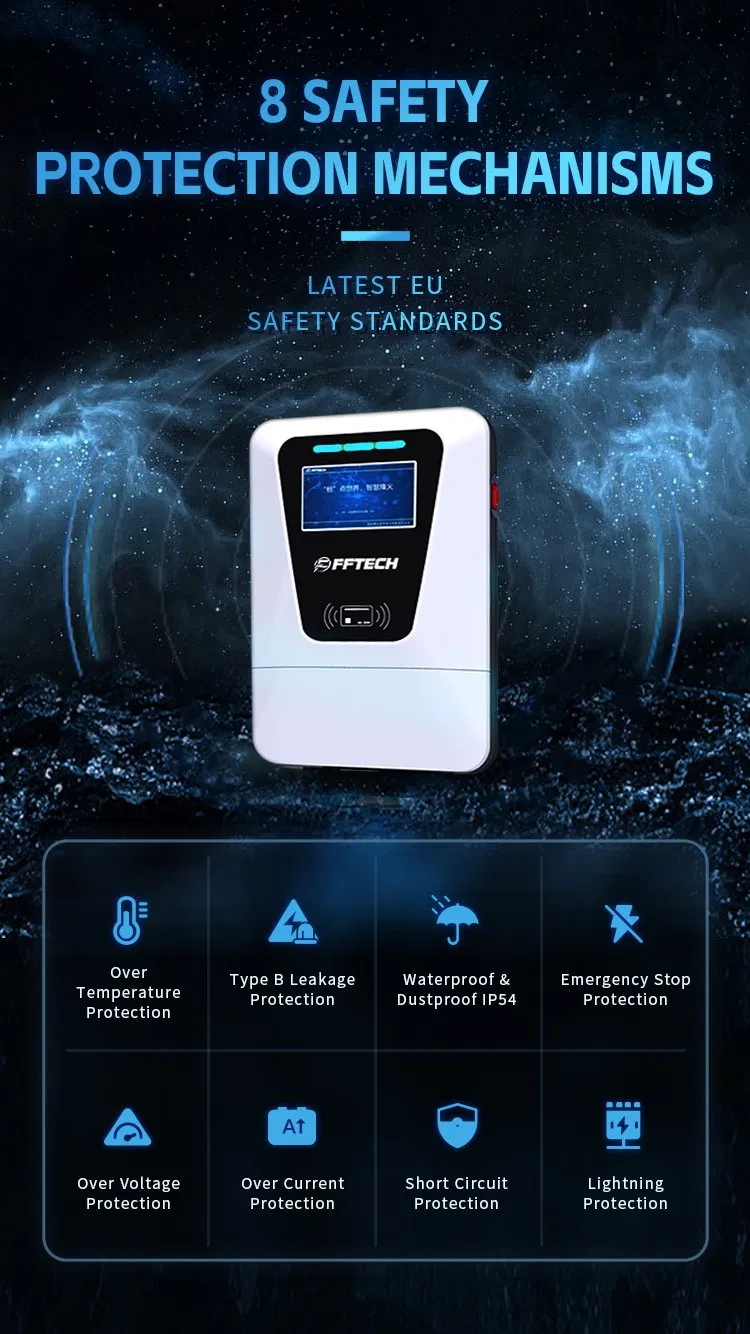

  • IP54 protection rating ensures high reliability in outdoor conditions.
  • User-friendly interface with tempered glass 7'' TFT capacitive touch screen.
  • Multiple charging modes: Auto, Amount, Energy, and SOC basis.
  • Smart connectivity: LAN, WiFi, and optional LTE wireless support.
  • Internal high-precision energy meters for accurate power tracking.
  • Supports RFID authorization and Mobile App payment integration.
3

Technical Parameters

Category 7kW AC 11kW AC 22kW AC
Model No. FH-EA-7kW FH-EA-11kW FH-EA-22kW
Input Voltage 220VAC±15% 380VAC±15% 380VAC±15%
Output Power 7kW 11kW 22kW
Output Current 32A 16A 32A
Ingress Protection IP54
Safety Standards IEC 62196, IEC61851, GB/T20234
Dimensions (Wall) 234*312*90mm 300*315*120mm 300*315*120mm
4

Product Gallery

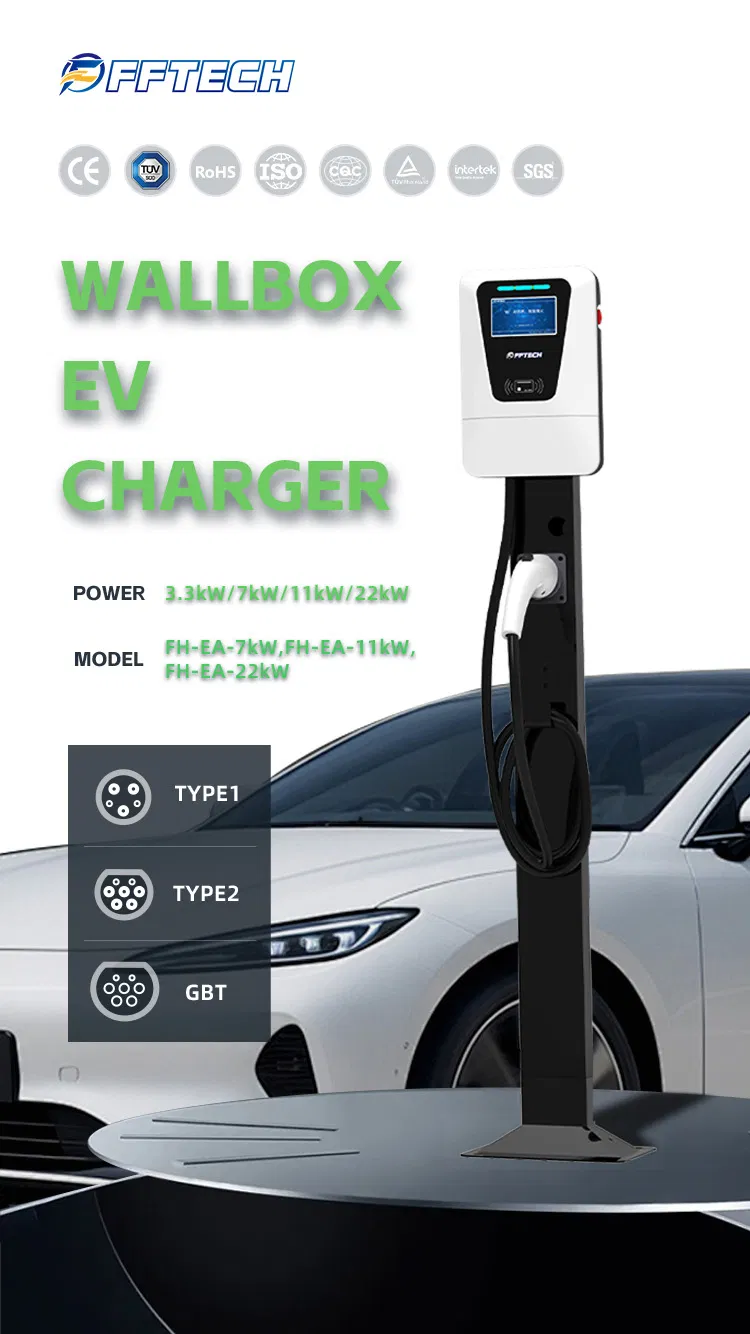

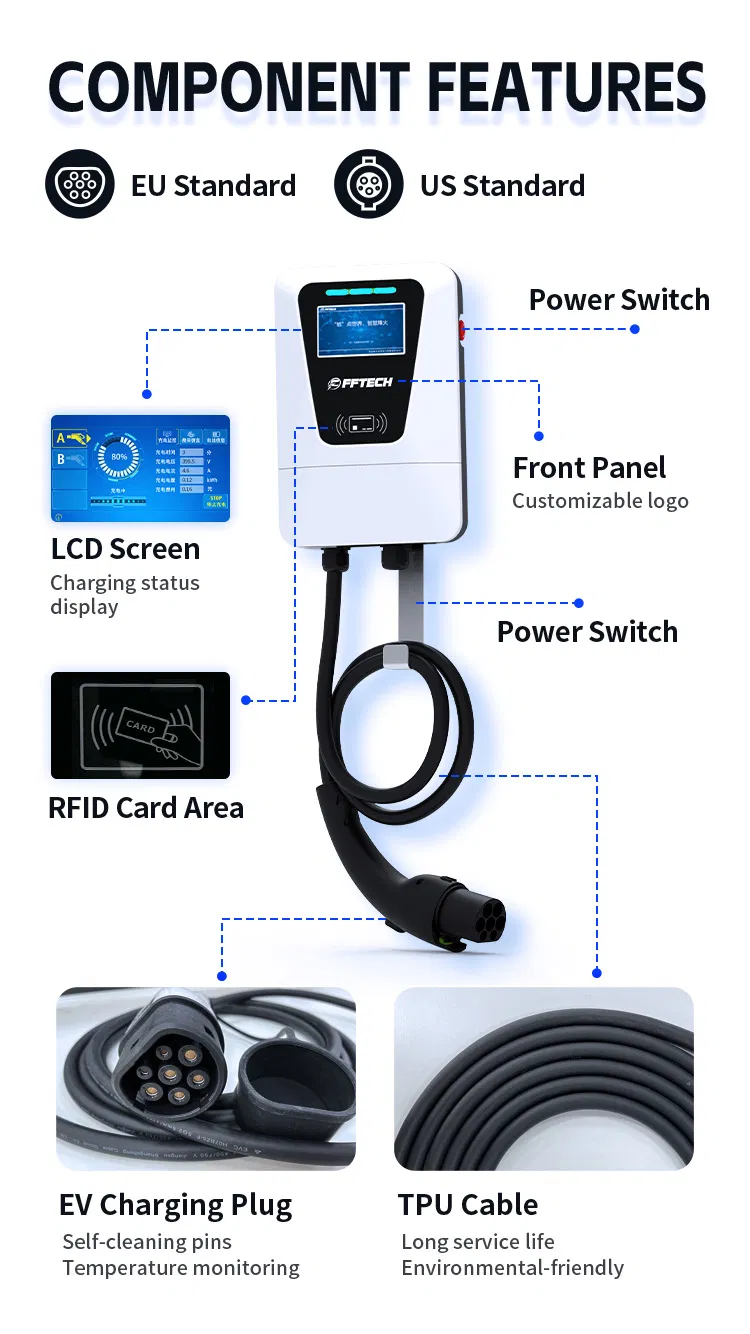

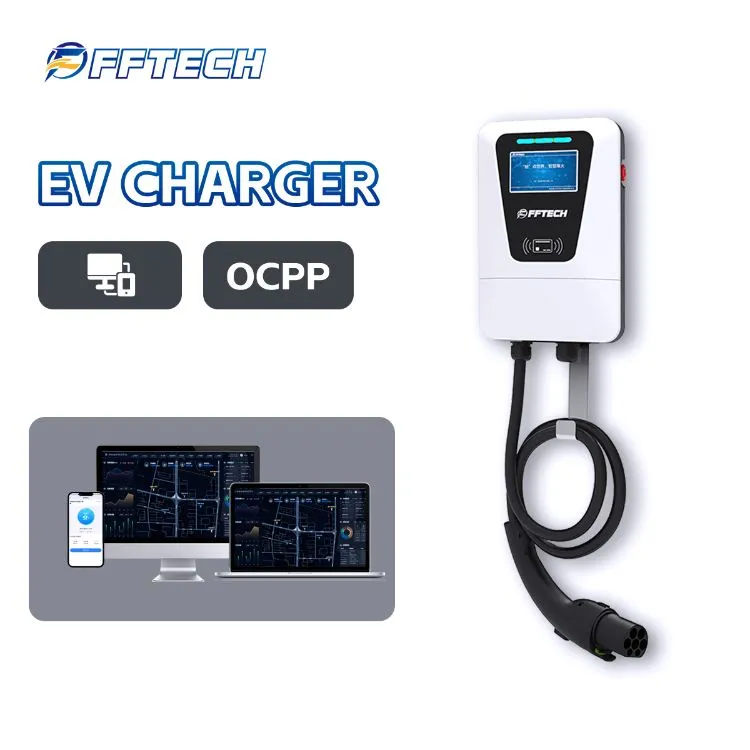

EV Charger Front View Charging Station Interface EV Charging Gun

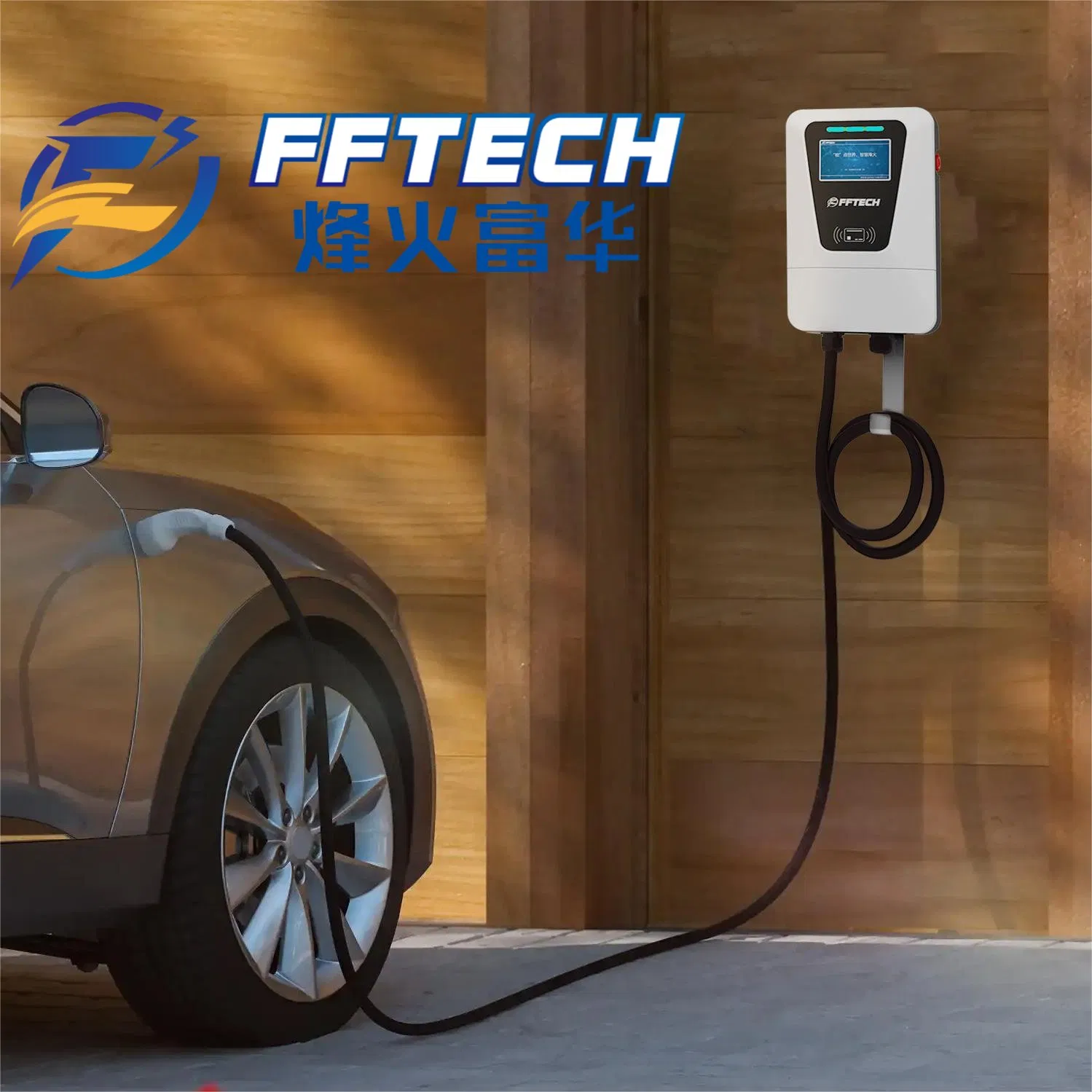

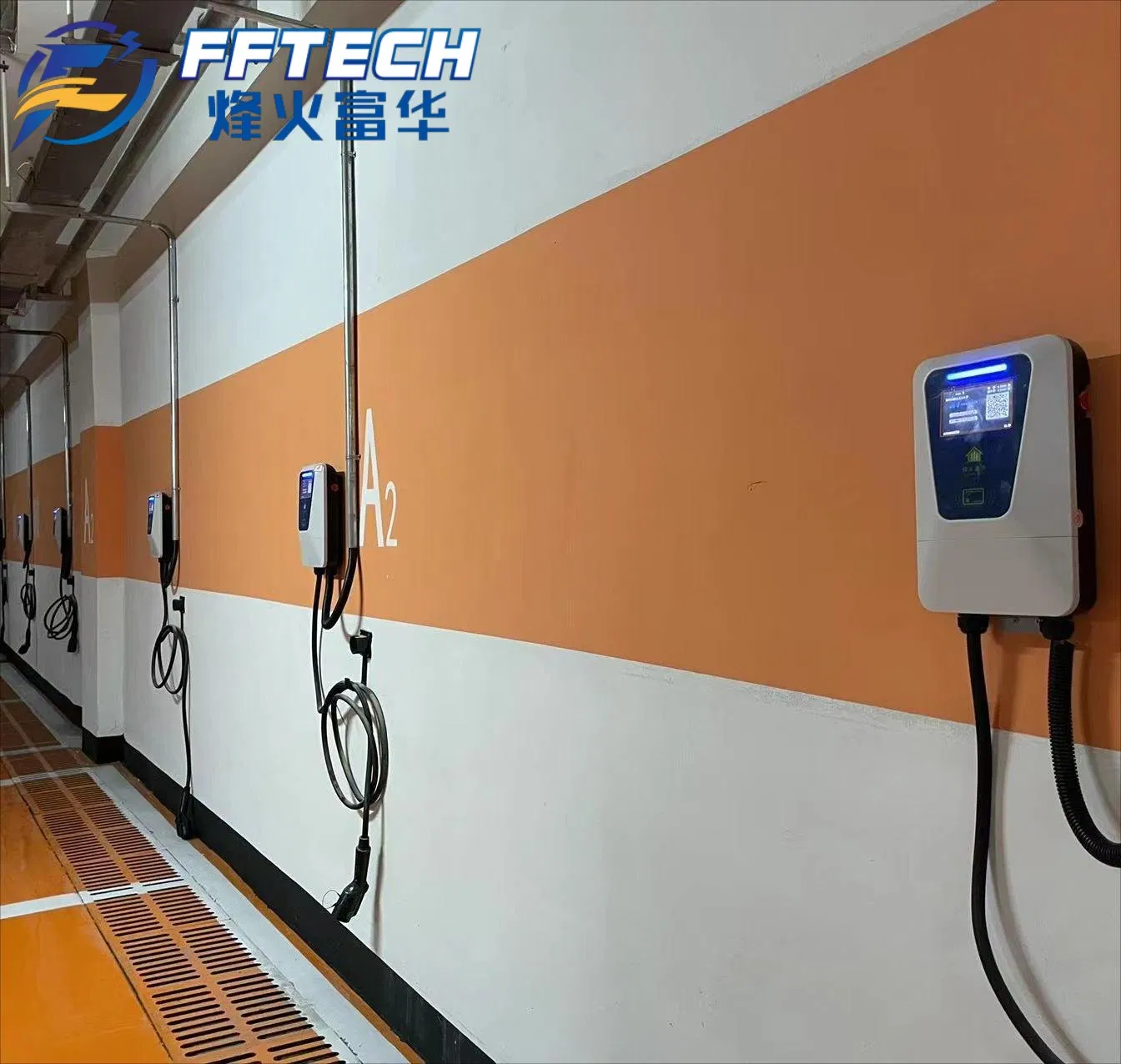

Wallbox Installation Charging App Interface
5

Manufacturing Excellence

Established in 2008, our team is a leading manufacturer and solution provider in Smart Energy. We provide a series of power-related products, including EV charging stations, portable power stations, ESS (energy storage systems), and lithium batteries.

With a decade-long dedication to continuous innovation, we have built a leading role in R&D investment and product design. Our engineering team gathers talents with backgrounds in Electricity, AI, Cloud-computing, and Big-data to keep offering cutting-edge products that build a sustainable future.

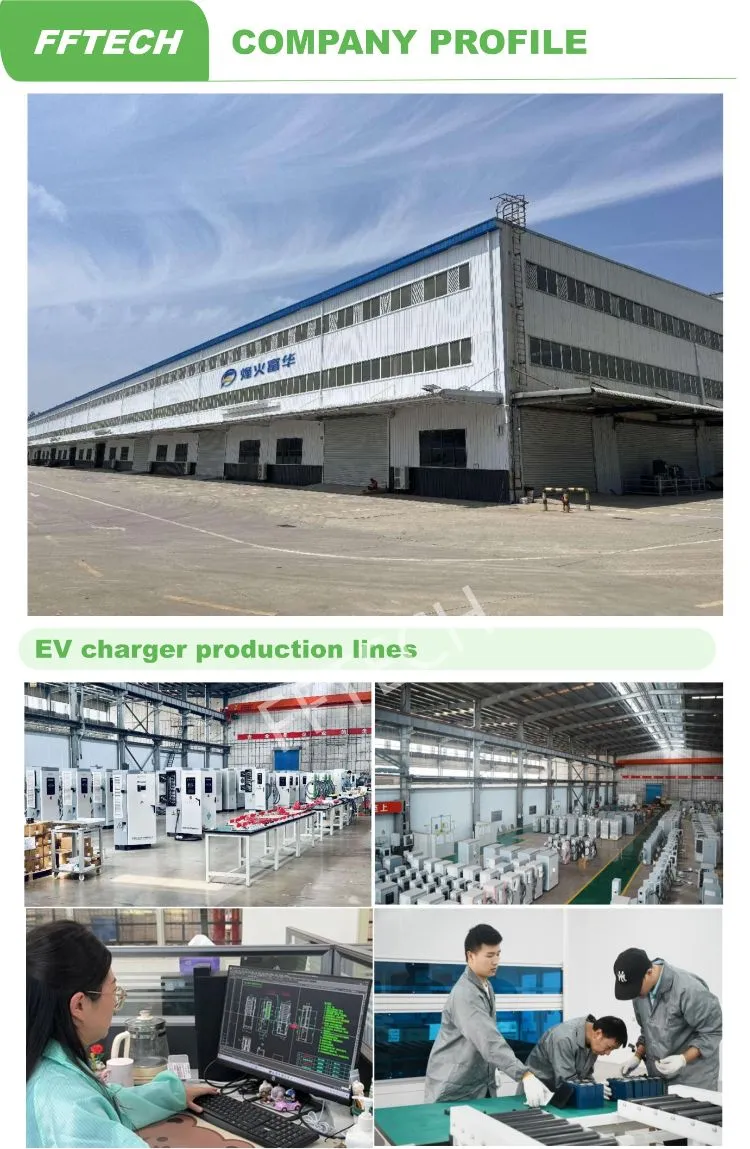

Factory Overview Production Line
Quality Testing Technical Workshop Warehouse
?

Frequently Asked Questions

Is this charger compatible with all electric vehicles?
Yes, our chargers support Type 1, Type 2, and GBT connectors, making them compatible with almost all modern electric vehicles including Tesla (with adapter), BYD, BMW, and more.
Can the EV charger be installed outdoors?
Absolutely. The charger features an IP54 protection rating, which means it is protected against dust and water splashes, making it safe for outdoor installation.
What is the difference between the 7kW and 22kW models?
The 7kW model typically operates on single-phase power, while the 11kW and 22kW models use three-phase power for significantly faster charging speeds, provided your vehicle and electrical system support it.
How do I control the charging process?
You can manage the charging through several methods: RFID card swipe, a mobile app via WiFi/4G, or simple plug-and-charge mode depending on your preference.
Does the product come with a warranty?
Yes, we provide a 12-month standard warranty along with remote online guidance and onsite service support if required.
Is the cable length customizable?
The standard cable length is 5 meters, but we can provide customized cables up to a maximum of 10 meters upon request.
