Amp Link Charger
1 / 5

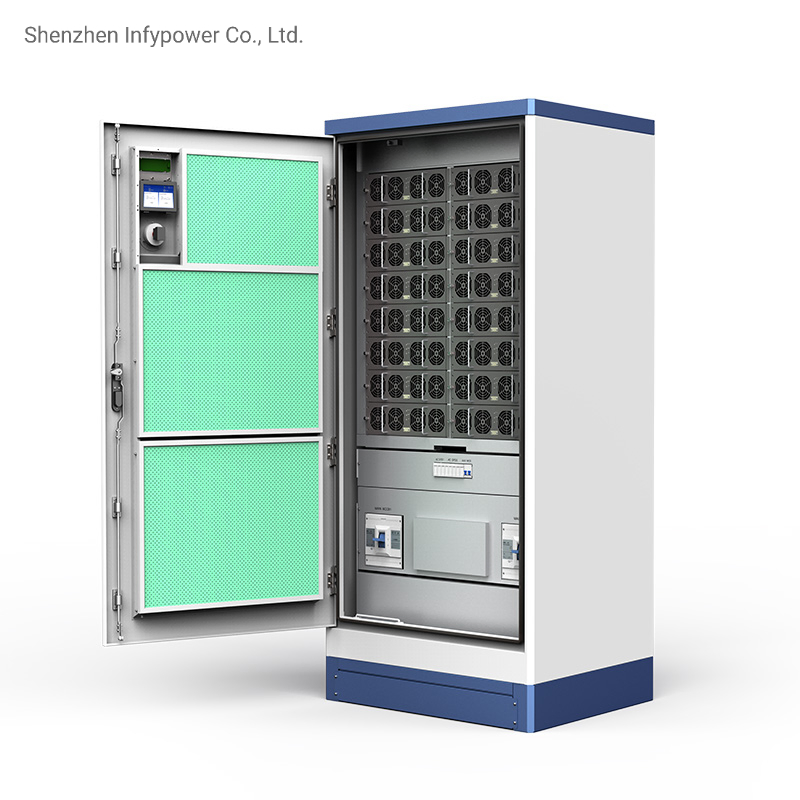

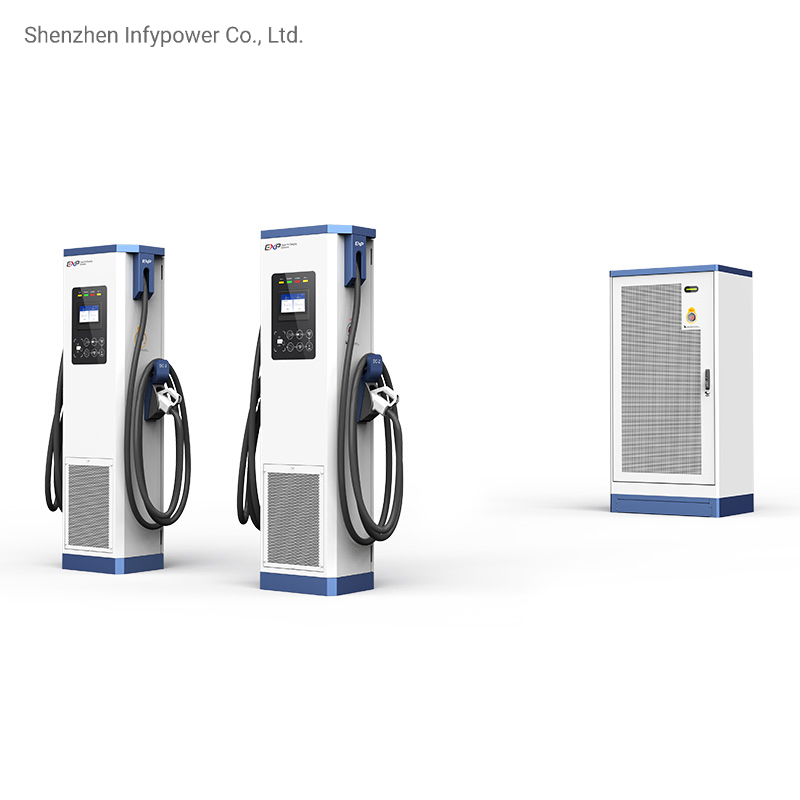

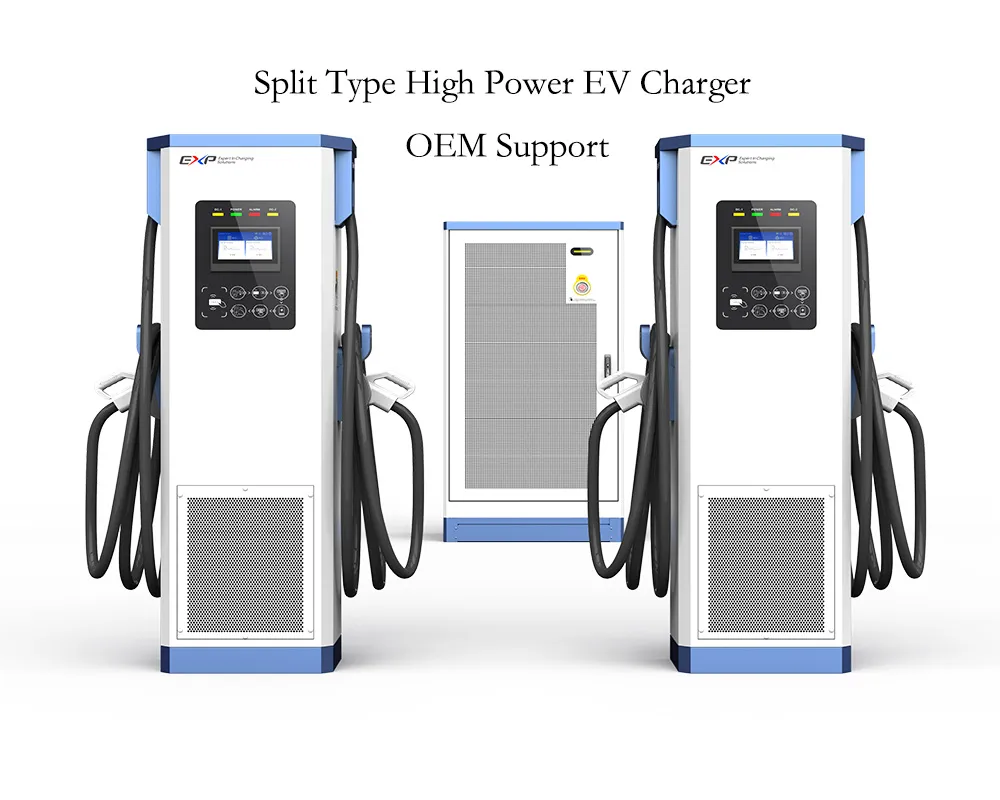

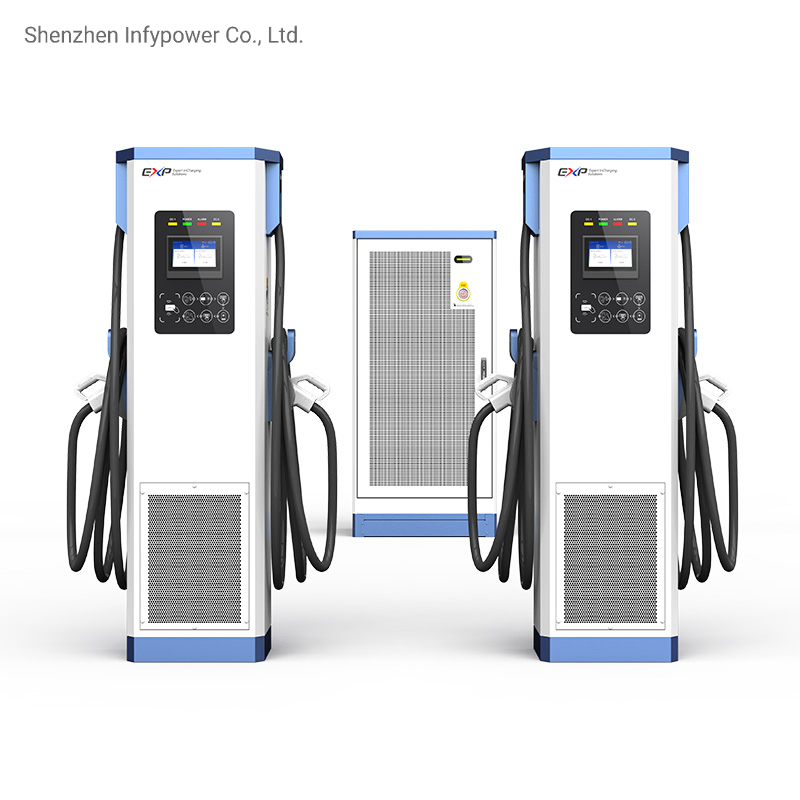

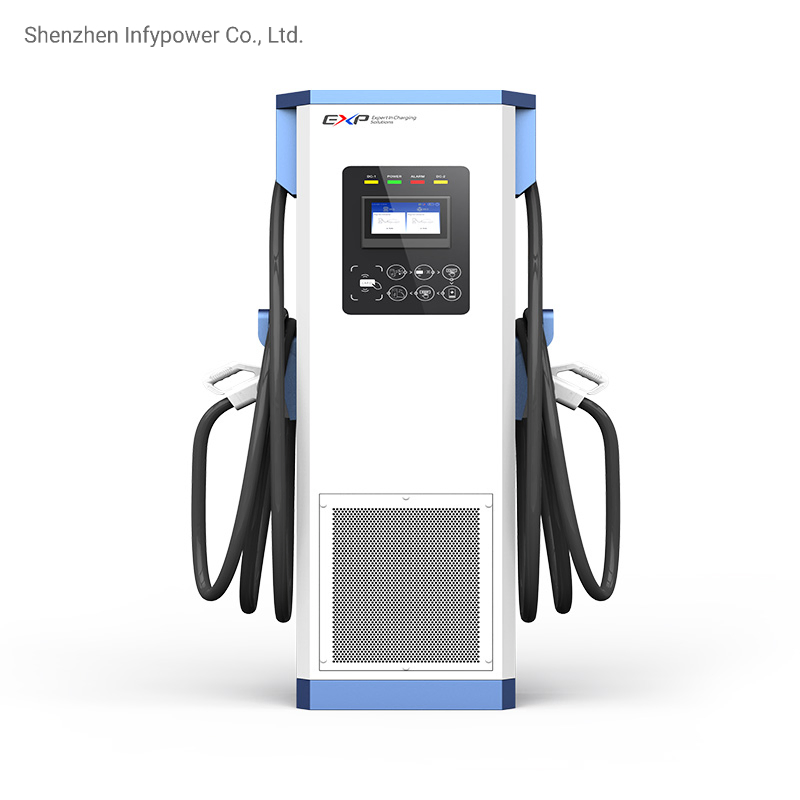

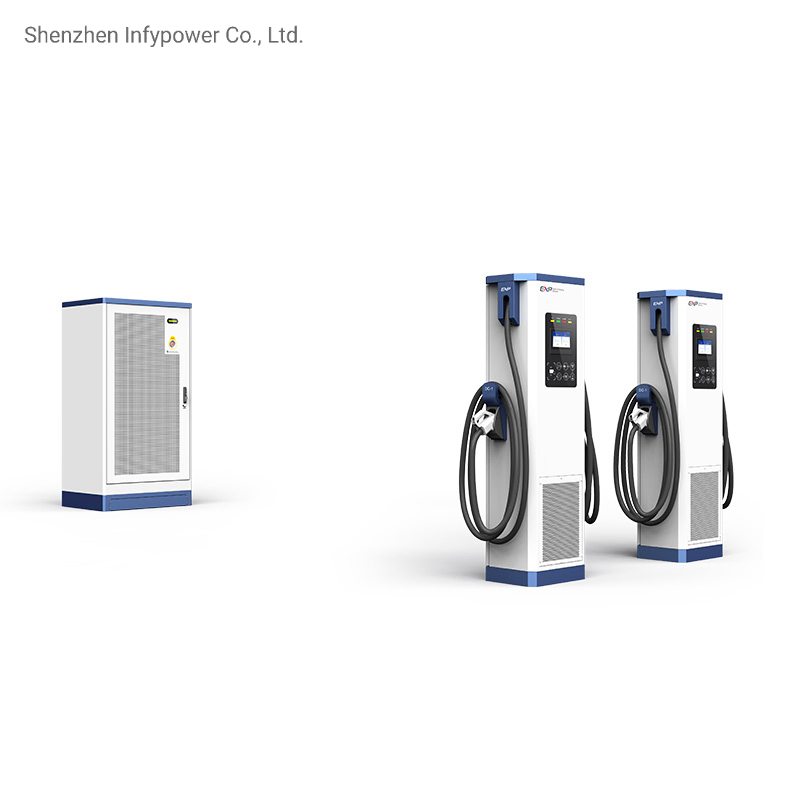

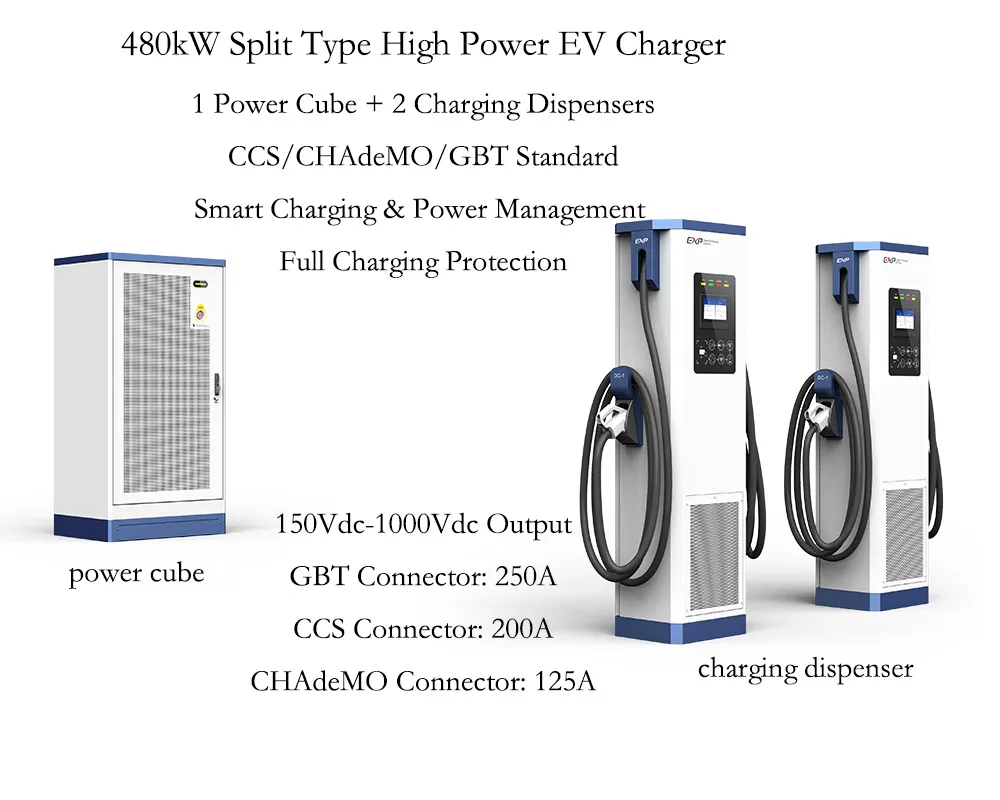

EXP480K2-FFR&LDC is a split type super power EV charger especially designed for multi-EV charging demand with CCS, CHAdeMO and GBT charging standard. The combined EV charging station is equipped with one 480kW power cube and 2 charging dispensers which support 4 electric vehicles to be charged simultaneously.
Technically, the fast EV DC charger supports a maximum DC output power capacity of 480kW and a wide output voltage range from 150Vdc to 1000Vdc.
| Feature | Specification |
|---|---|
| Rated Power | DC 480kW@300V-1000V |
| AC Input | Max input current 2*431A with 2-channel input RCDA breaker |
| DC Output | 150Vdc-1000Vdc, Efficiency over 95% |
| Max DC Current | 1600A@300V, 960A@500V, 521A@920V, 480A@1000V |
| Dimensions | 1000mm*2000mm*800mm (W*H*D) |
| Feature | Specification |
|---|---|
| Rated Power | DC 480kW |
| DC Input | 150V-1000V, 2-channel DC bus |
| Max DC Current | 500A@300V, 960A@500V, 521A@920V, 480A@1000V |

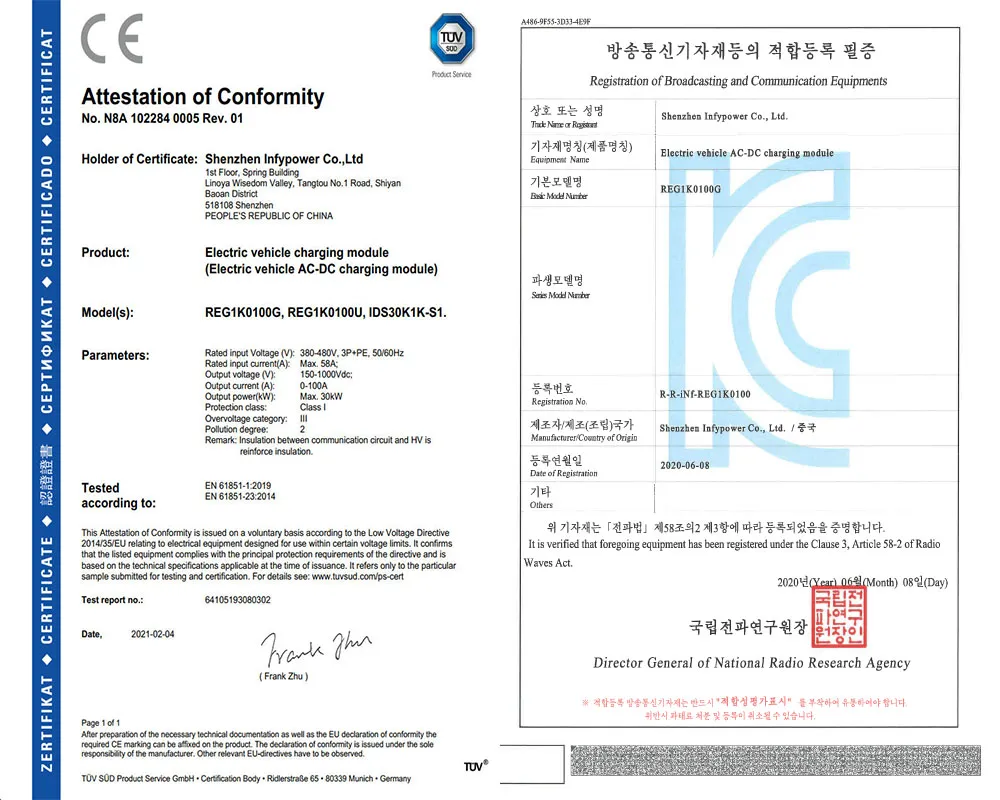

| Certification | TUV CE |
| Dimensions | 500mm*1750mm*350mm (W*H*D) |
We are a high-tech company professionally engaged in power modules and power system solutions. We have gained abundant experience in power electronics and intelligent control technology with specialty lying on electric vehicle charging solutions and energy storage solutions.
With over 70% R&D members, we attach great importance to steady and rapid development. We have published more than 150 authorized patents and an additional 100 more patents under review.
