Renewable Charger Solution with Solar Panel

Customization: Available
Number of Charging Interfaces: One Pile with Multiple Charges
Location: Public Use

Product Description

Basic Specifications
Model NO.
DC EV Charger
Installation
Floor Type
Charge Method
Quick Charge
Output Power
120kw
Output Current
250A
EV Connector
Chademo and CCS
Suitable for
All Brands of EV
Charge Speed
DC Fast Rapid
EV Plug
Tesla and GB/T
OEM
Support
Features
Solar Powered
Certification
CE

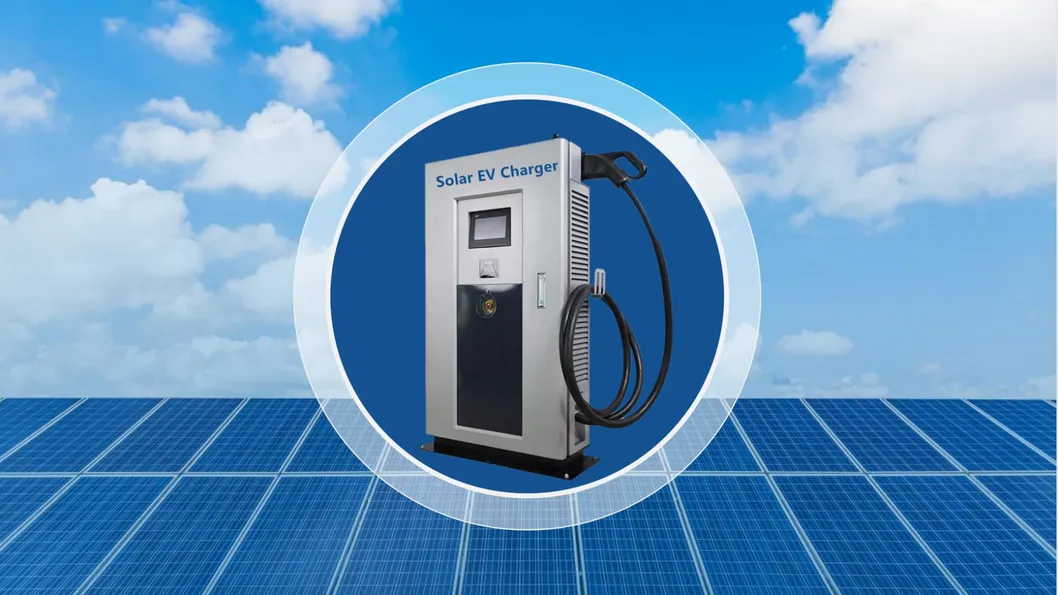

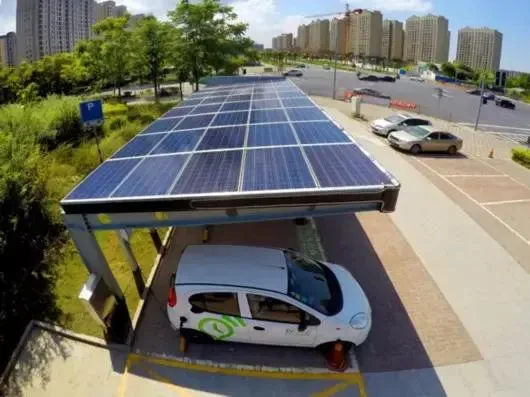

Grid Free Solar EV DC Fast Charger
EV solar charging is a great solution, which allows EV owners to end their reliance on the high-cost fossil-fuel-powered energy grid. Use the green energy generated from your solar panels at home to charge your electric vehicle in the most efficient and sustainable way. With two modes (On-Grid and Off-Grid) to choose from, you decide when to go fully green or charge with a mix of green and grid energy.
Greener Charging: Affordable, clean energy from Solar EV Charger systems. Completely green and environmentally friendly, contributing to global protection.
Save Grid: Perfect for remote areas, highways off the grid, or urban grids that cannot withstand high-power machines.
DC Fast Charge Speed: Provides great convenience for modern fast-paced life, allowing vehicles to fill up in a short time.
Economical: Sustainable solar power is more affordable, reducing grid energy dependency and increasing savings.
Main Applications

Ideal for personal use, home charging, EV fleets, electric buses, heavy trucks, light vehicles, and charger sharing stations.

Technical Datasheet
MODEL 60KW 120KW 180KW
INPUT PARAMETERS
Nominal Input Voltage380 VAC ± 15%
Acceptable Input3-phase, 3ph + N + PE
Frequency Range50 - 60 Hz
Maximum Input Current100A260A300A
OUTPUT PARAMETERS
Output Voltage Range200~750VDC
Efficiency> 94%
Power Module30kW x 2 pcs30kW x 4 pcs30kW x 6 pcs
ENVIRONMENT & PHYSICAL
IP ProtectionIP54
Operating Temp-25°C to 50°C
Cable Length5m

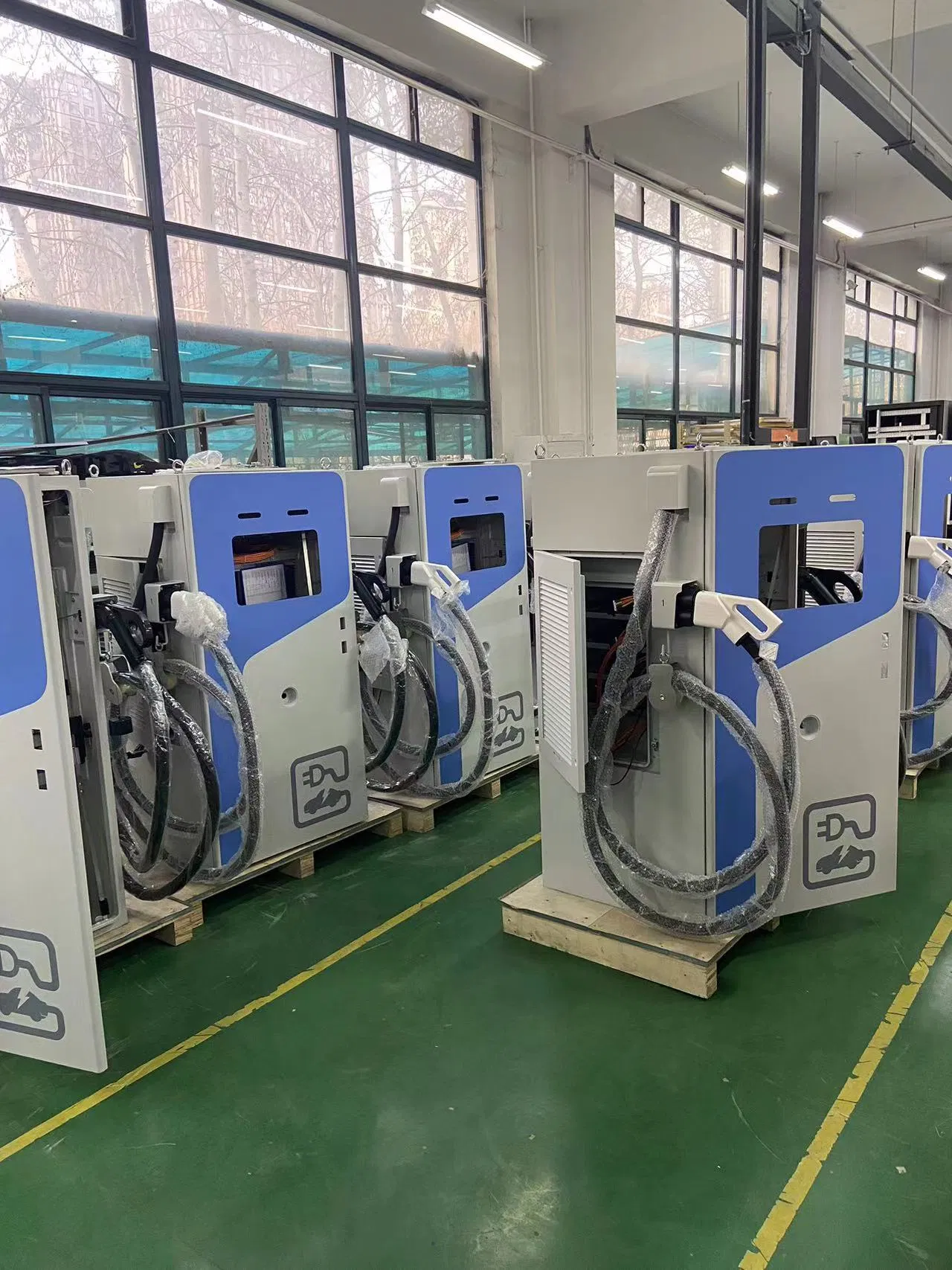

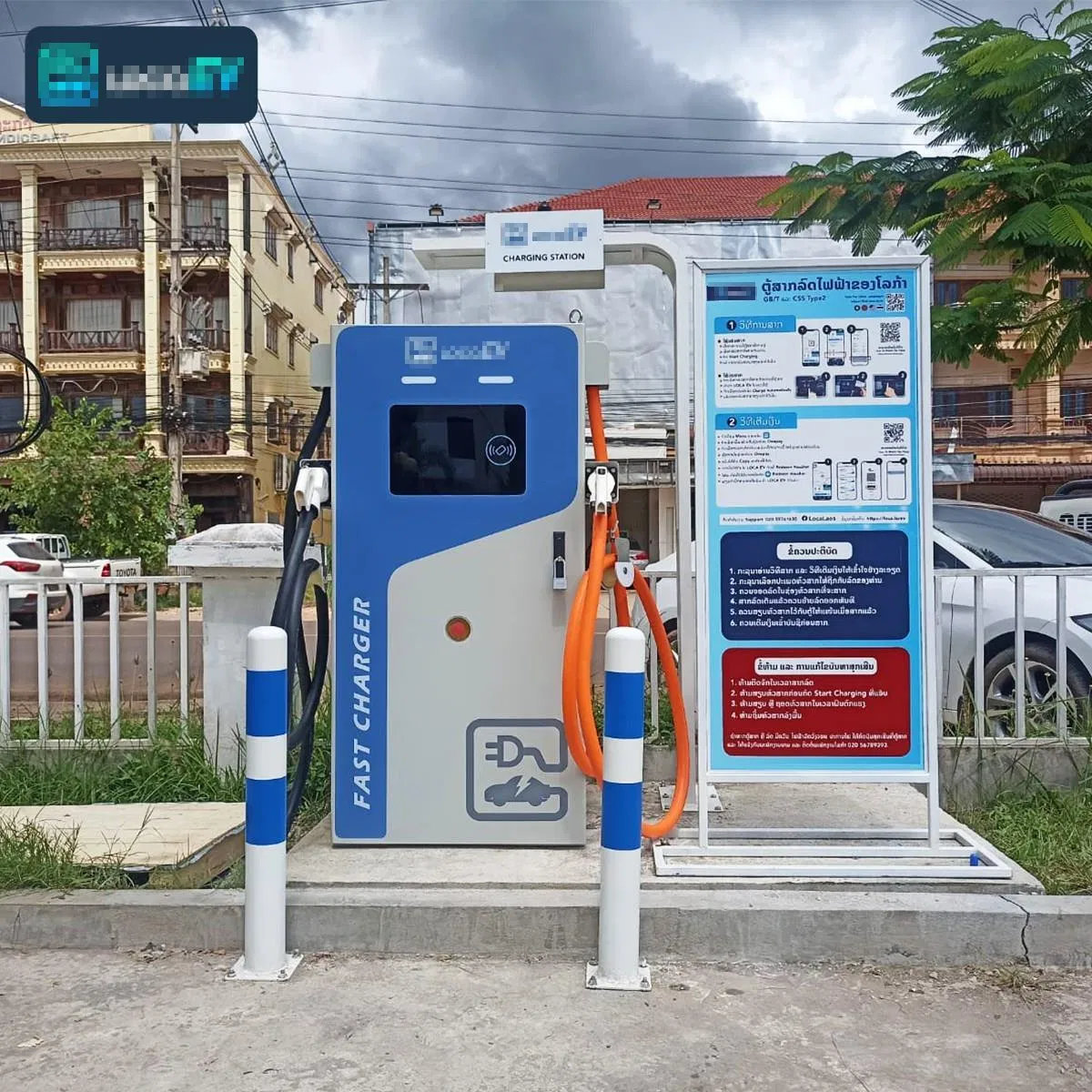

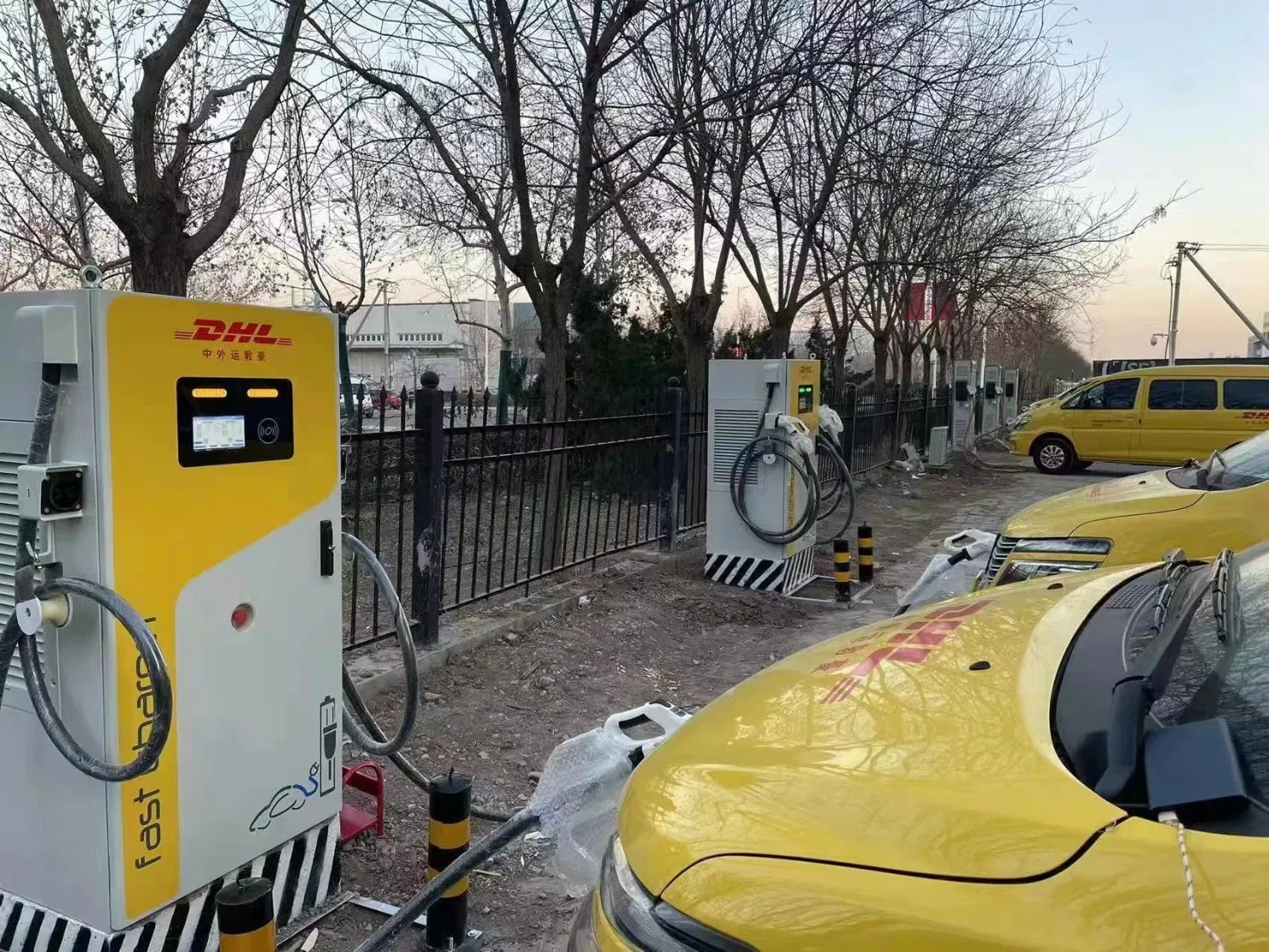

Product Showcase

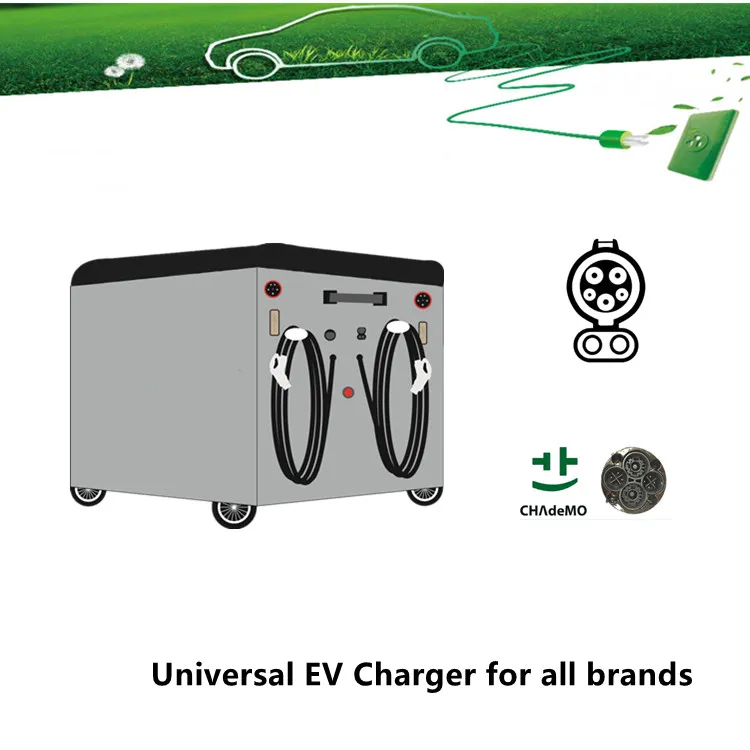

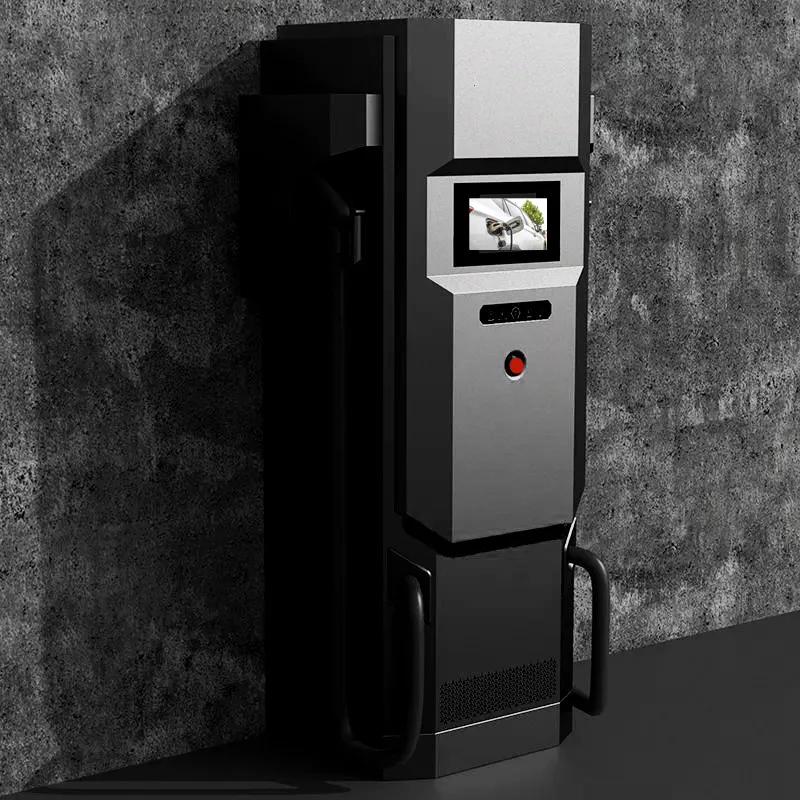

Other Popular Models

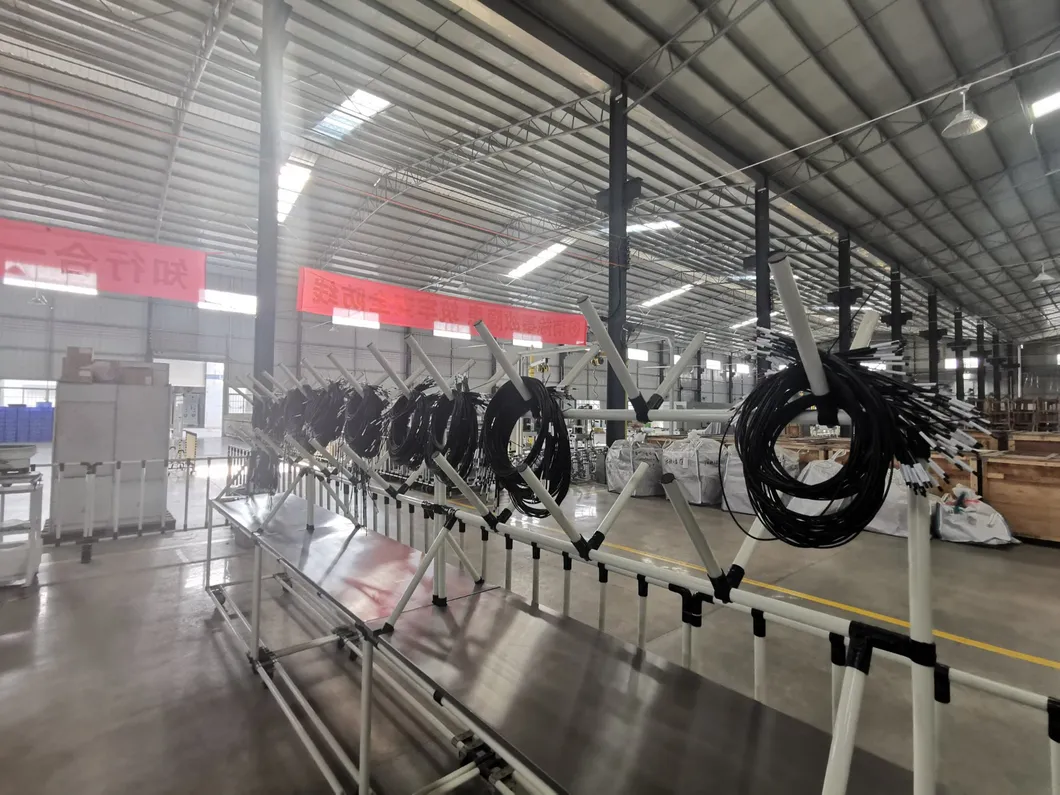

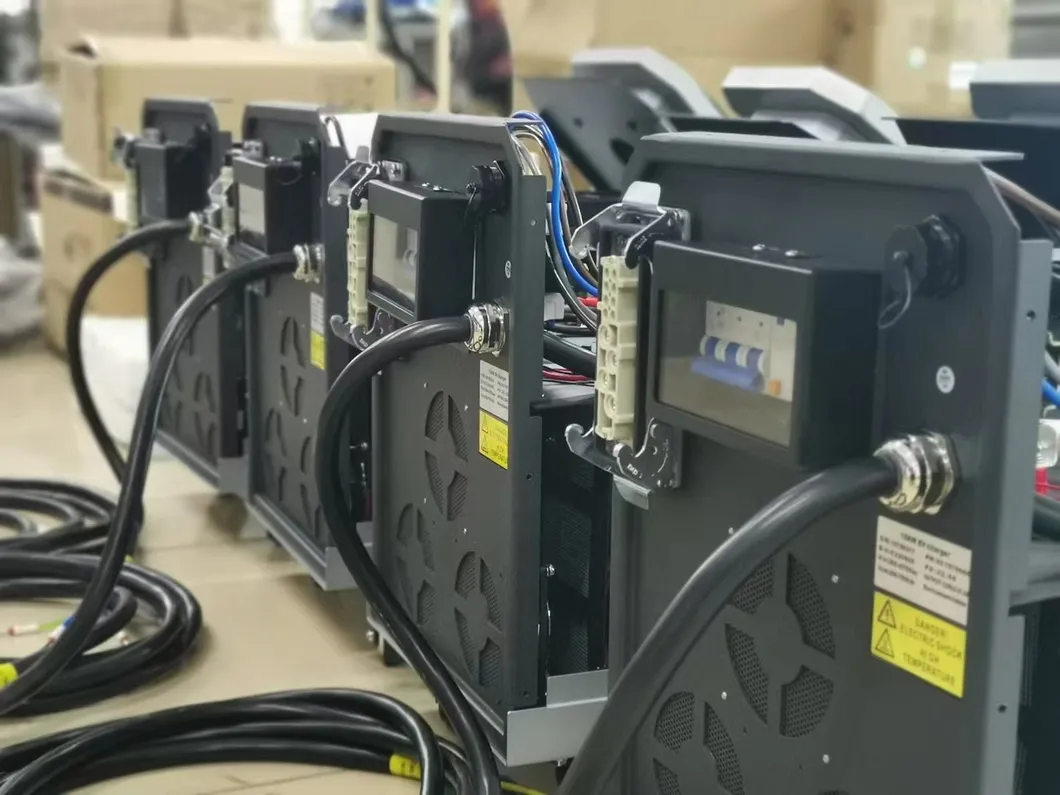

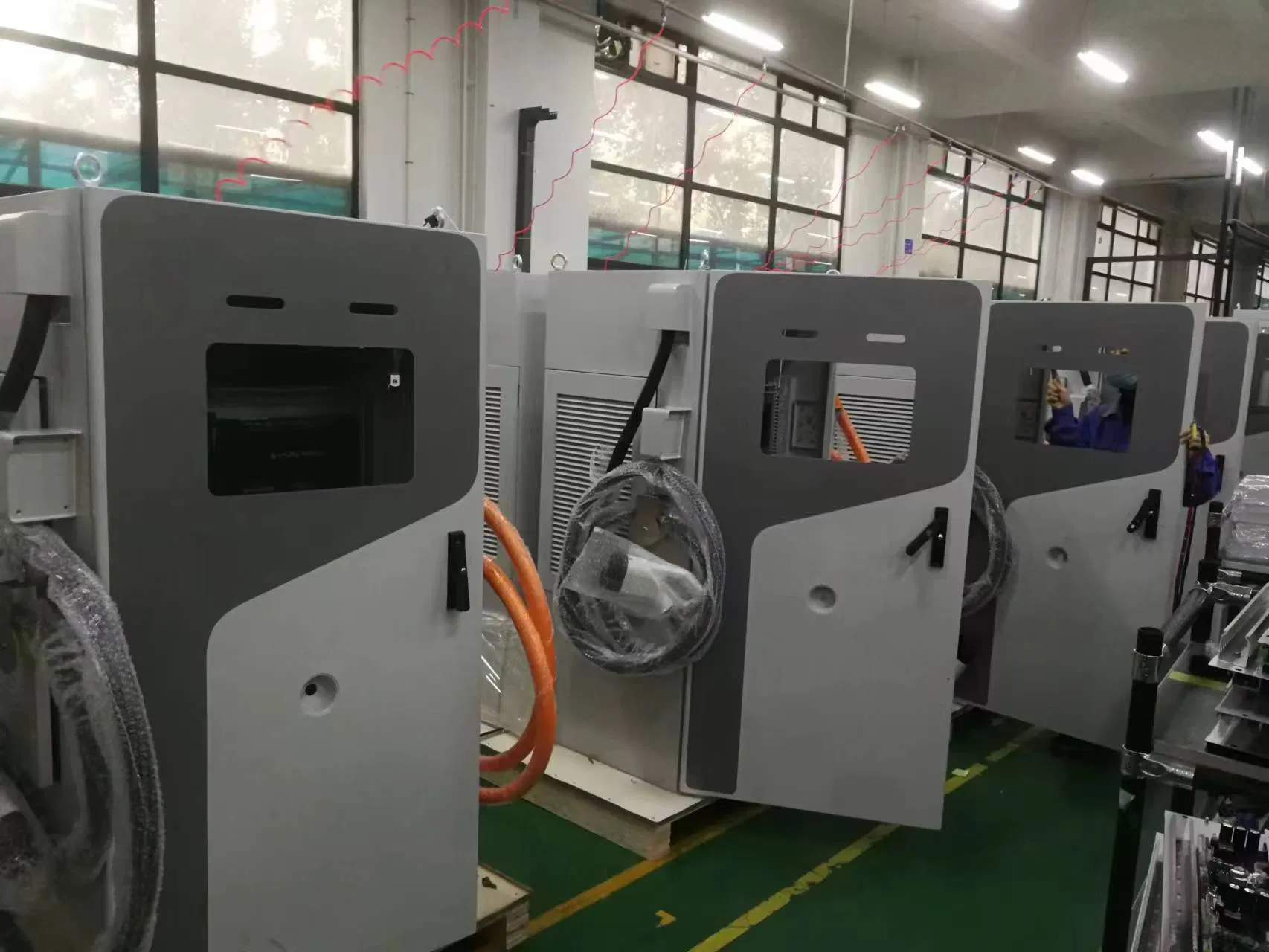

Professional Production Capacity
We are a professional EV charger and battery storage solution provider dedicated to providing equipment that is safer, more efficient, and more stable. Our production includes AC/DC chargers, emergency rescue systems, V2H/V2V chargers, and solar-integrated charging stations. With advanced equipment and professional technical teams, we focus on high-quality delivery for global commercial and household markets.
Frequently Asked Questions

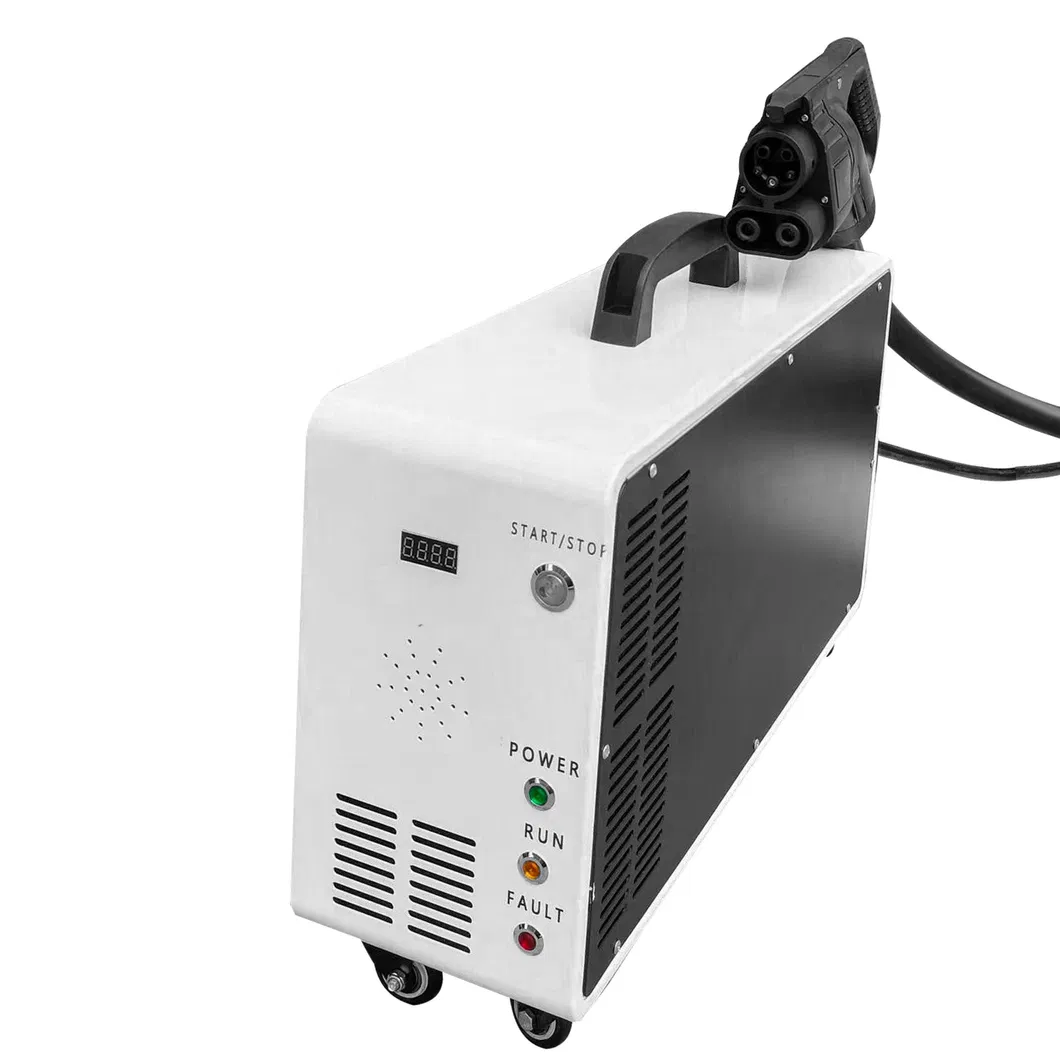

Q1: Difference between Movable and Wallbox Chargers?
Wallbox chargers feature IP54 protection, suitable for outdoor use with RFID billing. Movable chargers have IP43 protection and are generally not recommended for outdoor use during rainy weather.
Q2: What is the warranty period?
The warranty is 12 months. During this period, we provide technical support and free replacement parts.
Q3: What are the terms of packing?
Generally, goods are packed in neutral brown cartons. Branded packaging is available with proper authorization for registered patents.
Q4: What is the typical delivery time?
Usually, it takes 3 to 7 working days after receiving advance payment, depending on the specific items and order quantity.
Q5: Do you test products before delivery?
Yes, we conduct 100% testing on all goods before they are dispatched to ensure quality and safety.
Q6: Can you produce according to technical drawings?
Yes, we can manufacture products based on your samples or technical drawings, including the development of molds and fixtures.
