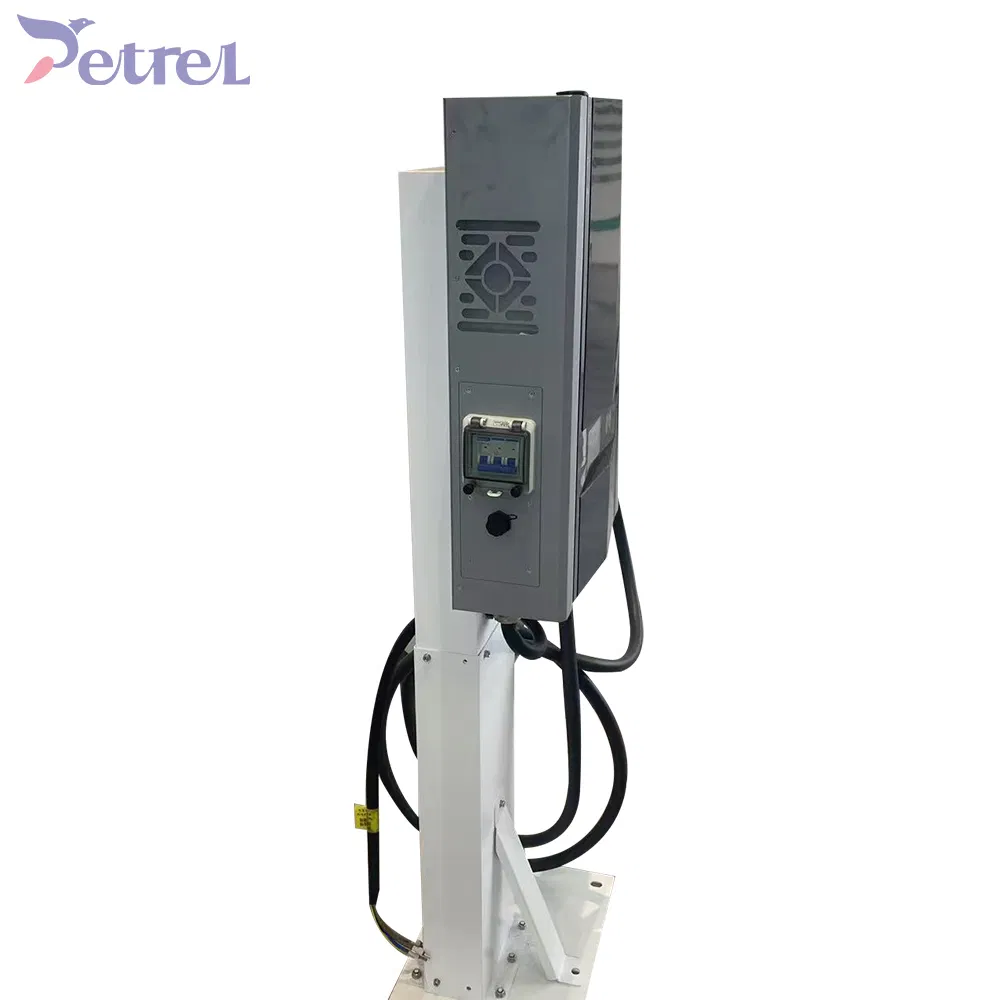

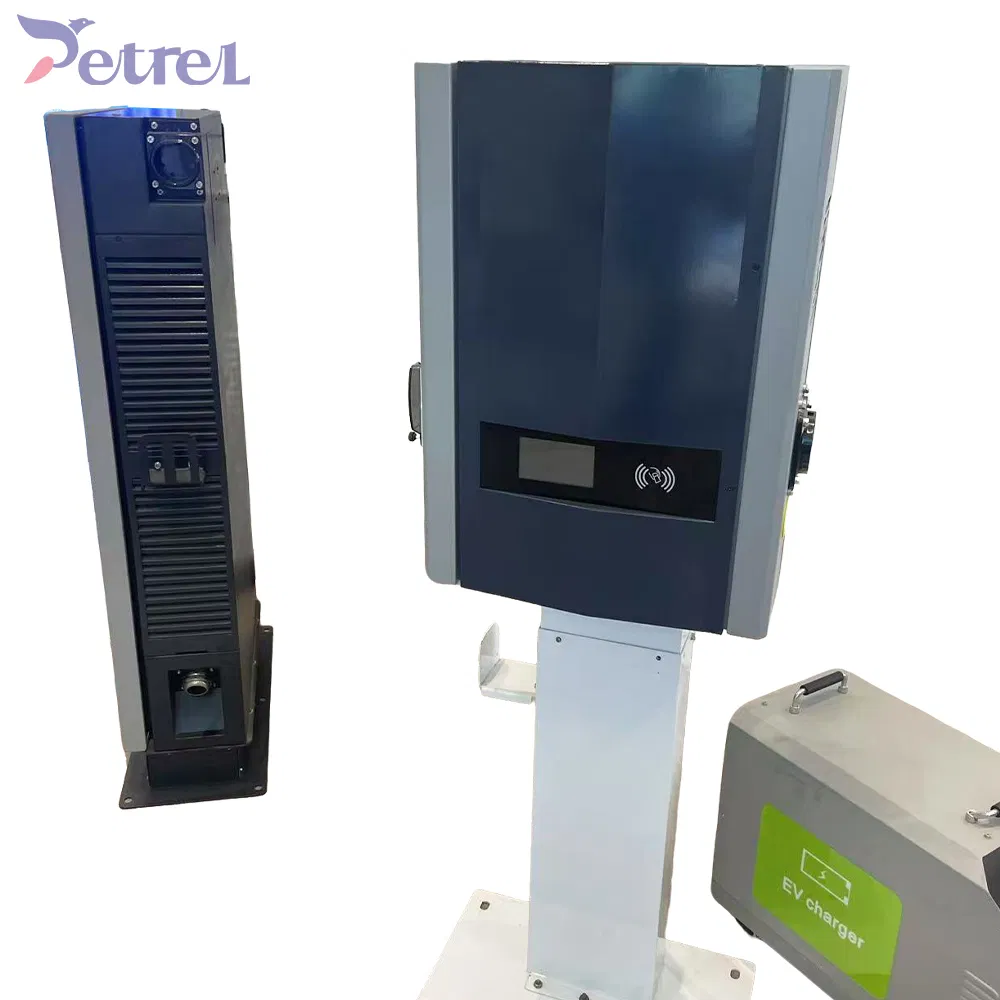

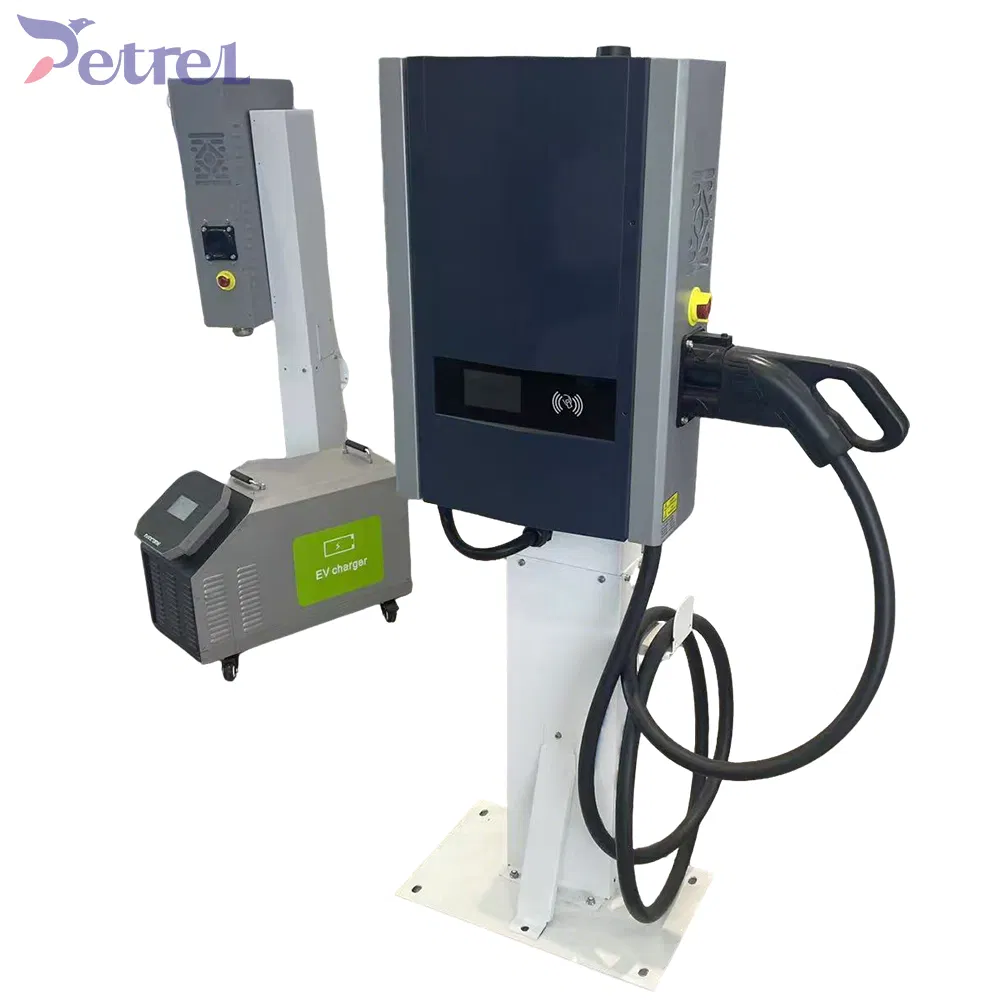

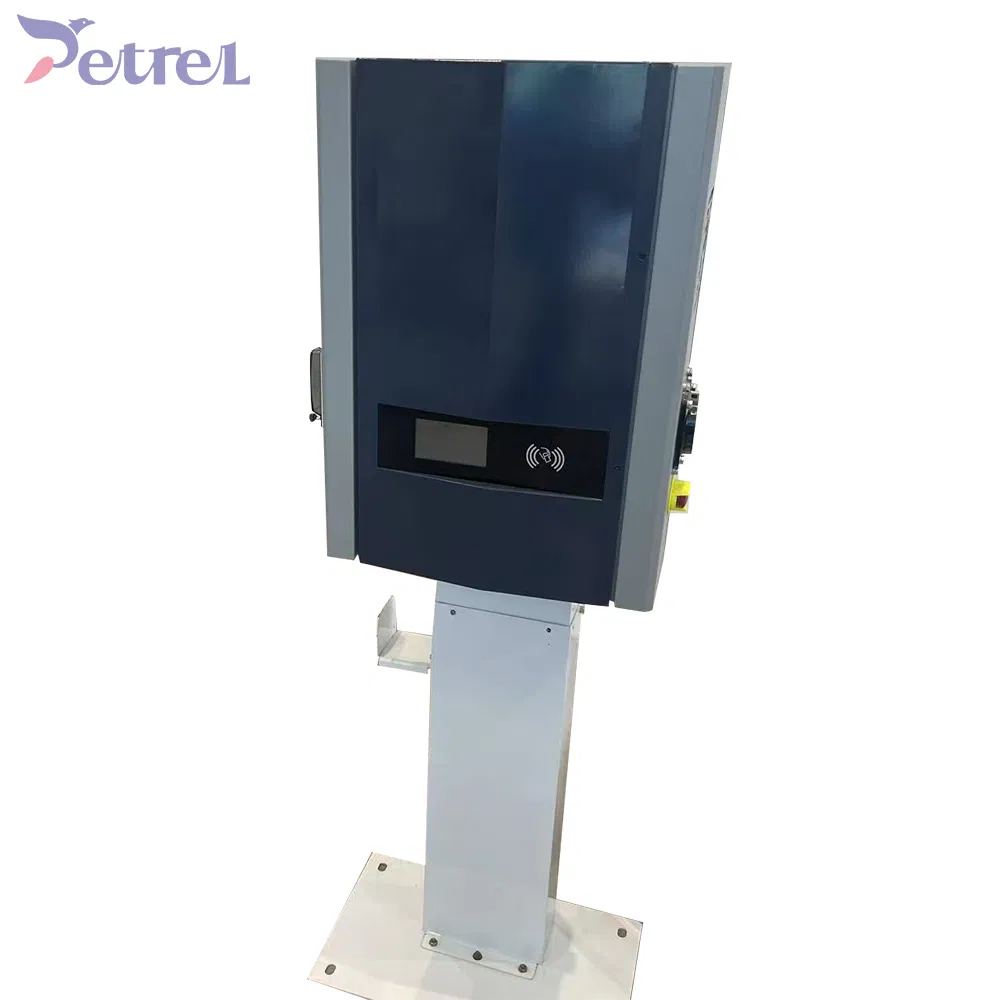

Wall EV Charging Station: Peak Performance in Compact Design
Imagine an EV charging station that not only packs powerful performance but also doubles as an elegant addition to any site. Our Wall EV Charging Station defines such a balanced functionality. The unit's calm grey hues, punctuated by subtle black trimmings, ensures it integrates beautifully with a variety of architectural styles.
Unwavering Power Supply
Our Wall EV Charging Station is engineered to deliver with an expansive 260-475Vac input voltage range, comfortably sitting at a 380V rating—ideal for private homes or business premises. A steadfast working frequency of 45-65Hz and a power factor of ≥0.99 translates into a smooth, energy-efficient charging journey for every user.
Featuring input currents of 32A, 60A, and 67A, the station provides a potent output power range—20KW, 30KW, and up to 40KW. Paired with an output voltage stretch from 200 to 1000Vdc and current delivery up to 134A, it is built to cater to a broad spectrum of EV charging requirements.
Durability Meets User Experience
It stands resilient across a wide array of conditions—harsh temperatures, high humidity, and at elevations reaching 2000 meters—without any compromise in performance, thanks to its IP54 protection grade. The user experience is heightened by a 4.3 inch interactive color touch screen, offering accessible charging modes that include plug-and-play, OCPP, and a host of smart payment options.
| Specification | 20KW | 30KW | 40KW | |
|---|---|---|---|---|
| Input | Voltage range | 260-475Vac, 380V (Rated) | ||
| Power factor | ≥0.99 | |||
| Input current | 32A | 60A | 67A | |
| Frequency | 45-65Hz | |||
| Output | Voltage range | 200-1000Vdc | ||
| Max Current | 50A | 100A | 134A | |
| Cable Length | 5M Standard | |||
| Environment | Protection | IP54 | ||
| Temperature | -20~50ºC | |||
On the bustling international trade stage, our professional team of more than 30 people shows outstanding competitiveness in electrical automation. We provide core products such as low and high voltage electrical control cabinets, distribution cabinets, and explosion proof cabinets, which play an important role in manufacturing, energy, transportation, and petrochemical industries.

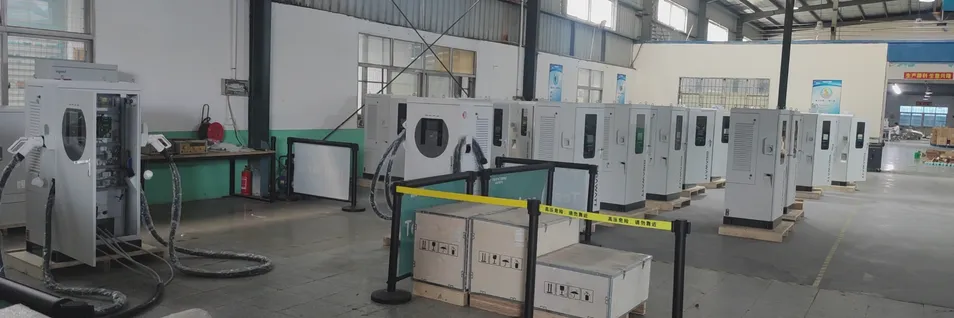

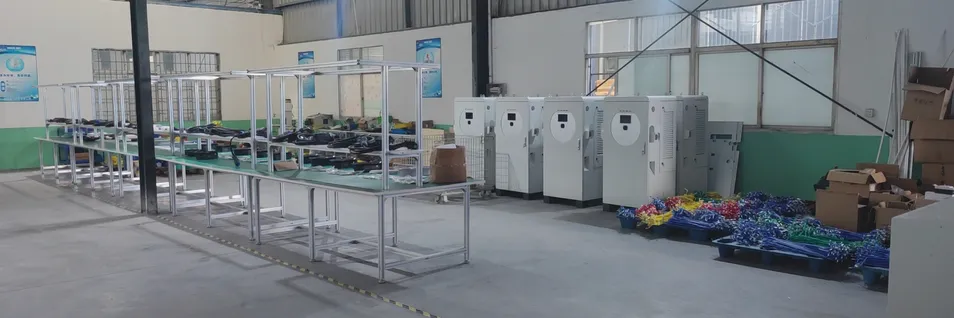

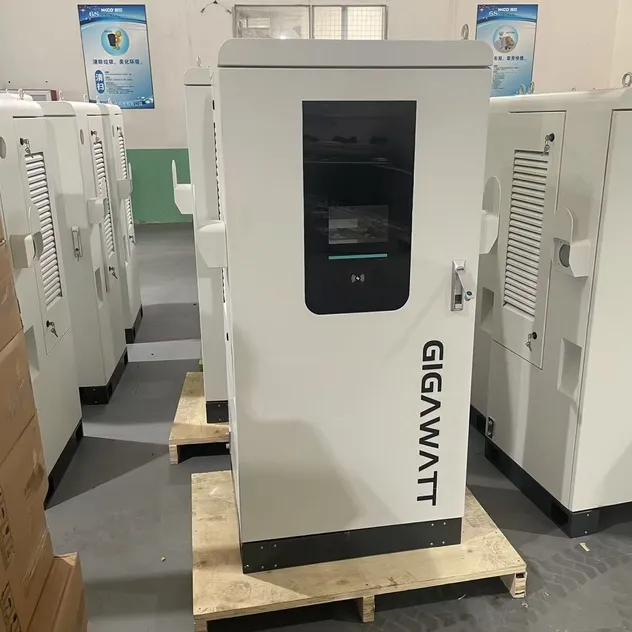

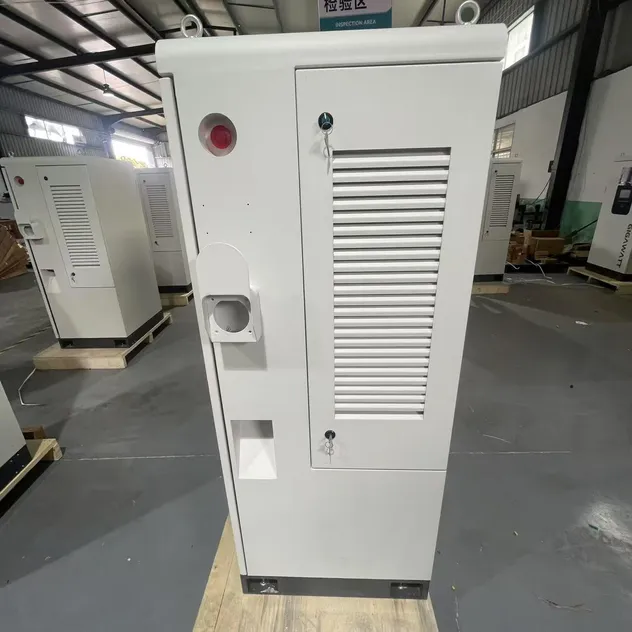

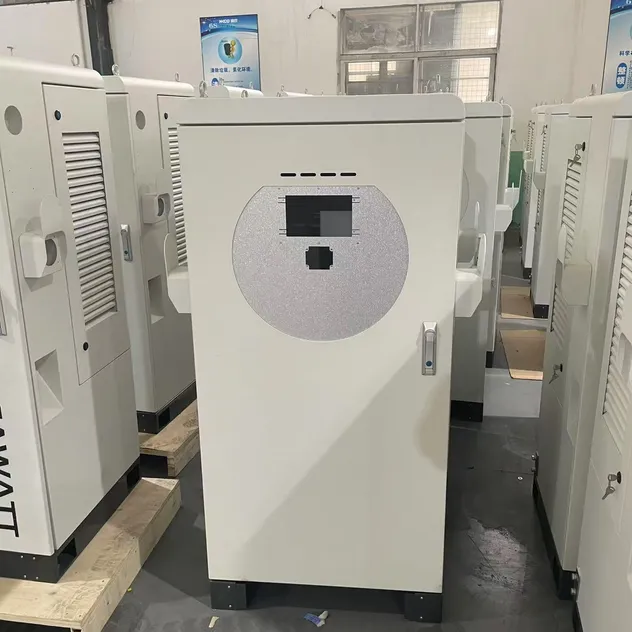

Our technical services cover PLC programming, equipment remote monitoring and control, providing integrated power distribution and automation solutions. We have established dedicated research and development production bases for charging piles and assembly lines for both AC and DC charging solutions, ensuring high-quality manufacturing standards through long-term collaborative research.
