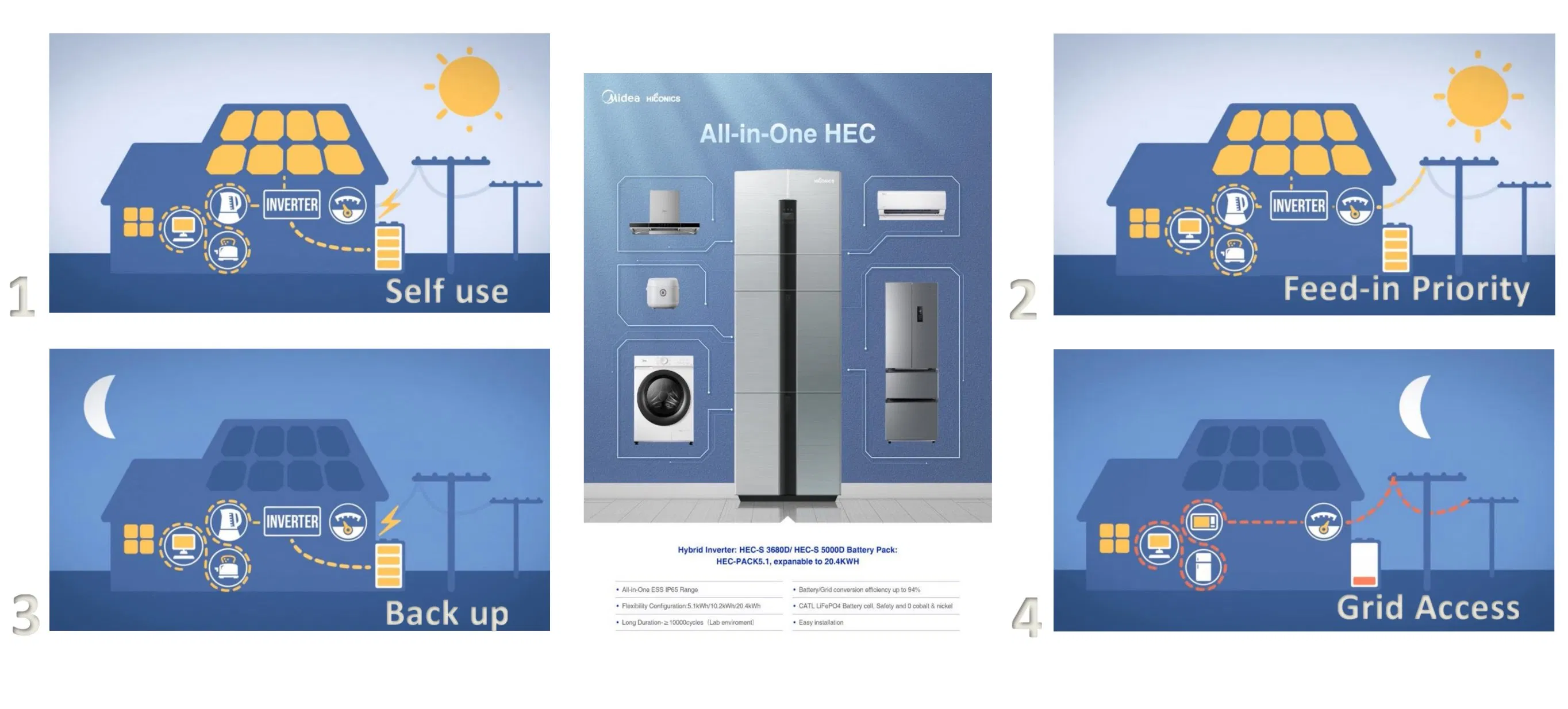

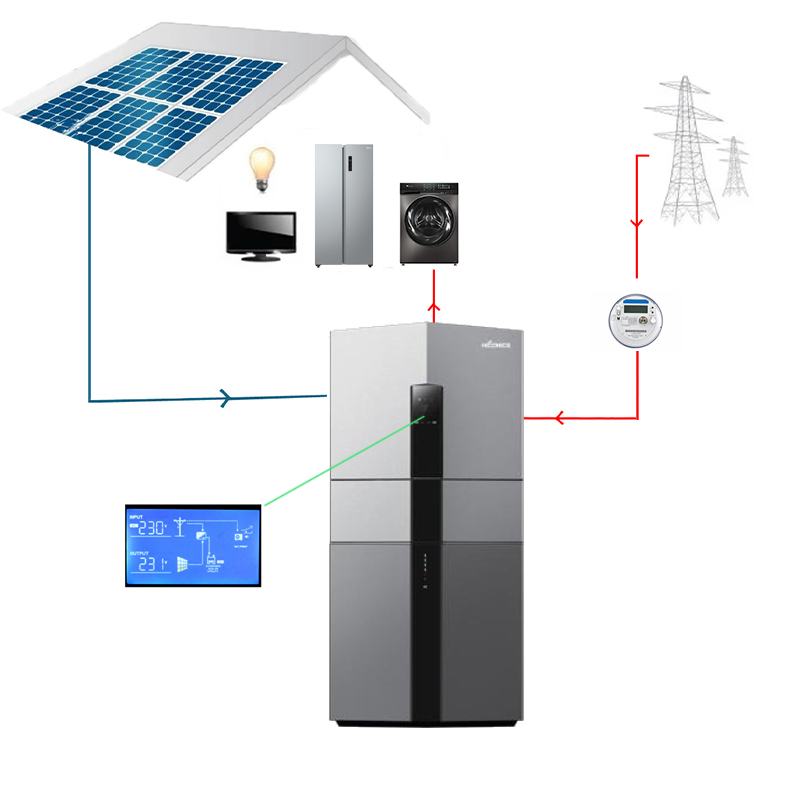

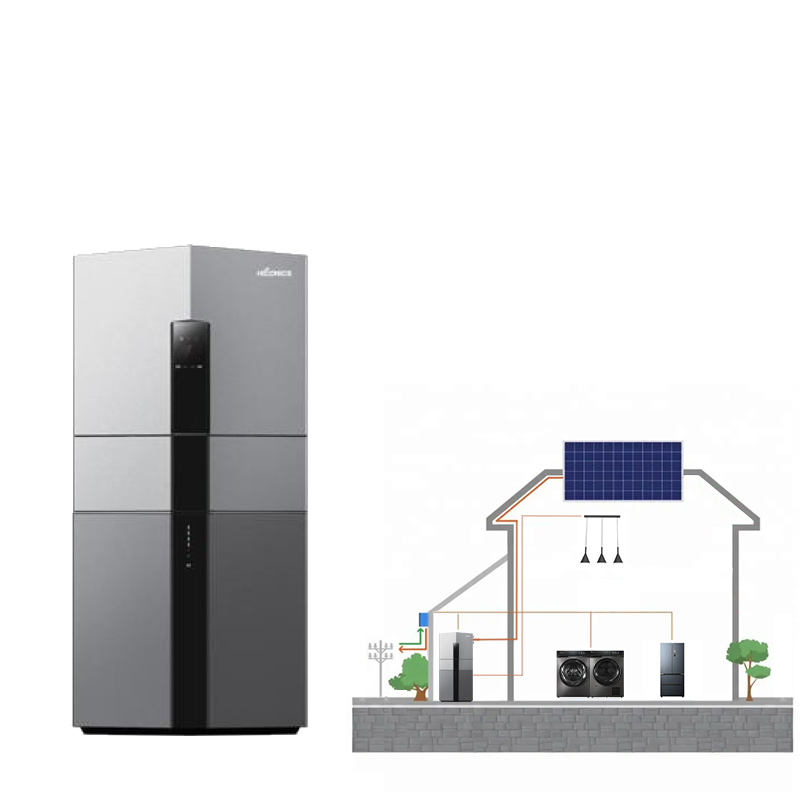

Hiconics Iron Phosphate 5 Year Product Warranty LFP Lithium Ion Price 5kwh Battery Home Energy Storage

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
HEC-S
Cycle Life
10000 cycles
Nominal Capacity
5.12kwh
Battery Type
LFP (LiFePO4)
Max. Charge/Discharge
50A / 80A
Protection Rating
IP65
Nominal Voltage
51.2V
Operating Voltage
44.8-56.5V
Max. PV Efficiency
97.6%
Production Capacity
500,000 piece/Year

Product Description

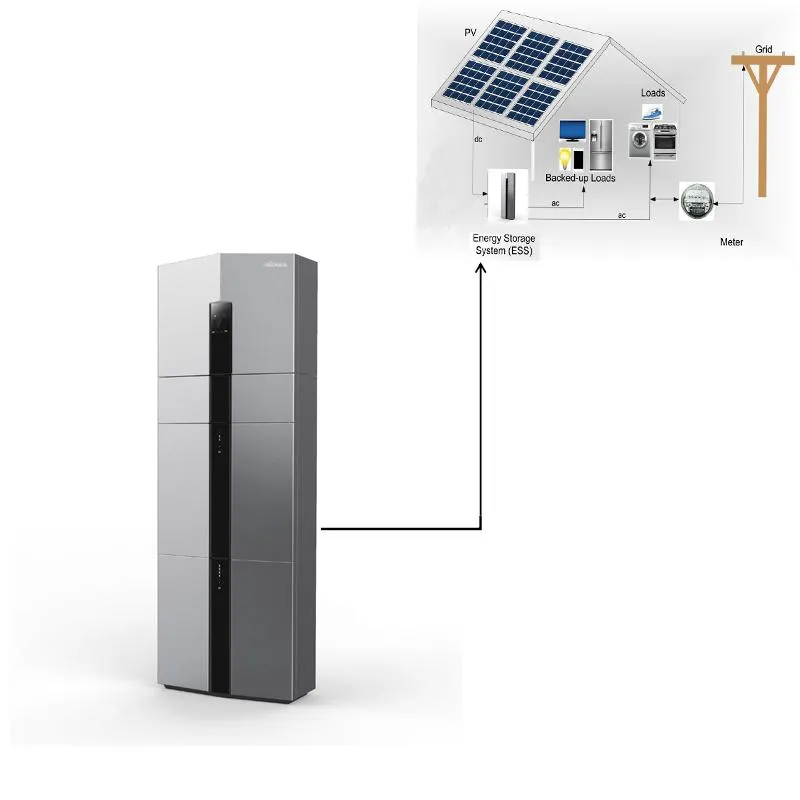

Home Energy Storage System

This Home energy storage system is an all-in-one integrated battery solution that scales in size to meet your home's energy needs. It actively stores excess solar energy and safely uses it to power what matters most, day and night. It provides optimal backup protection, ensuring your power stays on even if the grid goes down.

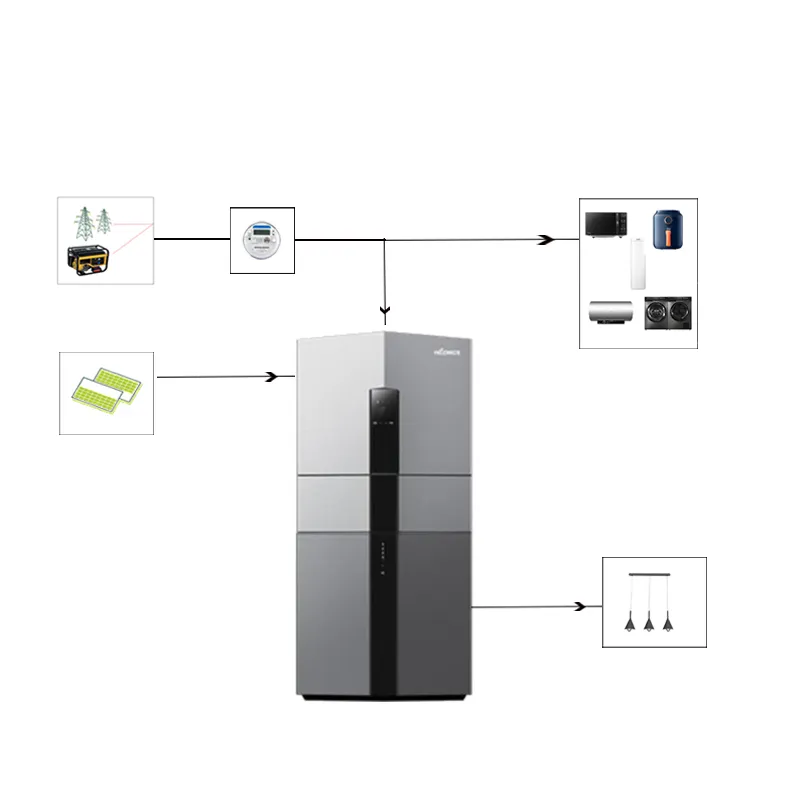

System Integration

Suitable for single-phase power systems, this integrated design of inverter and battery is easy to install and supports up to 20 kWh of capacity. Featuring CATL's lithium iron phosphate battery, it delivers high reliability and long cycle life, supported by intelligent monitoring via website and APP.

Key Features & Advantages

🛡️
Safety First: Utilizes CATL LFP Battery modules with triple protection and IP65 rating for safe outdoor installation away from living areas.
⚙️

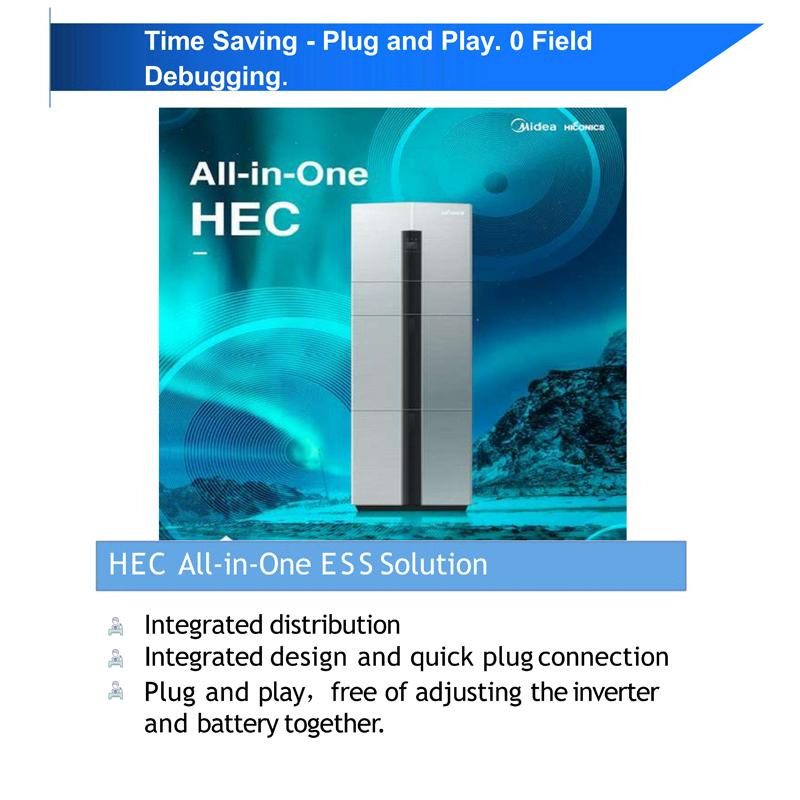

Simple Installation: Modular "plug and play" design allows for 30-minute quick installation by a single person, saving 0.15 sq.m of footprint.
🌐
Smart Interconnection: Global cloud platform and mobile APP access anywhere, anytime via open API.
🔋
Durable Performance: Aluminum shell batteries provide strong protection against external damage, ensuring no deformation or leakage.

Technical Specifications

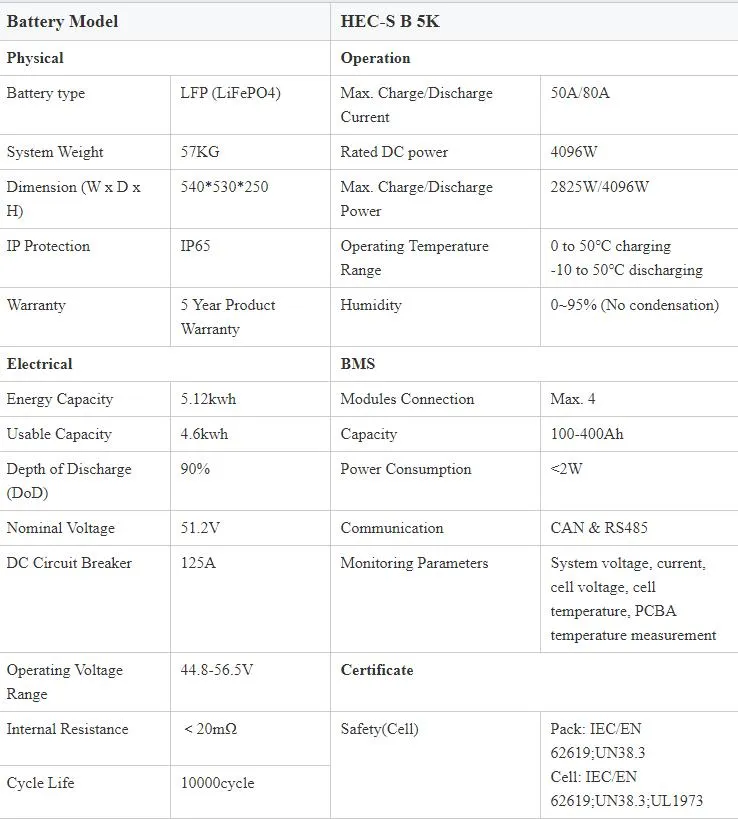

Spec Table 1

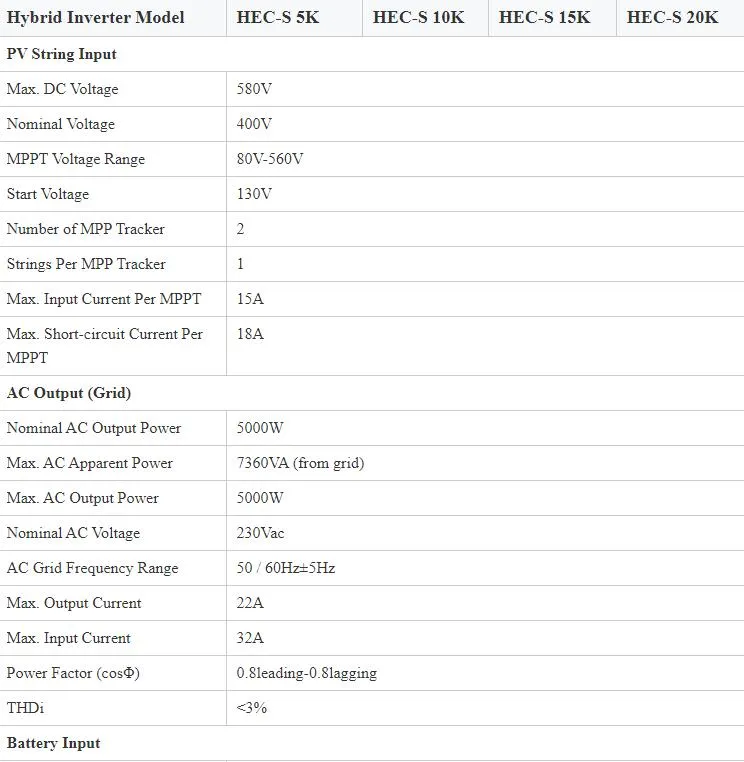

Spec Table 2

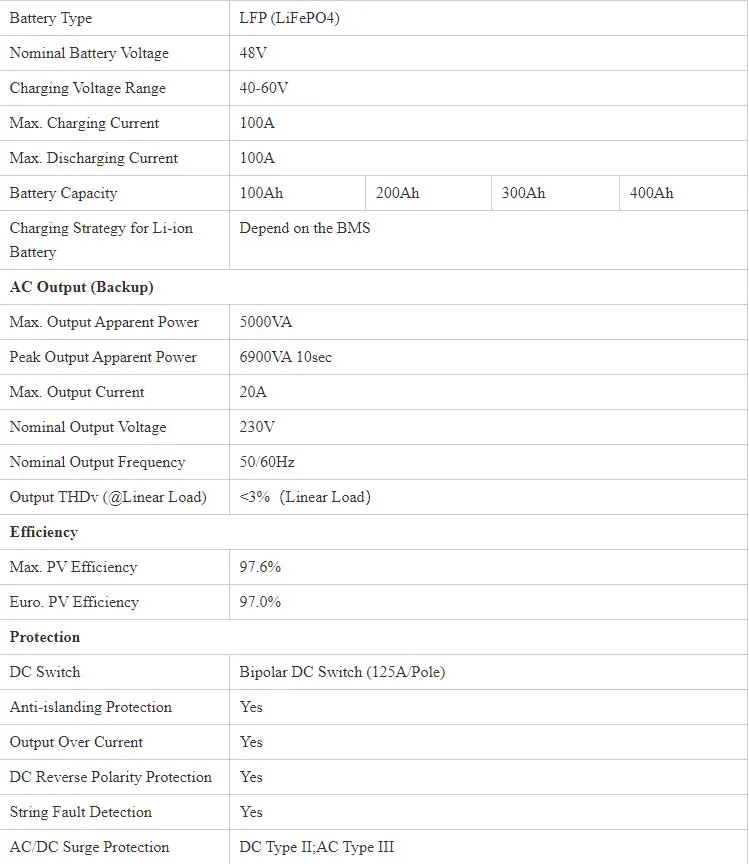

Spec Table 3

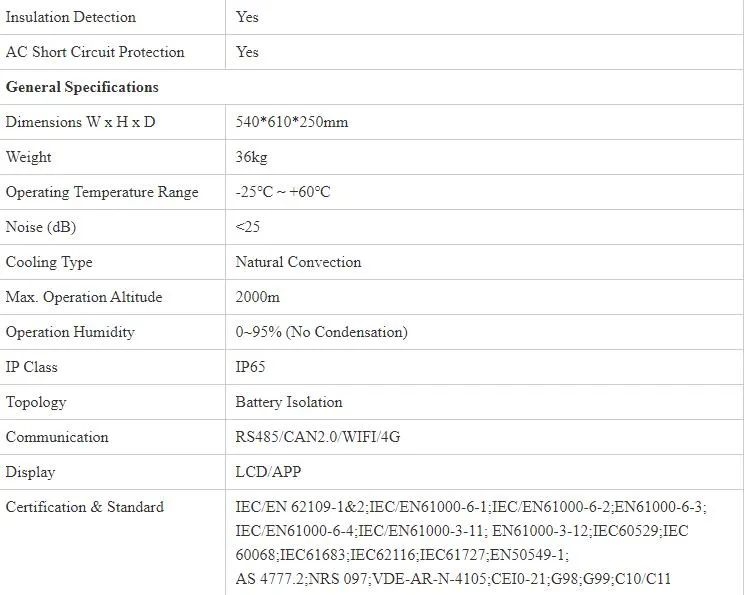

Spec Table 4

Detailed View

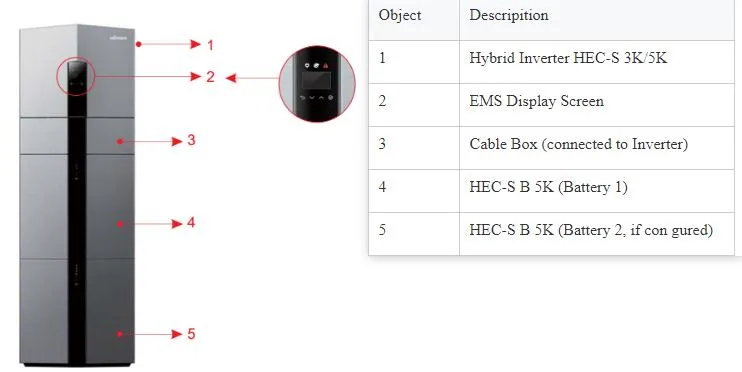

Detail 1

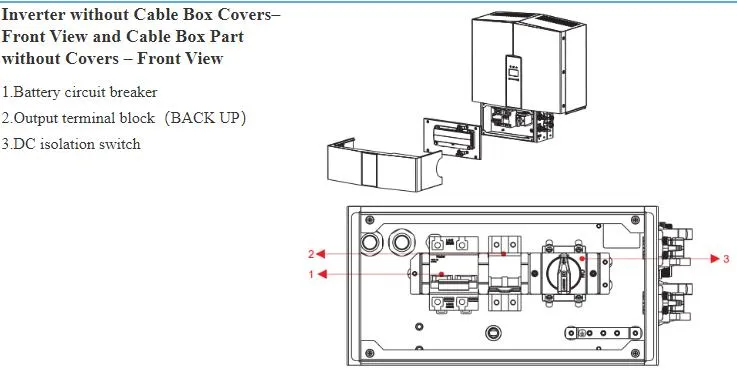

Detail 2

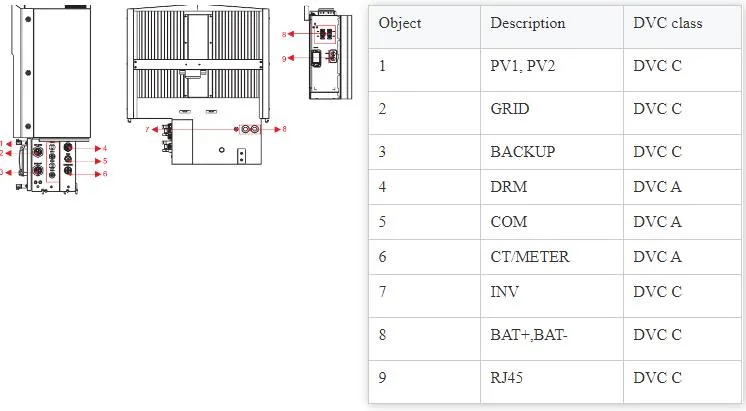

Detail 3

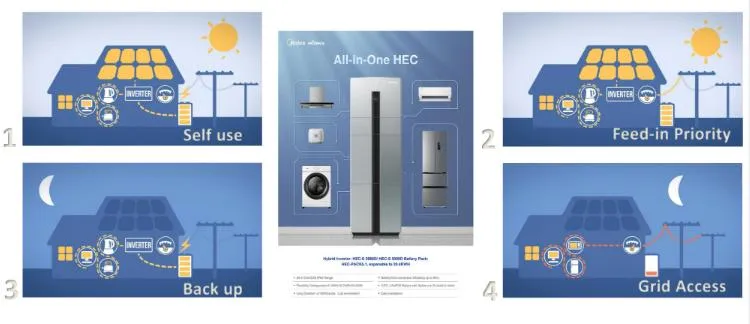

Detail 4

Packaging & Logistics

Products are secured in cartons with wooden support to prevent impact damage. Shipping is primarily handled via sea freight, compatible with 20ft or 40ft containers.

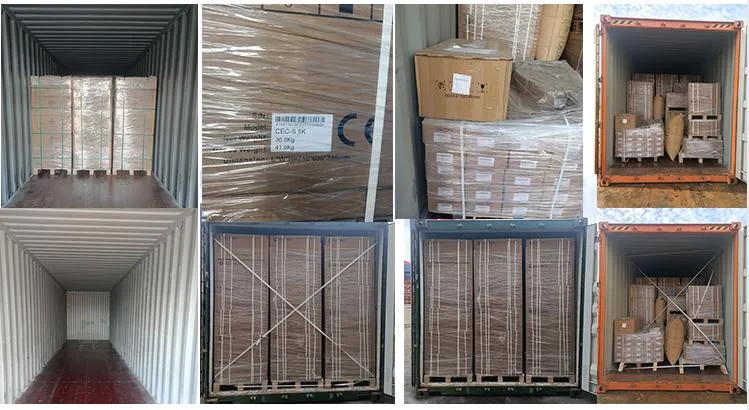

Packaging Process

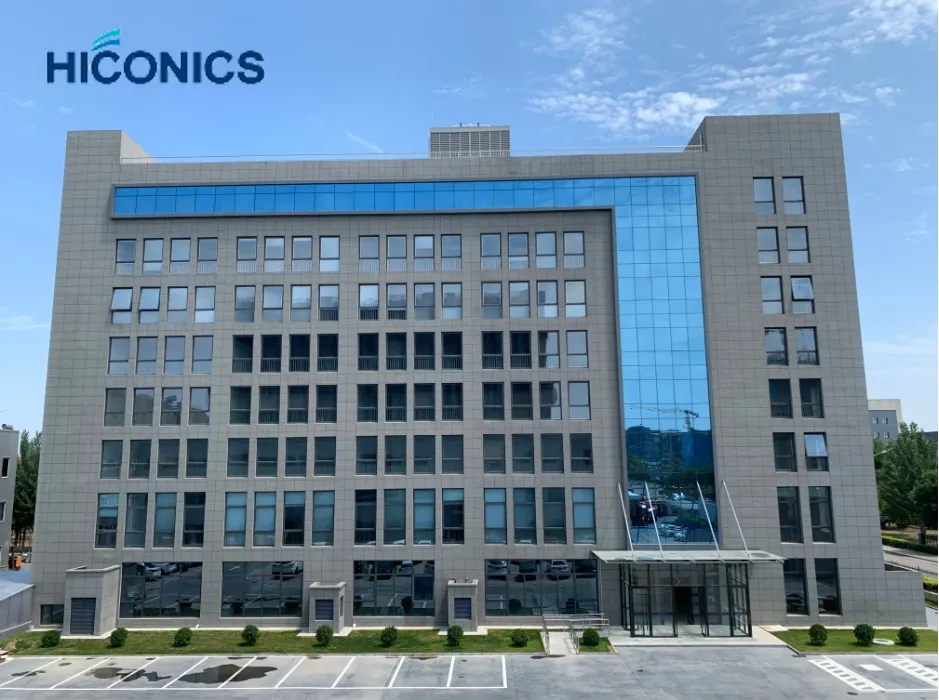

Factory Overview

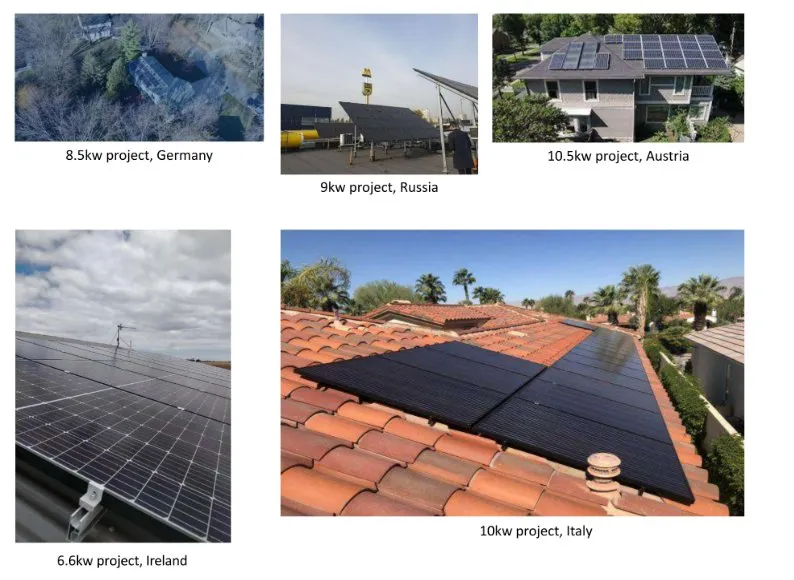

Reference Projects

Reference Projects

Frequently Asked Questions

Q1: What is the expected cycle life of the battery system?
A: The system features a high-performance LFP battery with a cycle life of up to 10,000 cycles.
Q2: Can the energy storage system be installed outdoors?
A: Yes, the system has an IP65 protection rating, making it suitable for outdoor installation and resistant to various weather conditions.
Q3: How long does the installation process take?
A: Thanks to the modular "Plug and Play" design, a single person can complete the installation in approximately 30-40 minutes.
Q4: What brand of battery cells are used in this system?
A: We use CATL Lithium Iron Phosphate (LiFePO4) batteries, known globally for their safety, stability, and high energy density.
Q5: Is the system compatible with existing solar PV setups?
A: Yes, the system supports both AC and DC coupling, making it compatible with new houses or homes with existing PV systems.
Q6: What is the maximum storage capacity supported?
A: The modular design allows the system to scale up to a total energy storage capacity of 20 kWh.
