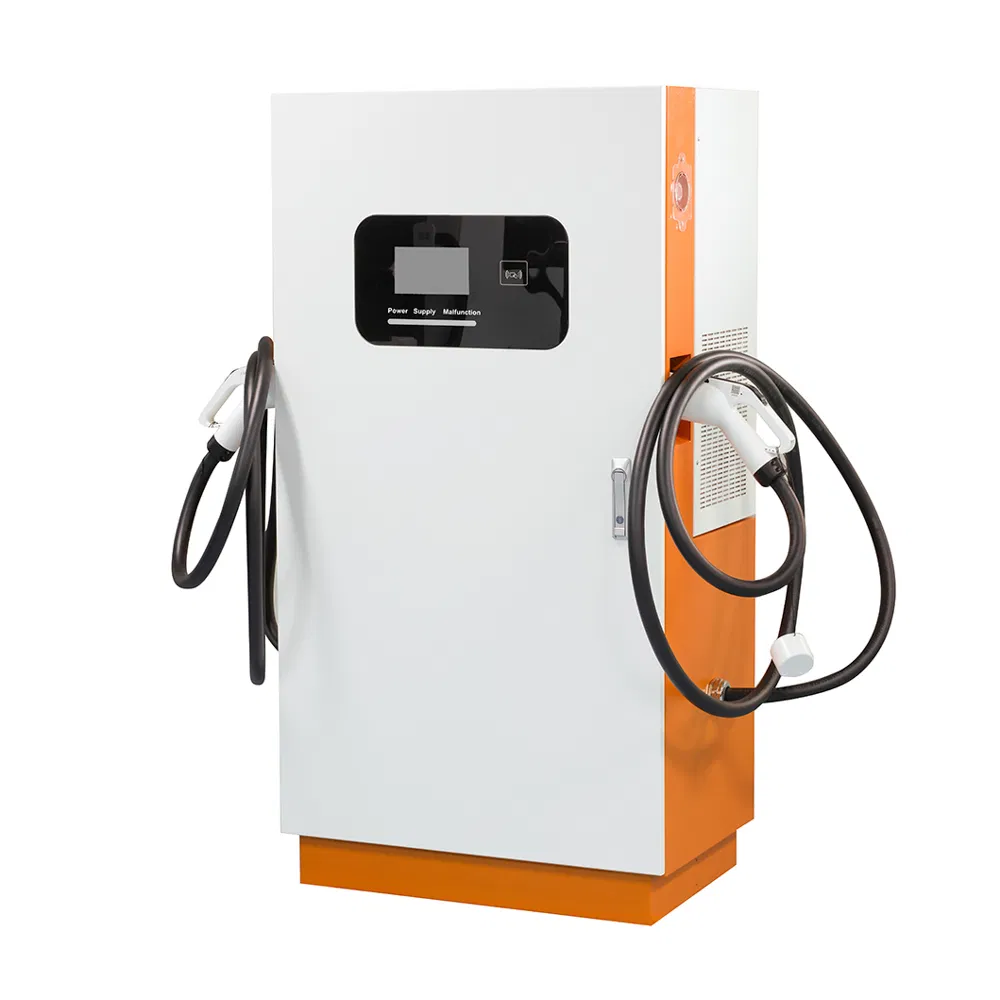

60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
1 / 5
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0
60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0

60kw 120kw 360kw EV Charger CCS Gbt Chademo Public DC EV Fast Charging Stations 60kw Smart EV DC Charger TUV Certified EV Charging Station Ocpp 1.6/2.0

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
K601
Charging Interfaces
Multiple Charges
Power Output
DC 60kw
Input Voltage
AC 380V±20% (3 Phase)
Rated Output Voltage
DC150-1000V
Efficiency/Freq
50-60Hz
Protocol
Ocpp1.6j
HMI Interface
7-Inch Touch Screen
Cable Length
5m
Network
4G/Ethernet/RFID
Protection Level
IP54
Operating Temp
-20°C to +50°C
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Dimensions
810x630x1800mm
Production Capacity
5000 set/Month
✓

Product Description

Item Name DC60KW EV charging station Manufacturer OEM ODM with single and double gun
Power Options DC 60kw / 120kw / 360kw
Input Voltage AC 380V±20% 3 Phase
Output Voltage DC150-1000V
Connector Type CCS / CHADEMO / GBT
HMI 7-Inch touch screen
Maintenance & Technical Performance:
The system adopts an open cover maintenance method and is reliably installed on the wall. Harmonic current ≤ 3% (under rated operating conditions). Stable current accuracy ≤ ± 0.5% (refer to NB/T33001-2018). Voltage stabilization accuracy ≤ ± 0.5%. Ripple coefficient ≤ ± 0.2%. Current sharing ≤ ± 3% within 10%~100% load range. Sound noise ≤ 65dB (A). The temperature rise complies with GB18487-2001 and NB/T33001-2010 standards. DC output range 250Vdc~750Vdc, error ± 1Vdc. Single gun maximum output current ≤ 50A.

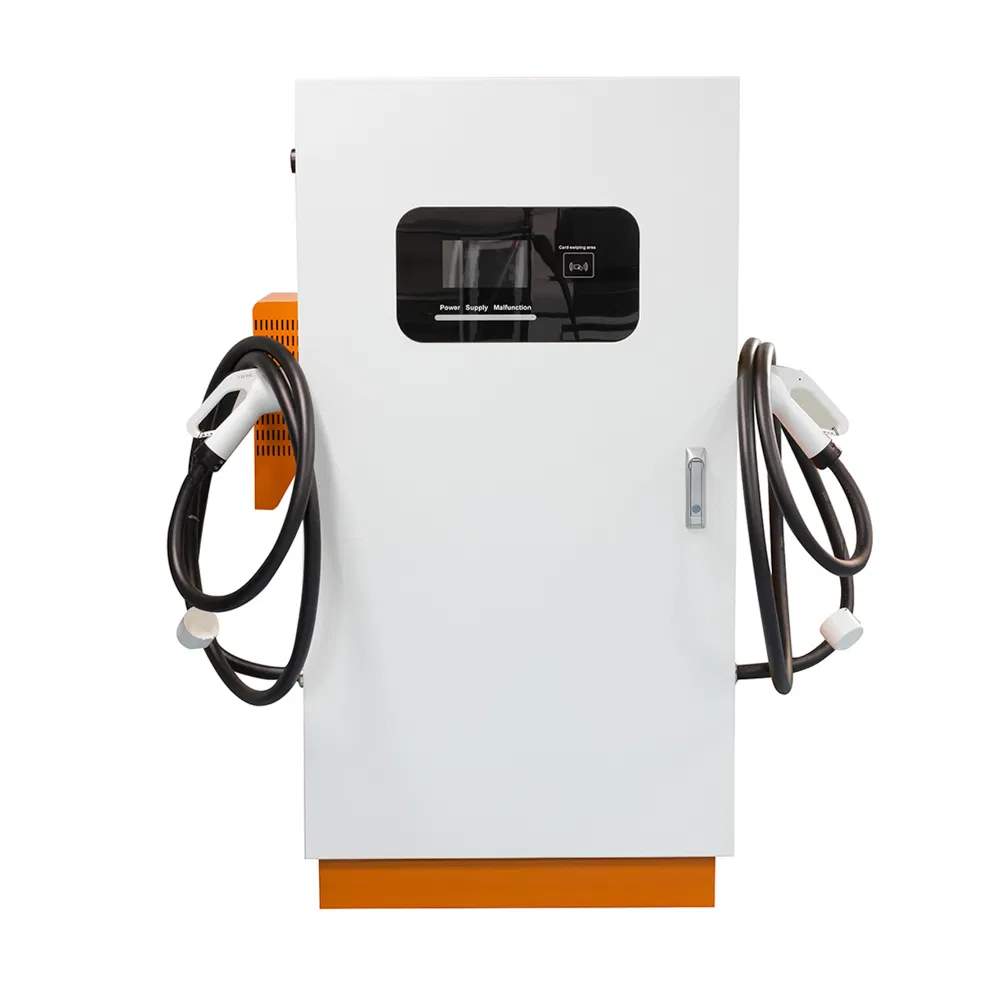

EV Charger Detail 1

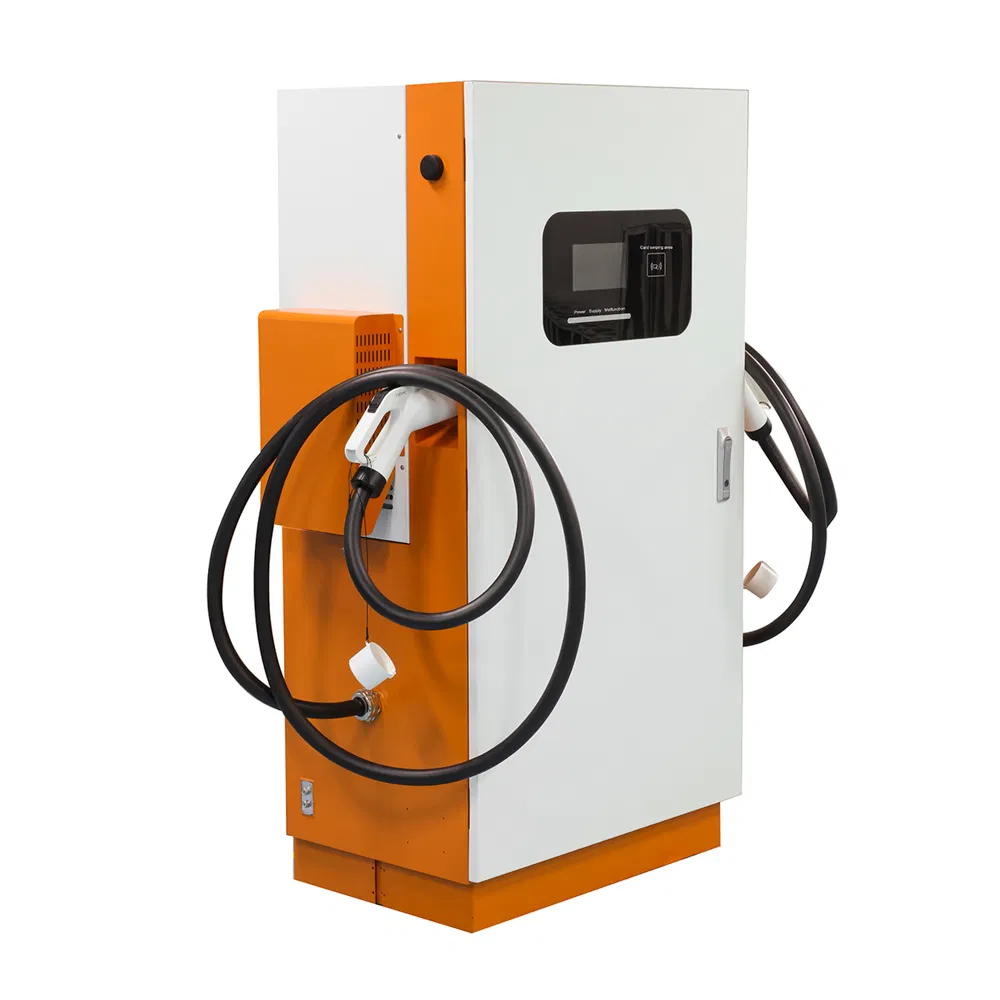

EV Charger Detail 2

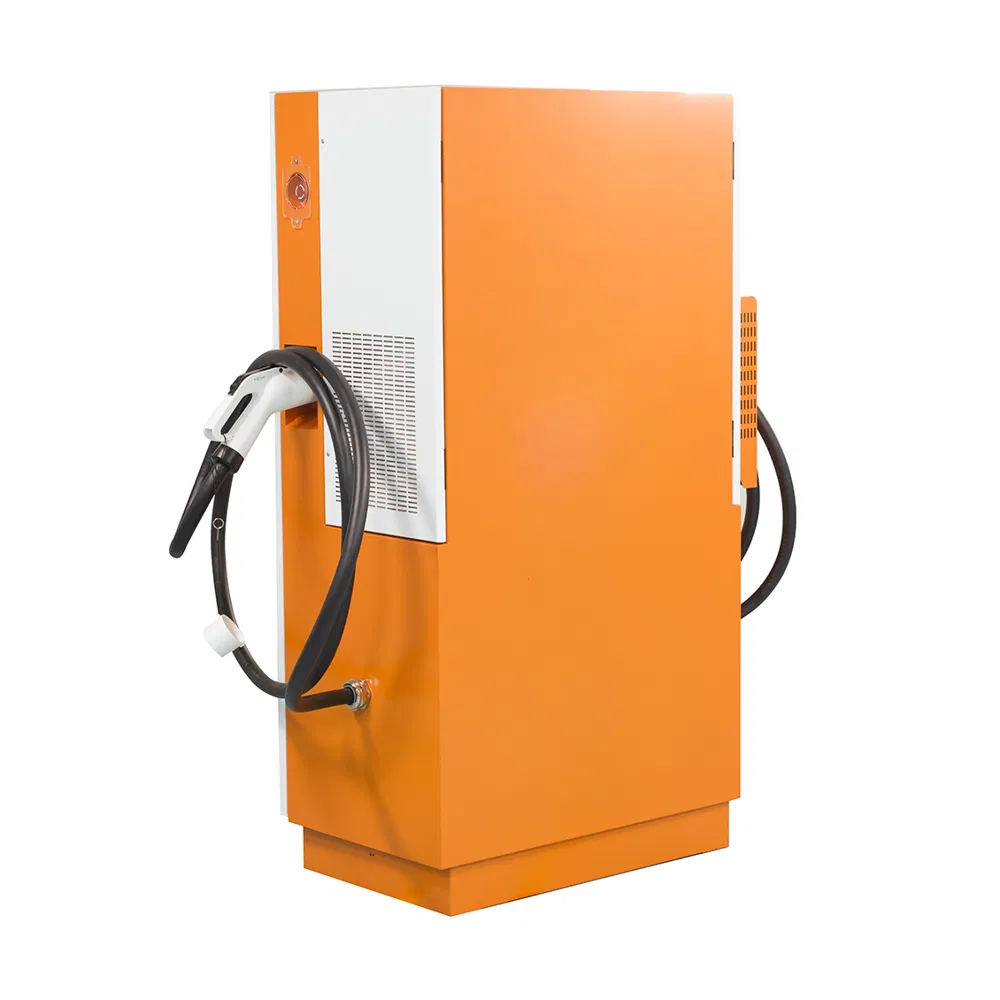

EV Charger Detail 3
Smart EV DC Charger Specifications
EV Fast Charging Station Interface

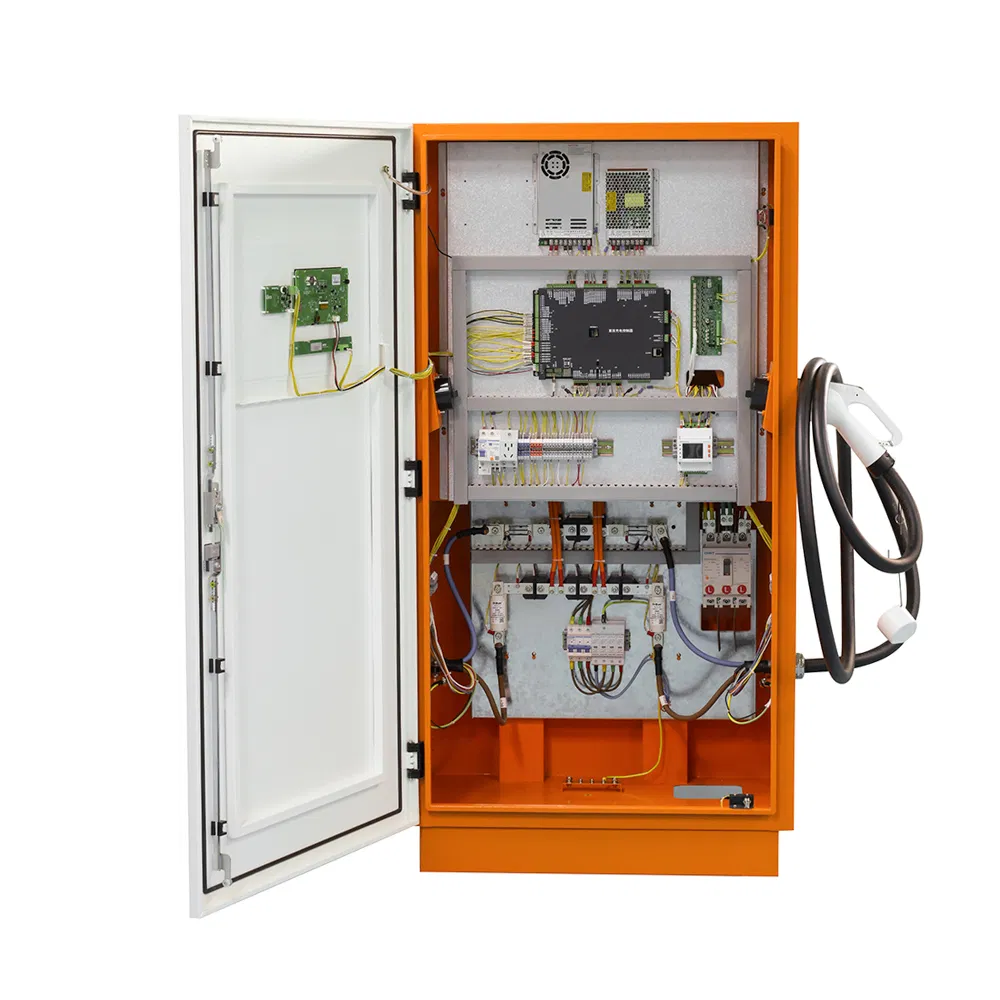

DC EV Charger Internal Structure
Charging Station Dimensions
EV Charger Safety Features
Public DC EV Fast Charging
TUV Certified Charging Station
?

Frequently Asked Questions

What is the output power of the K601 series?
The K601 series provides a standard DC 60kw output, but options are available for 120kw and 360kw configurations to meet different fast-charging requirements.
Which charging standards are compatible with this station?
This charging station supports major international standards including CCS, CHADEMO, and GBT, making it suitable for a wide range of electric vehicles.
Can this charger be managed remotely?
Yes, it supports the OCPP1.6J communication protocol and offers multiple network connection options including 4G, Ethernet, and RFID for remote monitoring and management.
Is the K601 charger suitable for outdoor installation?
Absolutely. With an IP54 protection level and an operating temperature range of -20°C to +50°C, it is designed to withstand various outdoor weather conditions.
What is the warranty period for this charging station?
We offer a 24-month (2 years) warranty and after-sales service to ensure the reliable long-term operation of your charging infrastructure.
What are the safety and quality certifications?
The K601 is fully certified with CCC, CE, ISO, TUV, and RoHS, ensuring it meets the highest safety and performance standards for public and private use.
