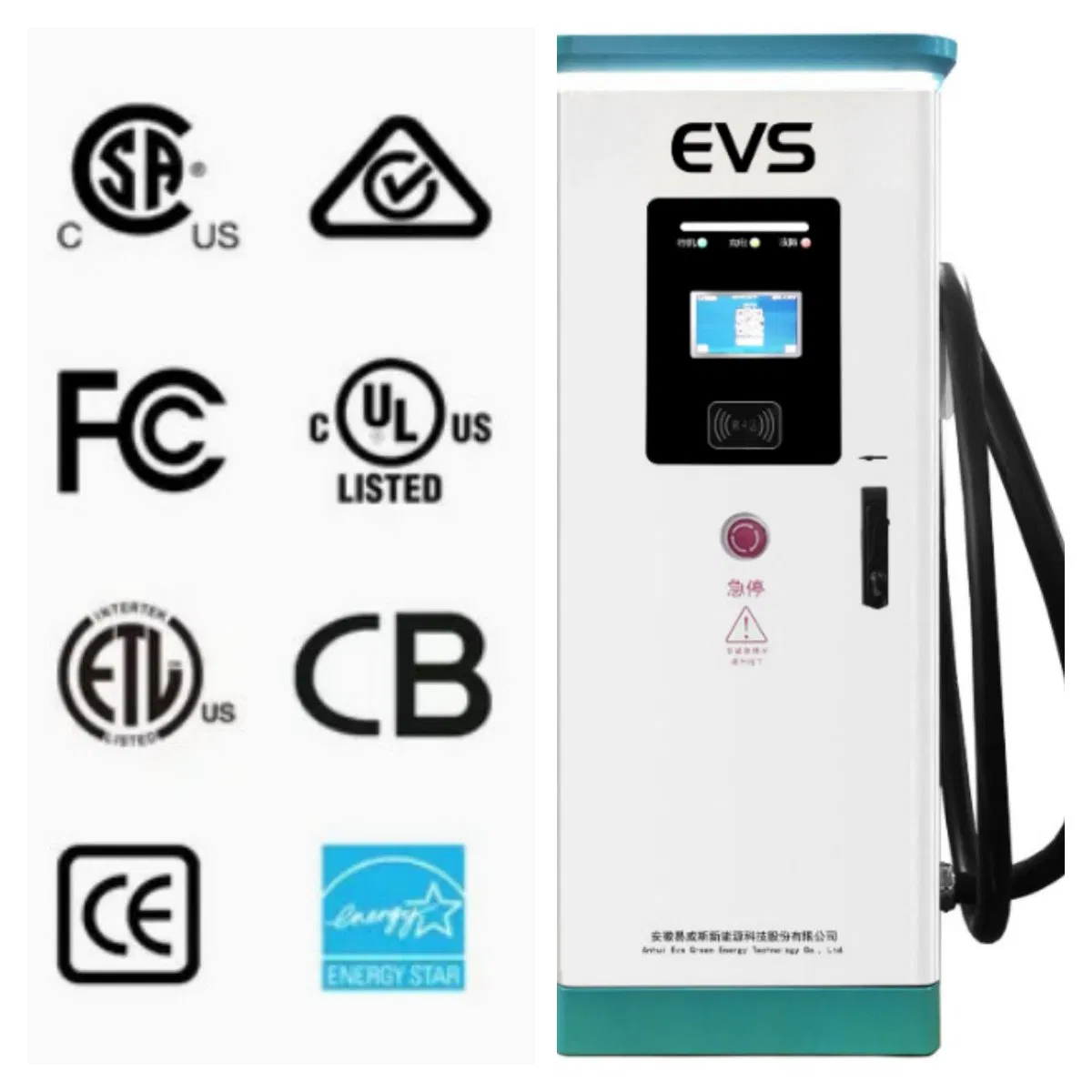

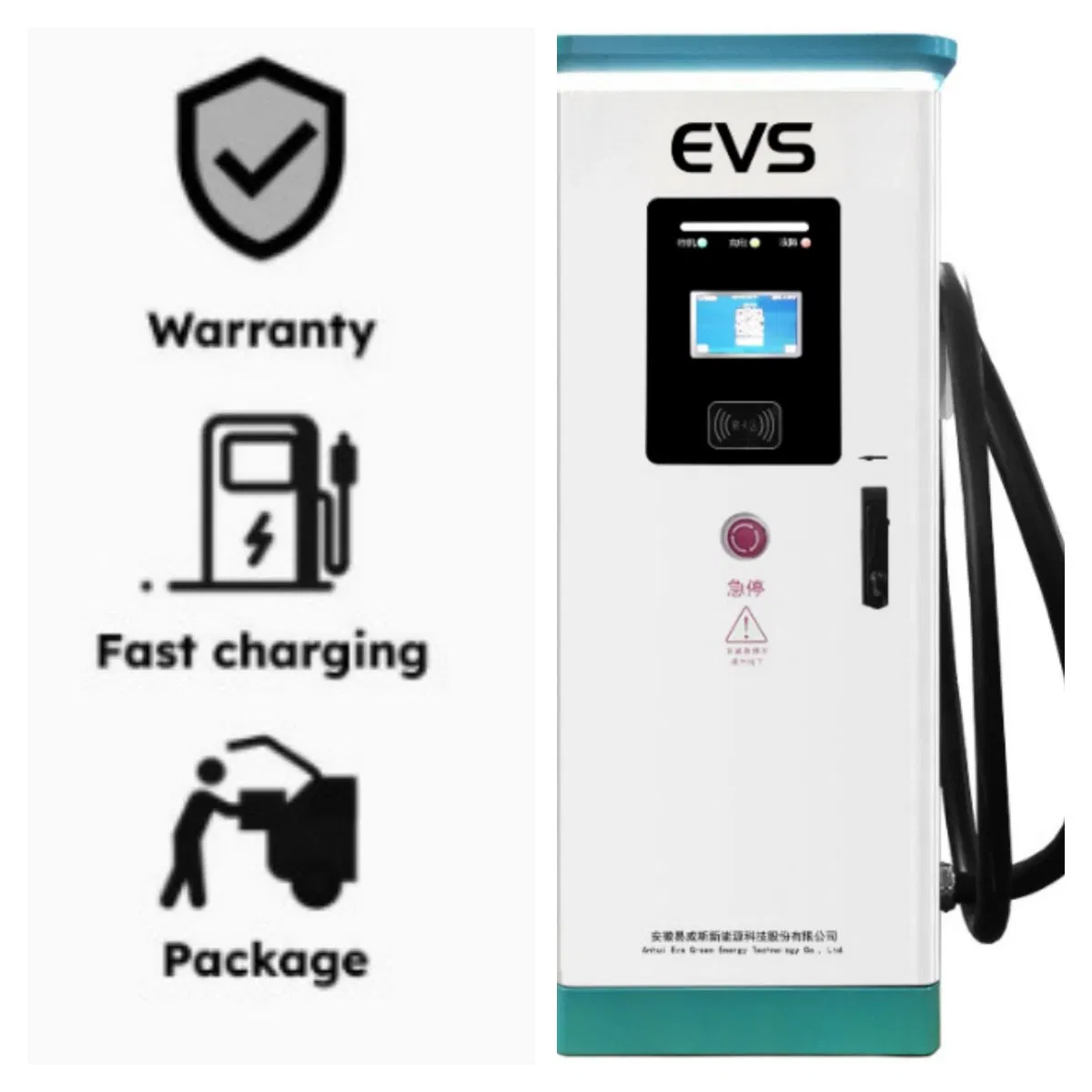

EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
1 / 5
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2
EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2

EV Charger All-Climate 60-240kw IP54 DC Fast Charging Station for Fleet & Highway European Standard American Standard CCS1 CCS2

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
EDC-120KW
Location
Public or Private Use
Charging Interfaces
One Pile with Multiple Charges
Display Screen
7 Inch Color Touch Screen
Cooling Mode
Air Cooling
Noise
Less Than 65dB
Operating Temp
-20 to 50°C
IP Level
IP54
Production Capacity
2,000,000 pieces/Year
⚙

Technical Parameters

Parameter Name Details
Rated Power60/120/180/240KW
Installation MethodFloor-standing
AC Input Voltage380V±15%, 3 phases +N+PE
AC Input Frequency45~66Hz
DC Output Voltage RangeDC 200V~1000V
DC Output Current0~250A (Single Gun)

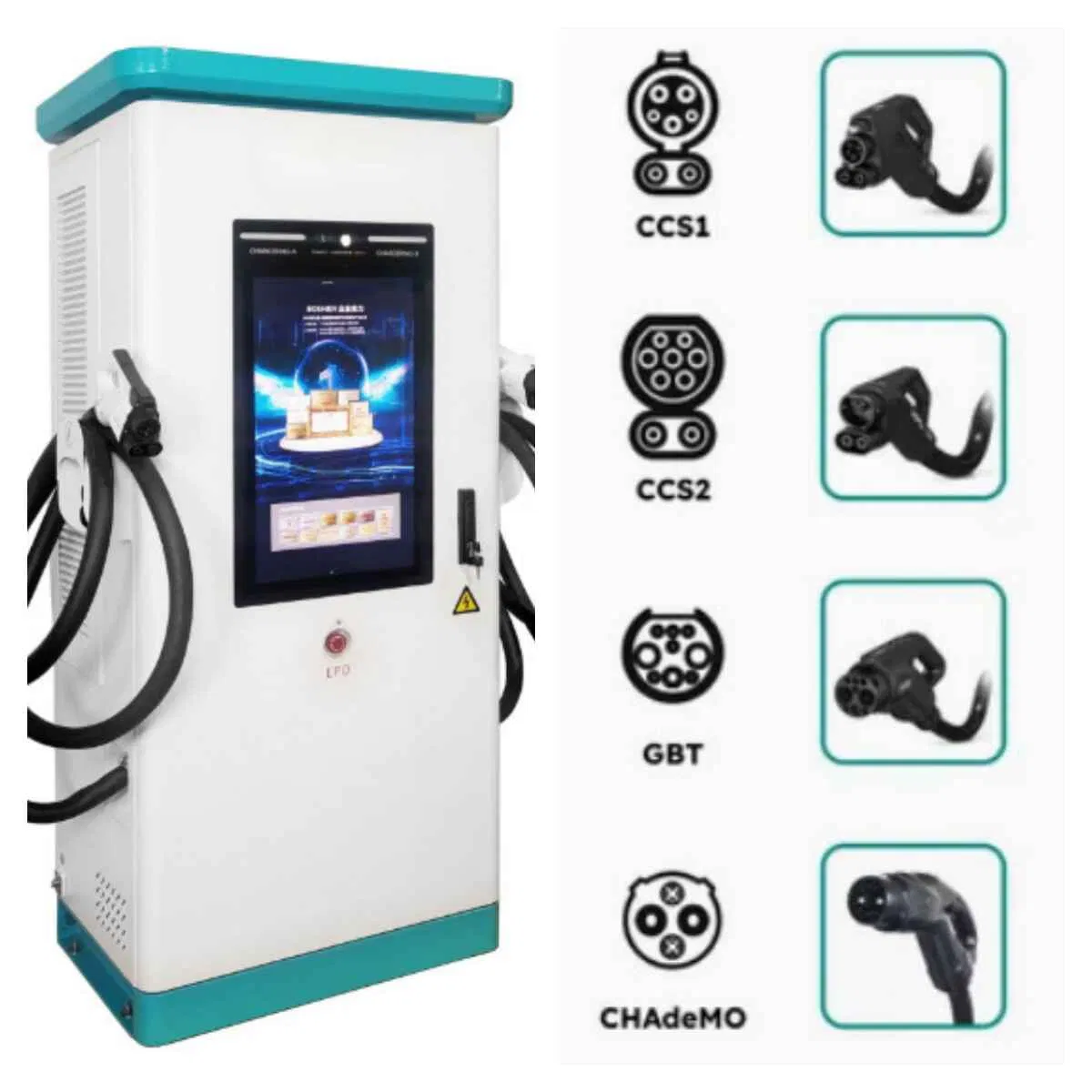

Plug StandardCHAdeMO / CCS1 / CCS2 / GB/T
OCPP SupportOCPP 1.6
Protective FunctionsLightning, Over-load, Short-circuit, Over-temp, Leakage, EPO
★

Core Competitiveness

Intelligent Dispatching

High power density and factor with low harmonic. Suitable for buses and electric vehicles requiring large-power charging.

Five-gear Switching

Reduces energy consumption and improves efficiency. Power distribution is more stable with finer granularity.

Flexible Charging

Dynamically distributes power based on BMS requirements. Highly integrated system including station monitoring and orderly management.

Strong Expansibility

Modular design allows for expansion to meet future battery charging needs as power demands increase.

🖼

Product Showcase

DC Fast Charging Station

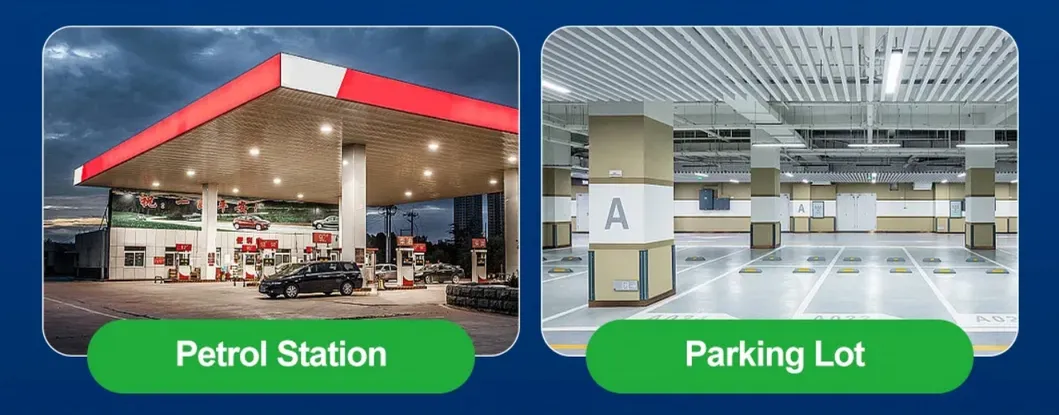

EV Charger Detail
IP54 Charger Structure
Professional Charging Solution

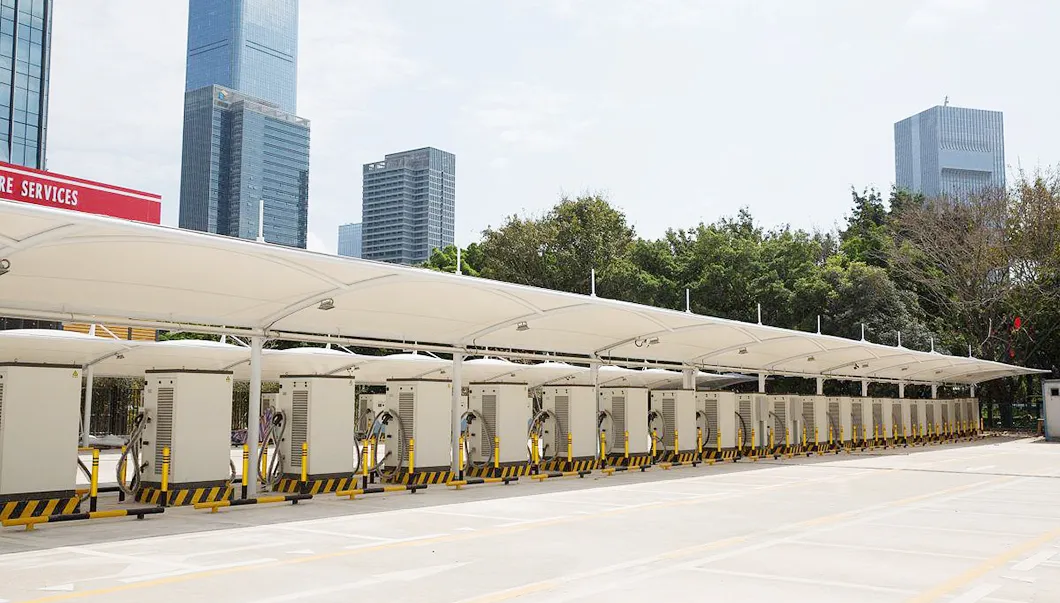

Project Case 1

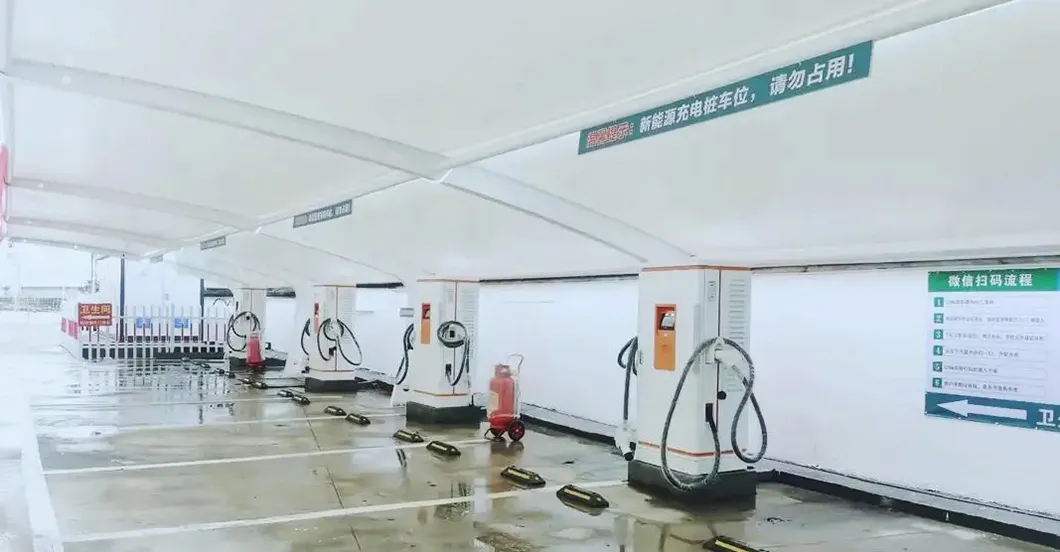

Project Case 2

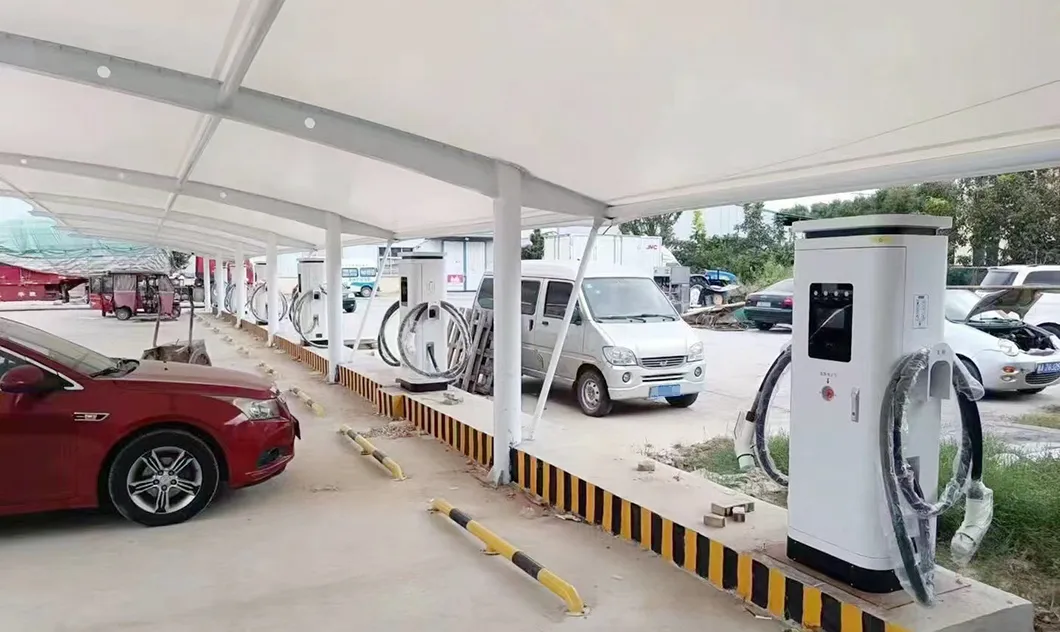

Project Case 3

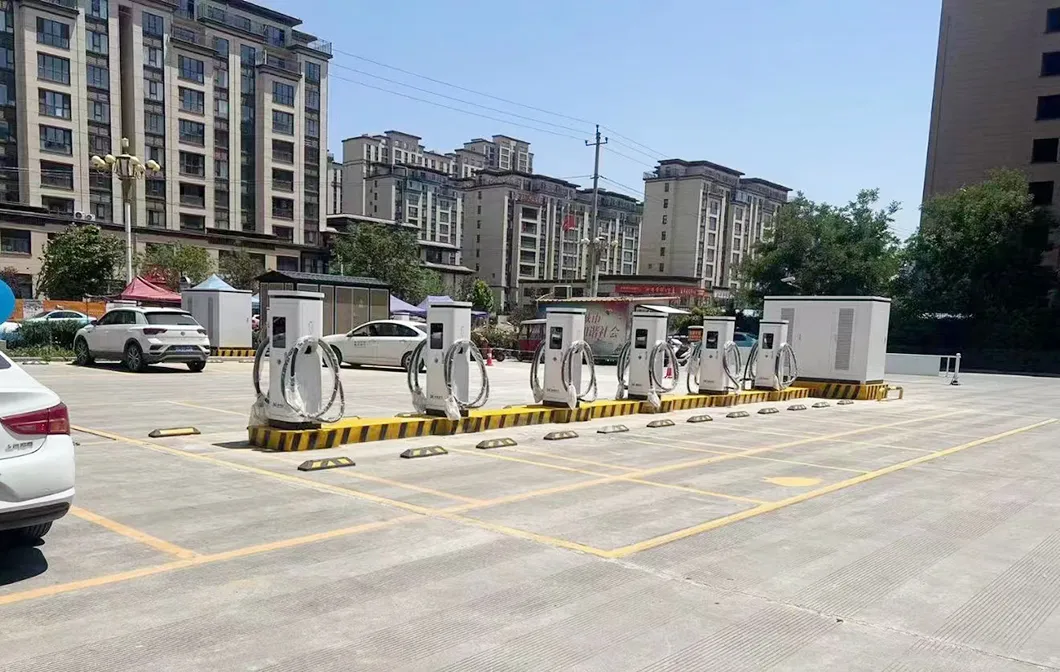

Project Case 4

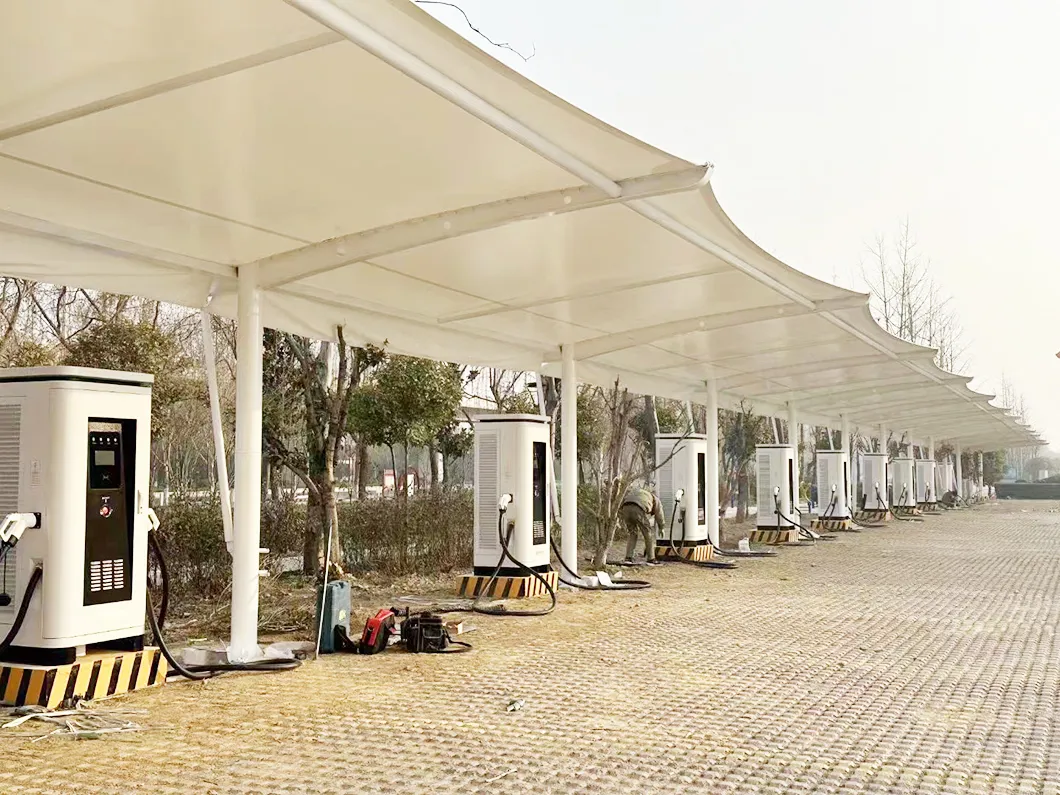

Project Case 5

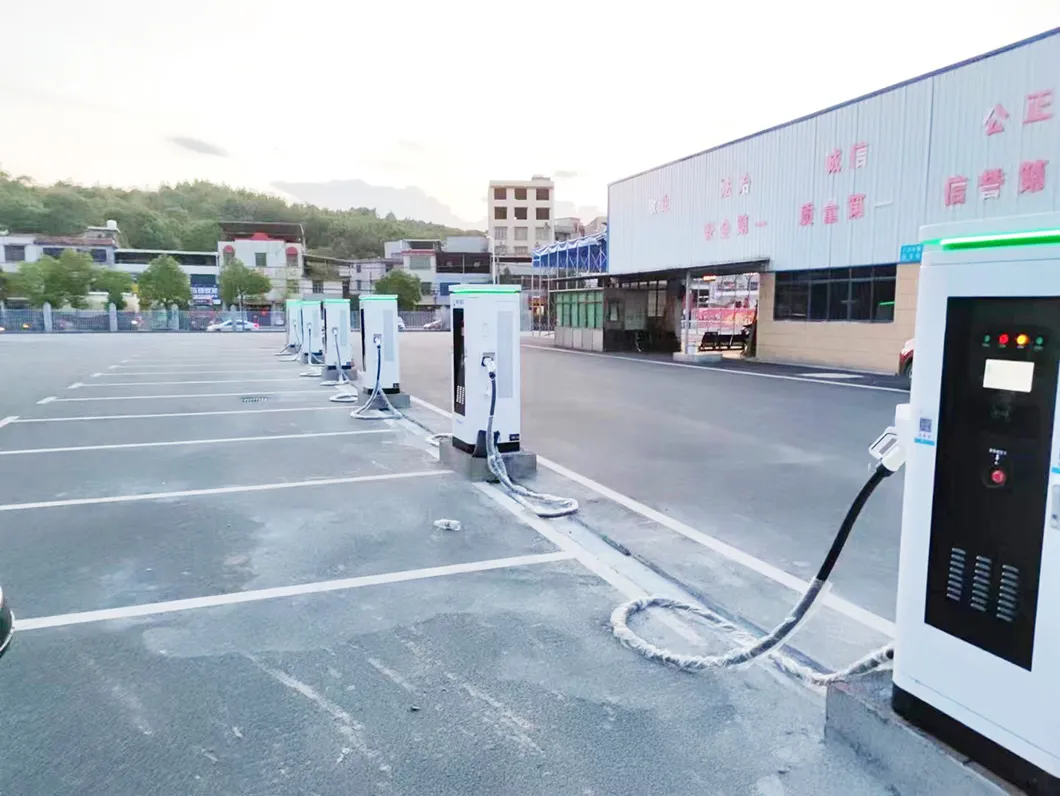

Project Case 6

Frequently Asked Questions

What is the output voltage range of this DC charger?
The charger provides a wide DC output voltage range from 200V to 1000V, making it compatible with various electric vehicle battery systems.
Does the equipment support smart networking management?
Yes, it supports OCPP 1.6 protocol, allowing for remote monitoring, management, and integration with charging operation systems.
Is this charging station suitable for outdoor installation?
Absolutely. The station is rated IP54 for protection against dust and water ingress, and it operates efficiently in temperatures ranging from -20°C to 50°C.
What charging standards are compatible with this model?
The equipment is highly versatile and can be configured with CHAdeMO, CCS1, CCS2, or GB/T plugs to meet different regional requirements.
What safety features are included for emergency situations?
The charger includes an Emergency Power Off (EPO) button that instantly cuts off DC output. It also features lightning, overload, and short-circuit protection.
How does the flexible charging system work?
The system dynamically distributes power based on the real-time BMS requirements of the connected vehicle, optimizing charging efficiency and equipment utilization.
