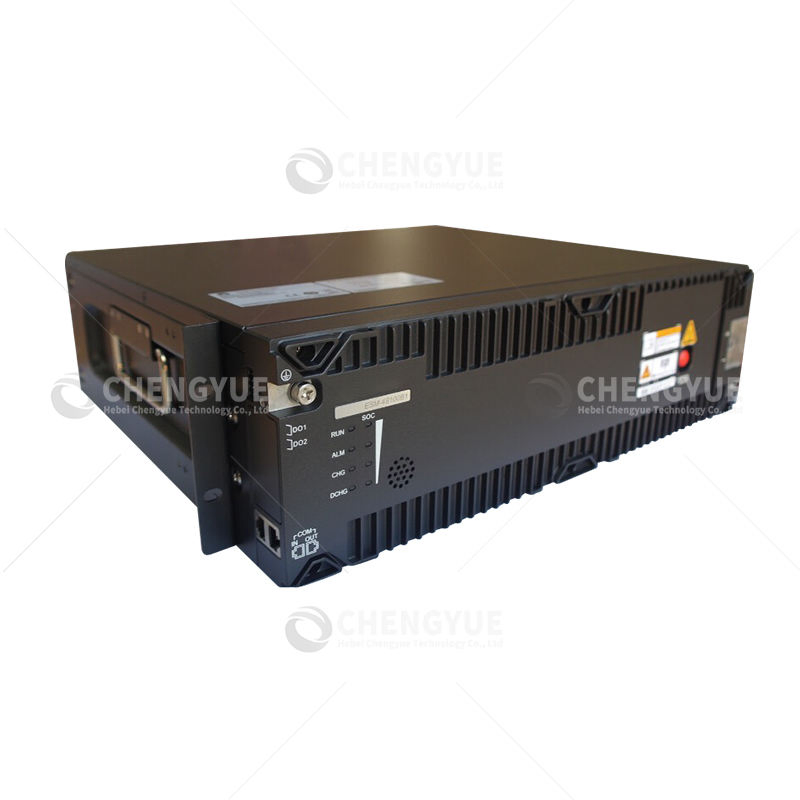

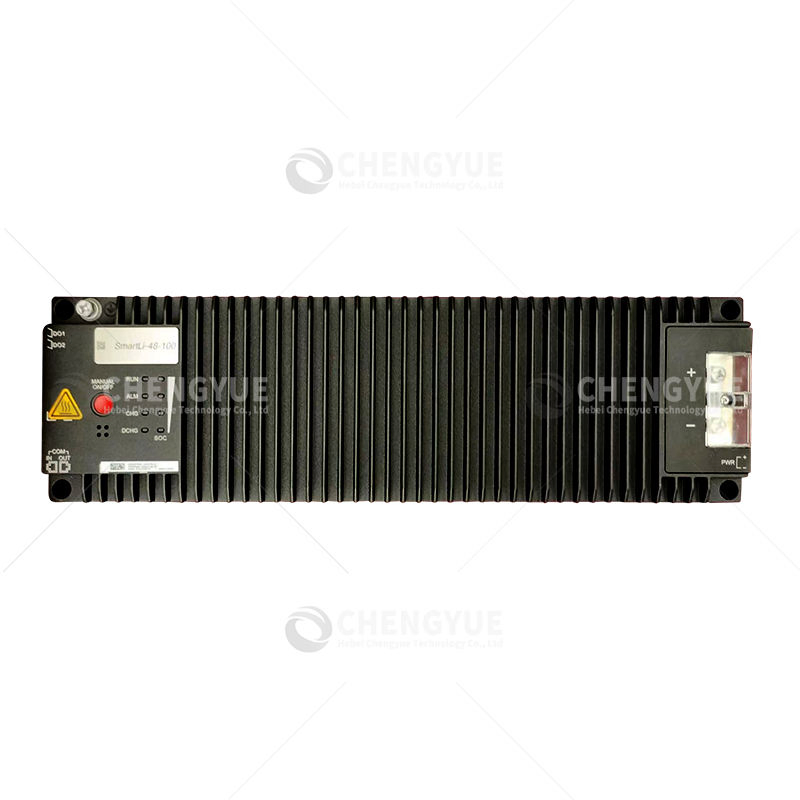

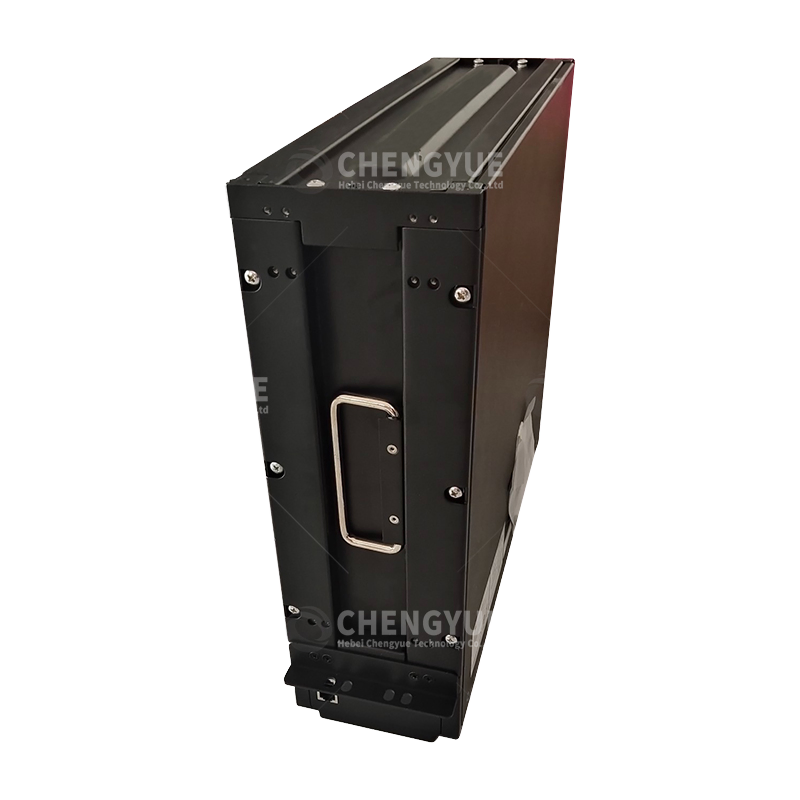

Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
1 / 5
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System
Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System

Esm-48100b1 B5 3u 100ah Fast Charging Smart Lithium Battery Site Energy Storage System

Customization: Available
Type: Telecom Power
Brand: Hw
Send Inquiry

Product Description

Basic Information
Model NO.
ESM-48100B1 / ESM-48100B2
Use
Site Energy Storage
Single Gross Weight
43.000kg
Single Package Size
44.2X39.6X13.335cm
Dimensions
442mm x 396mm x 3U
Rated Capacity
100Ah
Nominal Voltage
48V DC
Products Description

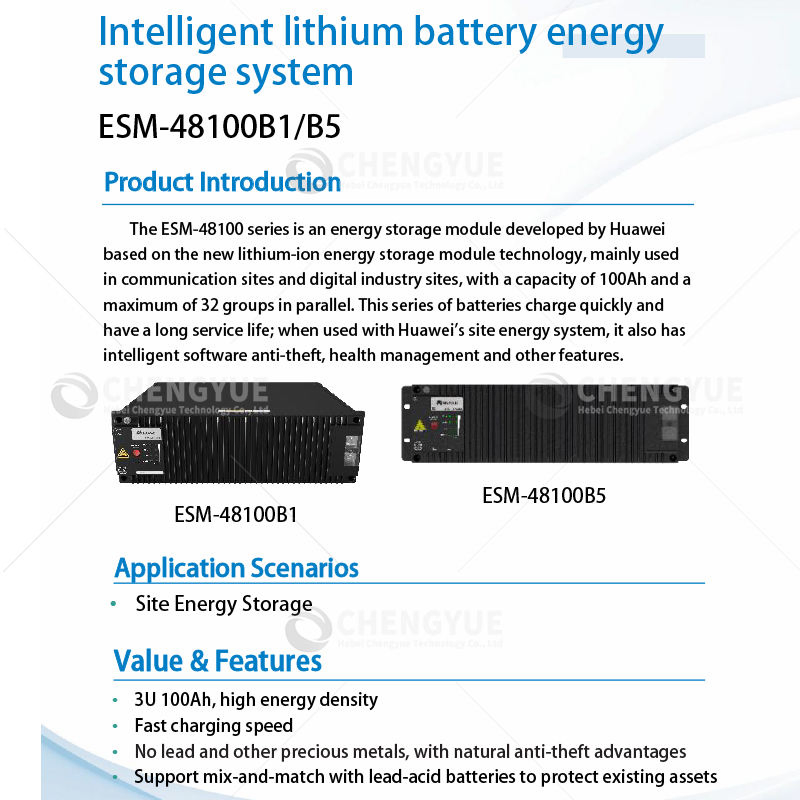

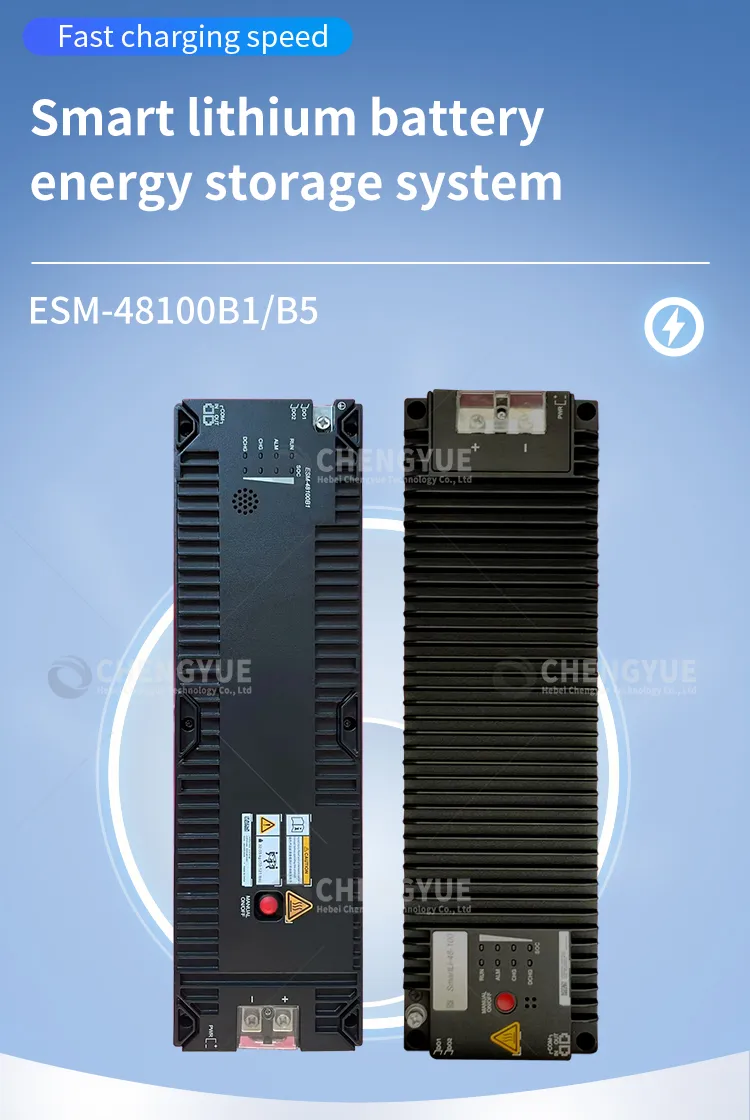

Smart Lithium Battery Overview
Battery Detail View

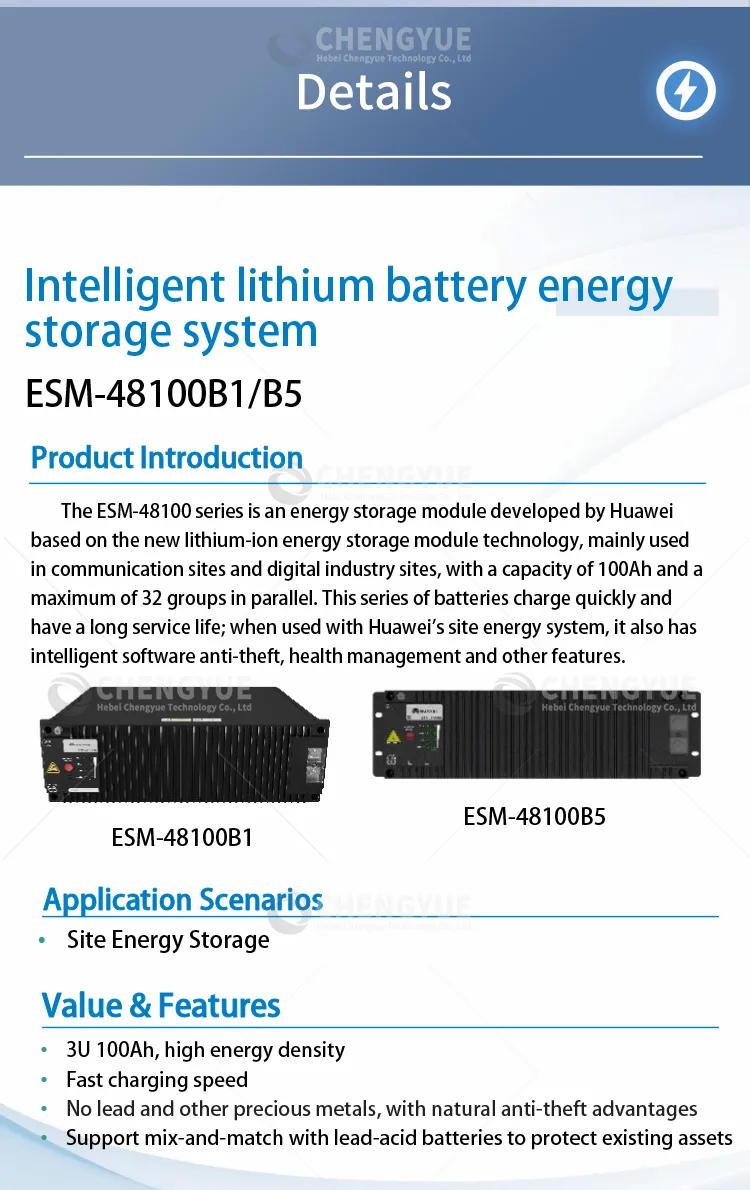

Technical Structure
Front Panel Interface
Application Scenarios
Site Energy Storage Application
Key Applications:
  • Telecom Base Station Power Backup
  • Modular Data Center Storage
  • Uninterruptible Power Supply (UPS) Systems
  • Renewable Energy Site Storage

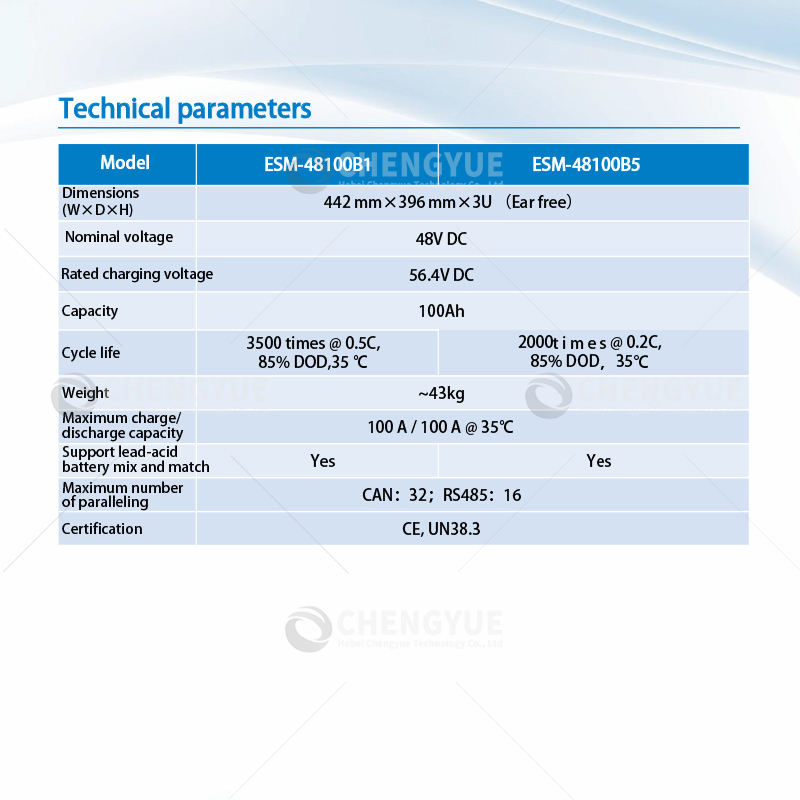

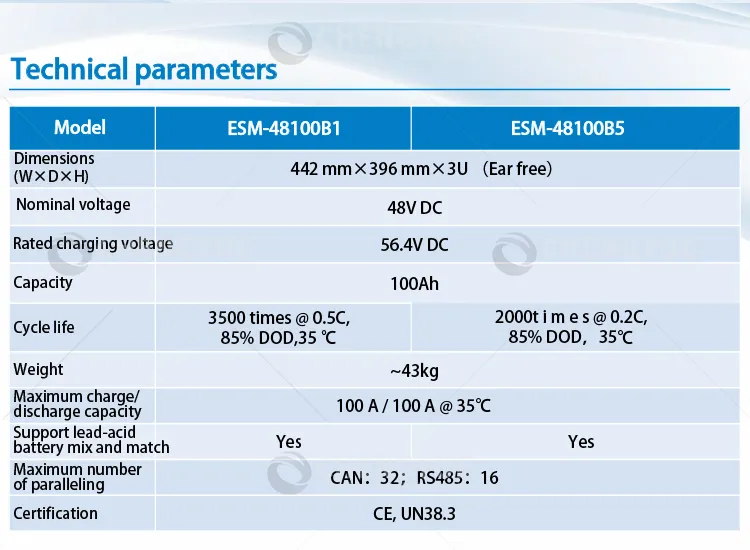

Technical Parameters
Specifications ESM-48100B1 ESM-48100B5
Dimensions (WxDxH) 442 mm x 396 mm x 3U (Ear free)
Nominal Voltage 48V DC
Rated Charging Voltage 56.4V DC
Capacity 100Ah
Cycle Life 3500 times @ 0.5C, 85% DOD 2000 times @ 0.2C, 85% DOD
Weight ~43kg
Max Charge/Discharge 100 A / 100 A @ 35°C
Parallel Connection CAN: up to 32; RS485: up to 16
Certification CE, UN38.3
Quality & Infrastructure

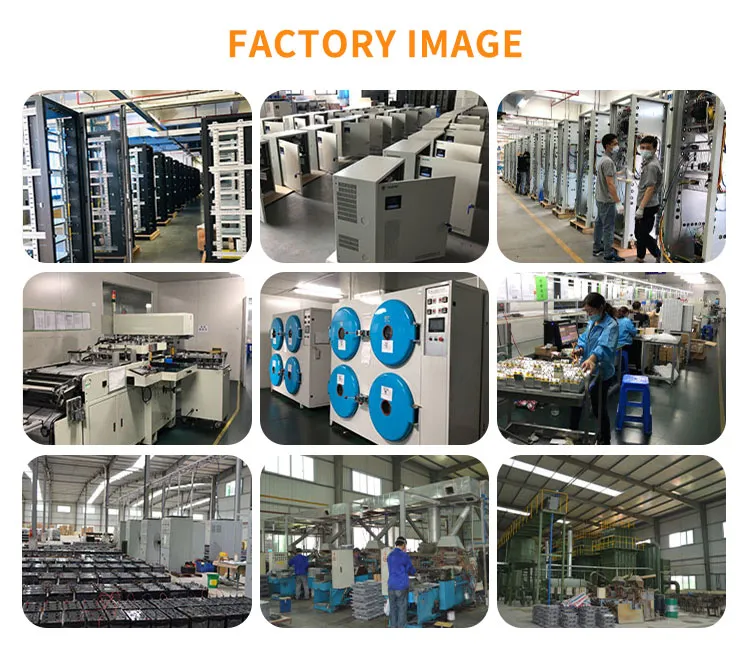

Production Facility
Quality Control Process
Packing & Transportation
Packaging Standard
Shipping Logistics
Warehouse Storage
Frequently Asked Questions
What is the nominal capacity and voltage of the ESM-48100B1?
The ESM-48100B1 features a nominal voltage of 48V DC and a rated capacity of 100Ah, making it ideal for site energy storage.
How many units can be connected in parallel?
This system supports extensive scalability. You can connect up to 32 units in parallel via CAN communication or 16 units via RS485 communication.
Can this lithium battery be mixed with lead-acid batteries?
Yes, both the ESM-48100B1 and ESM-48100B5 models support lead-acid battery mix and match, providing flexibility for system upgrades.
What is the expected cycle life of the battery?
The ESM-48100B1 provides approximately 3500 cycles at 0.5C discharge rate with 85% Depth of Discharge (DOD). The B5 model provides 2000 cycles at 0.2C.
What certifications does the product hold for safety?
The product is fully certified with CE and UN38.3, ensuring it meets international safety and transportation standards for lithium batteries.
What are the physical dimensions and weight?
The battery is designed in a standard 3U rack-mount format, measuring 442mm x 396mm x 133.35mm (excluding mounting ears) and weighs approximately 43kg.
