Amp Link Charger
1 / 5
| Model NO. | BHDC-30KW-1 |
| Output Current | 80A |

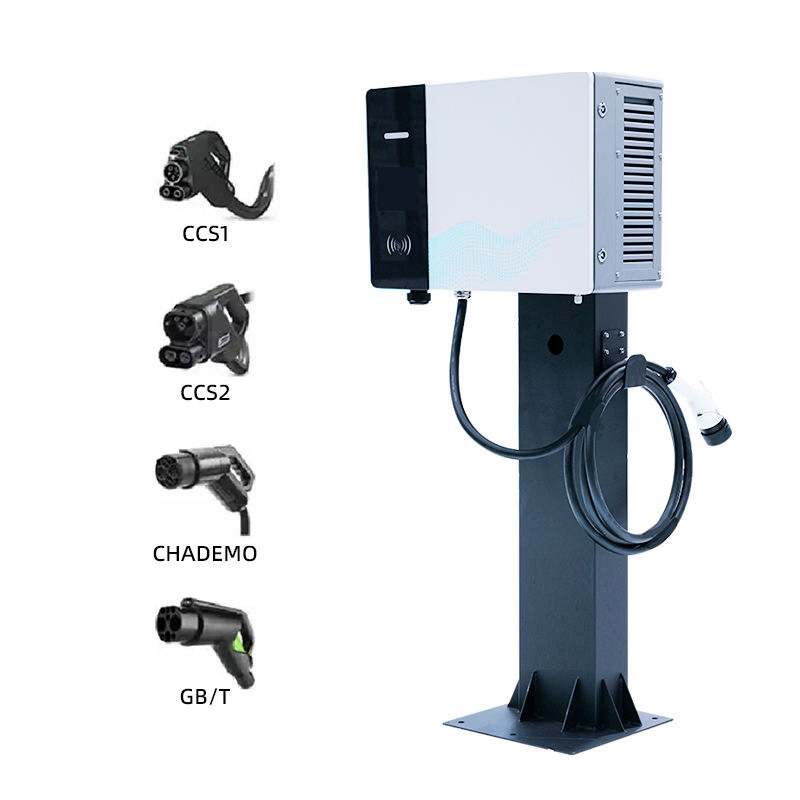

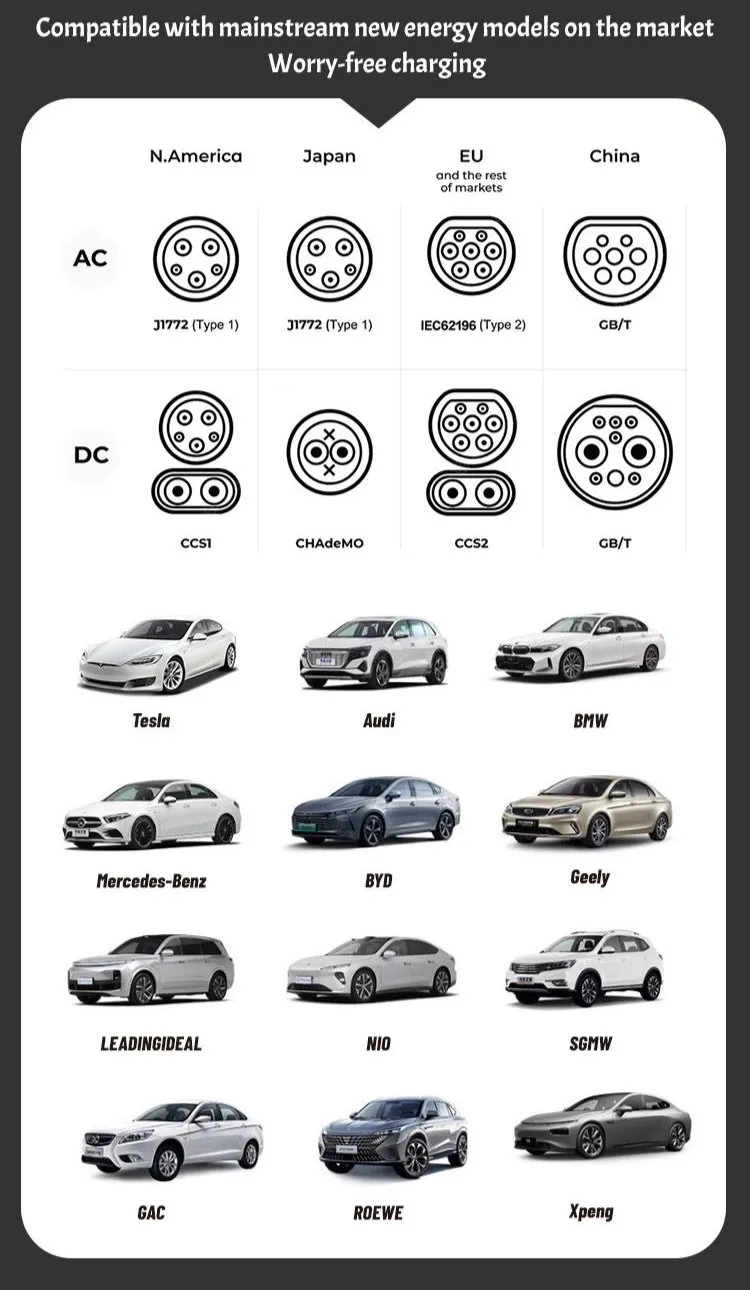

| Connectors | CCS1 CCS2 Chademo Gbt |
| Cooling | Air Cooled |
| Protocol | Ocpp 1.6j |
| Ingress Protection | IP55 |
| Gun Length | 5m or Customized |
| Package Size | 66.00cm * 27.00cm * 46.00cm |
| Gross Weight | 40.000kg |

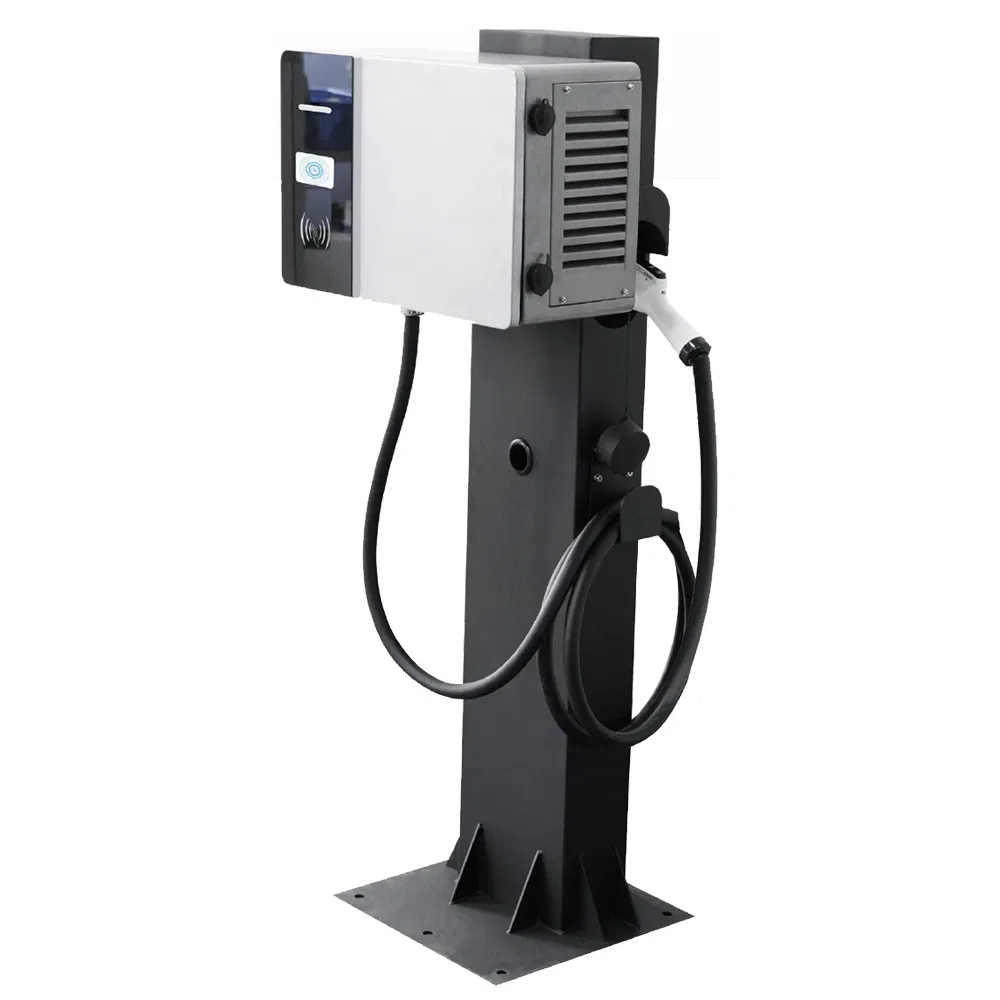

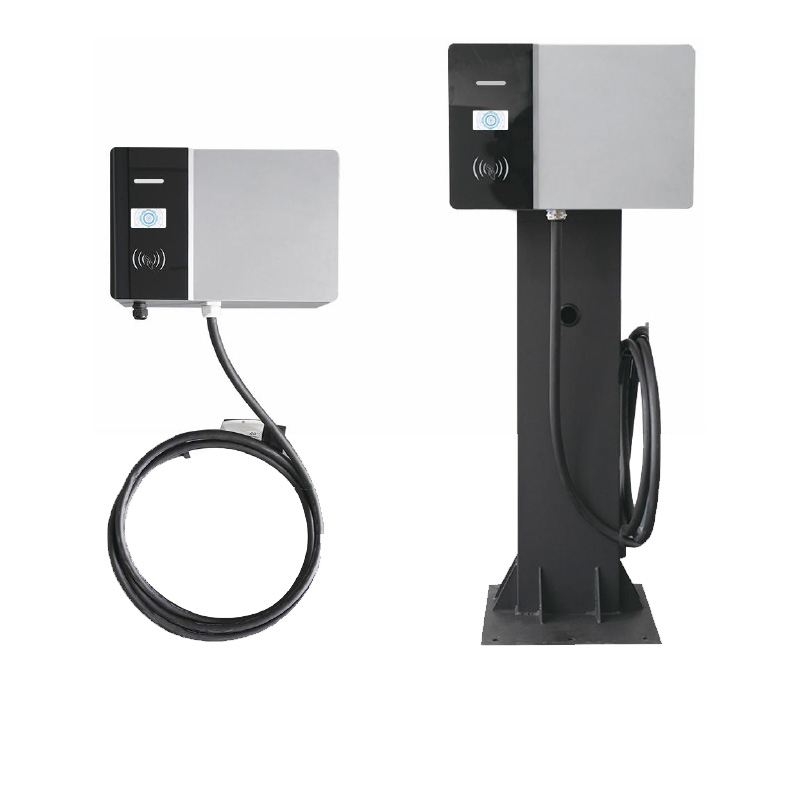

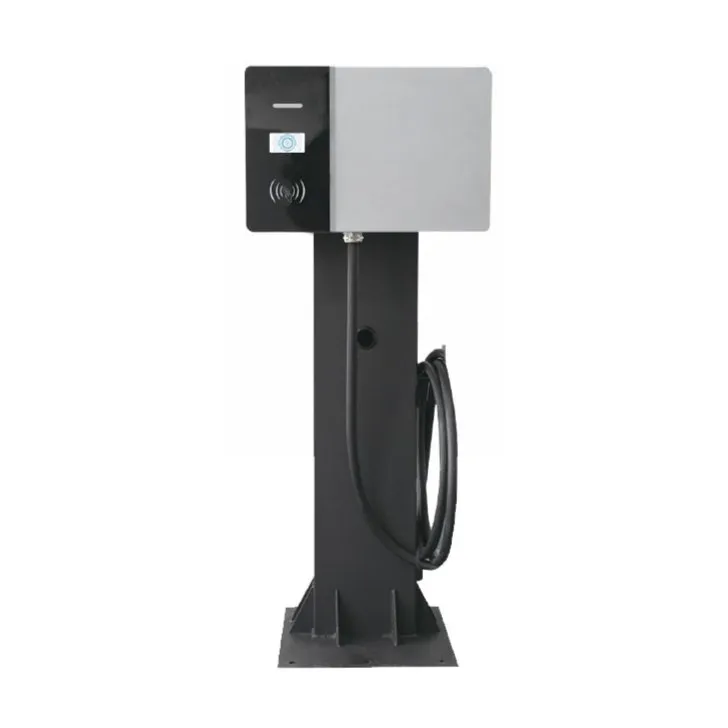

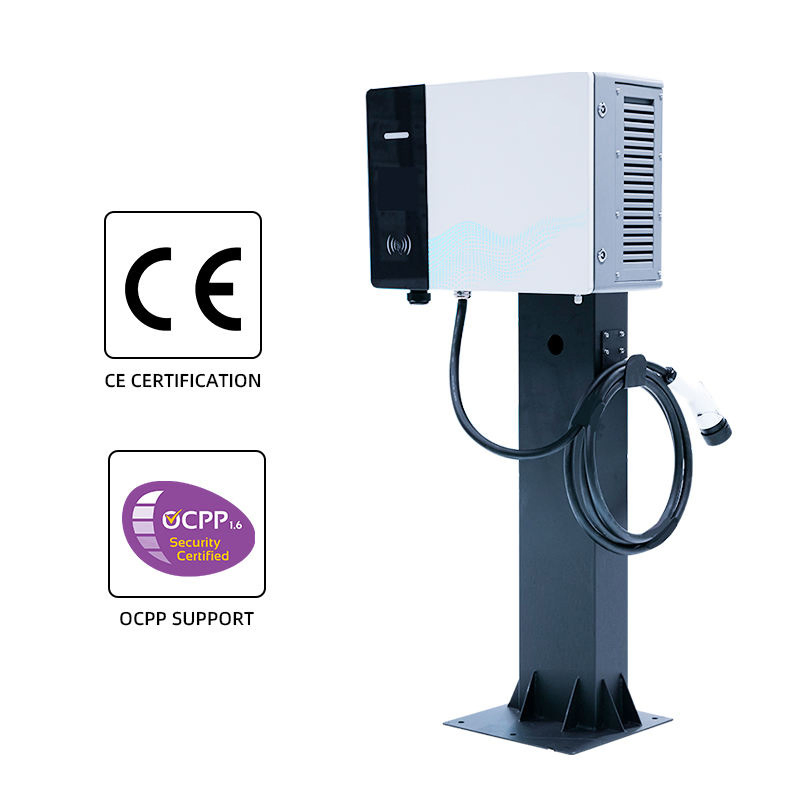

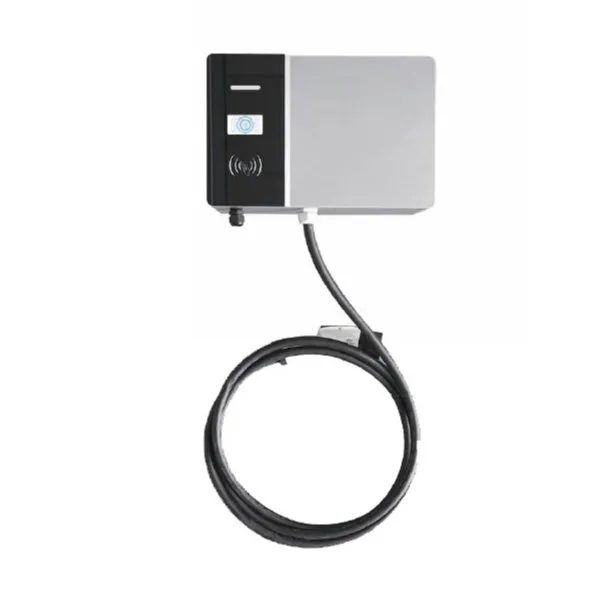

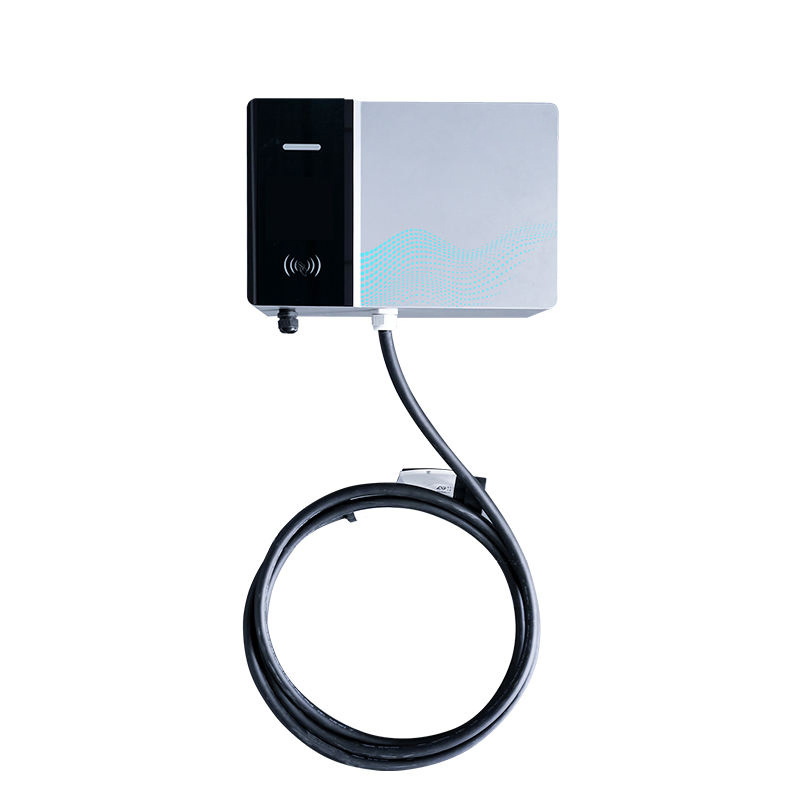

This High-Speed 30kW DC EV Charging Station provides a convenient and powerful charging experience. This sleek, small wall-mounted (Column) DC charger is engineered for simplicity and elegance, making it an ideal commercial DC Fast Charging solution. It operates on a robust 3-Phase 400V input, providing fast, efficient charging using CCS1, CCS2, and GB/T standards. With a configurable module offering 20kW or 30kW output, this compact station is a versatile solution for locations requiring quick, reliable, and space-saving DC fast charging capabilities.
Global Compliance and Safety Assurance: ISO, CE, and TÜV Certified
Our High-Speed 30kW DC Electric Car Charger adheres to the highest international quality and safety standards. Fully certified with ISO 9001, CE, and TÜV certificates, ensuring a safe, high-quality, and globally compliant charging solution.
| Equipment Specifications | |
| Standard | GB/T / CCS1 / CCS2 |
| Input Voltage Range | 380V±15% |
| Frequency Range | 50/60Hz±10% |
| Efficiency | ≥96% |
| Output Power | 30kW |
| Output Voltage Range | 200-1000V |
| Maximum Output Current | 80A |
| Protection Level | IP55 |
| Working Temperature | -20℃ ~ +50℃ |
| Dimension (Wall-mounted) | 660*265*460 mm |
| Dimension (Column) | 660*265*1300 mm |

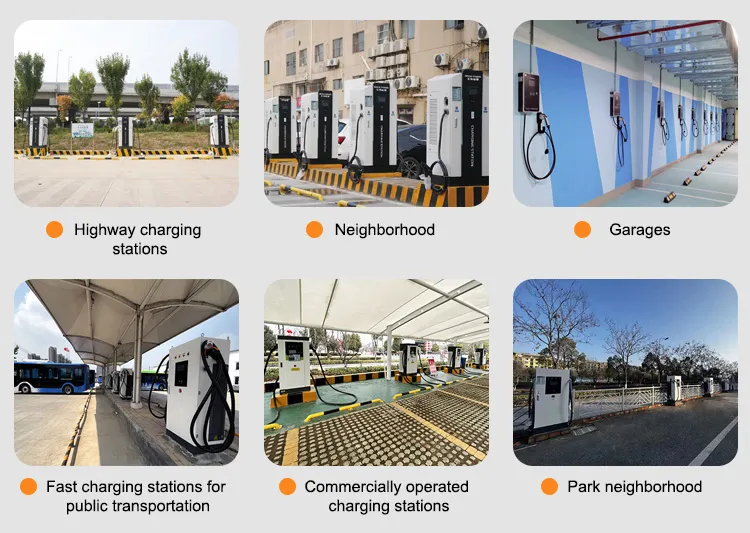

DC charging piles are widely utilized across various sectors:
