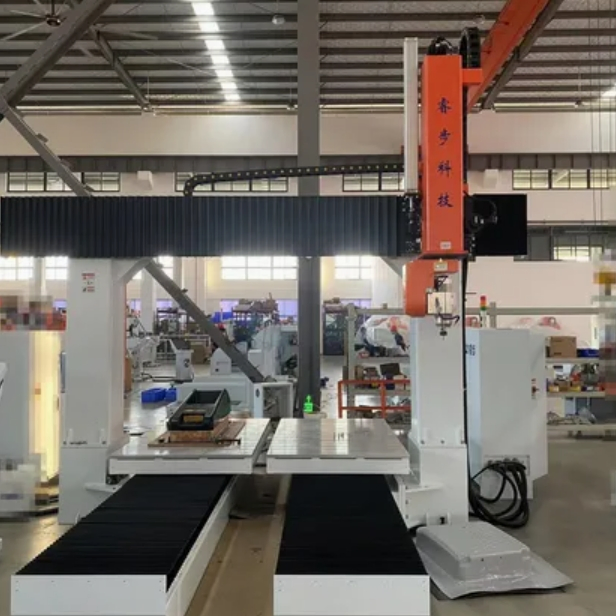

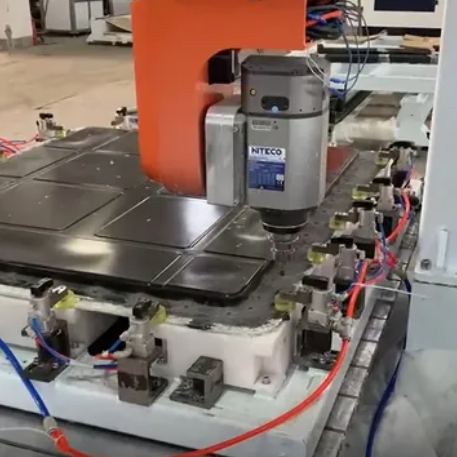

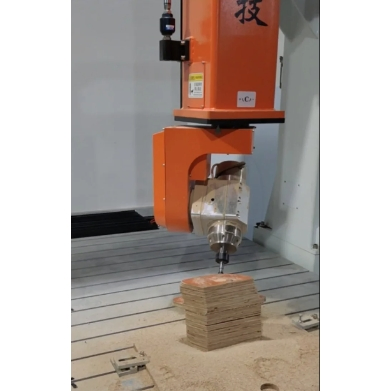

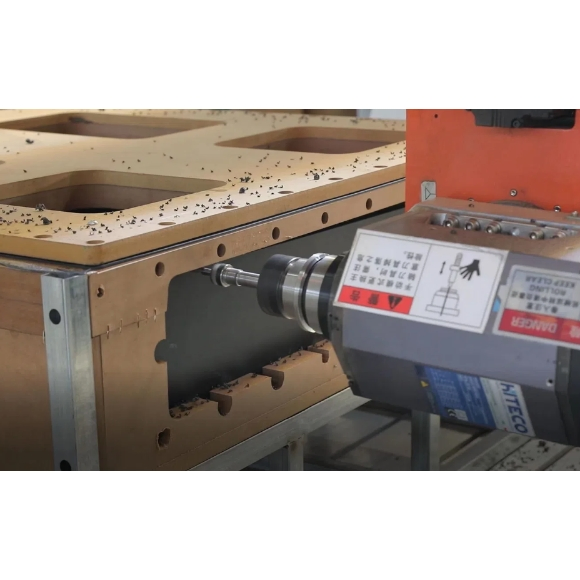

Double Work Table 5 Axis CNC Center for EV Battery Cover Machining

Customization:	Available
After-sales Service:	Life Time
Warranty:	One Year

i

Basic Specification

Model NO.

RB-F6-2520-Z08

Application

Non-Metal

Numerical Control

CNC

Processing Precision

0.01~0.02(mm)

Certification

CE, ISO 9001

X/Y/Z Travel

2500*2000*820mm

Control System

Taiwan Syntec

Repeat Accuracy

+/-0.05mm

Spindle Power

3kw (Customizable)

X/Y Axis Speed

50m/Min

Weight

3.9t

Origin

Quanzhou, China

★

Product Description

High-Speed 6-Axis CNC Machine for Non-Metallic Composite Material Processing

Technical Parameters

Product name	Non-mental 5 axis machining center
Screw	Taiwan TBI
Linear Guide	Taiwan CSK
Rack	Liangchi
Servo	Inovance
Control System	Taiwan SYNTEC
Electrical components	France Schneid.er
Spindle power	5.5KW/24000rpm/water cooling
Pneumatic Components	Taiwan AirTAC
B-axis rotation angle	±120°
C-axis rotation angle	±540°
Machine tool repeatability	±0.05mm
Total power	14.5KW

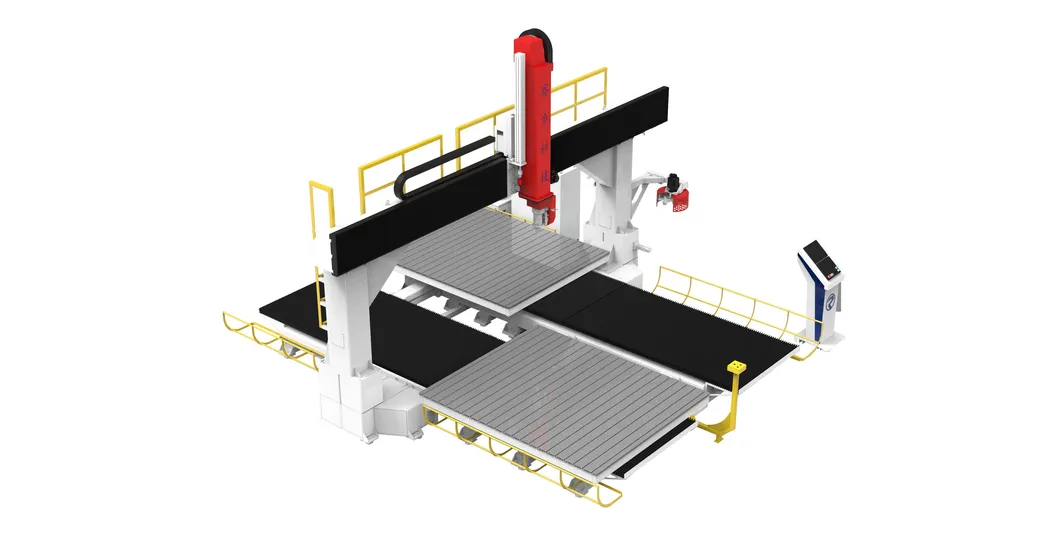

Product Features

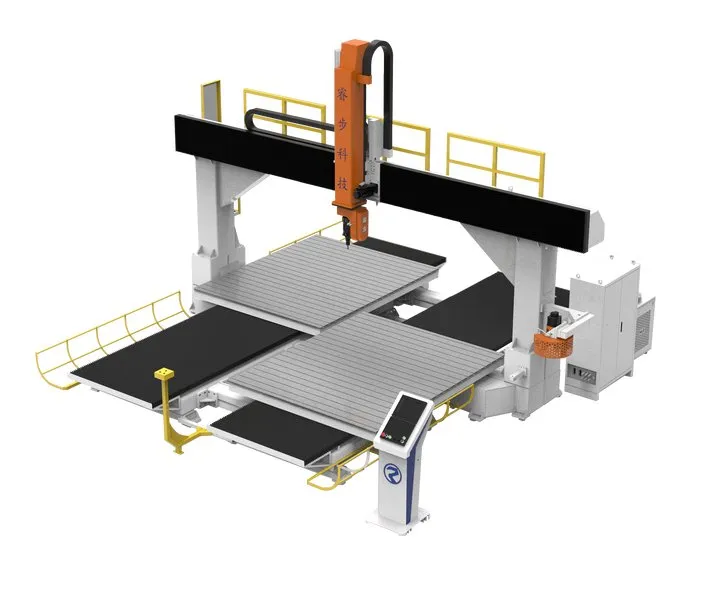

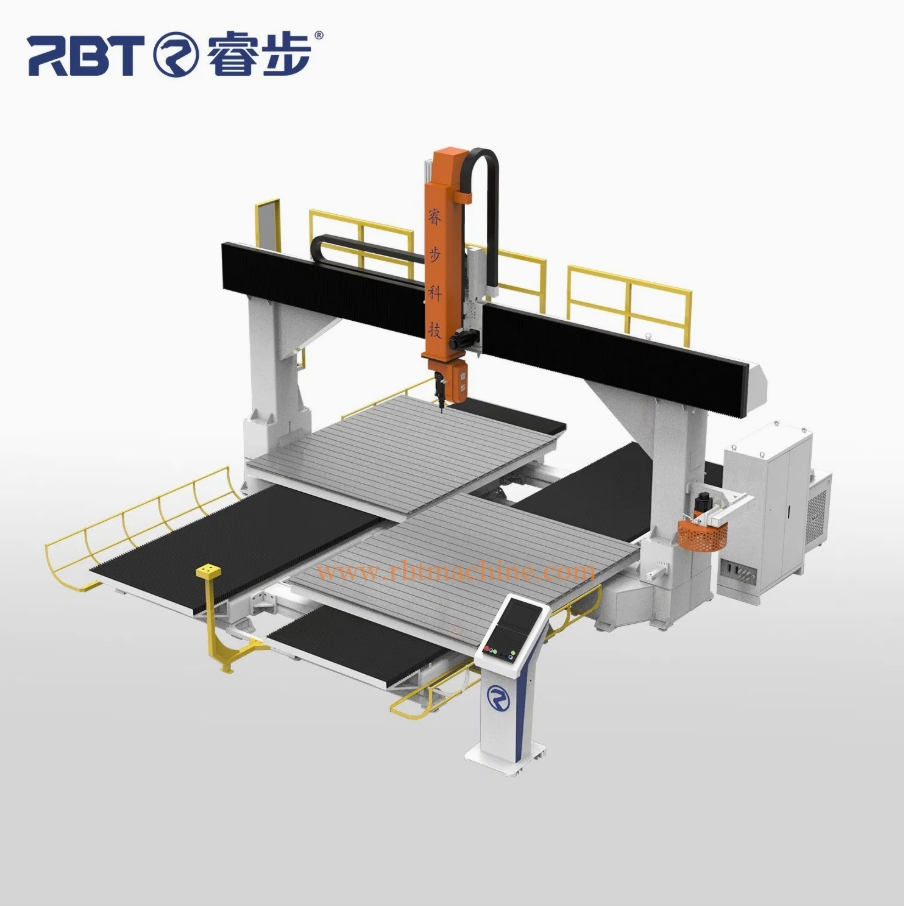

The 5-Axis Twin Table CNC Router is a CE-certified apparatus crafted for detailed carving, engraving, cutting, trimming, milling, and shaping tasks. It boasts two separate work tables to enhance productivity, enabling one to be loaded or unloaded while the other is in operation.

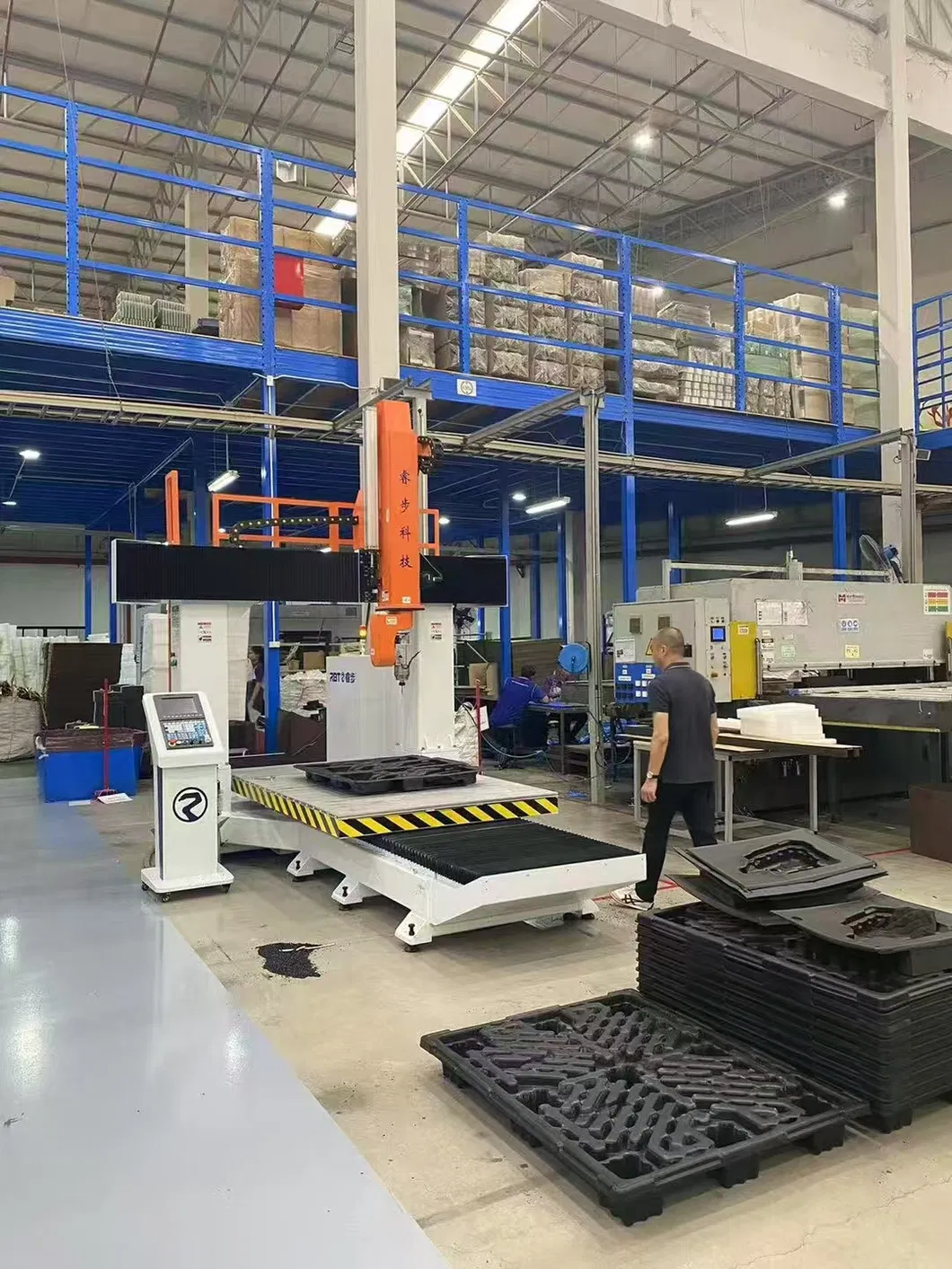

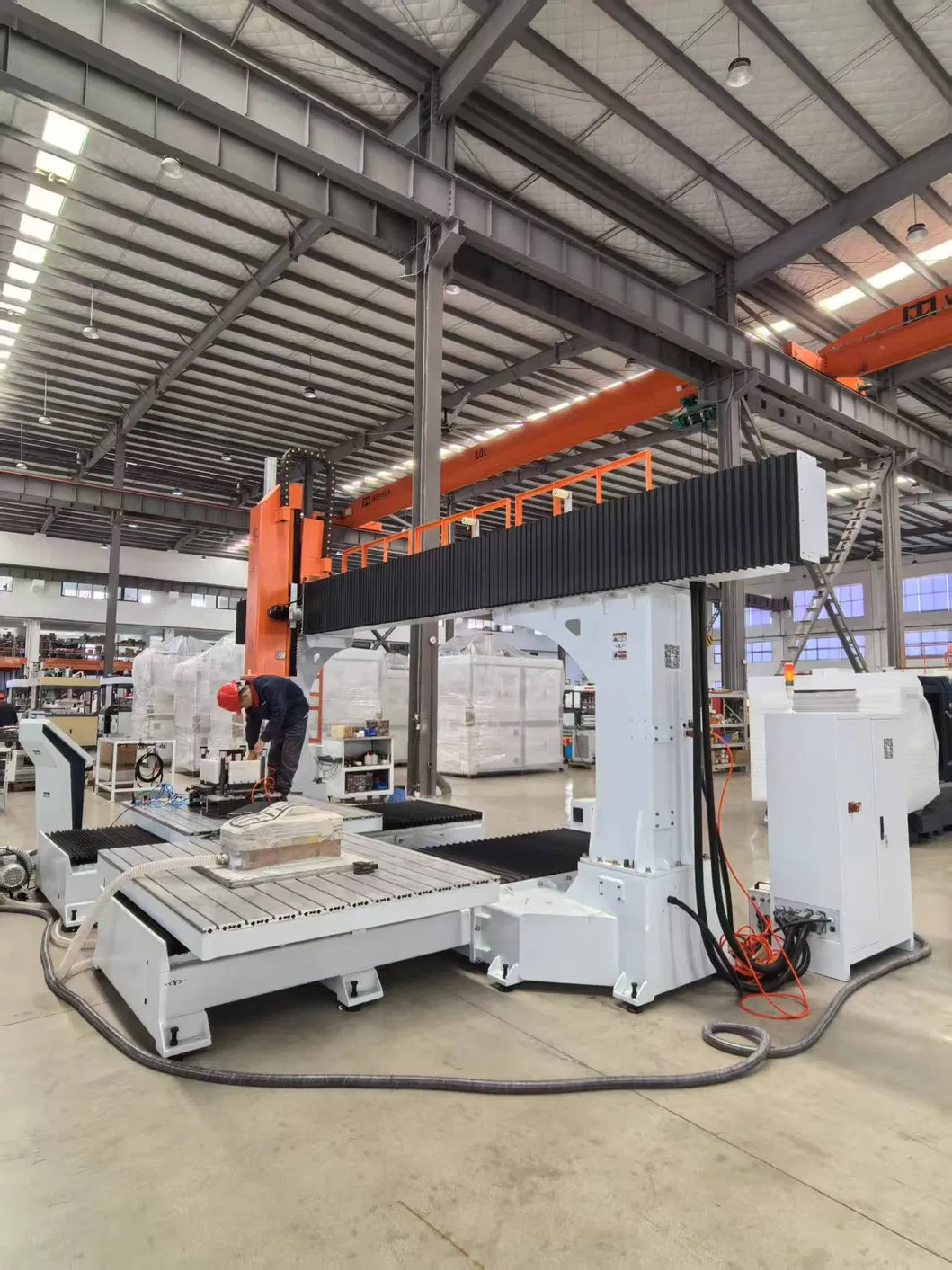

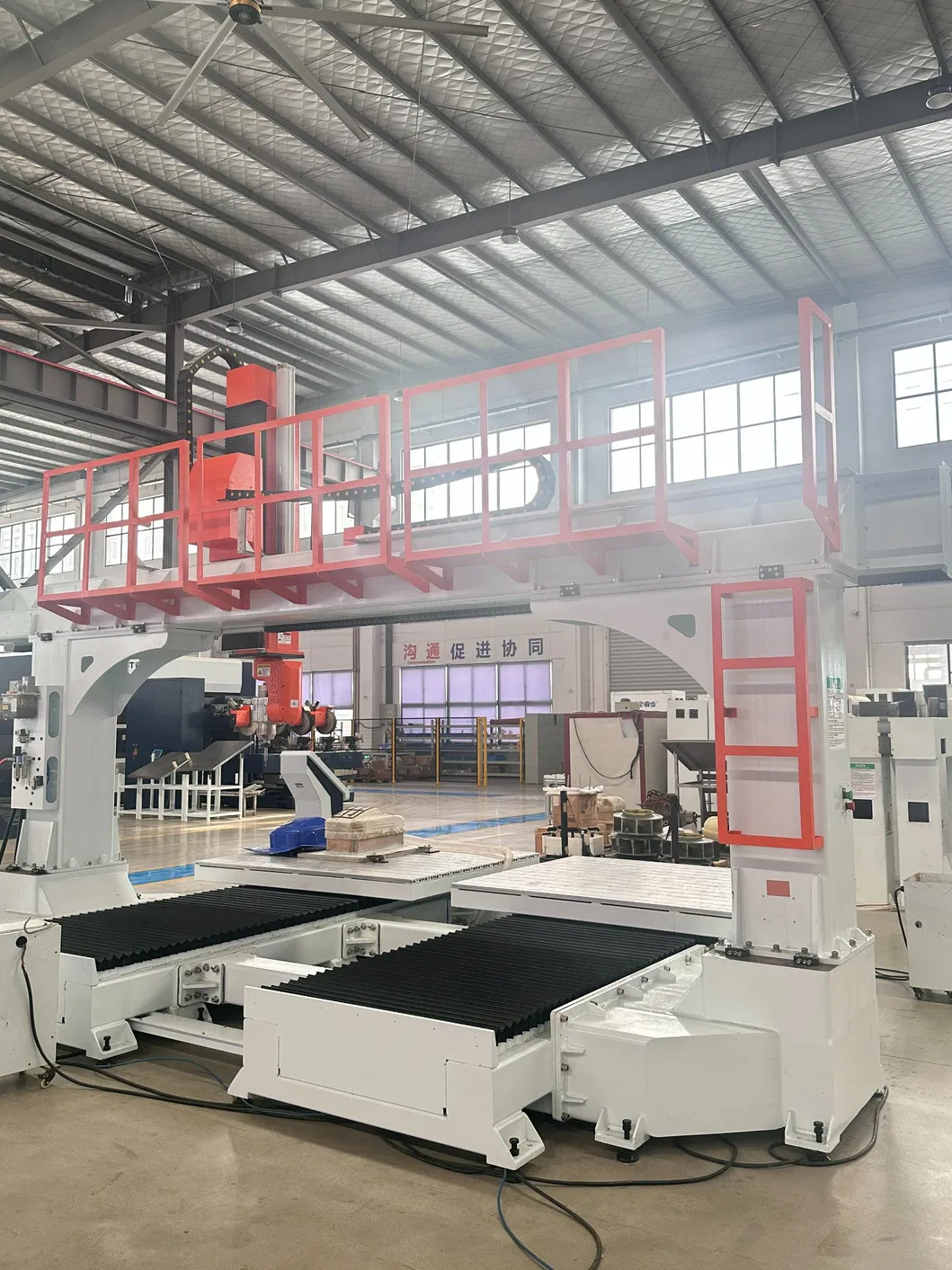

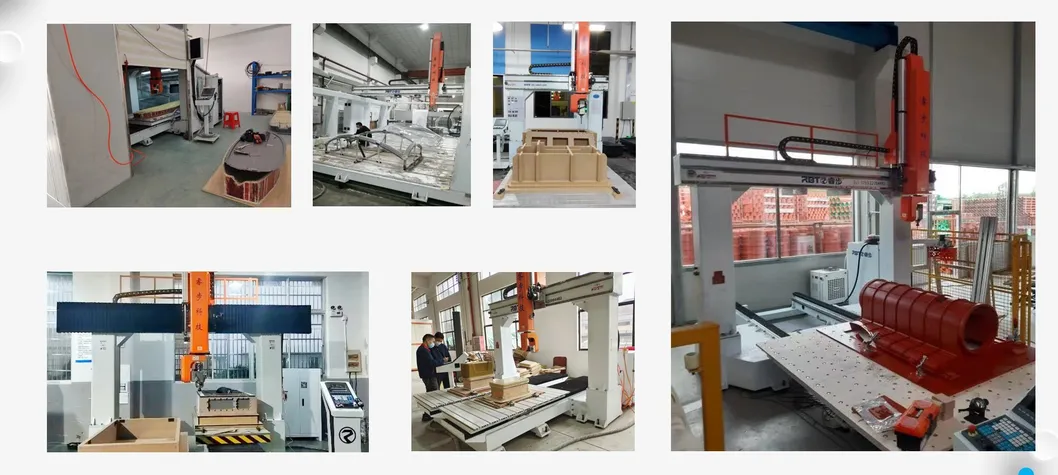

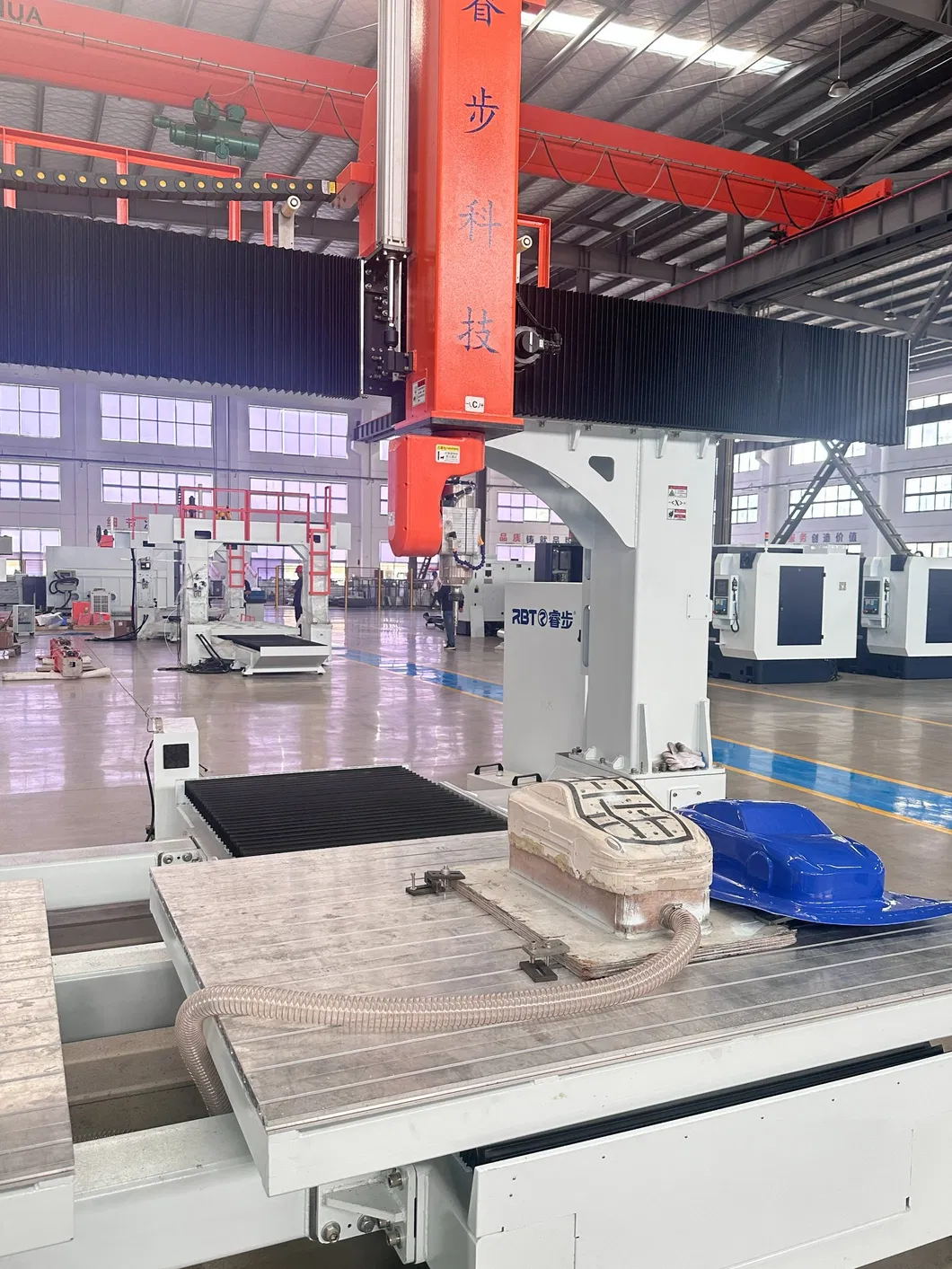

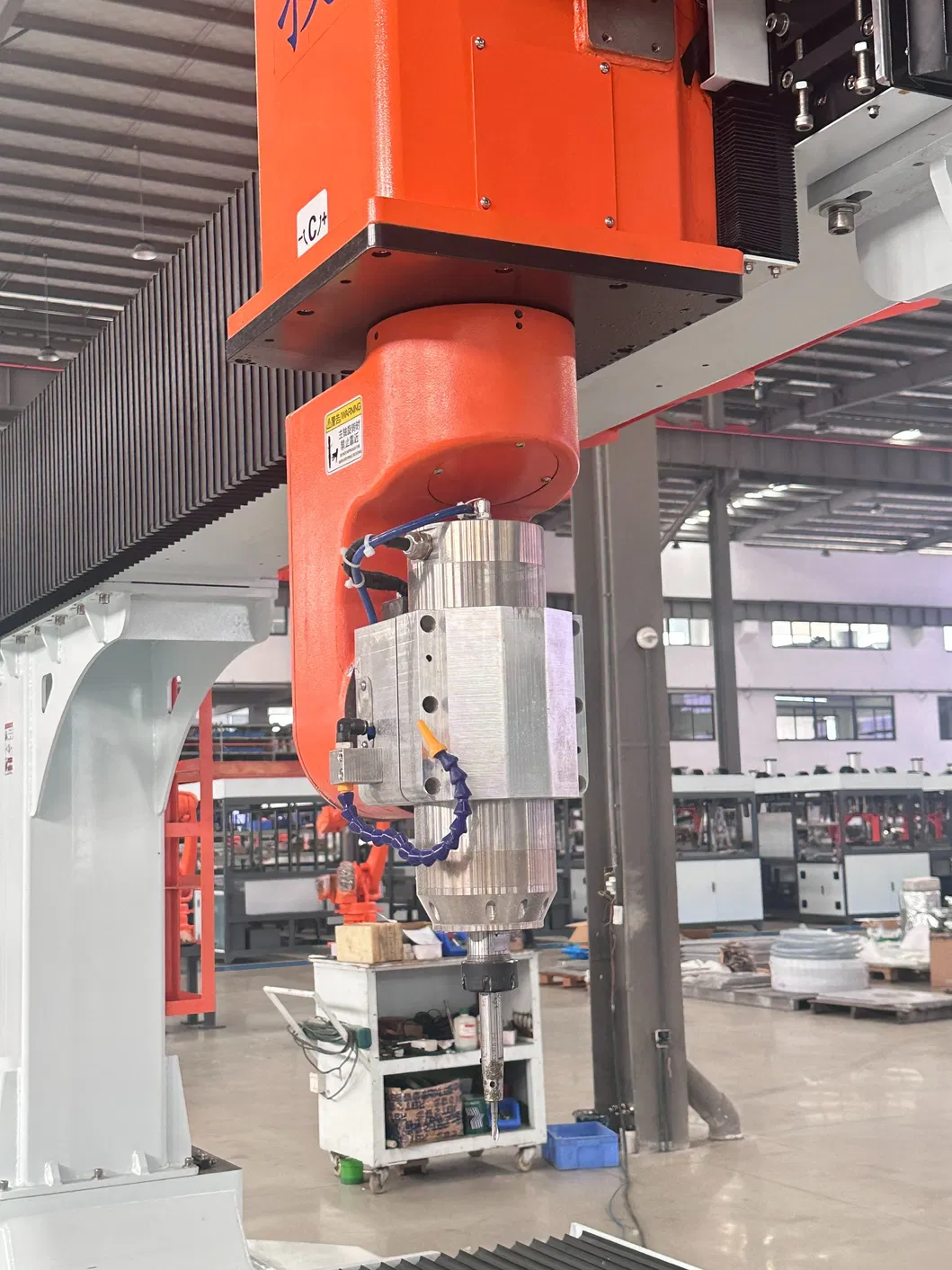

Product Showcase

✔

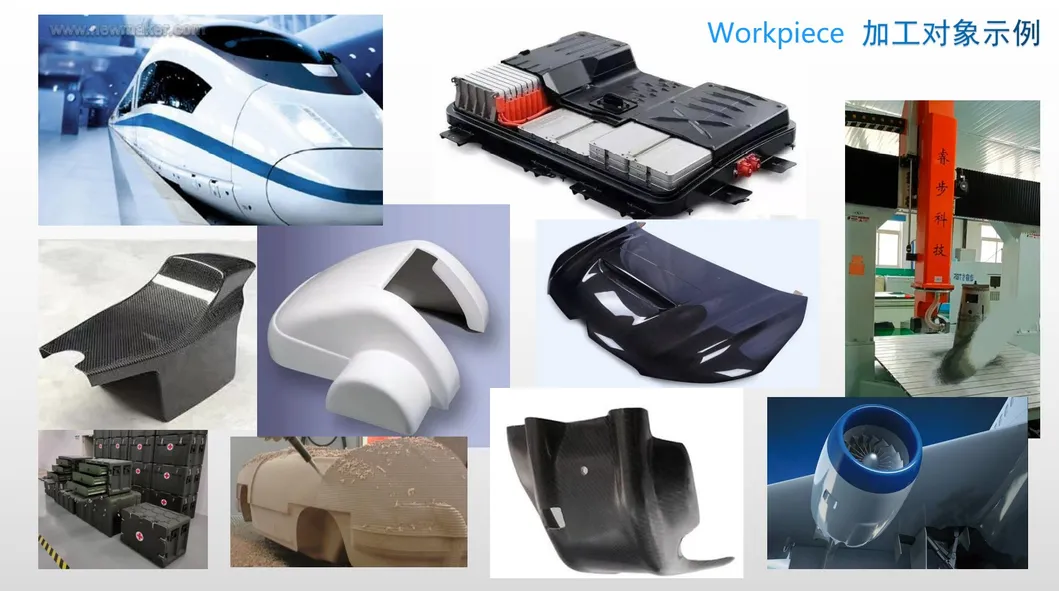

Product Application

Widely used in mold manufacturing, composite material processing, and thick sheet thermoforming processing in industries such as aerospace, rail transit, automotive interior and exterior, sporting goods, medical beauty, white goods, handicrafts, and sanitary ware.

✚

Our Advantages

01Advanced Production: Equipped with 5-axis machining centers and automated lines for efficient large-scale operation.

02R&D Excellence: Professional team leading technological innovation and responding quickly to market changes.

03Quality Control: Strict management system and laser interferometer calibration ensuring zero defects.

04Industry Experience: Over 20 years of deep cultivation in the CNC manufacturing industry.

05After-sales Support: Fast-response service and comprehensive technical support to protect customer interests.

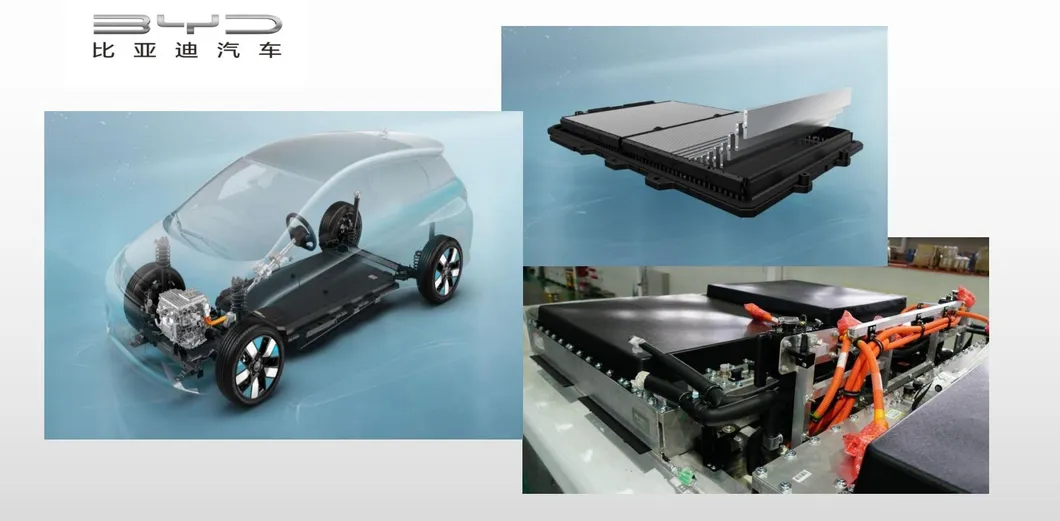

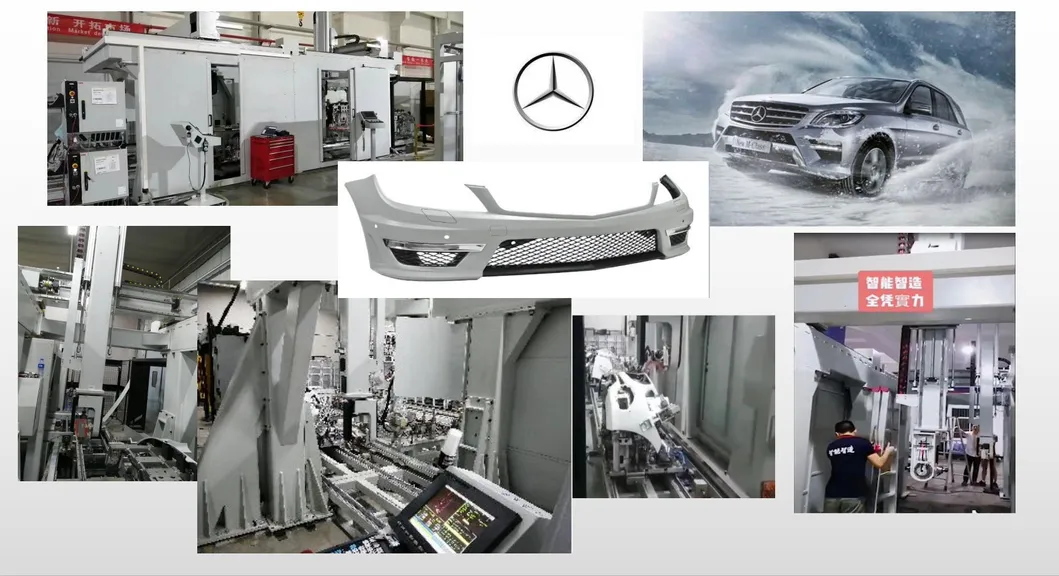

Successful Cases

Exhibition & Global Presence

?

Frequently Asked Questions

Q1. When was your factory established?

We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of CNC Machining since 2000, focusing on plastic luggage, composite parts, moulds, and soft metals.

Q2. What should I do if there is a problem during the warranty period?

The quality assurance period is 12 months. Except for man-made damage, we provide accessories free of charge. After the warranty, repair or replacement parts are available at cost.

Q3. How to install and use the machine?

We provide English user manuals and training videos for installation and troubleshooting. Technical guidance is also available via email, telephone, and messaging apps.

Q4. How is the after-sales problem handled?

Our strong service team communicates in English to solve problems. Engineers can be arranged to fly to your site quickly if on-site assistance is required.

Q5. Do you offer wholesale pricing?

Yes, if you are a wholesaler, distributor, or agent, please contact us directly to obtain the wholesale price list.
