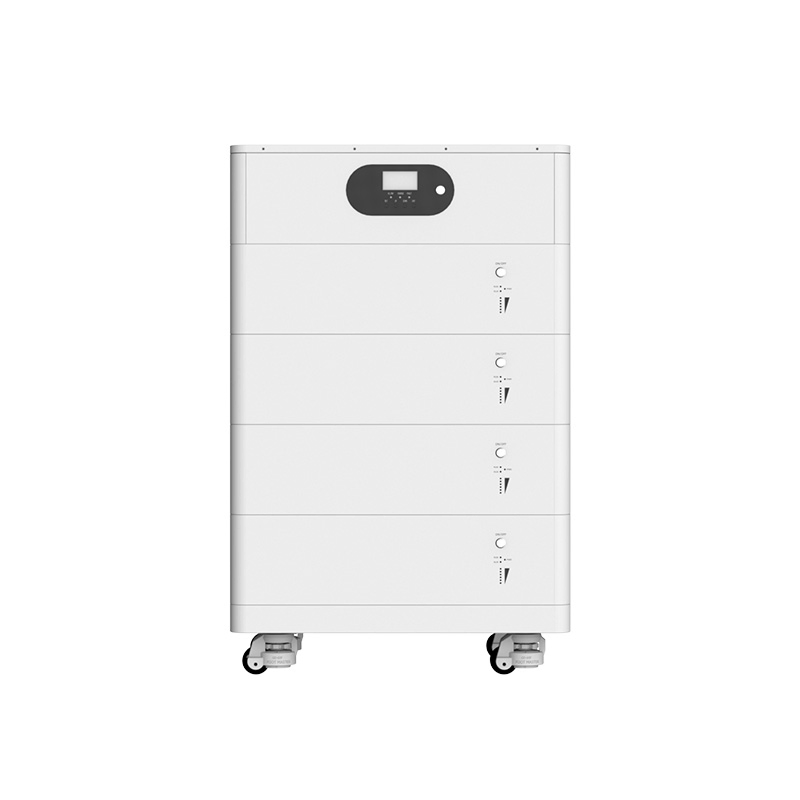

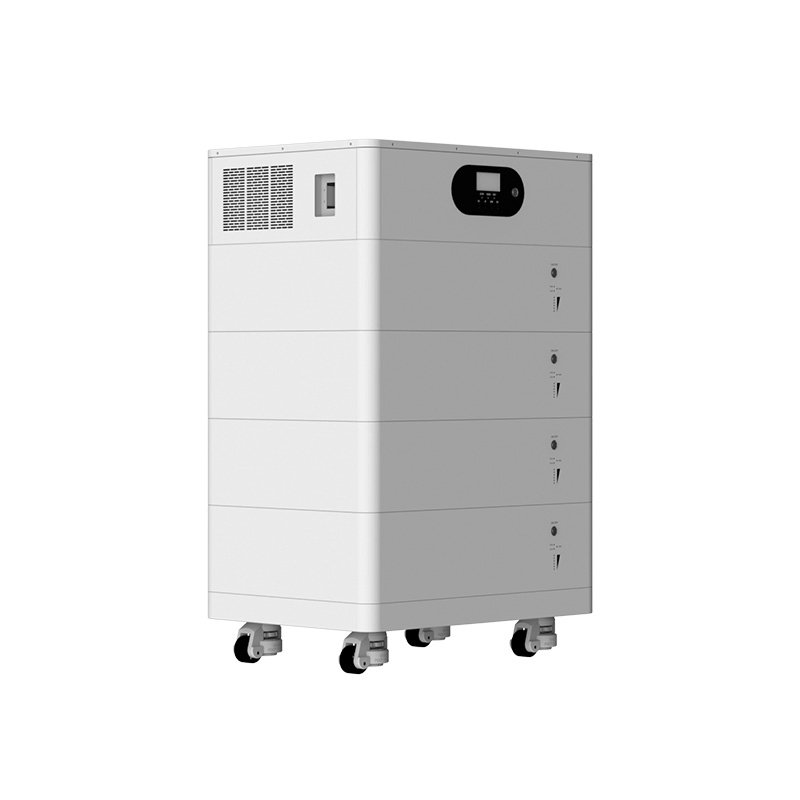

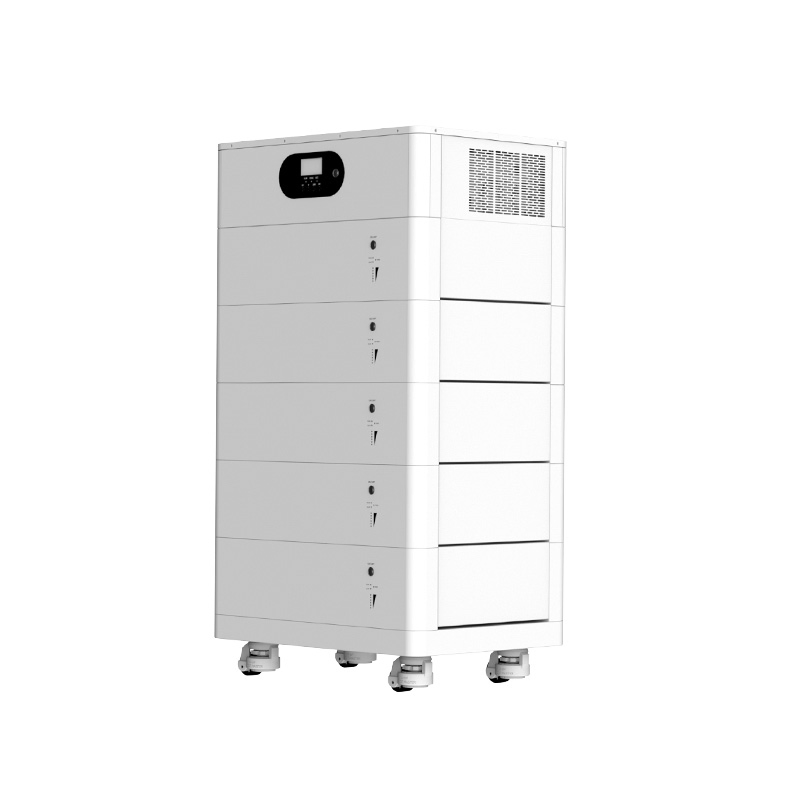

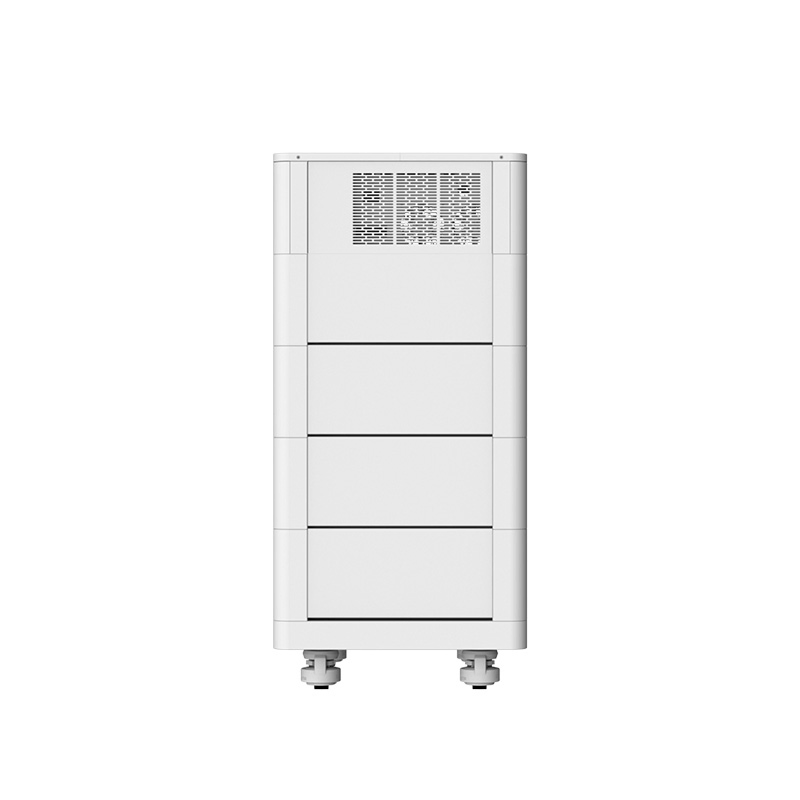

Domestic Solar Storage Solution One Bat/2.56 Kwh~Four Bat/10.24 Kwh APP Control Adaptable Choices Small Installation Economical Benefits Dependable Independ

i

Basic Information

Model NO.	ZCF AC
Cycle Life	6000
Nominal Capacity	2.56 Kwh
Rated Output Power	5,000W
Max. Peak Power	10,000va
Wave Form	Pure Sine Wave
Rated Output Voltage	220VAC Single-Phase

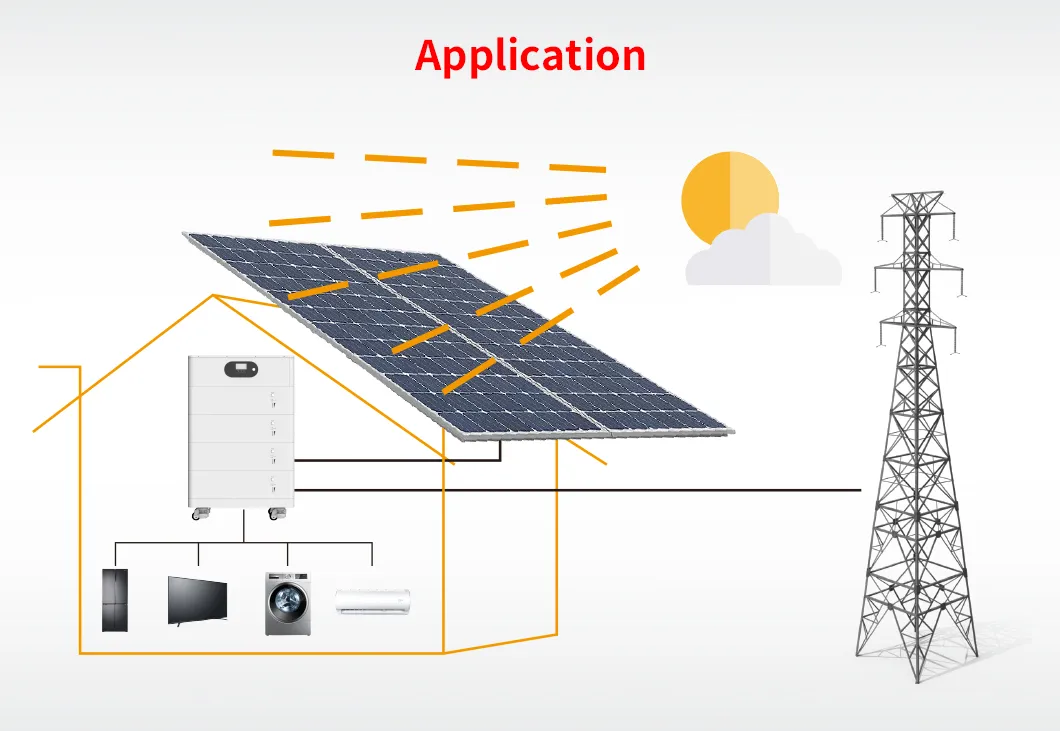

Output Mode	Off-Grid / Hybrid / On-Grid
Solar Charge Type	MPPT
Max. Solar Array Power	5,500W

⚡

Charging Solutions

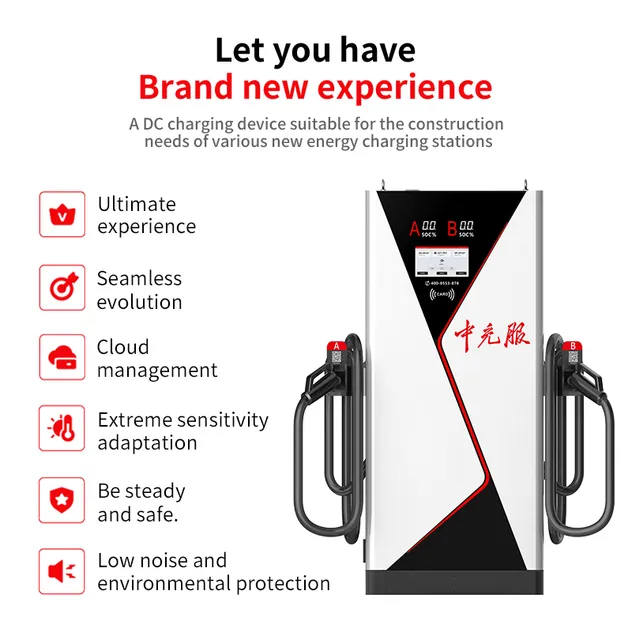

DC Charging Pile

AC Charging Pile

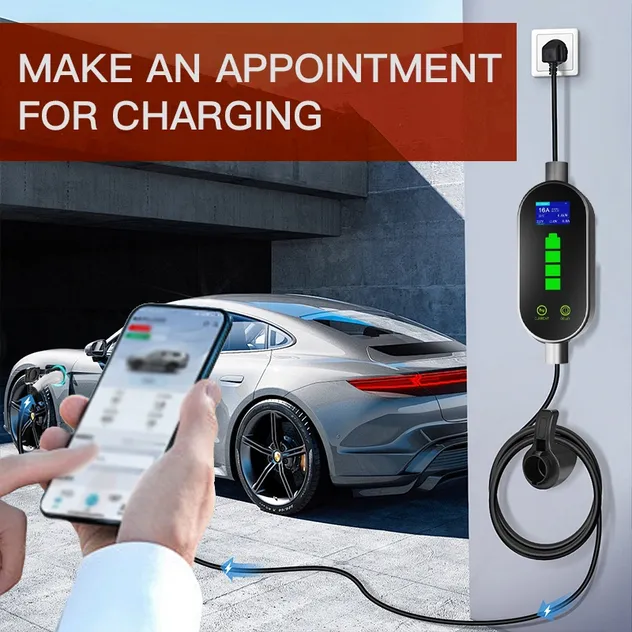

Portable Charging Pile

★

Home Storage System

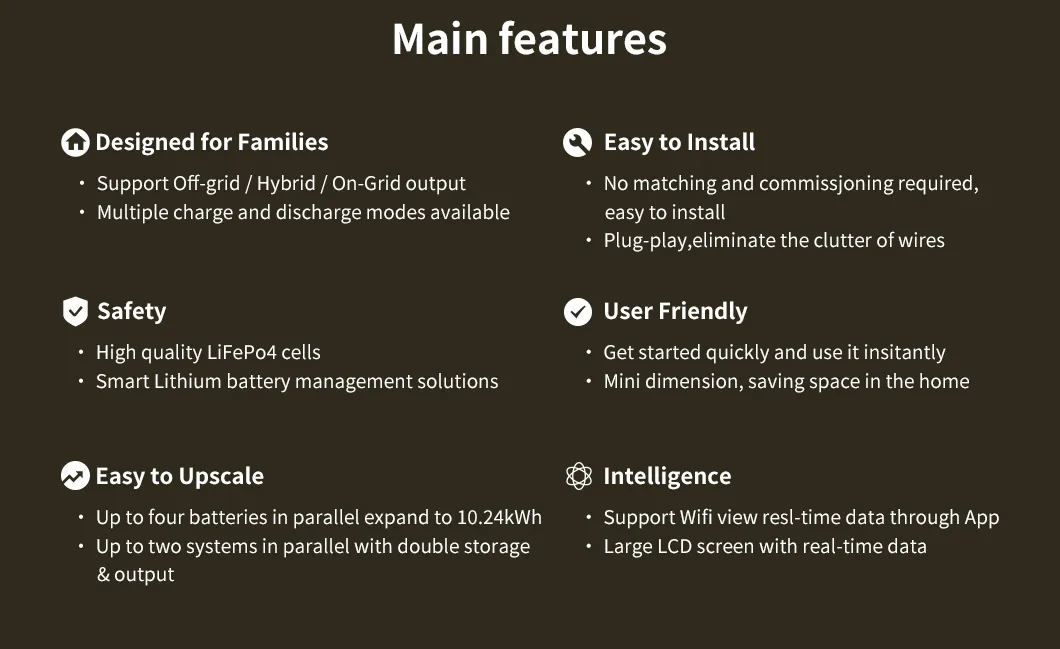

Main Features

Designed for Families: Support Off-grid/Hybrid/On-Grid output
Easy to install: Plug-play, eliminate the clutter of wires
Safety: High quality LiFePo4 cells & Smart BMS solutions
User Friendly: Quick start with Large LCD screen
Scalable: Up to four batteries in parallel (10.24kWh)
Intelligence: WiFi support for real-time App data view

📋

Technical Specifications

Standard	UN38.3, MSDS, UL1973, IEC62619, EN IEC61000
Max. Solar Open Circuit Voltage	500Vdc
Input Voltage Range	90~280Vac
Bypass Overload Current	40A
Max. Solar Charging Current	100A
Max. Grid Charging Current	60A

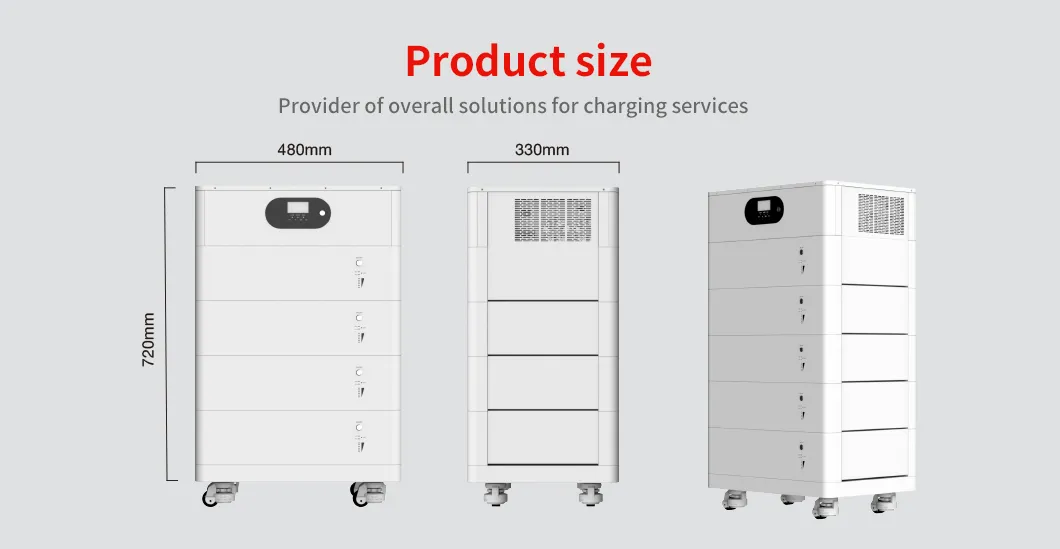

Dimension (Unit)	135480330mm
Package Gross Weight	100.000kg

🖼

Product Details

?

Frequently Asked Questions

Q1: Are you a factory or a trading company?

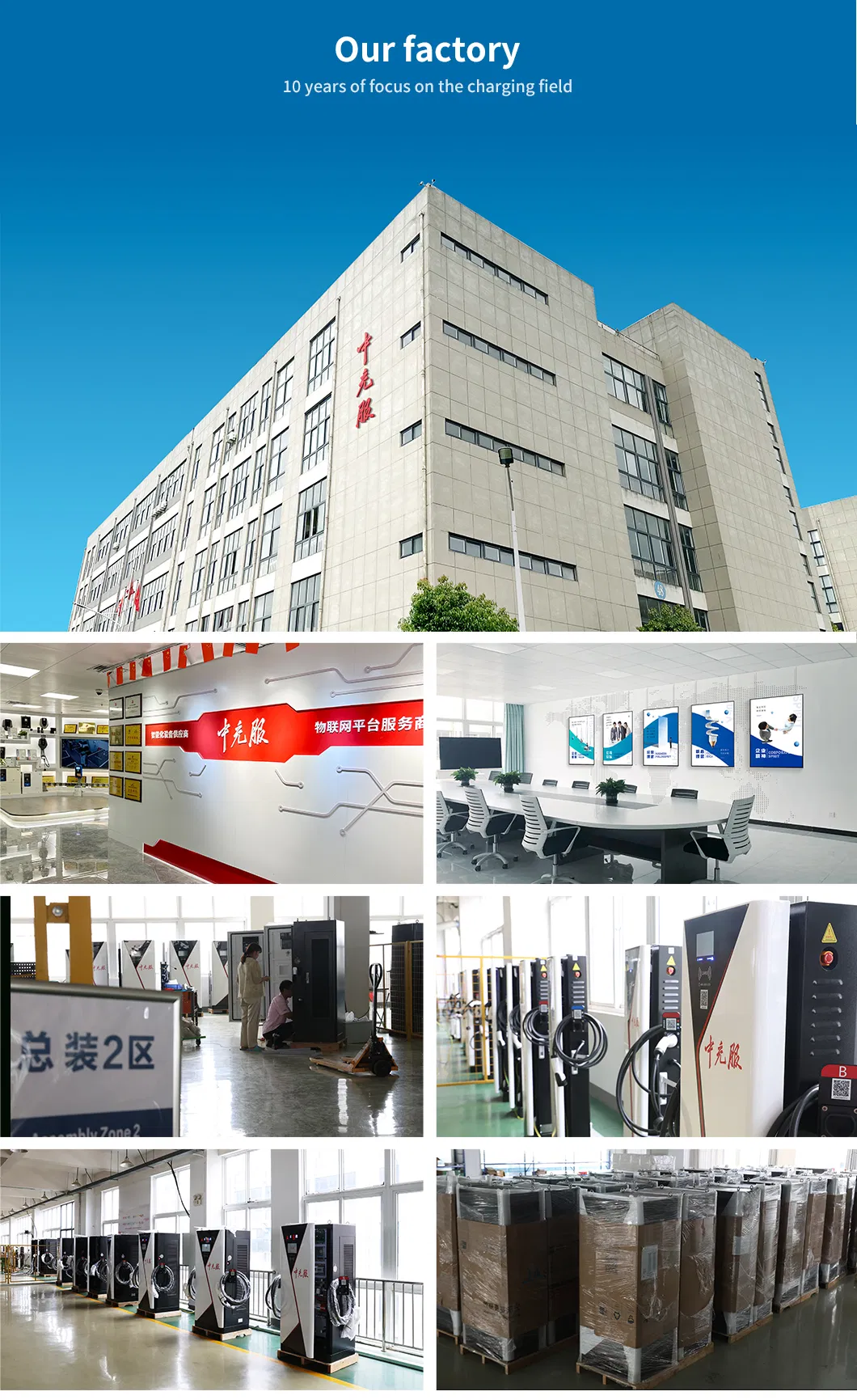

A: We are a manufacturer, welcome to visit our factory at any time!

Q2: What products can we buy from you?

A: We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), fast DC Charging stations (30kw-480kw), and mobile chargers with energy storage batteries (3.5kwh-161kwh), along with Solar System products.

Q3: Do you support OEM and custom designs?

A: Yes, we can handle your design requirements and place your logo on the products. We also provide customized packaging services subject to meeting the MOQ.

Q4: What are your terms of payment and trade?

A: We accept T/T (30% deposit, 70% before delivery). Our trade terms include EXW, CFR, CIF, and FOB.

Q5: How long is the typical delivery time?

A: Generally, it takes 7 to 35 days after receiving your advance payment. The specific timeframe depends on the items and the quantity of your order.

Q6: Do you test the products before delivery?

A: Yes, we perform a final inspection and full testing on all goods before they are delivered to ensure quality.
