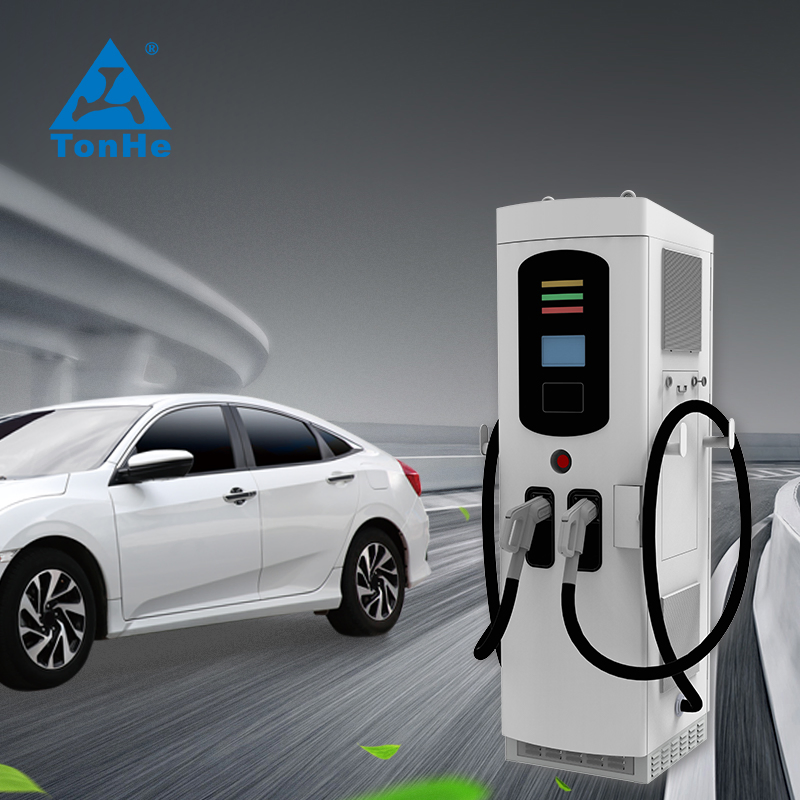

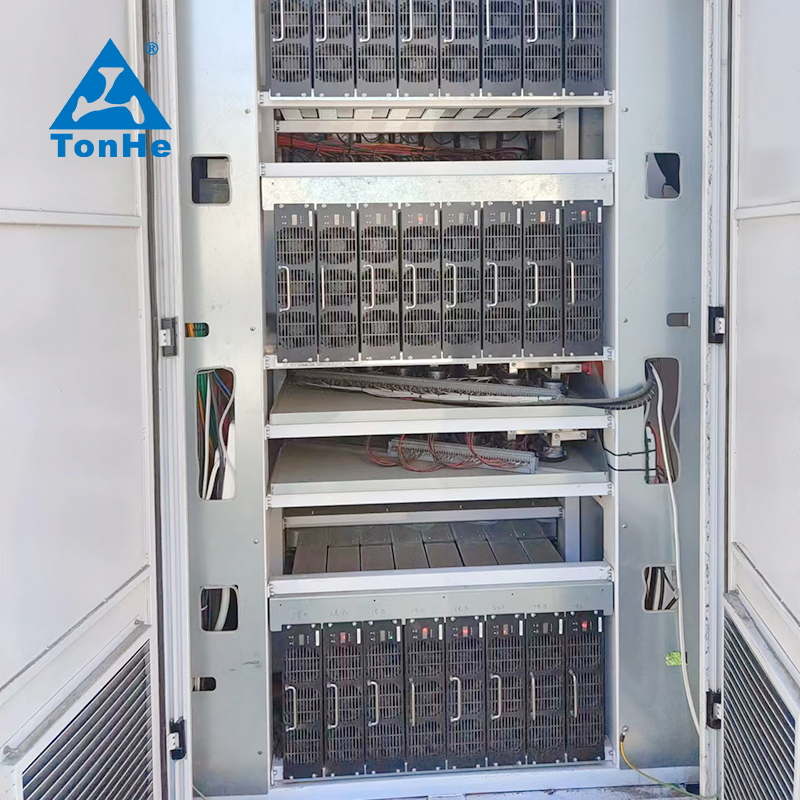

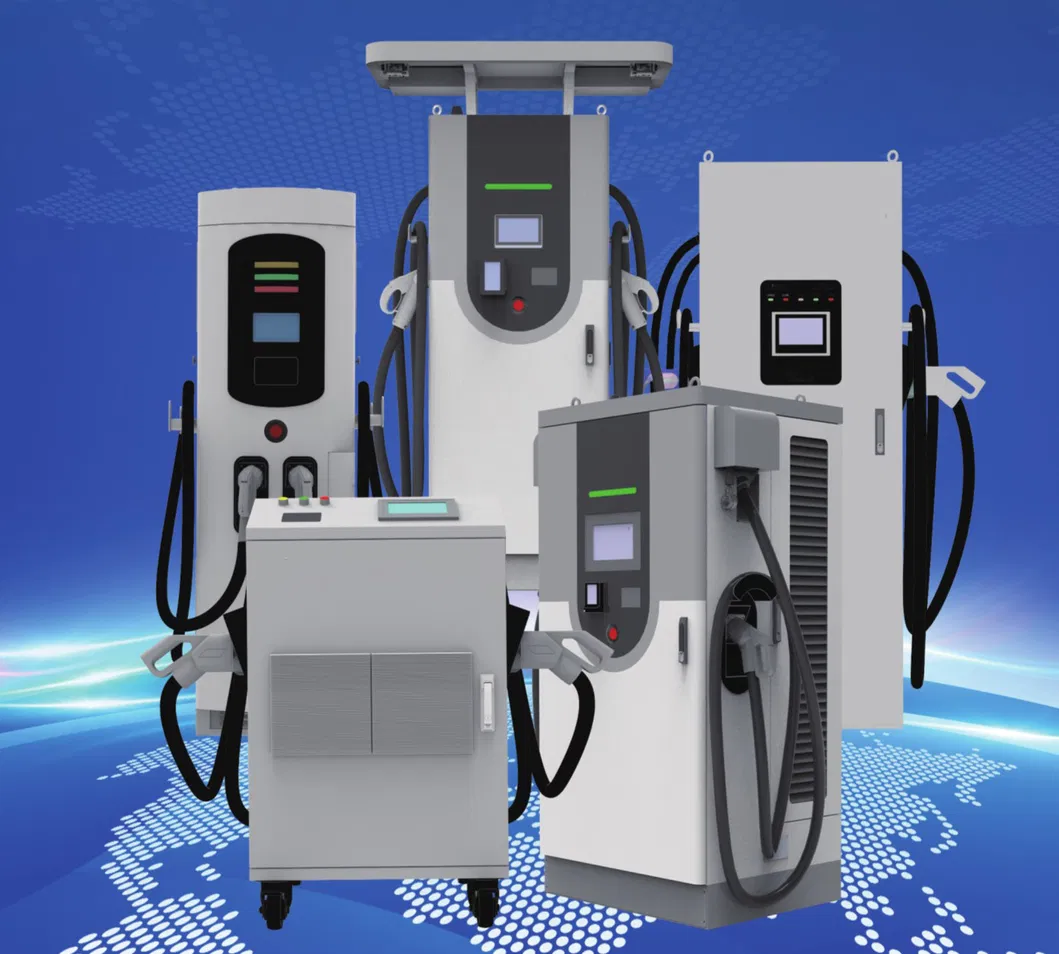

DC Fast AC 200kw EV Car Charger Solution Adapter Type 2 Electric Vehicle Station

1 / 5

DC Fast AC 200kw EV Car Charger Solution Adapter Type 2 Electric Vehicle Station

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EV Charger Solution

Location

Public Use

Interfaces

One Pile with Multiple Charges

Start Mode

RFID Authentic

Method

Quick Charging

Power

60kw-200kw Range

Output Voltage

200-1000VDC

Origin

China

Capacity

100 Sets / Month

Product Features

✔ Constant power from 200-1000VDC
✔ Average efficiency ≥94% at nominal output power
✔ One charger with two outputs, simultaneously charging
✔ Ethernet/3G/4G communication
✔ High protection grade as IP54
✔ APP operation or RFID authentication
✔ CE certificate NB 1282
✔ OEM/ODM & Logo Customized

Technical Specifications

Model Range		THGZQW-60/80/100/120/140/160/180/200kW
AC Input	Phases	3 phases + neutral + PE
	Voltage	380VAC±20%
	Frequency	50Hz±10%
DC Output	Voltage Range	200-1000VDC
	Max Current	CCS 2: 200A, CHAdeMO: 125A, GB/T: 250A
	Connector	CCS 2 / CHAdeMO / GB/T (Up to 2 guns)
Performance	Efficiency	≥94% at nominal power
Structure	Material	Galvanized steel
Protection	Security	Over/Under Current, Surge, Short Circuit, Reverse, Emergency Shut-down

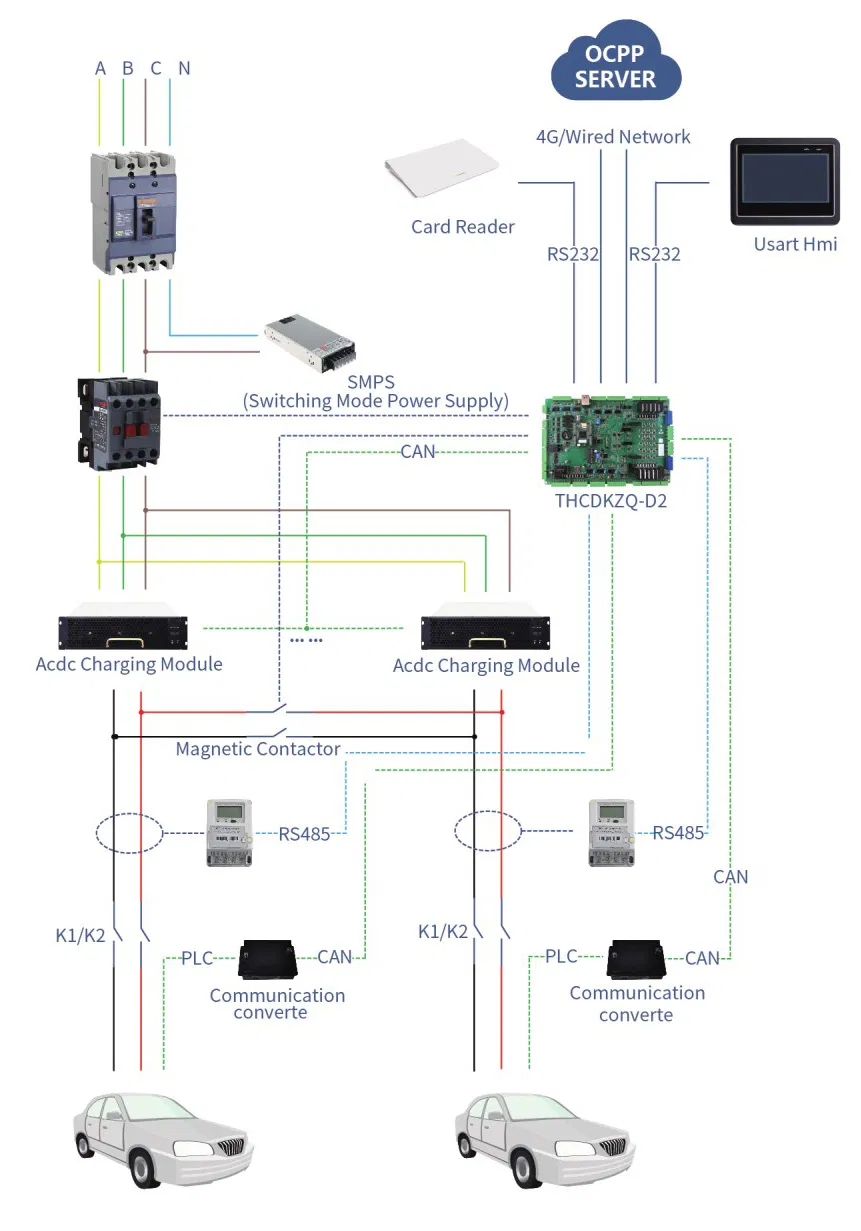

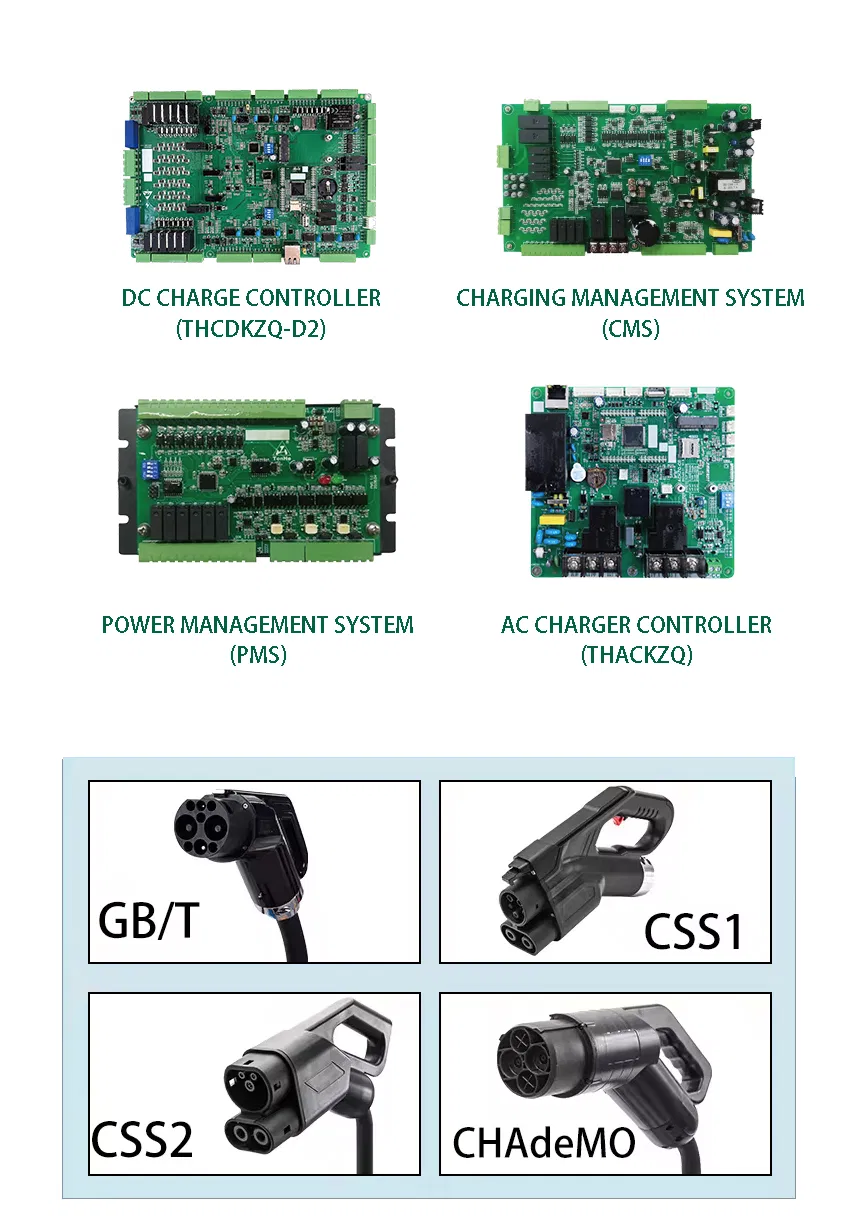

Auxiliary Products & Packaging

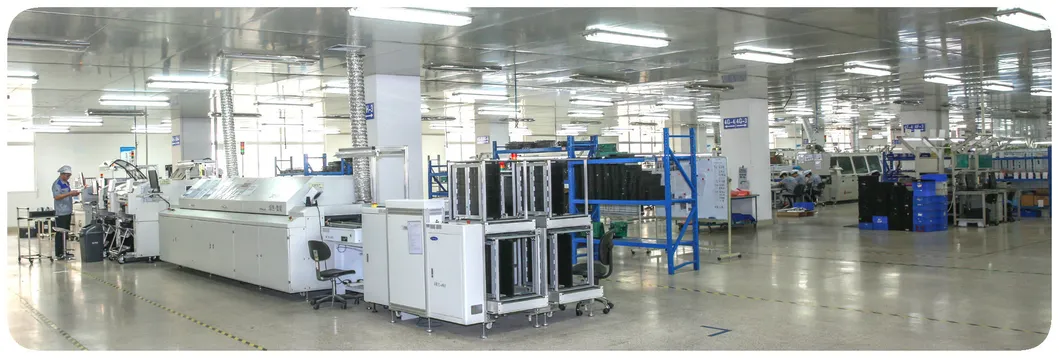

Industrial Capability

Sticks to technological innovation, focusing on the field of high-frequency power conversion technology. We are committed to innovation in technology, products and management within the EV charging and swapping industry. Our focus remains on EV charging power modules and comprehensive system solutions, providing customers with "One-Stop Service" including R&D guidance, technical training, and professional support.

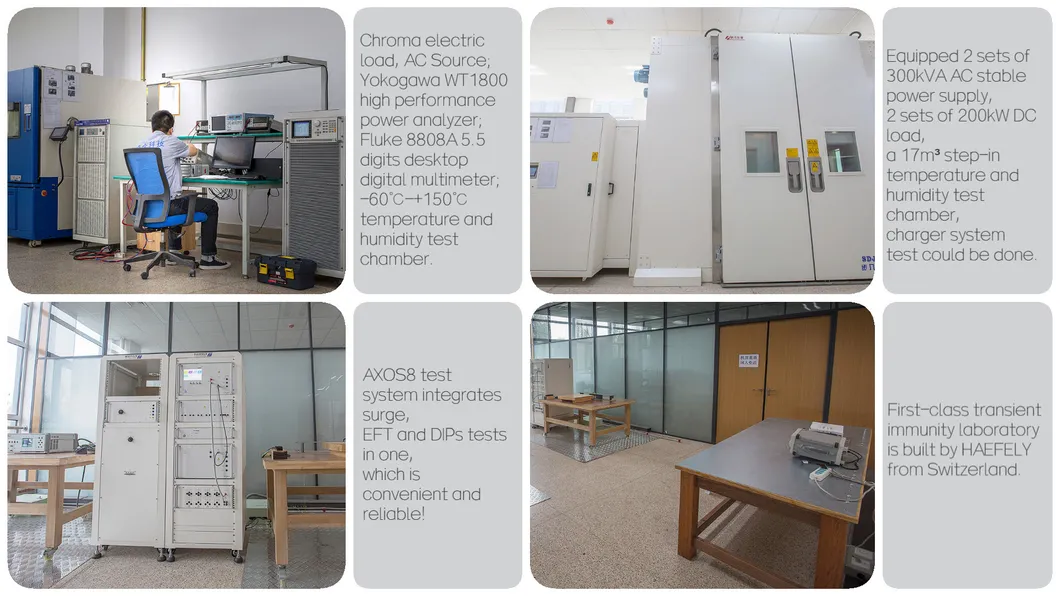

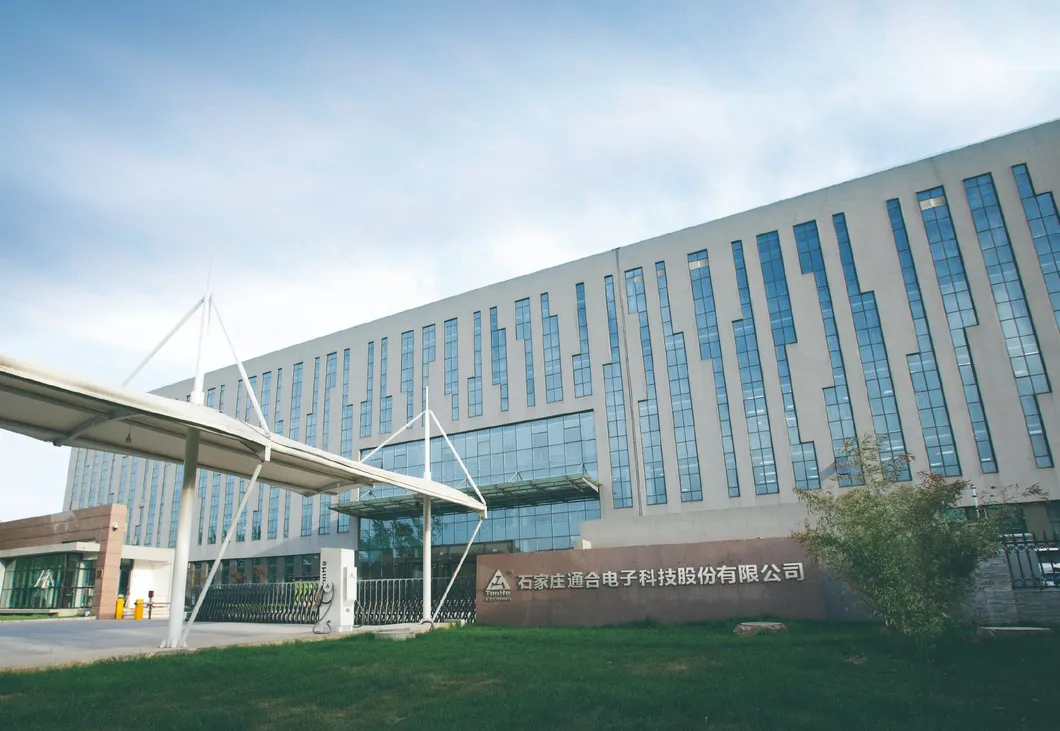

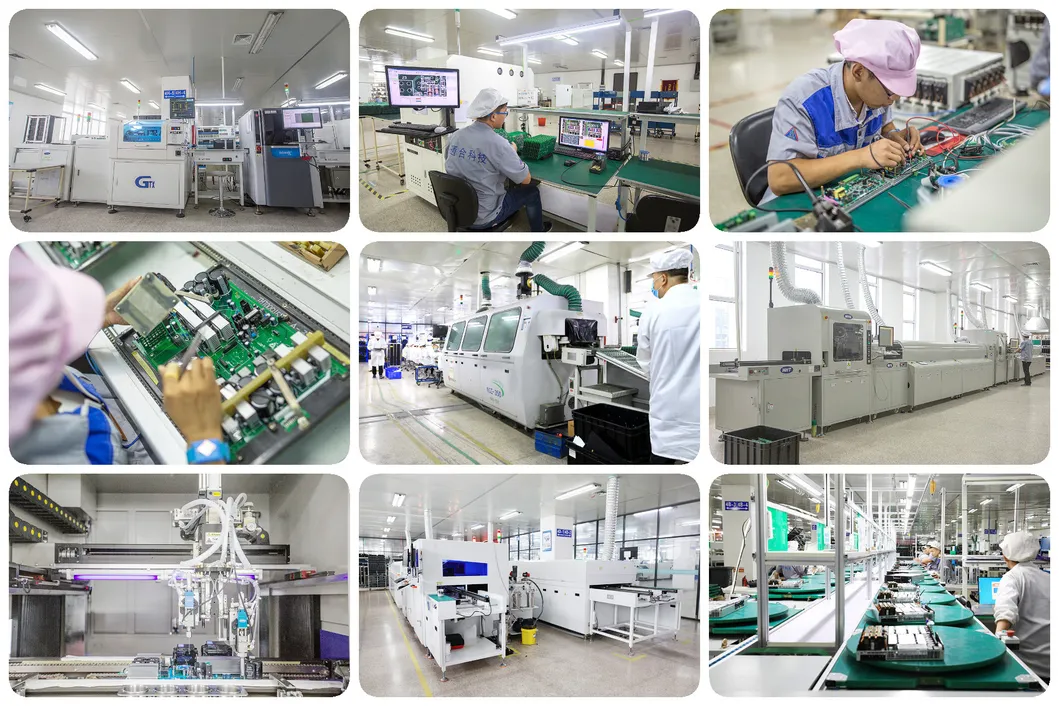

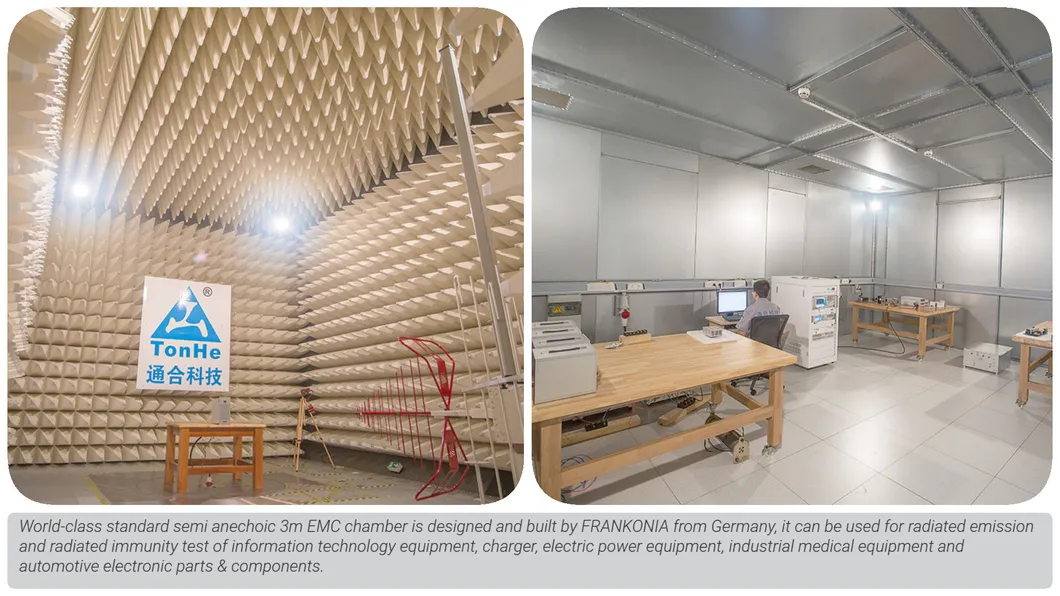

Workshop & Labs

Frequently Asked Questions

What are the module CAN baud rate and voltage levels?

The modules operate at 125Kbs with a 5V voltage level.

Do the charging modules support glue filling?

Yes, all series modules can support glue filling for enhanced protection.

What are the installation requirements for the module?

Modules can be installed horizontally, side standing, or upside down. For upside-down installations, a customized front panel without a handle is recommended.

What is the typical delivery time?

We generally require about 7 days for individual modules and 35 days for standard charging piles.

What customized services do you provide?

We offer various OEM and ODM solutions based on specific customer requirements and technical specifications.

How long is the standard warranty period?

The standard warranty is 12 months upon receipt of the shipment.
