Is Our EV Charging Solution Cost-Effective for Residential Communities?

Basic Specifications

Model:ZD06

Charging Interfaces:One Pile with One Charge

Installation:Wall Mounted / Floor Standing

Charge Method:Quick Charge

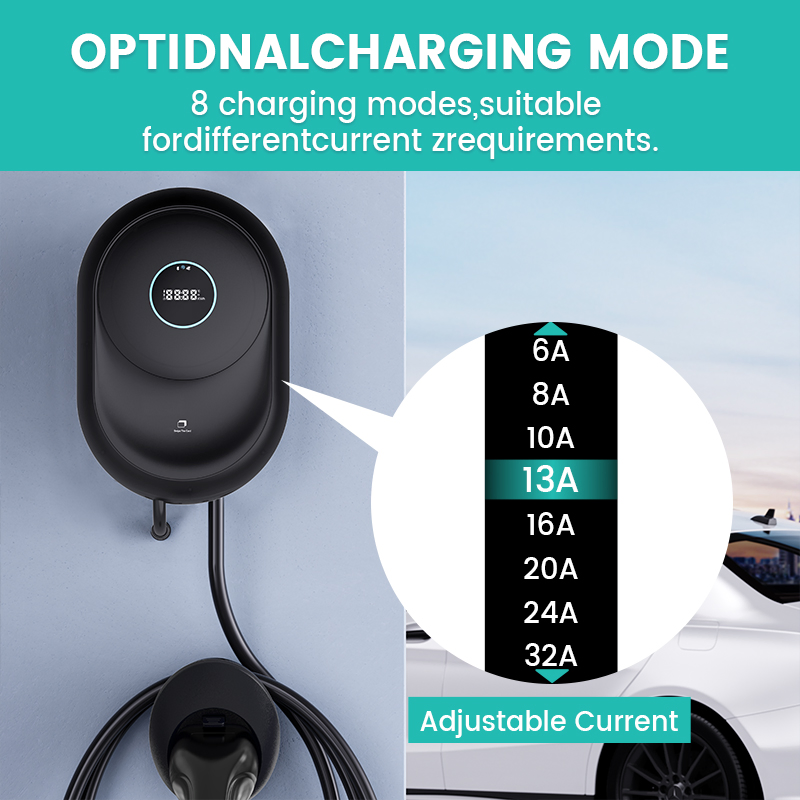

Adjustable Current:8-10-13-16-32A

Rated Voltage:110V/230V±10%

Protection Grade:IP65 / IK10

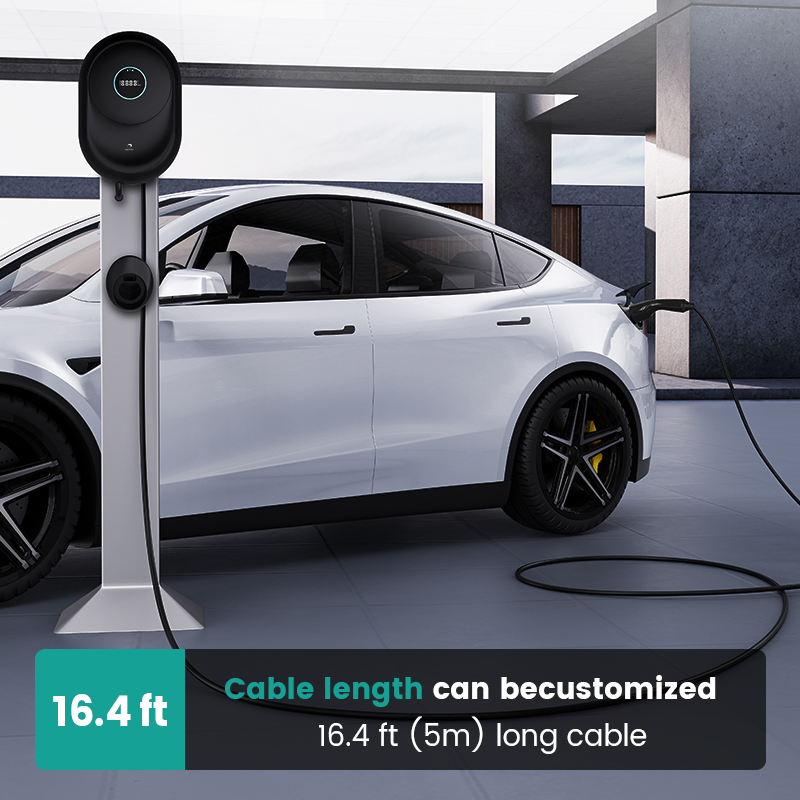

Cable Length:5 Meters / Custom

RCD Type:Type A + 6mA DC

Plug Type:Type 2 / Type 1 / GBT / NACS

Production Showcase

Product Features

✓

Wide Compatibility: Suitable for every electric car with Type 1, Type 2, GBT, or NACS charging plugs.

✓

Advanced Safety: Built-in RCD (30mA AC + 6mA DC detection) and surge protection.

✓

Durable Design: IP65 waterproof and IK10 impact resistance for outdoor use.

✓

Smart Control: Manage via RFID Card, Bluetooth, WiFi, or Ethernet with a free App.

✓

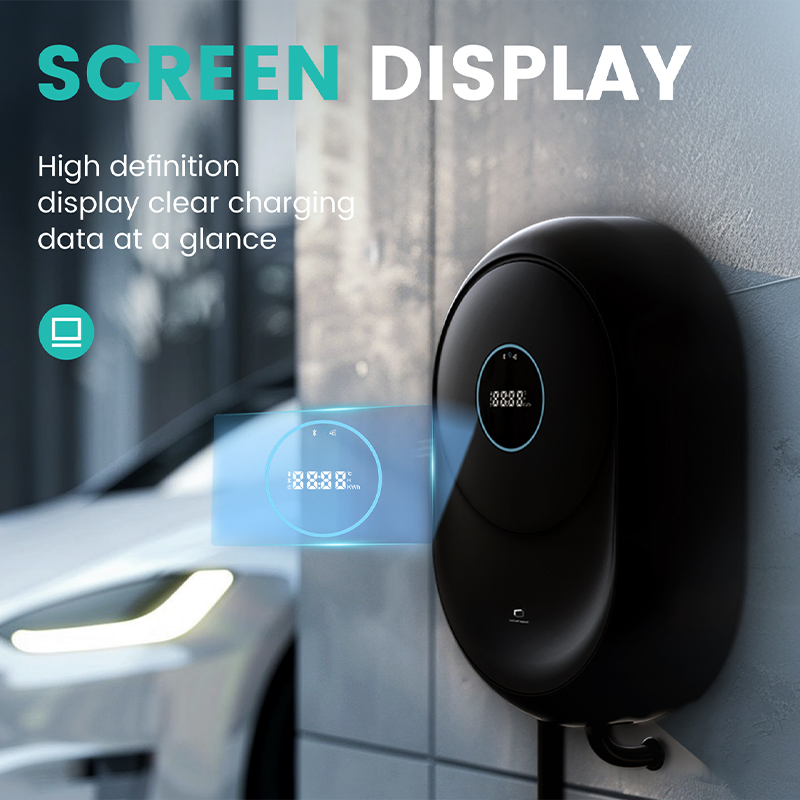

LED Display: Real-time monitoring of power consumption, voltage, current, and temperature.

✓

Dynamic Balancing: Built-in active load management to protect your home grid.

Smart Connectivity

App Control: Remote scheduling and status viewing via WiFi/Bluetooth.

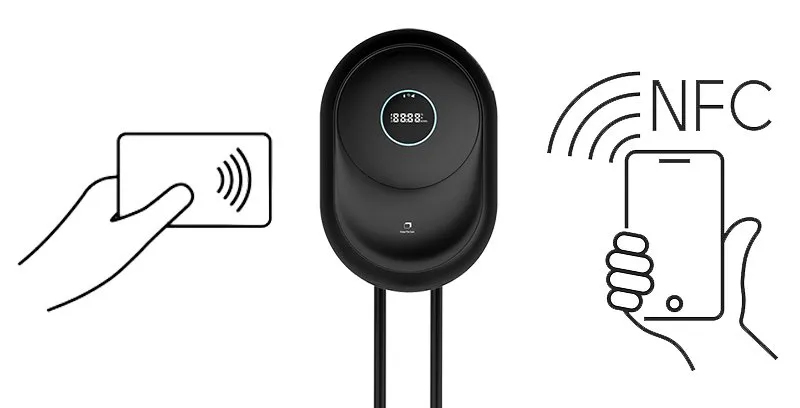

RFID & NFC: Simple swipe activation, ideal for basements without signal.

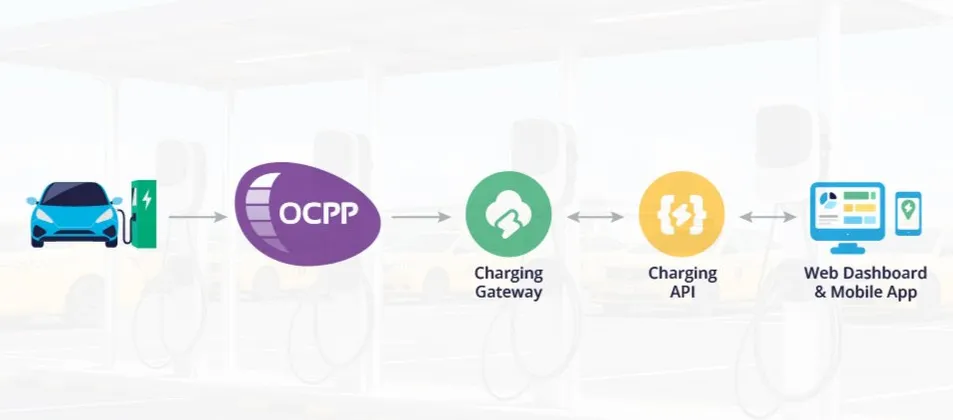

OCPP Protocol: Commercial support for remote monitoring and billing systems.

Technical Specifications

Electrical Specification
Rated Power (Type 2/GBT)	7kW / 11kW / 22kW
Rated Power (Type 1/NACS)	7.2kW / 9.6kW / 11kW
Input Frequency	47~63Hz
Interface Standard	IEC 62196-2, SAE J1772, GB/T 18487, NACS
RCD Protection	Type A 30mA AC + 6mA DC
Operating Temp	-20ºC ~ +50ºC
Cooling	Natural Air Cooling
Certificates	CE, FCC, ISO9001, CCC, IP65, IK10

Packaging & Services

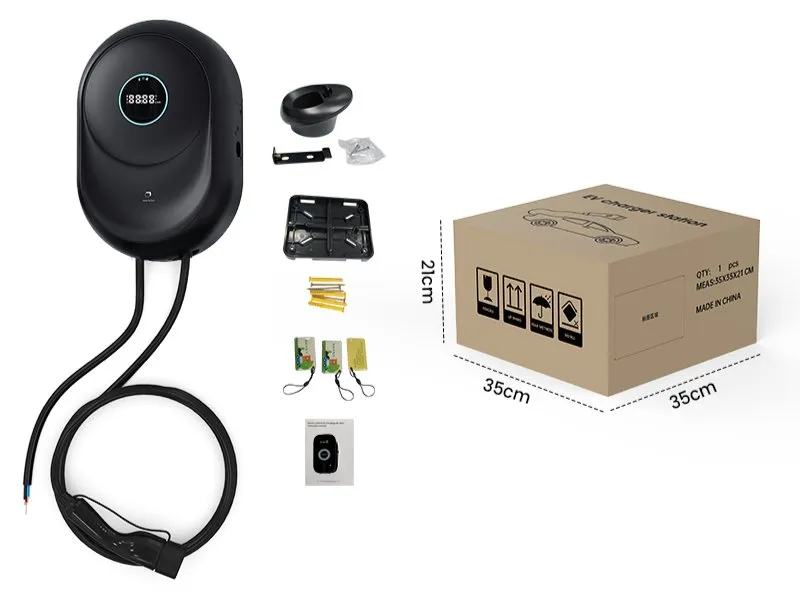

Standard Pack: Includes Charger, Wall Mount, RFID Cards, Manual, and Airplane Box.

Versatile Use: Perfect for Home Garages, Public Lots, Fleet Management, and Workplaces.

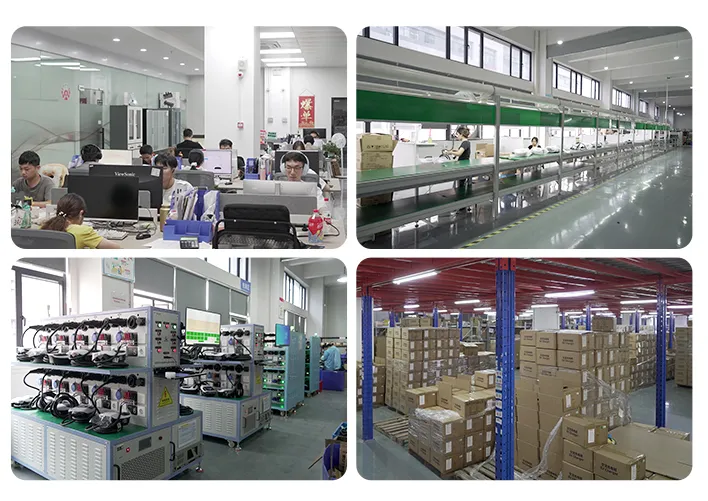

Professional Manufacturing

We are a high-tech enterprise specializing in the R&D, production, and sales of NEV charging equipment. With over 4,400 square meters of factory space and advanced production lines, we ensure top-tier quality control and efficiency.

Frequently Asked Questions

Q1: Which EV models are compatible with this charger?

The ZD06 is compatible with all electric vehicles using Type 1, Type 2, GB/T, or NACS (Tesla) standards.

Q2: Can I install this charger outdoors?

Yes, it features an IP65 waterproof rating and IK10 impact resistance, making it suitable for both indoor and outdoor environments.

Q3: How does the smart app control work?

You can connect via WiFi or Bluetooth to the "Smart Life" app to schedule charging times, adjust current, and monitor energy consumption in real-time.

Q4: What safety protections are built-in?

The charger includes RCD Type A + 6mA DC protection, surge protection, over-temperature management, and short-circuit protection.

Q5: Can I customize the cable length or logo?

Yes, we provide OEM/ODM services where you can customize the logo, packaging, cable material, and length based on your requirements.

Q6: What is the standard warranty period?

We provide a standard 24-month warranty against manufacturing defects and offer professional technical support.
