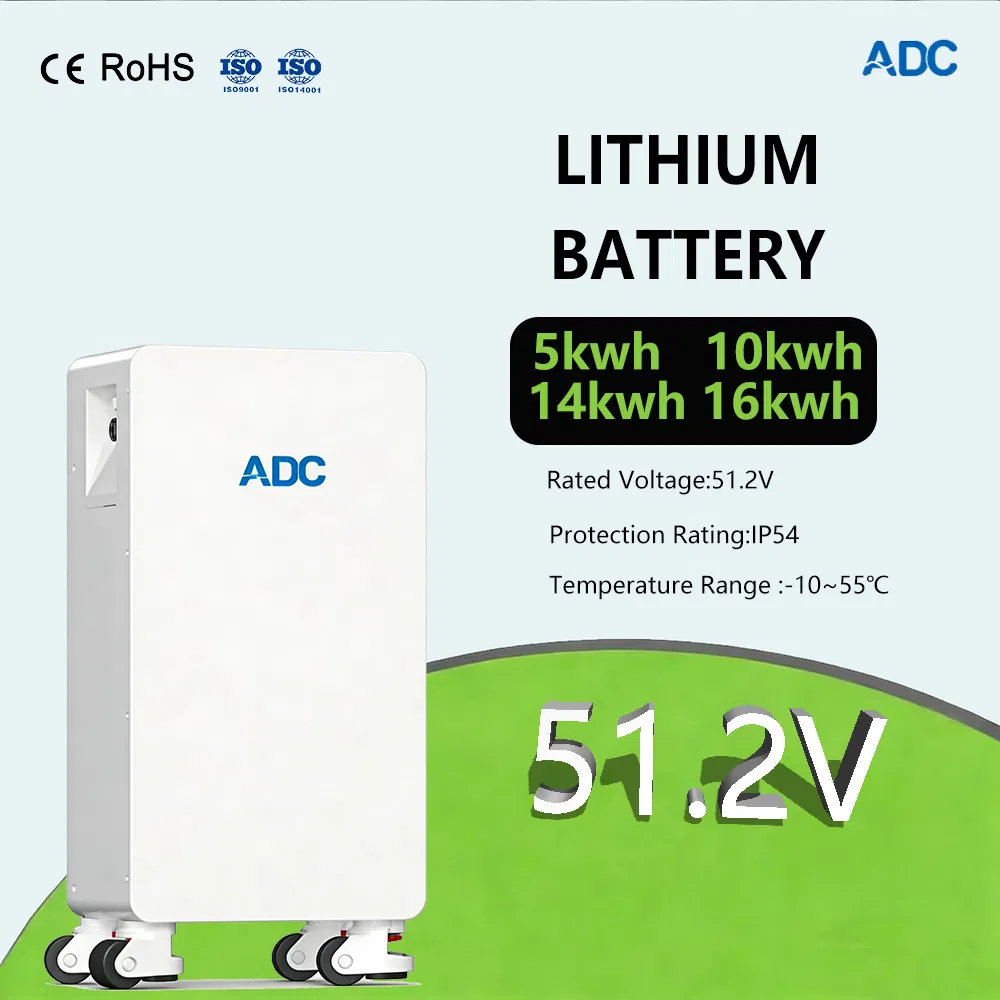

| Model NO. | ADC-BESS |
|---|---|
| Nominal Capacity | 5kwh / 10.2kwh / 14.3kwh / 16kwh |
| Cycle Life | ≥6000 cycles |
| Battery Type | Lithium-Ion Battery (LiFePO4) |
| Voltage | 51.2V |
| Temperature Range | -10~55℃ |
| Transport Package | Carton |
| Specification | 780×415×255 mm |
Compatible with various inverter brands: Victron, Goodwe, Pylon, Growatt, Solis, Lux, Solax, Sofar, Sacolar.
Supports up to 64 units in parallel (total 48V 6400Ah), meeting all residential and commercial demands.
Features 99% operating efficiency compared to 80% for AGM batteries. Effectively adds 20% solar power value.
A+++ grade cells with 6000+ cycles at 80% DOD, ensuring over 15 years of reliable daily use.
All cells are bolted with heavy plates and ABS holders for extremely reliable internal connections.
RS485 and CAN communication on the front panel with RJ45 port, simple plug and play setup.
| Feature | ADC-5KWH-LV | ADC-10.2KWH-LV | ADC-14.3KWH-LV | ADC-16KWH-LV |
|---|---|---|---|---|
| Capacity (Wh) | 5,120 | 10,240 | 14,336 | 16,076 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) | |||
| Rated Voltage (V) | 51.2 | 51.2 | 51.2 | 51.2 |
| Operating Voltage (V) | 46.4 ~ 57.6 | |||
| Max Discharge Current | 100A | 120A | 200A | 200A |
| Weight (kg) | 44 | 92 | 119 | 121 |

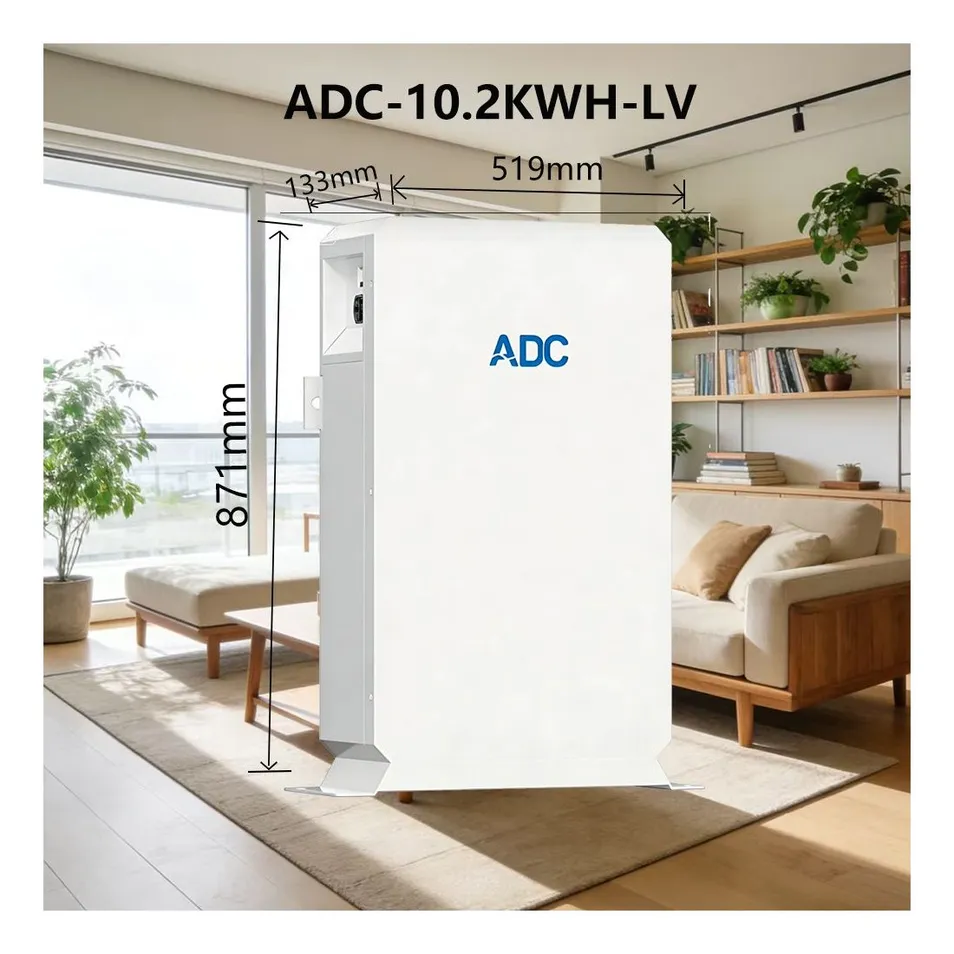

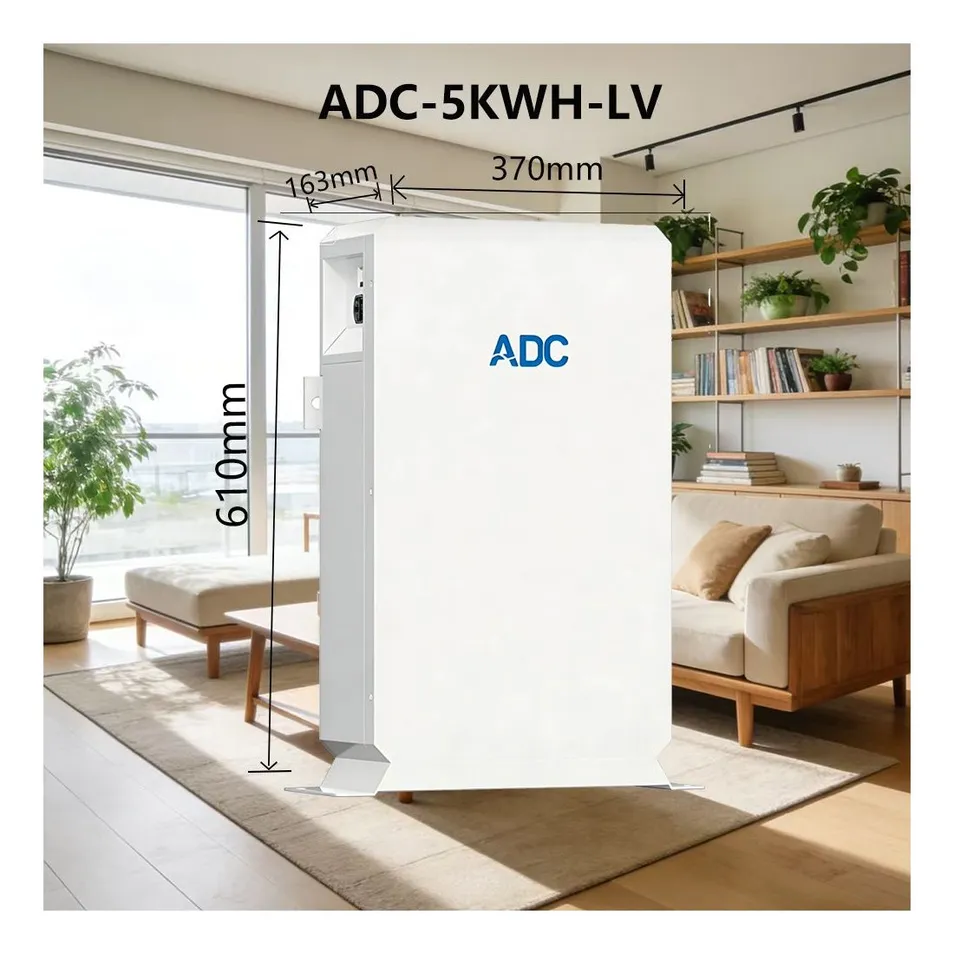

| Dimensions (mm) | 610*370*163 | 871*519*133 | 780*415*255 | 780*415*255 |
| Protection | IP54 | |||
| Cycle Life | ≥6000 cycles (80% DoD, 25°C) | |||
Capacity: 5,120 Wh
Voltage: 51.2V
Cycle Life: ≥6000 cycles
Protection: IP54
Capacity: 10,240 Wh
Voltage: 51.2V
Temperature: -10~55℃
Protection: IP54

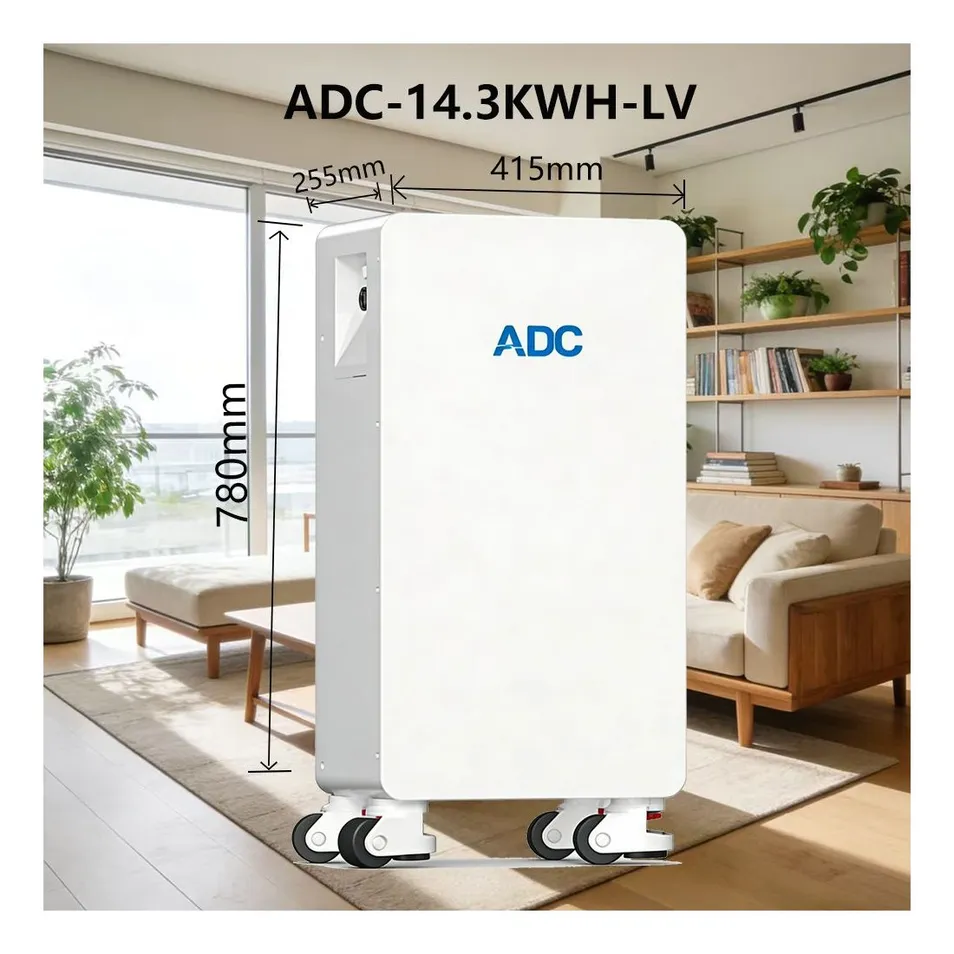

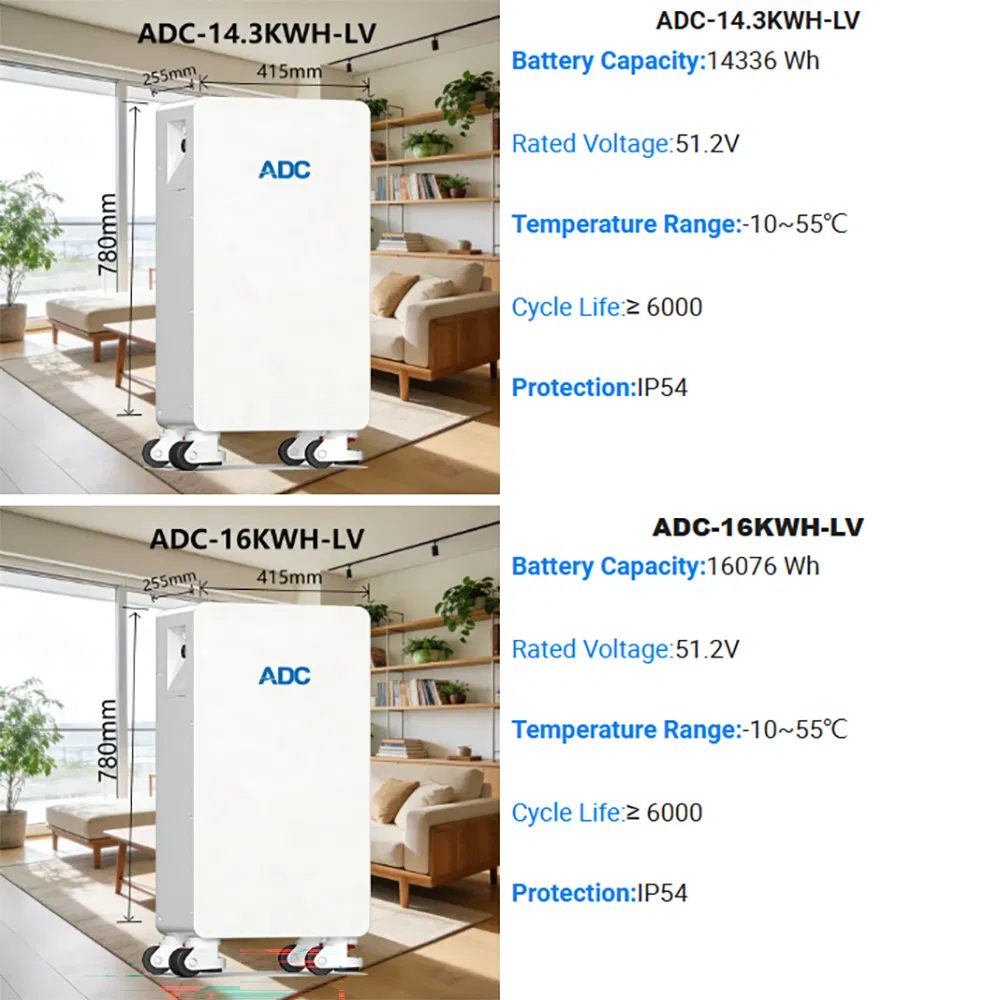

Capacity: 14,336 Wh
Rated Voltage: 51.2V
Cycle Life: ≥6000
Protection: IP54
With over 20 years in power technology, we specialize in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments.

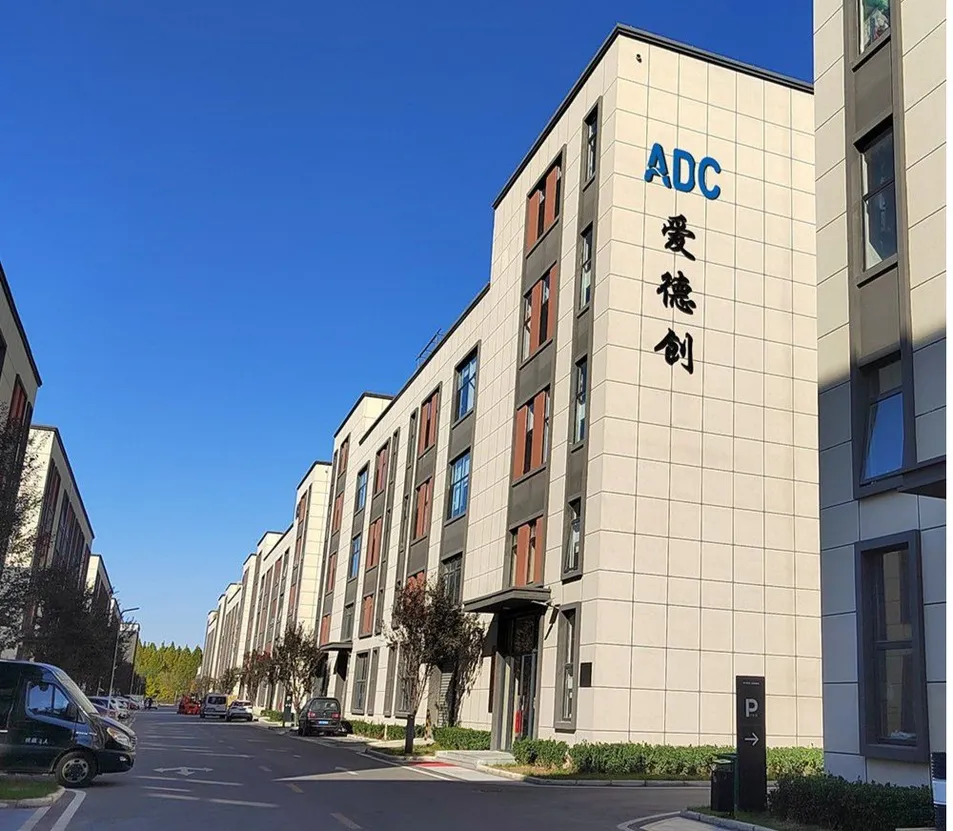

Our solutions cover industrial chargers, EV DC fast chargers, power equipment analyzing, and full energy storage systems. We have over 70 R&D engineers and 40,000 m² of production space, certified by ISO 9001 and ISO 14001 to ensure the highest quality and customized requirements.
