| Model NO. | ZCF DC |
| Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges |
| Start Mode | Mobile Remote Operation, RFID Authentic |
| Total Power | 60-400kw |
| Certification | CE, ISO9001, ISO14001, ISO45001 |
| Communication | 4G, Bluetooth, WiFi |
| Warranty | 24 Months |
| IP Class | IP 54 |
| AC Input Voltage | 380V(-25%, +25%) AC |
| Output Voltage Range | 50-1000V DC |
| Power Factor | ≥0.99 |
| Appearance Size | 706(W) X 496(D) X 1696(H) mm |

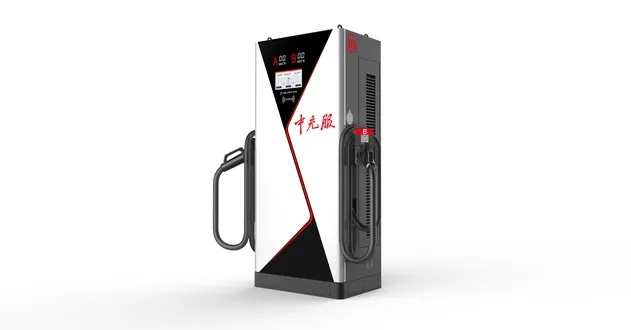

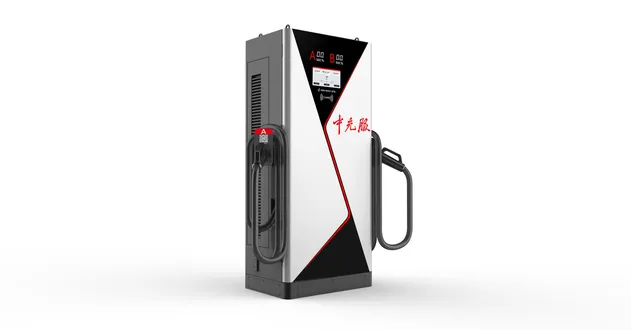

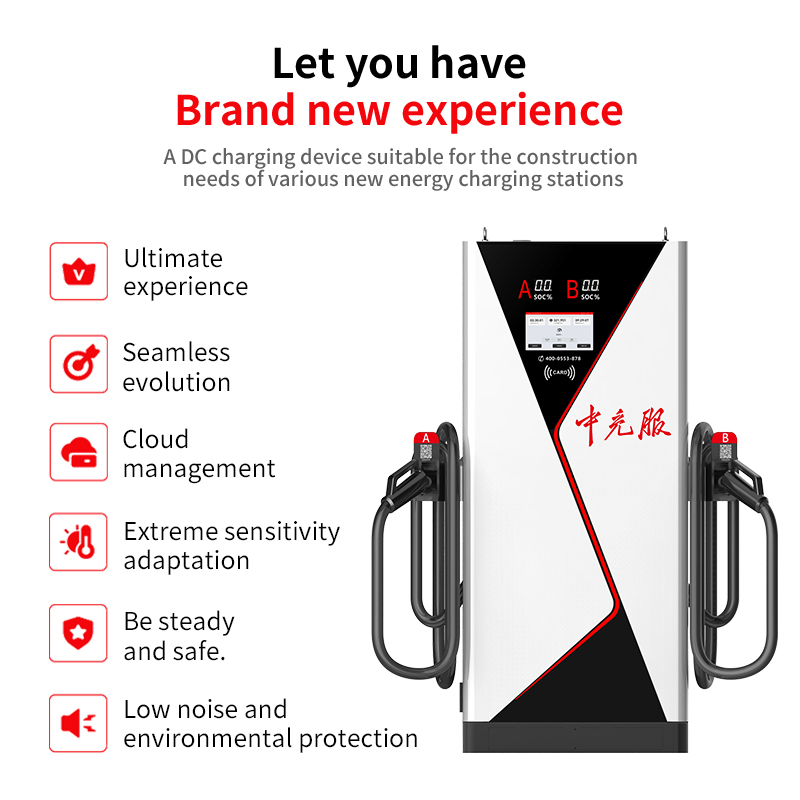

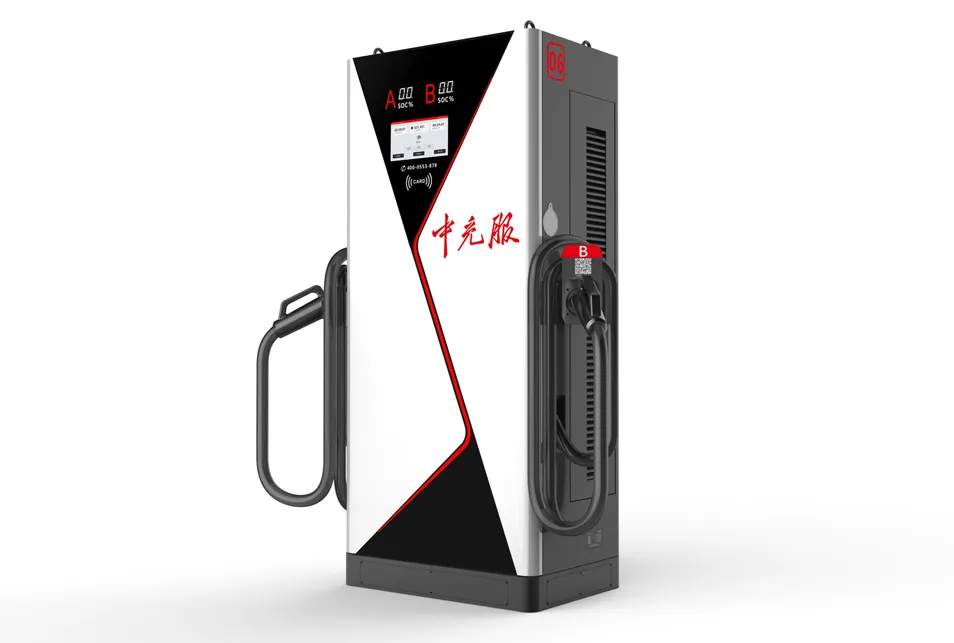

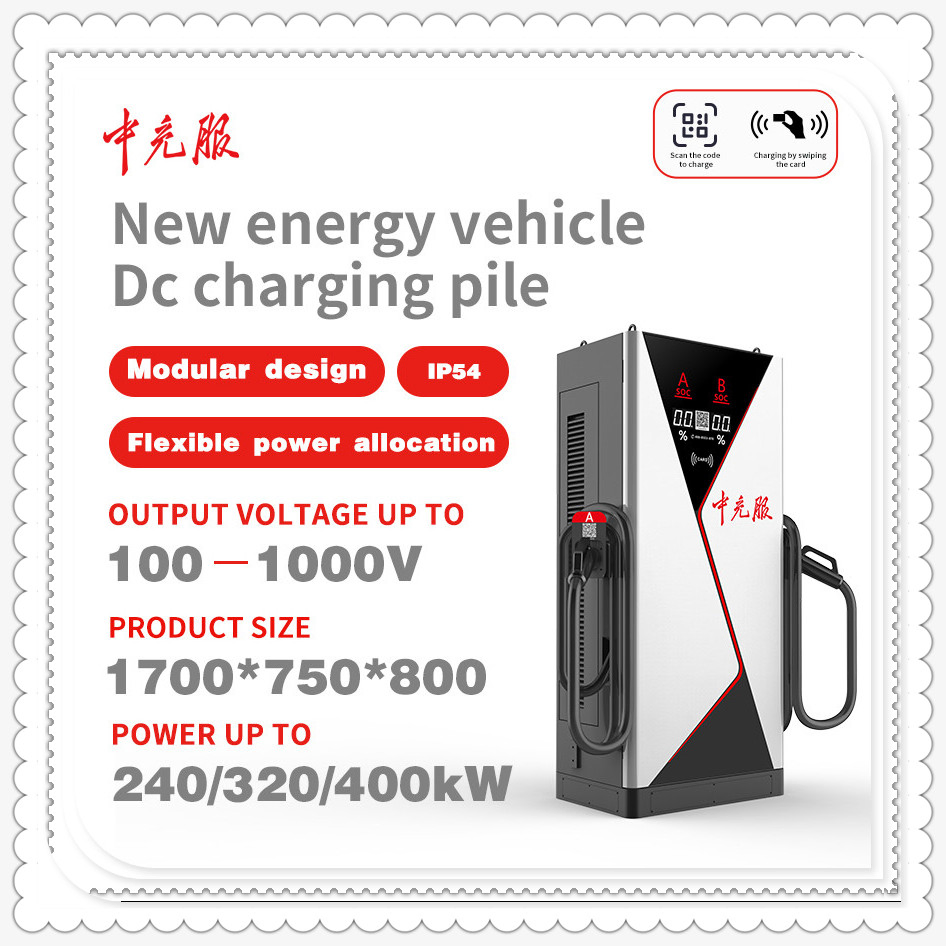

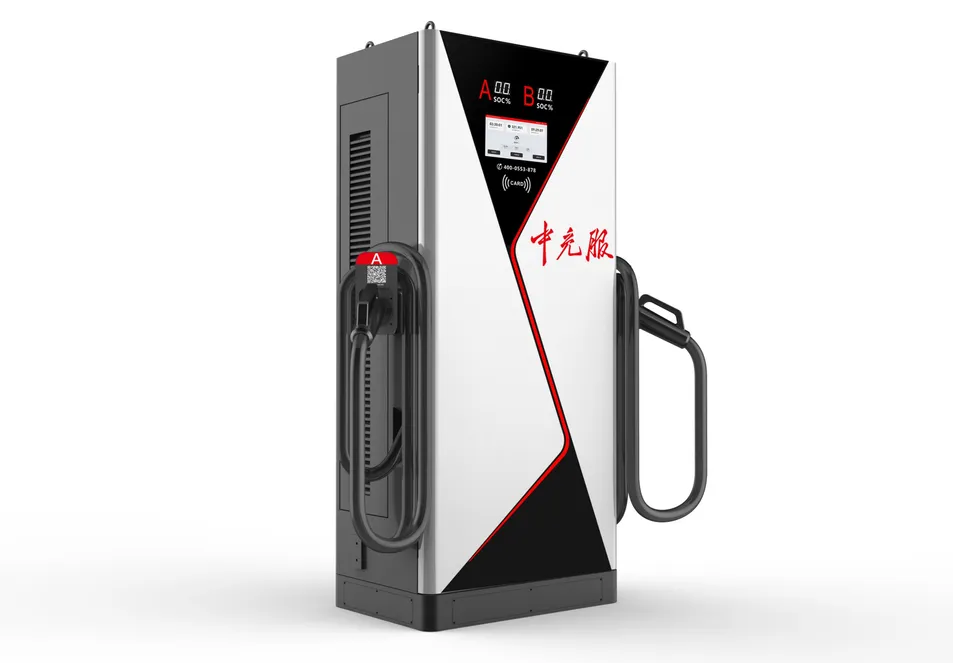

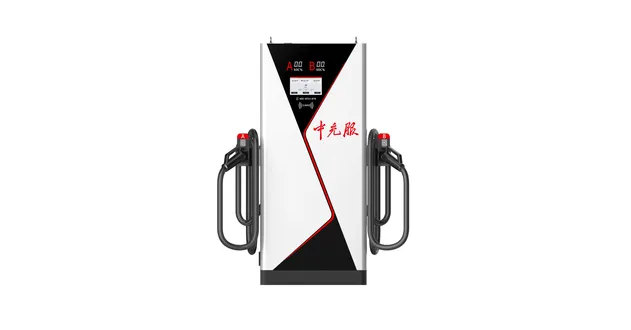

DC charging piles are high-power charging devices that convert alternating current (AC) from the grid into direct current (DC) to directly charge electric vehicle (EV) batteries, bypassing the vehicle's onboard charger. This enables ultra-fast charging, significantly reducing charging time (e.g., replenishing 80% battery in 20–30 minutes for compatible EVs).
Key features include wide voltage/current adjustability (200V–1000V), intelligent safety protections (real-time battery monitoring, overcharge prevention, and thermal safeguards), and high compatibility (supporting 99.5% of EVs on the market). Advanced units integrate AI-driven battery health management to optimize charging efficiency up to 96% and extend battery lifespan.
| Implementation Standards | GBT/CCS2 |
| Voltage Regulation Accuracy | ≤0.5% |
| Current Regulation Accuracy | ≤1% |
| Output Voltage Error | ≤±0.5% |
| Output Current Error | ≥30A,≤±1%; <30A,≤±0.3A |
| AC Input Frequency | 50Hz±10% |
| Protection Functions | Input overloading, short circuit, overvoltage, undervoltage, output current limiting, insulation detection, internal overtemperature, lightning protection. |

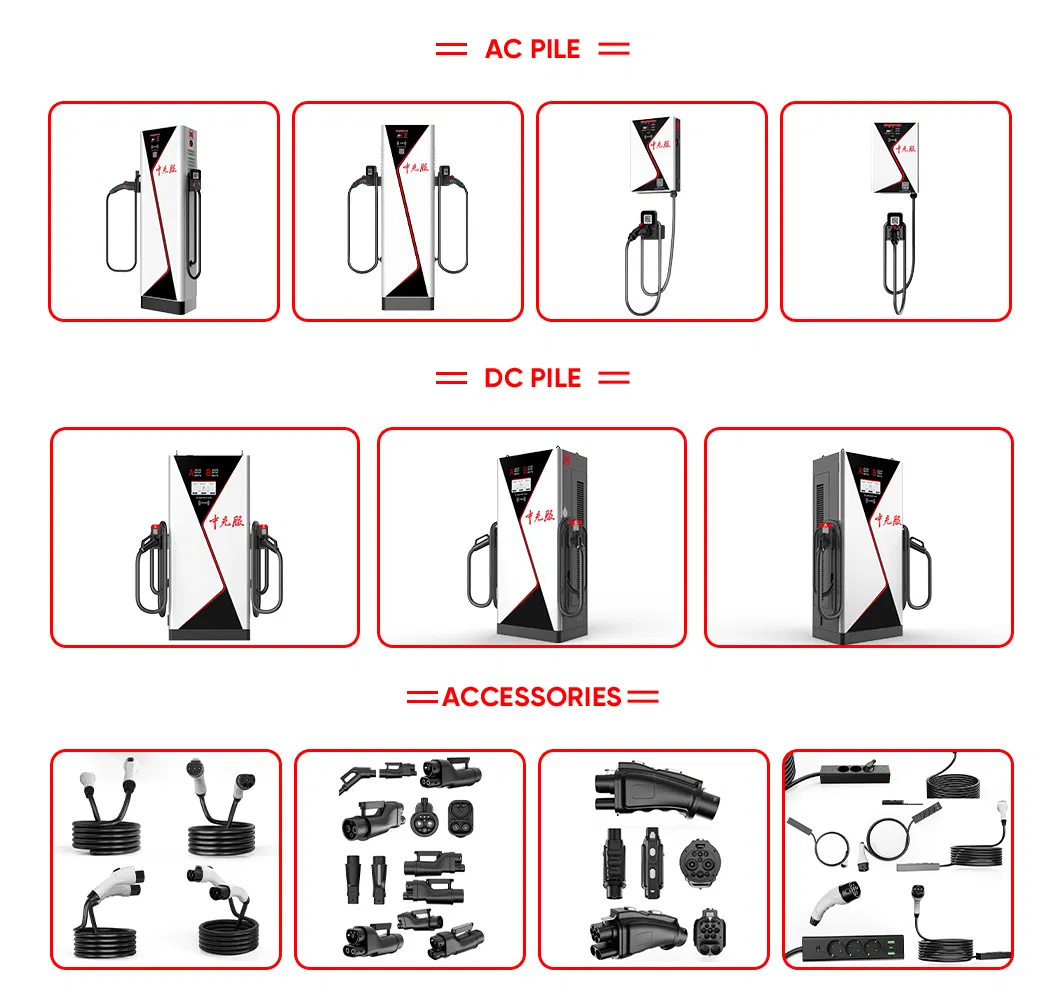

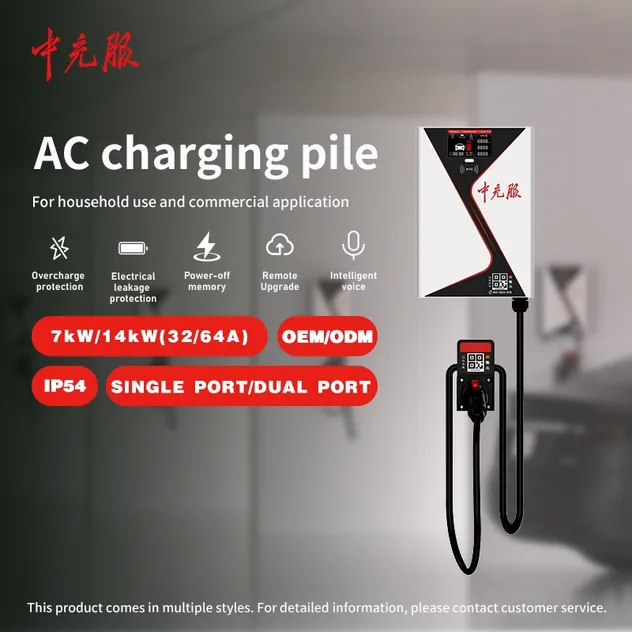

AC Charging Pile
DC Charging Pile

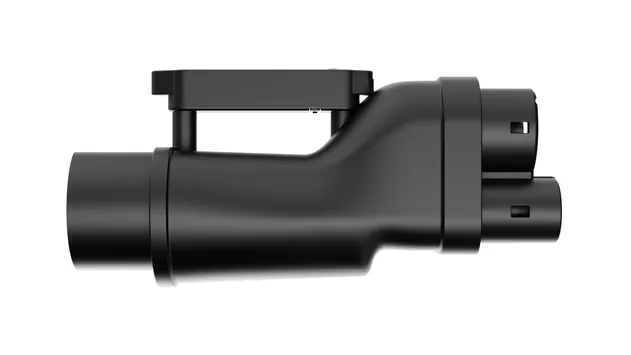

DC Charging Adapter

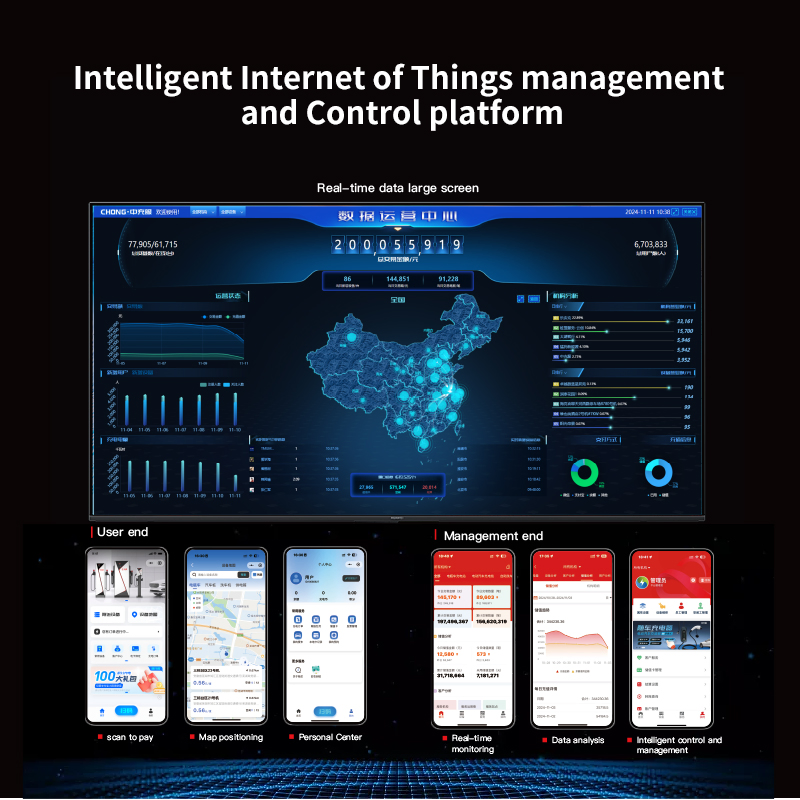

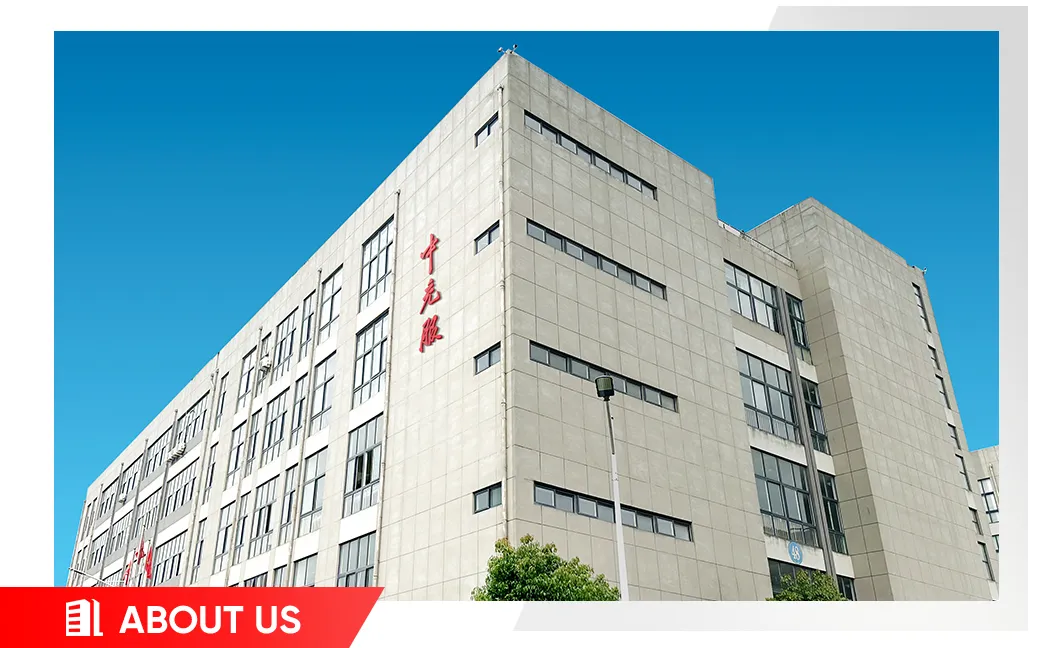

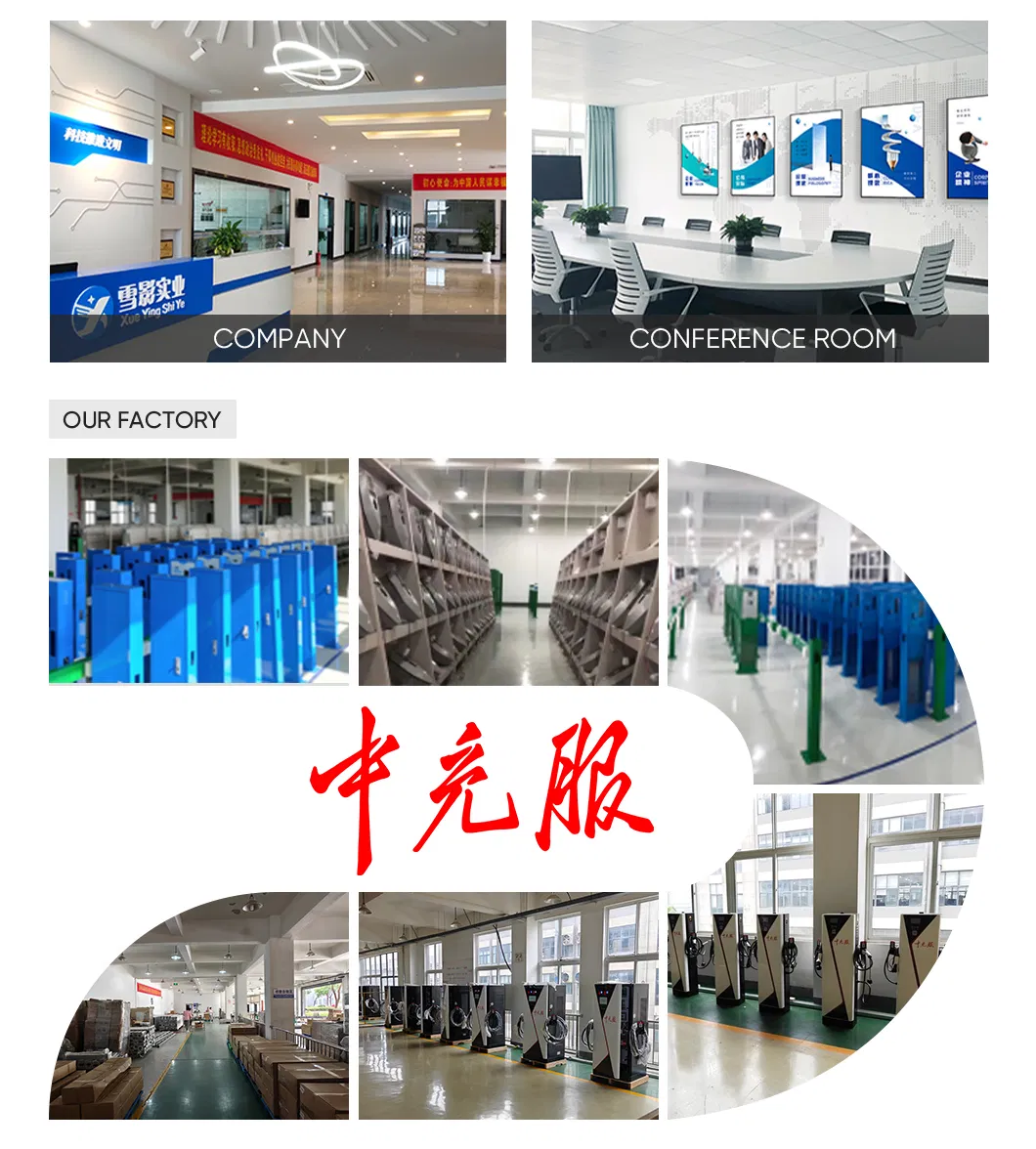

Established as a comprehensive charging service solution provider, we focus on IoT application services and smart charging technology R&D. We integrate R&D of IoT platforms, smart self-service equipment production, and global sales. Our platform enables seamless connectivity, supporting unmanned device management, remote control, and real-time monitoring.
