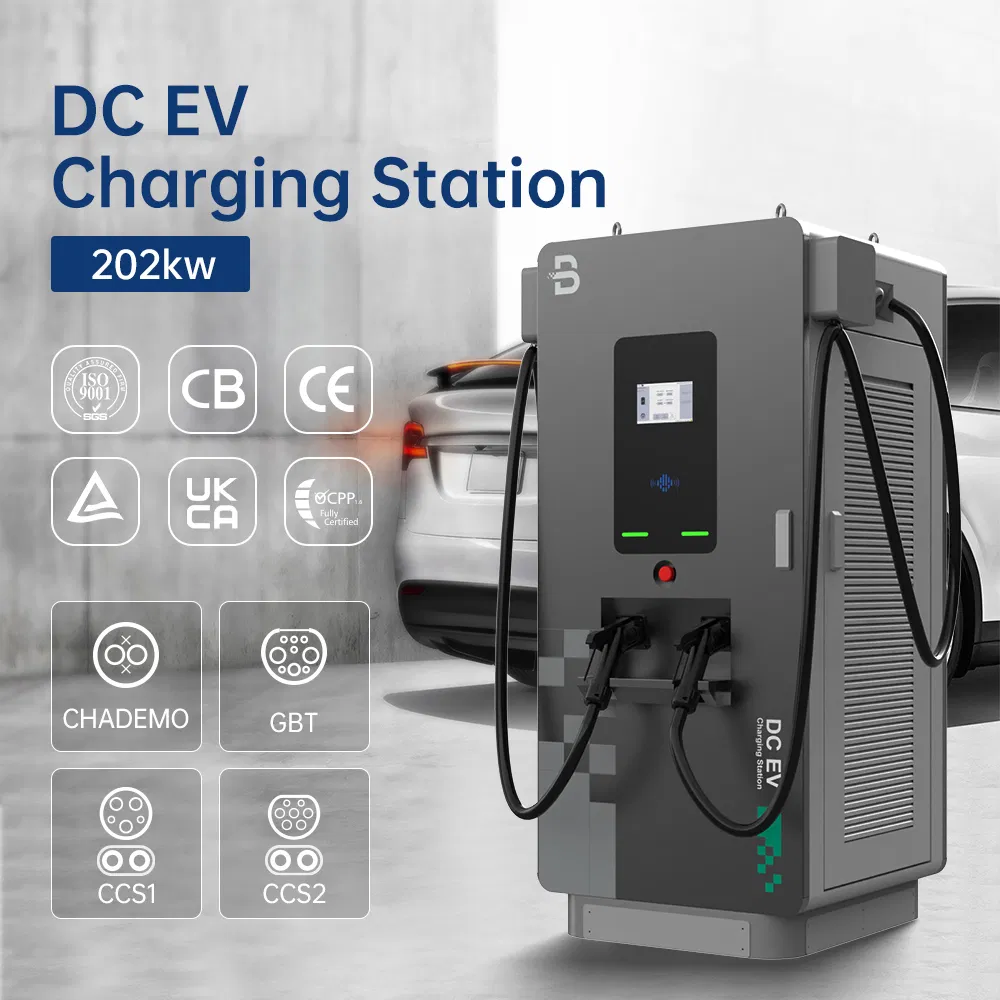

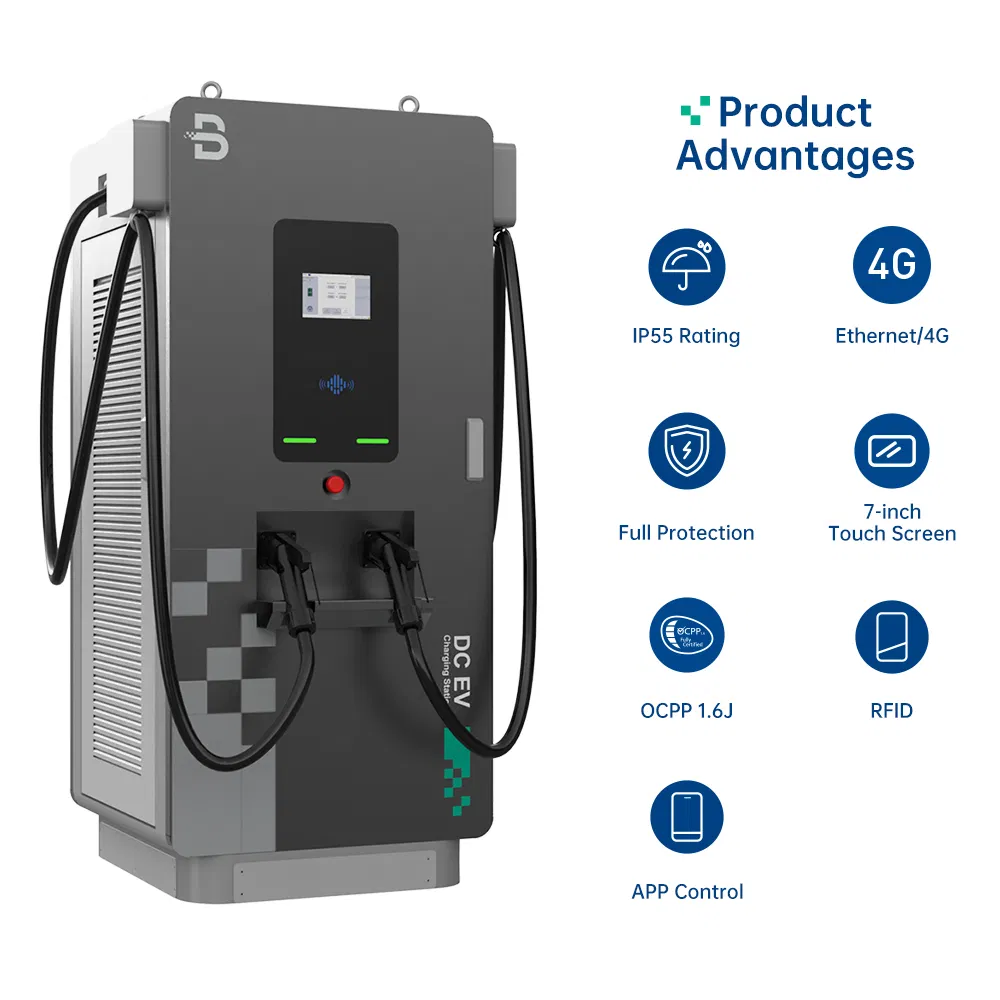

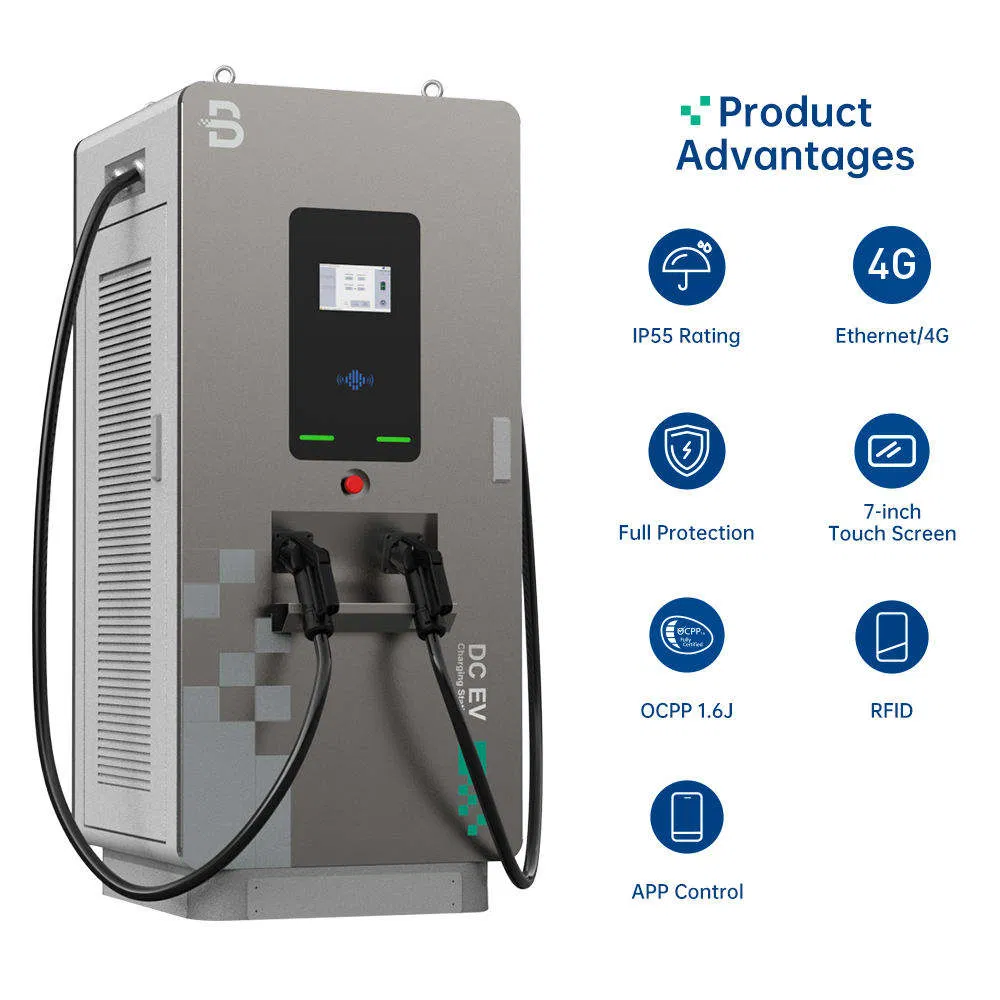

Amp Link Charger
1 / 5
| Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges |
| Start Mode | Mobile Remote Operation, RFID Authentication |

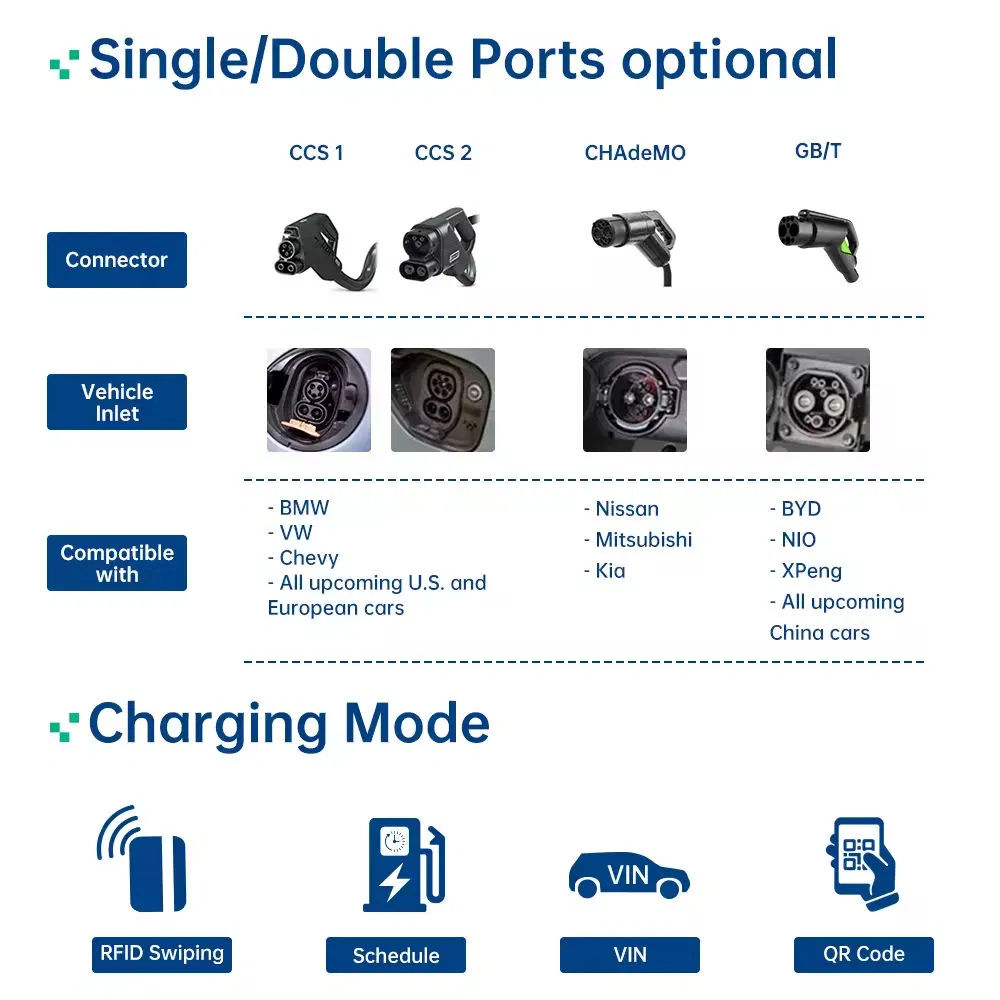

| Interface Standard | CCS1, CCS2, GB/T, Chademo |
| Output Power | 52kw 82kw 112kw 142kw 172kw 202kw 262kw |
| Output Current | CCS1/CCS2/Gbt: 0~250A; Chademo: 0~125A |
| AC Input Voltage | AC400V, 3p+N+Peac |
| Output Voltage Range | CCS1/CCS2/Gbt 150VDC-1000VDC; Chademo 150VDC-500VDC |
| Mounting | Floor-Stand |
| Network Connection | 4G/Ethernet |
| Certificate | CE, CB, Ukca, TUV, Rcm |
| OCPP | Ocpp1.6j |

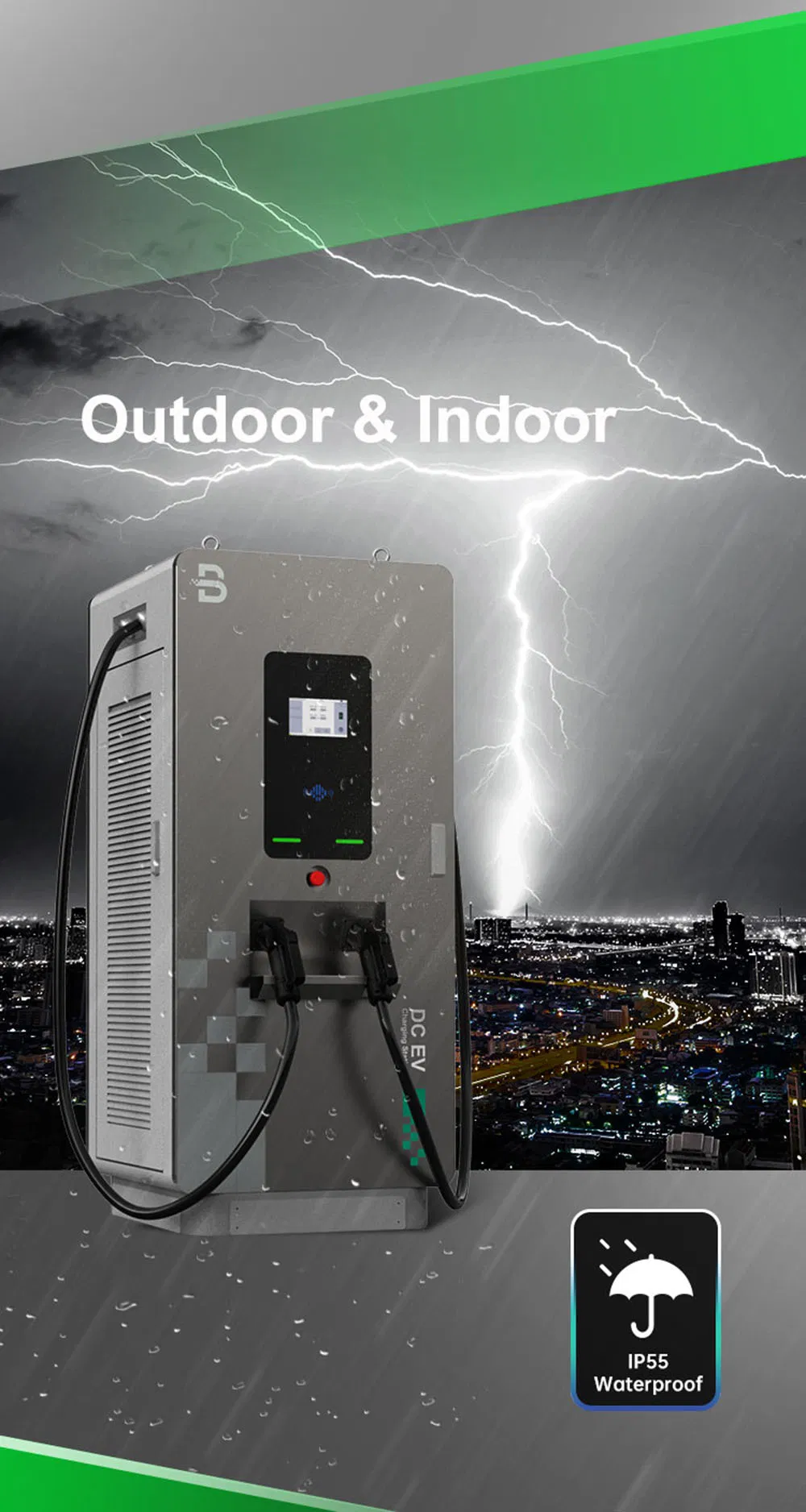

| Waterproof/Dustproof | IP55, Ik10 |
| Warranty | 2 Years |

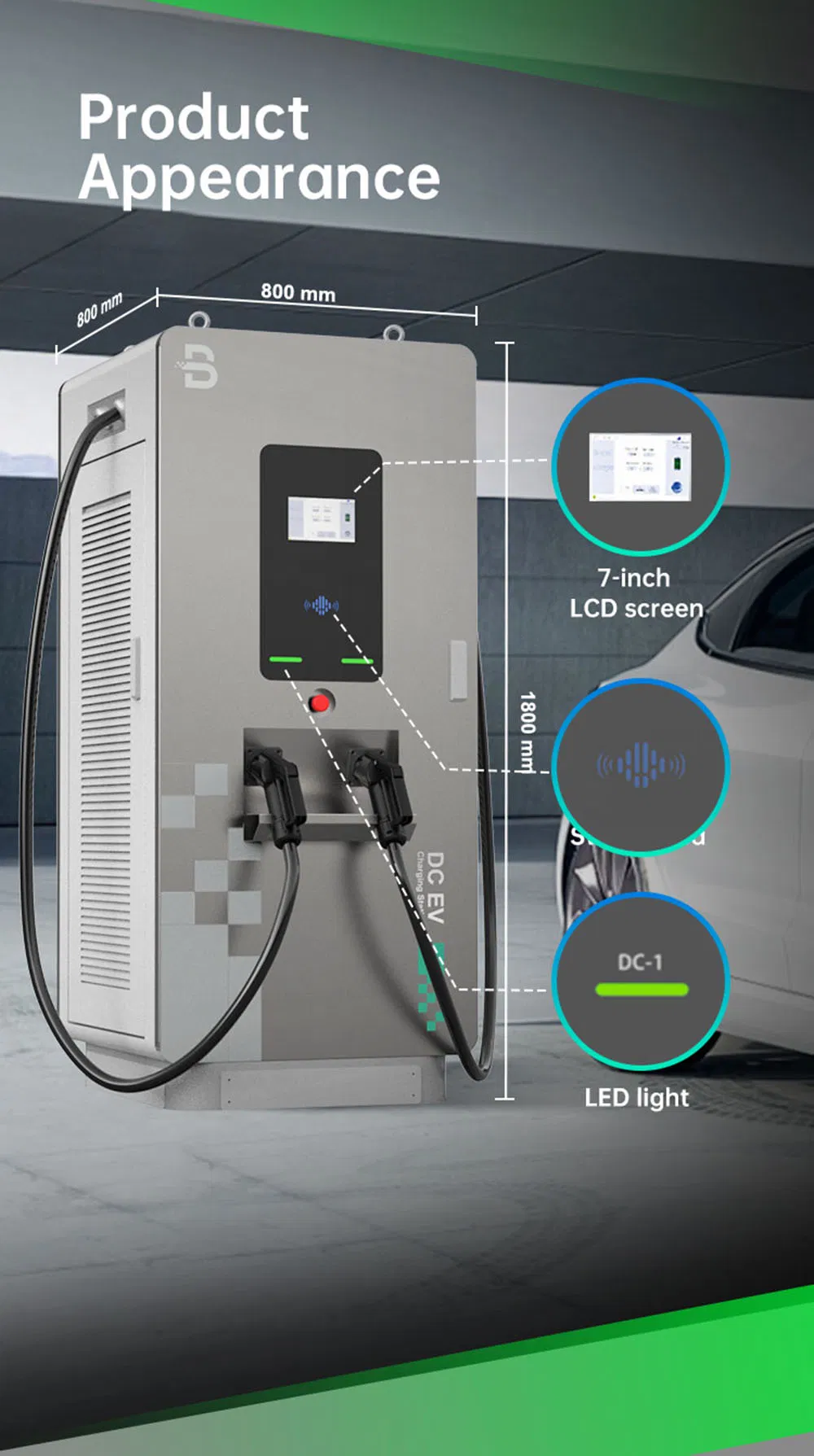

| Specification | 800X800X1800 (L*W*T) |
| Production Capacity | 500,000/Year |
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System

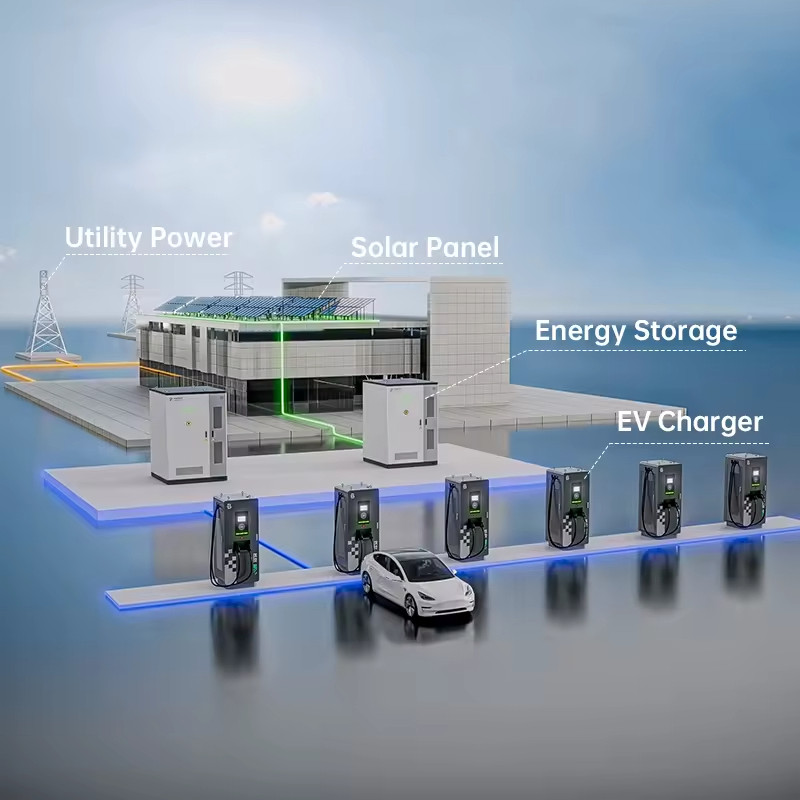

We are a leading brand in producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging systems. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS, we provide creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV chargers.

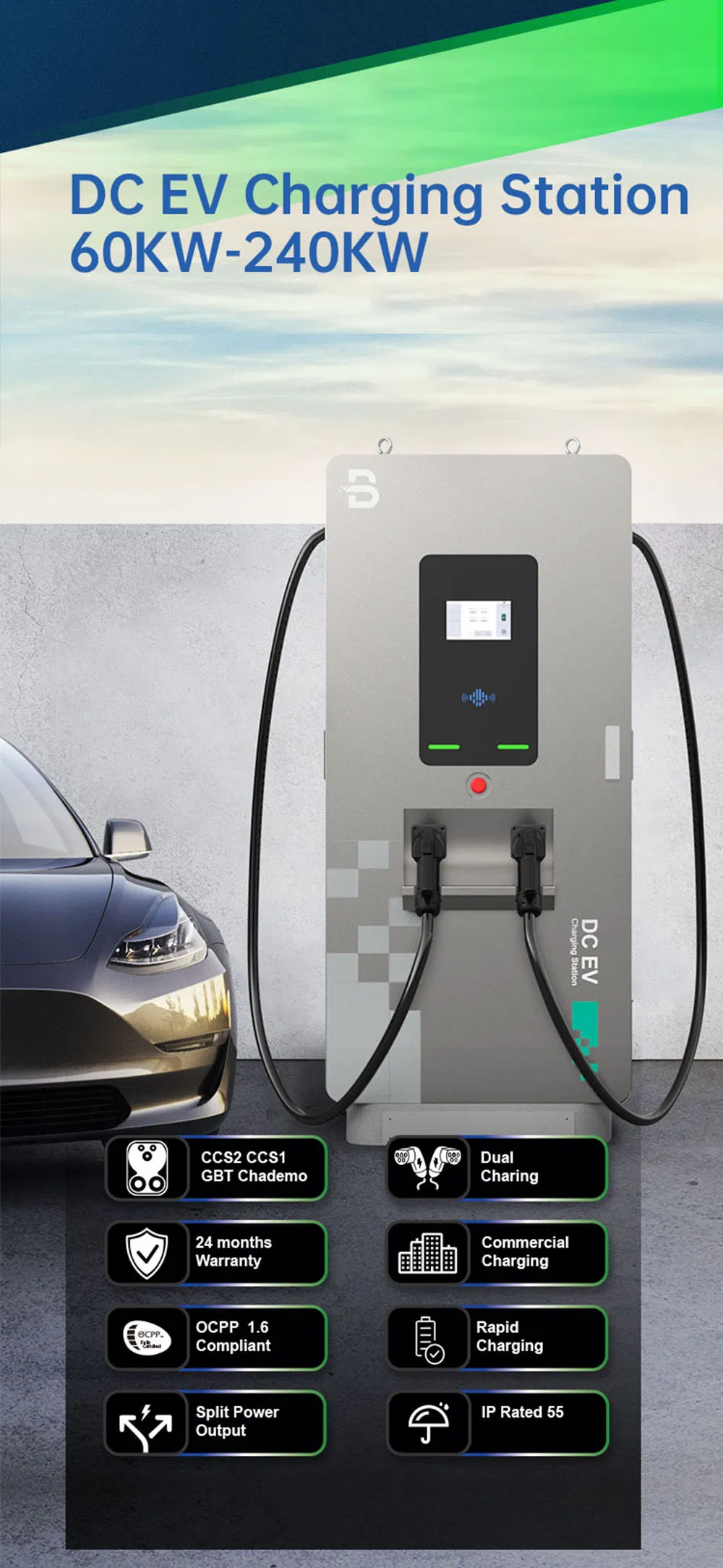

| Rated Power | 60kW / 90kW / 120kW / 150kW / 180kW / 240kW |
| Shell Material | Sheet Metal |
| Weight | ≤500kG |

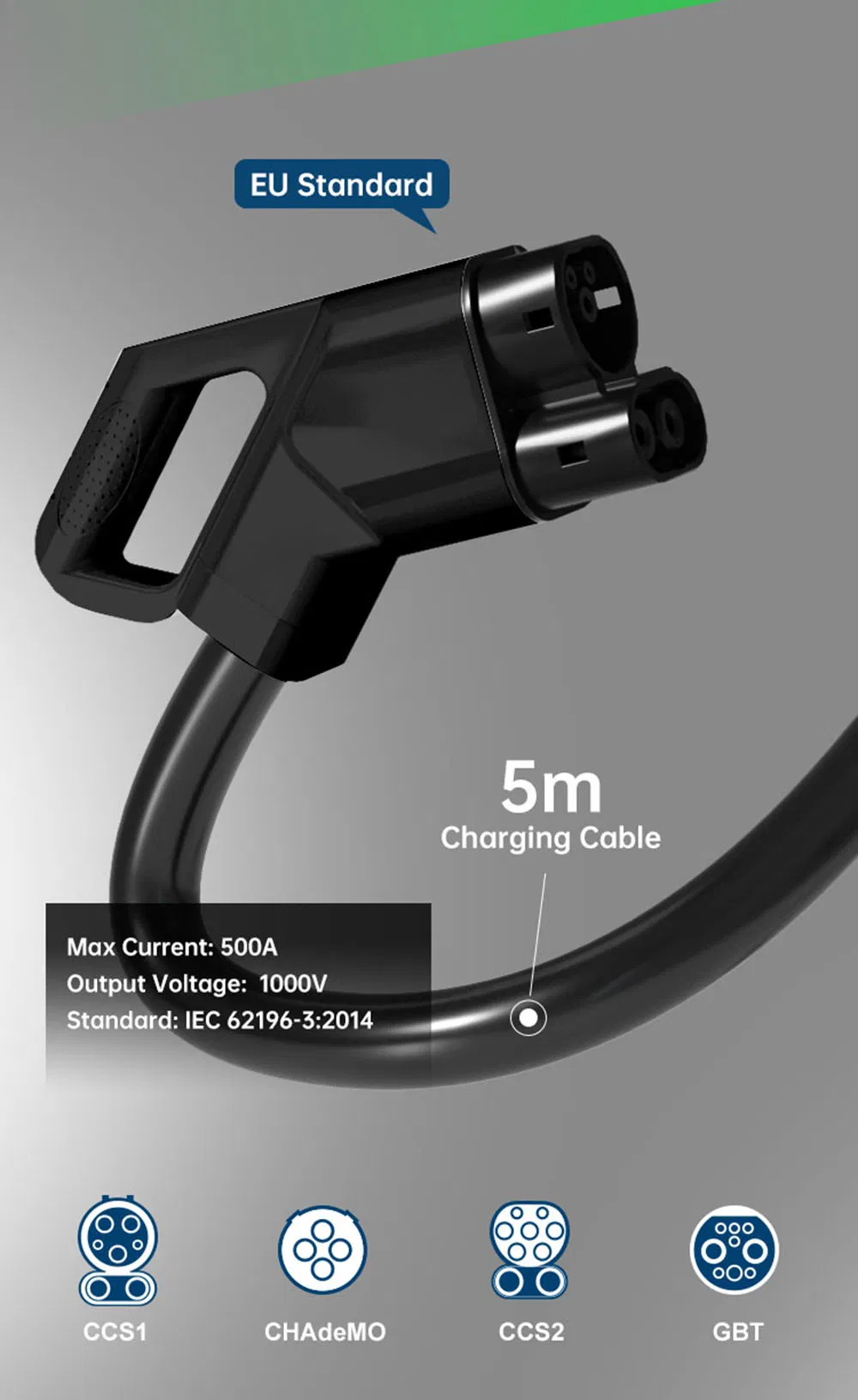

| Cable Length | 5 Meters |
| Charging Outlets | Double Guns (Flexible configurations: CCS1, CCS2, GBT, CHADEMO) |
| Efficiency | ≥95% |
| Power Factor | ≥0.99 (at 100% load) |
| Working Temperature | -30ºC to +55ºC |
| Security Design | Over/Under Voltage, Overload, Leakage, Grounding, Over Temp, Lightning Surge Protection |

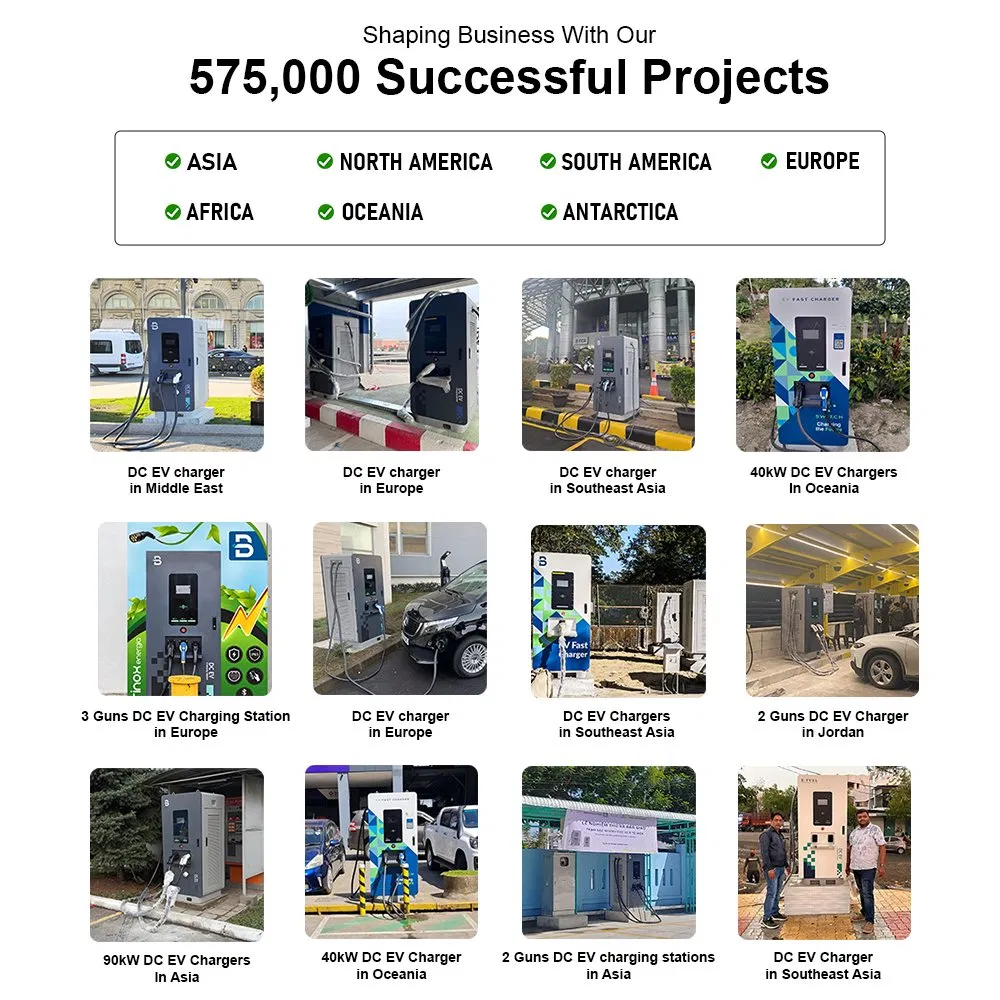

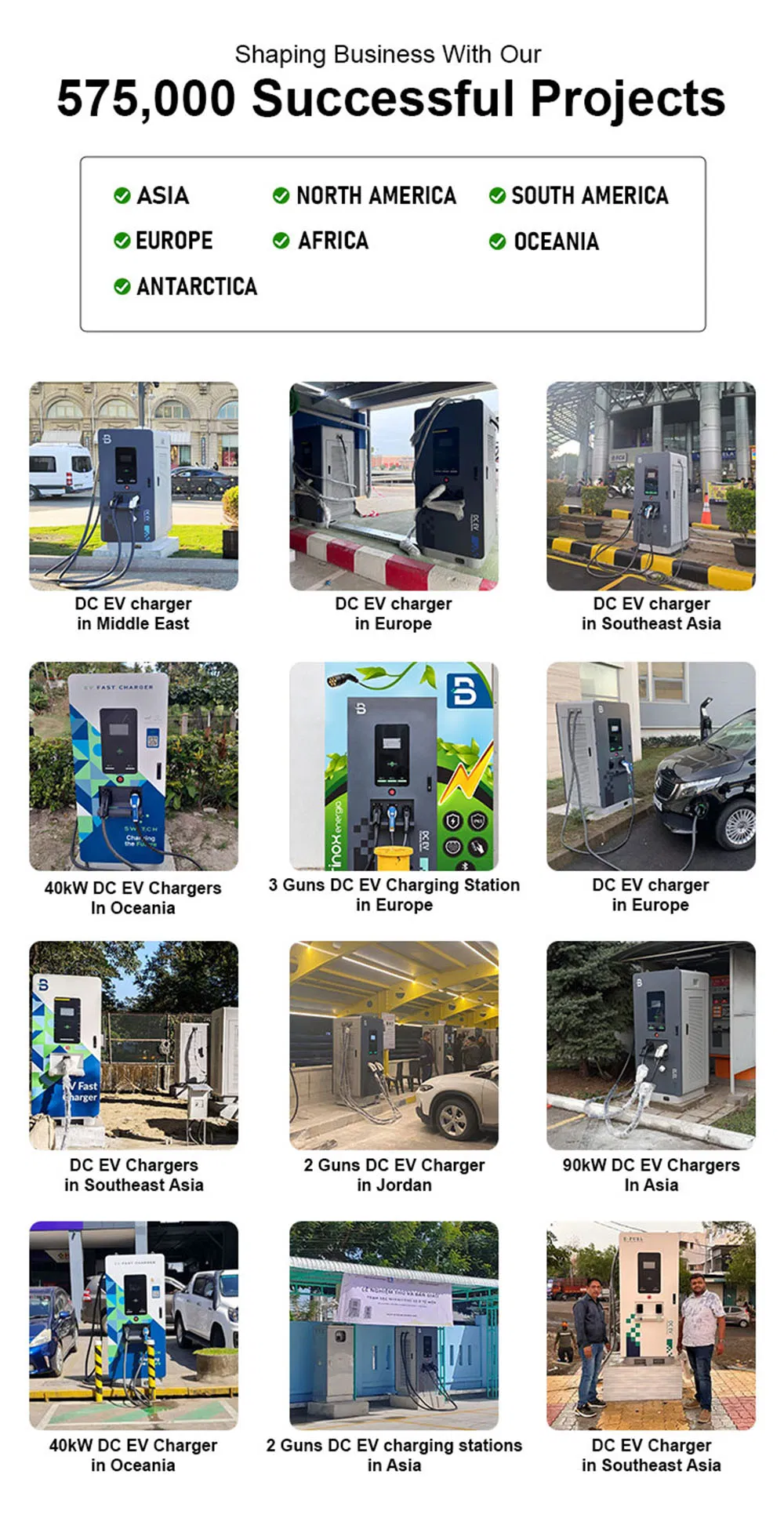

Across the globe, robust business relationships have been forged in the realm of EV charging station construction, offering comprehensive, cost-effective, instant charging solutions for vehicles. These worldwide projects showcase how innovative global EV charging station solutions have been applied to diverse environments.
Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65/IP55 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output ranges from 16amps to 32amps for AC, and up to 600kW for DC fast charging.
