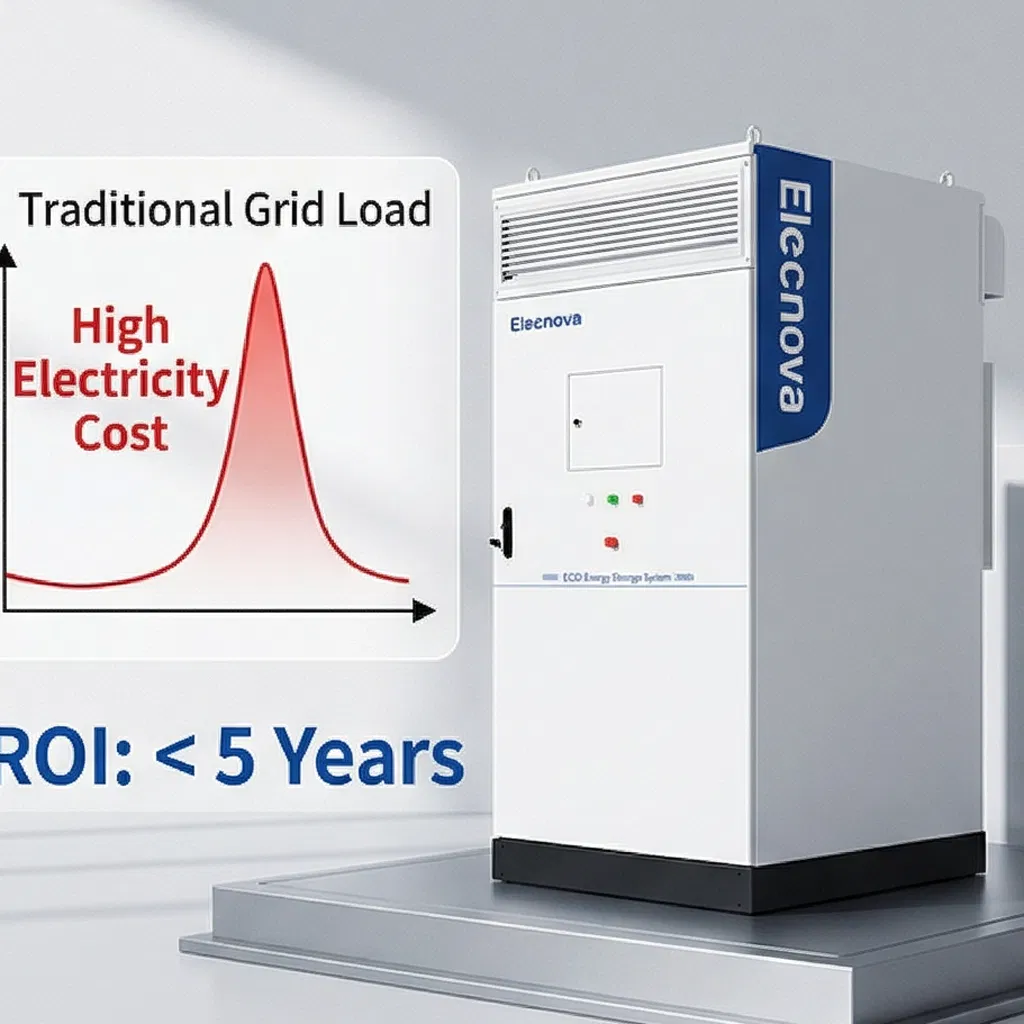

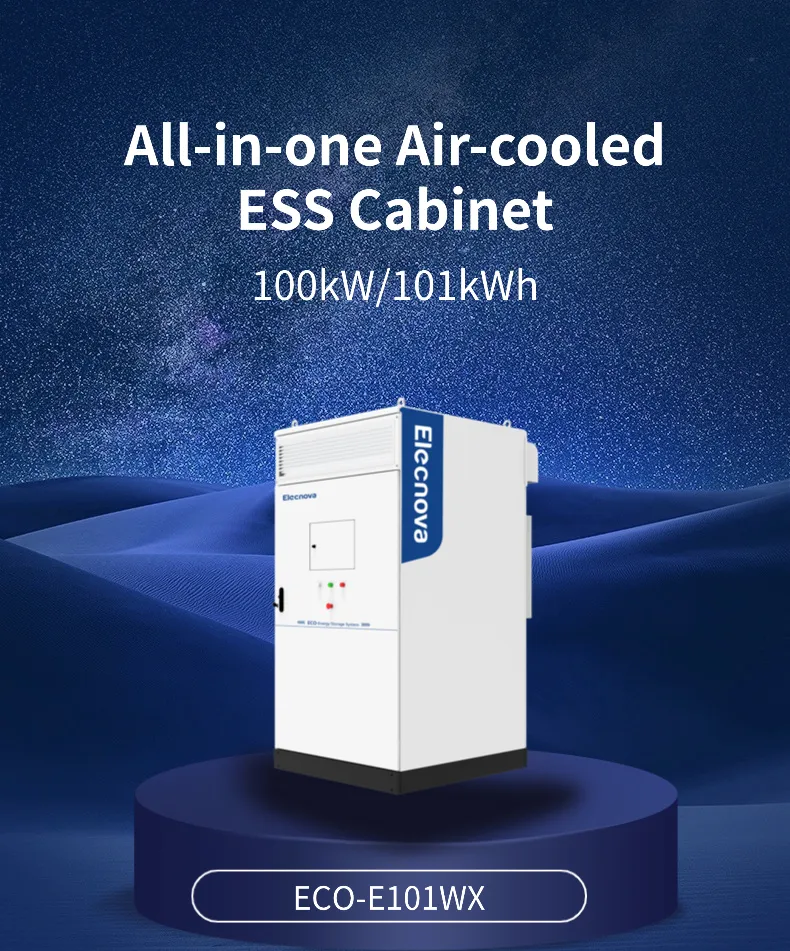

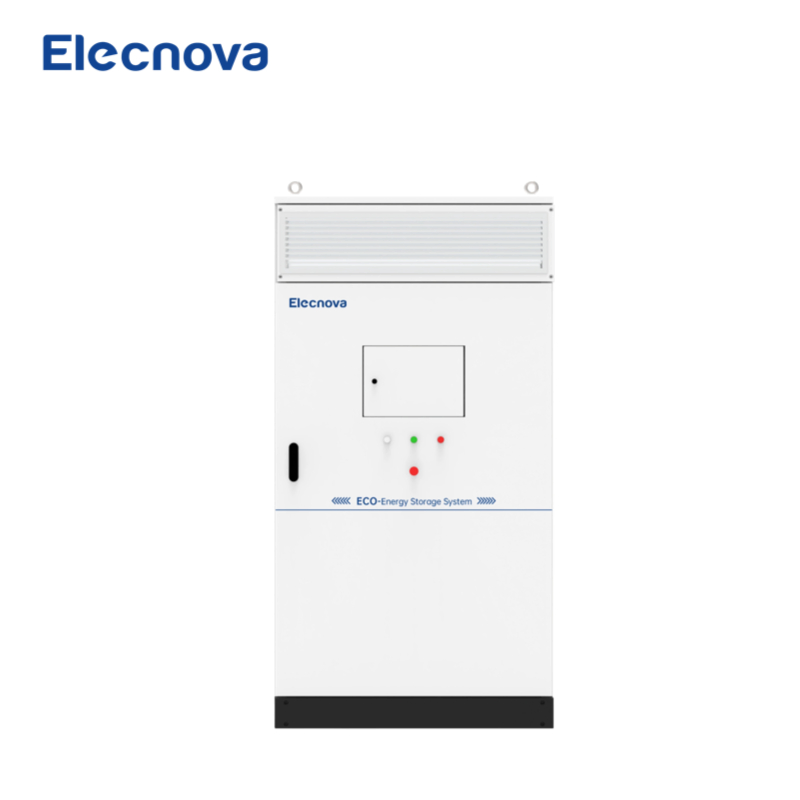

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet. It enables long-term operation with safety, stability, and reliability. Agile deployment is achieved via AC side parallel connection, allowing for flexible capacity expansion.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |

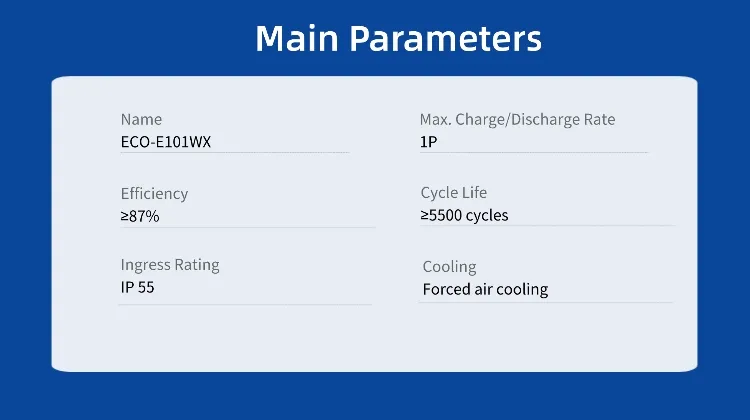

| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC (Derating after 45ºC) |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

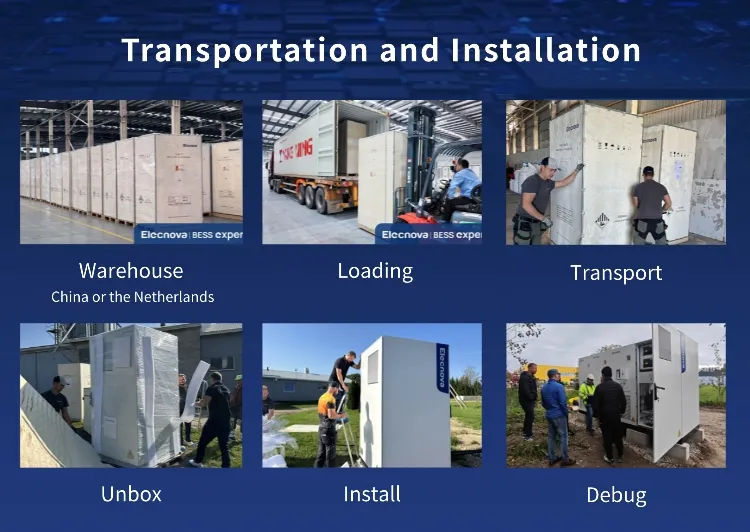

A systematic and professional transportation & installation process ensures your BESS operates reliably. We deliver a full-cycle service from warehouse management to on-site commissioning:

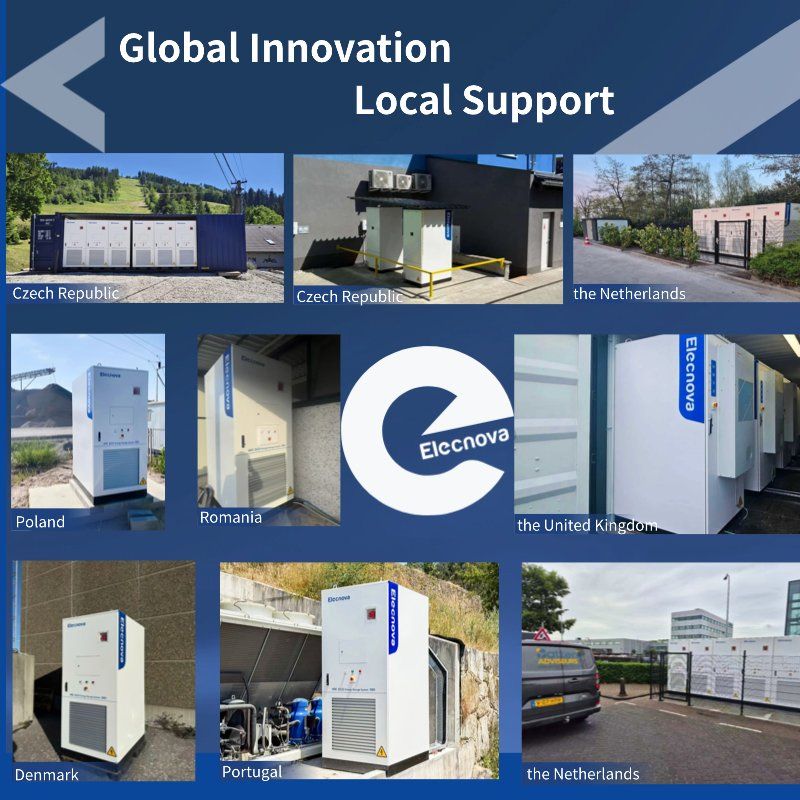

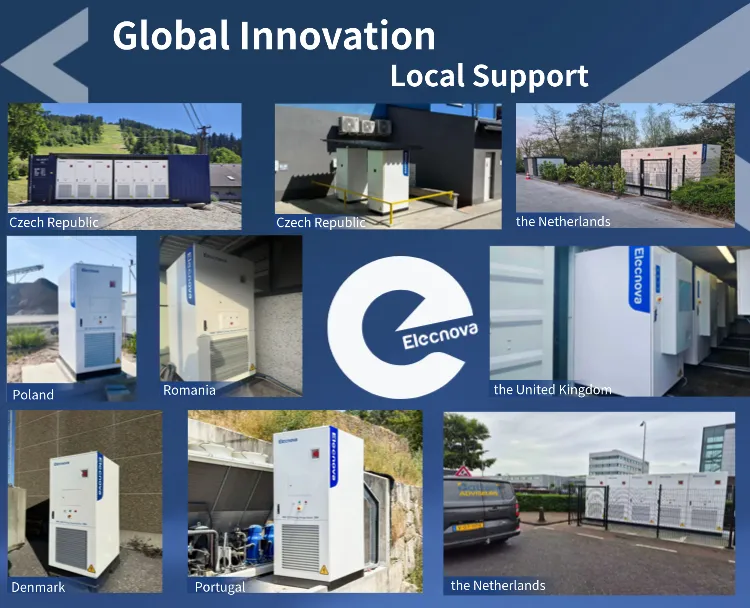

Our energy storage solutions are transforming energy landscapes worldwide across Europe, Southeast Asia, Africa, and the Middle East. We offer an industry-leading max 5+5 years warranty and a robust after-sales ecosystem including localized spare parts and specialized technical guidance.
Our solutions comply with global standards: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, CE, RoHS, and UL 9540A.
With nearly 30 years of industry experience, we are a leading OEM & ODM energy storage manufacturer. Our facility features a production capacity of 2GWh, automated Module and PACK production lines, and CNAS laboratory certification for rigorous quality control.
