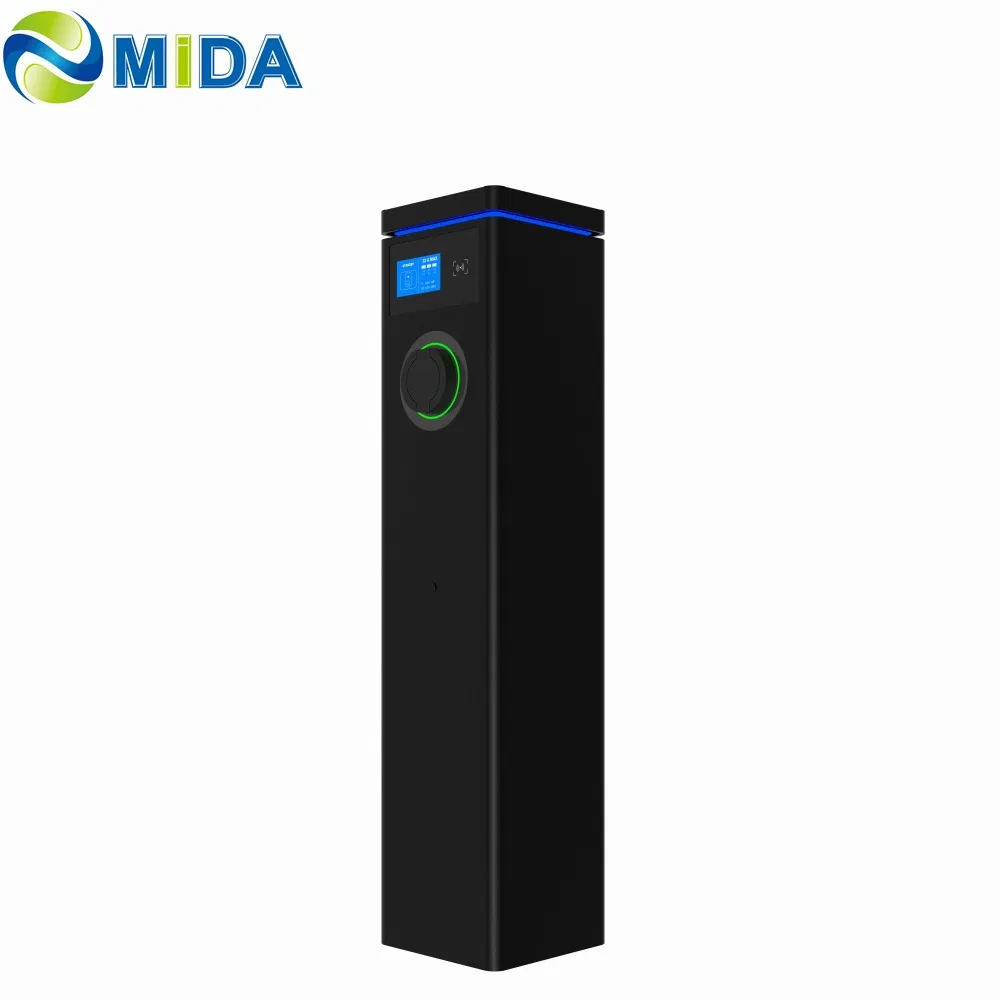

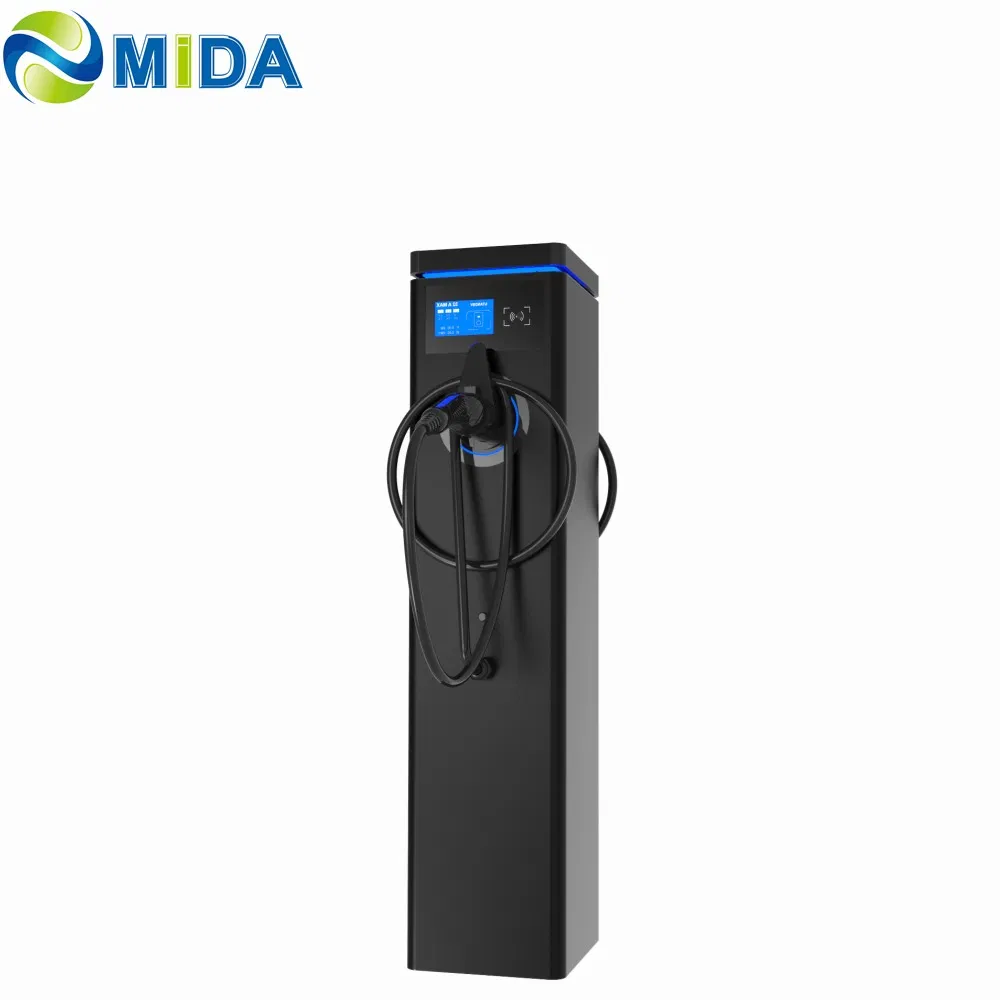

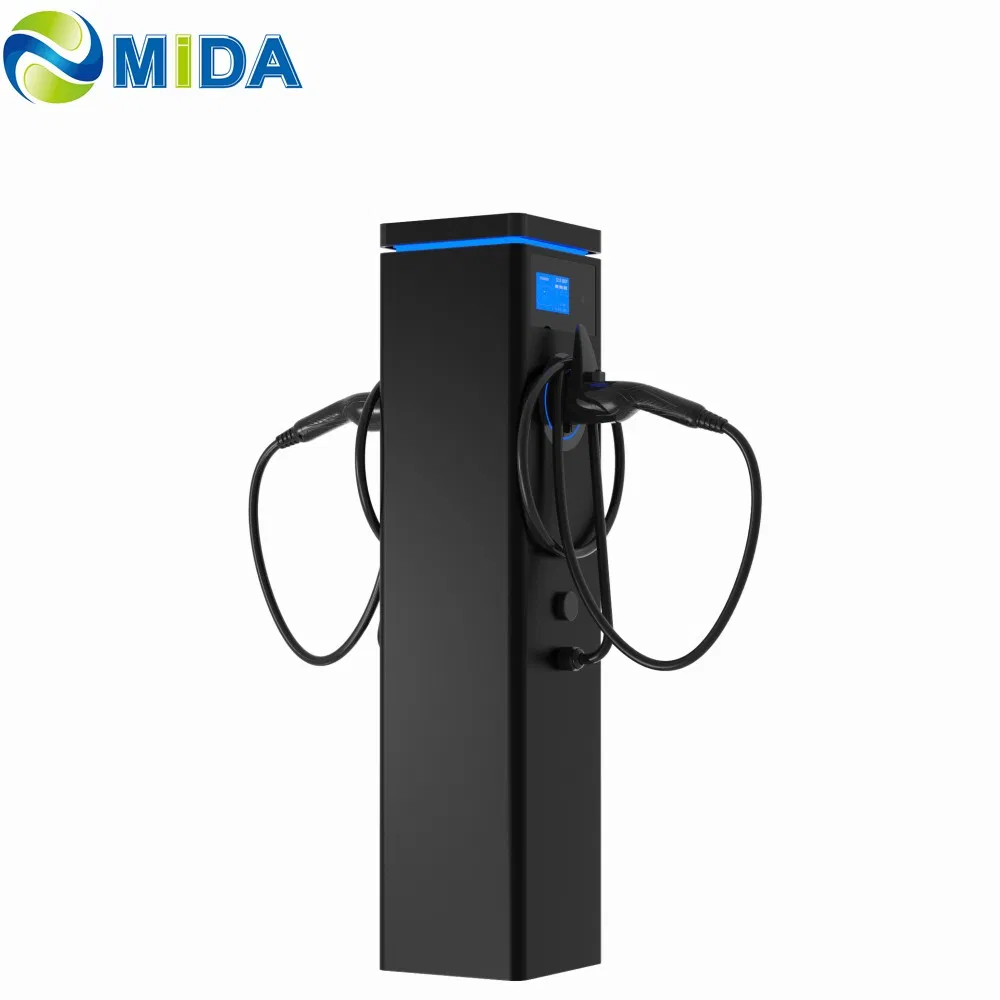

AC 22kw 44kw Public Charging Station with Dual Cable Free Standing EV Charging Station

1 / 3

AC 22kw 44kw Public Charging Station with Dual Cable Free Standing EV Charging Station

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Wall Mounted

Send Inquiry

Product Description

Basic Specifications

Model NO.

MIDA-EVST-22KW/44KW

Location

Private & Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Credit Card, Mobile App

Rated Current

32AMP

Operation Voltage

AC 250V / 400V

Leakage Protection

Type B RCD / RCCB 30mA

Protection Degree

IP55

Shell Material

Aluminum Alloy

Operating Temp

-30°C to +60°C

AC 22kW/44kW Public Charging Station

Key Features

✔ Powerful Performance: Heavy-duty outdoor-ready design.
✔ High Capacity: 22kW or 44kW dual plug AC system.
✔ Waterproof: Certified IP55 protection.
✔ Smart Control: Bluetooth, WiFi connectivity, and App support.
✔ Maintenance: Supports OTA remote firmware updates.

Innovative Design An artwork designed to improve the charging experience, breaking through traditional industrial appearances.

Intelligent LED The LED light shows charging status via color changes, using a breathing effect to avoid direct glare.

Universal Compatibility Equipped with Type 2 cables compatible with virtually every electric vehicle on the market.

Applicable Scenes

Residential & Workplace: Perfect for homeowners and office parking lots for convenient daily charging.

Public & Fleet: Ideal for roadsides, commercial areas, and business fleets to keep vehicles productive.

Technical Specifications

Electrical Parameter	32A Max (Single Phase: 7.2kW) \| 16A/32A Max (Three Phase: 11kW/22kW)
Input Cord	Hard-wired by licensed electrician
Output Connector	IEC62196-2 Standard (5m cable standard, 8m optional)
Smart Connectivity	Built-in Wi-Fi (802.11 b/g/n) and Bluetooth
Visual Indicators	Dynamic LED lights for Standby, Charging, Fault, and Network
Enclosure Dim.	300mm × 160mm × 120mm
Compliance	IEC 61851-1, IEC 62196-2, OCPP 1.6, CE, FCC, ETL

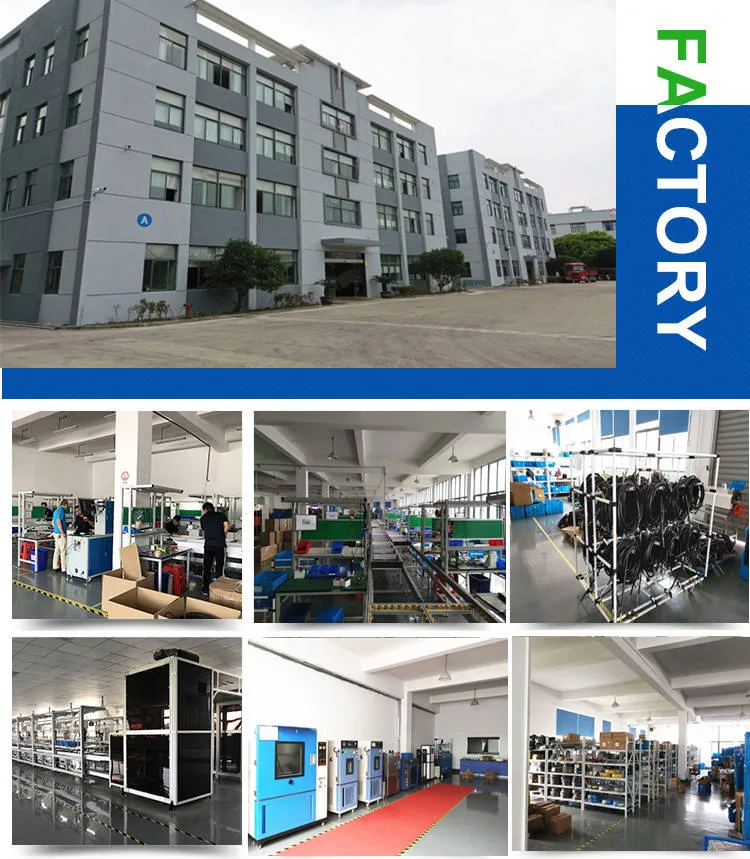

Product Details & Manufacturing

A professional supplier of electric vehicle components including plugs, sockets, cables, and charging stations. All products are certified by CE, PSE, TUV, and UL, ensuring the highest safety standards for the European and American markets.

Frequently Asked Questions

What is the difference between the 22kW and 44kW versions?

The 22kW version provides high-speed AC charging for a single vehicle or shared power, while the 44kW dual-plug station allows two vehicles to charge simultaneously at up to 22kW each, depending on the power supply.

Can this station be installed outdoors?

Yes, the station is rated IP55, which means it is protected against dust and low-pressure water jets from any direction, making it suitable for outdoor installation in various weather conditions.

Is it compatible with all electric vehicles?

The station uses standard Type 2 (IEC 62196-2) connectors, which are the standard for European electric vehicles and compatible with most modern EVs on the market.

How can I monitor the charging status remotely?

The station features built-in Wi-Fi and Bluetooth connectivity, allowing users to connect via a mobile app to monitor real-time charging, manage start/stop cycles, and view history.

What safety protections are included?

Safety is our priority. The unit includes Type B RCD/RCCB 30mA leakage protection, as well as sensors for over-voltage, under-voltage, and temperature monitoring.

Does the station support firmware updates?

Yes, it supports Over-The-Air (OTA) updates, ensuring your charging station stays up-to-date with the latest software improvements and features without needing manual hardware intervention.
