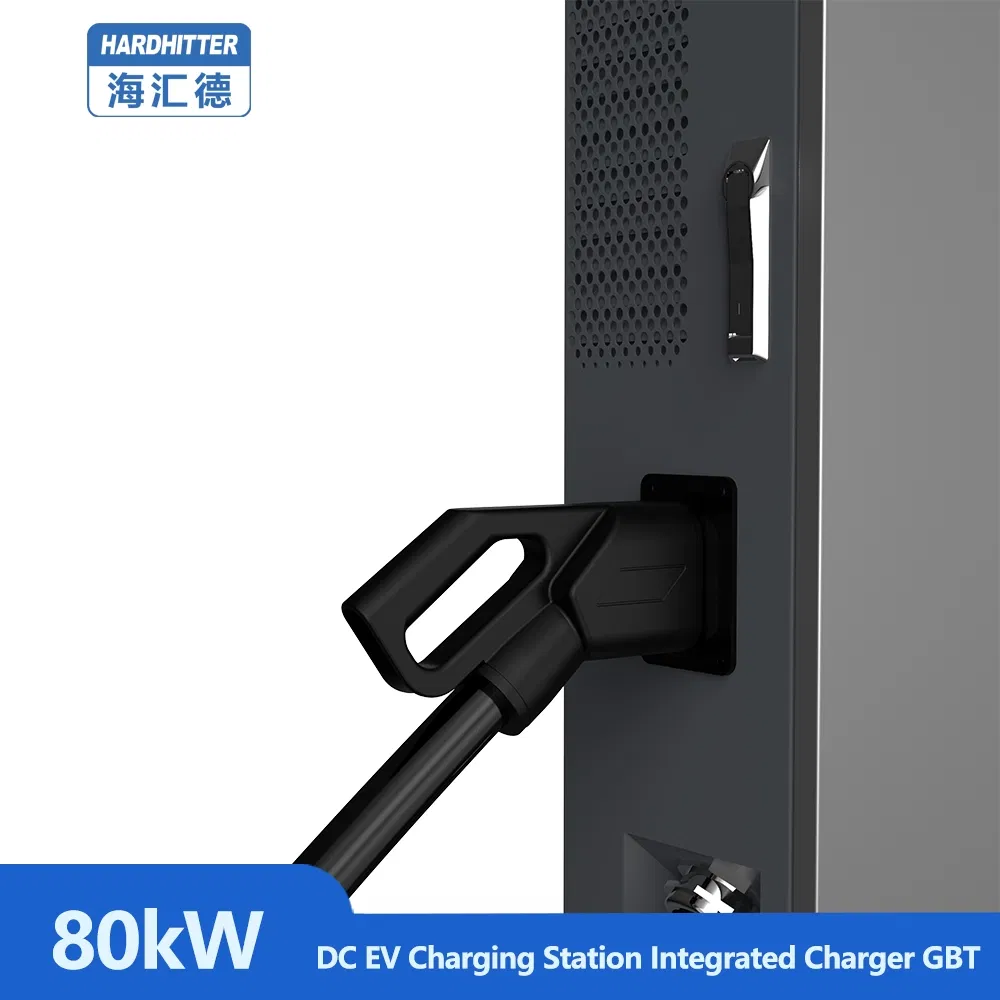

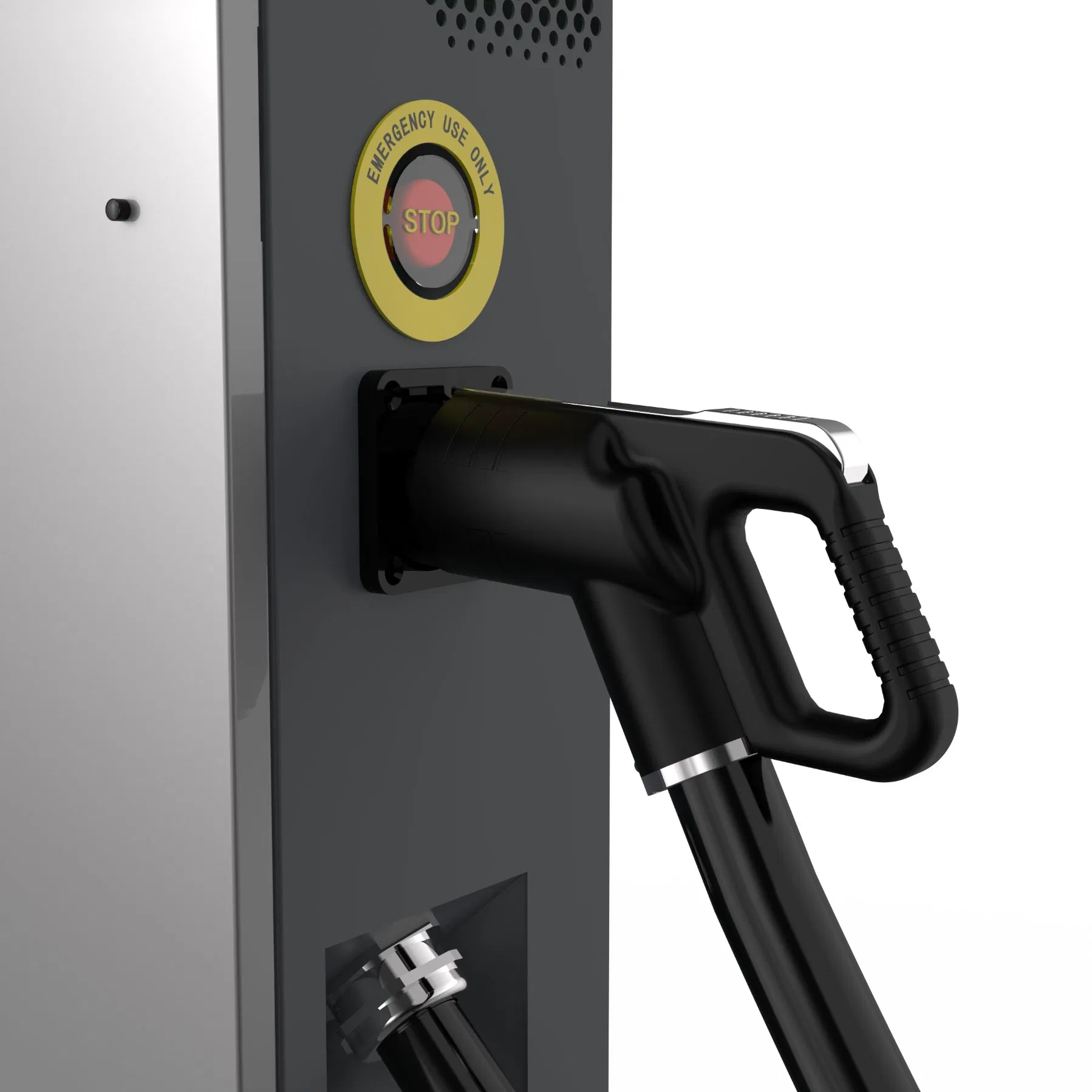

80kw EV Charging Solution with Advanced Low Power Single Gun CCS2 Technology

1 / 5

80kw EV Charging Solution with Advanced Low Power Single Gun CCS2 Technology

Customization:	Available
Connector Type:	CCS2
Number of Charging Interfaces:	One Pile with One Charge

Send Inquiry

Product Description

Basic Info.

Model NO.

HQC23-80/1000/260-Y01

Location

Public Use

Installation

Floor Type

Charge Method

Quick Charge

Rated Power

80kw

Input Voltage

AC380V±10%

Protection Level

IP55

Operation Temperature

-40°c~+60°c

Gun Cable Length

Car:4.5m Bus:6m

Production Capacity

3000 Pieces Per Year

Product Parameters

Rated Power	80kW
Input Voltage	AC380V±10%
Output Voltage	200~1000V

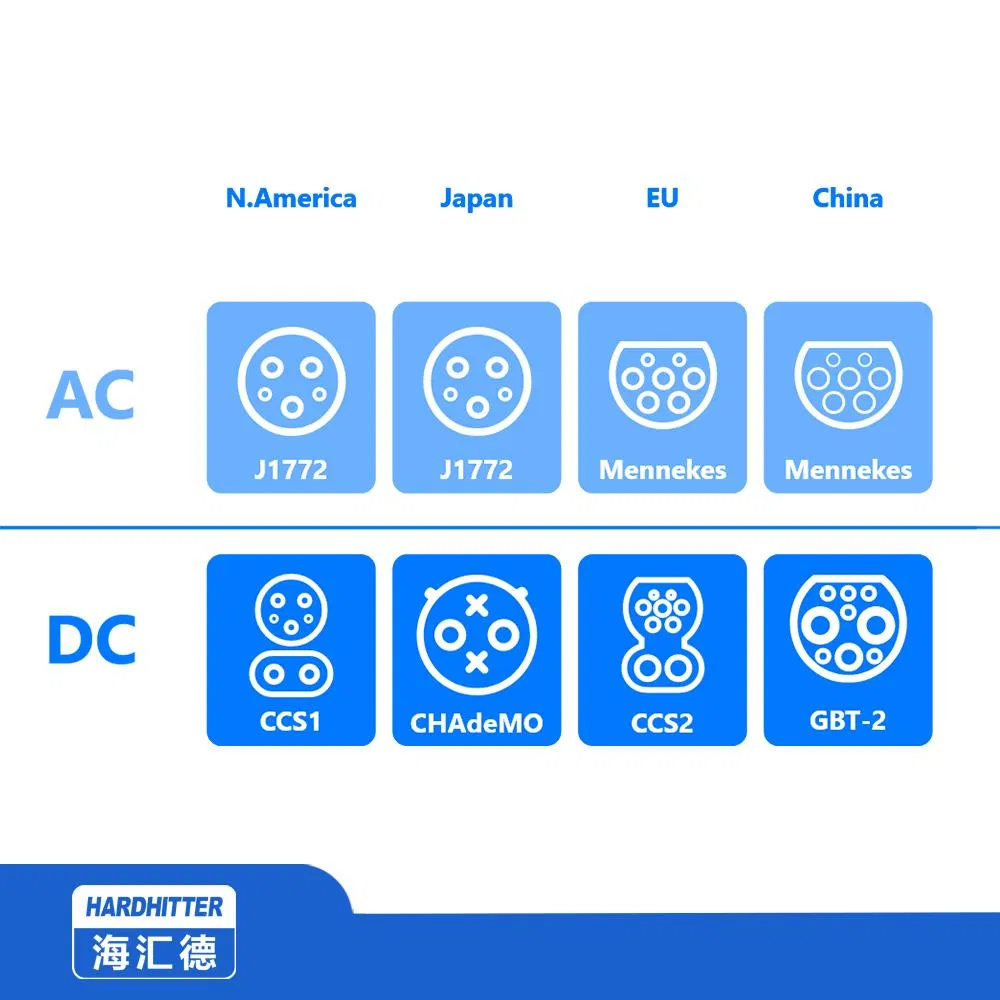

Charging Interface	GB/T20234.1-2015, CCS1, CCS2, CHAdeMO
Start Mode	Swipe Card, Scan Code, Plug and Charge, Platform remote start, button Start
Protection Level	IP55
Operation Temperature	-40°C~+60°C
Altitude	≤2000m
Dimensions	Wall mounted: 540200740mm / Floor mounted: 5402001400mm
Weight	60kg
Gun Cable Length	Car: 4.5m, Bus: 6m
Cooling Method	Air Cooling
Communication Interface	Ethernet/4G
Wiring Method	Bottom Incoming
Interface	LED+digital tube display

★

Product Features

Suitable for destination charging scenarios, including residential areas, workplaces, or shopping malls, etc.

Adopting high-efficiency dustproof mesh, it can effectively filter dust, and the protection level can reach IP55.

The power module adopts a fully glue-pouring process, with high protection level, high system reliability, and long system life.

The system has a small volume and is easy to install and connect.

Support multiple charging startup methods such as scanning code charging, swiping card charging, plug and play charging, remote start charging, timed charging, etc.

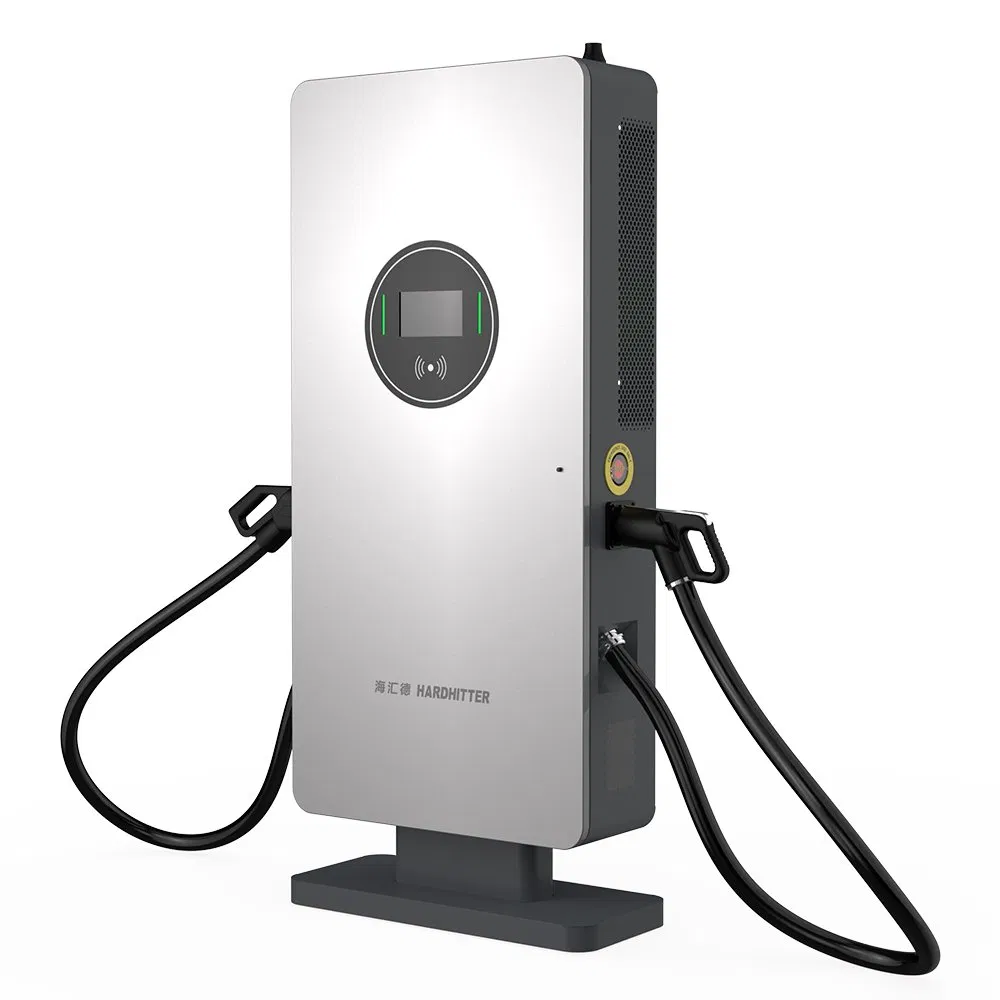

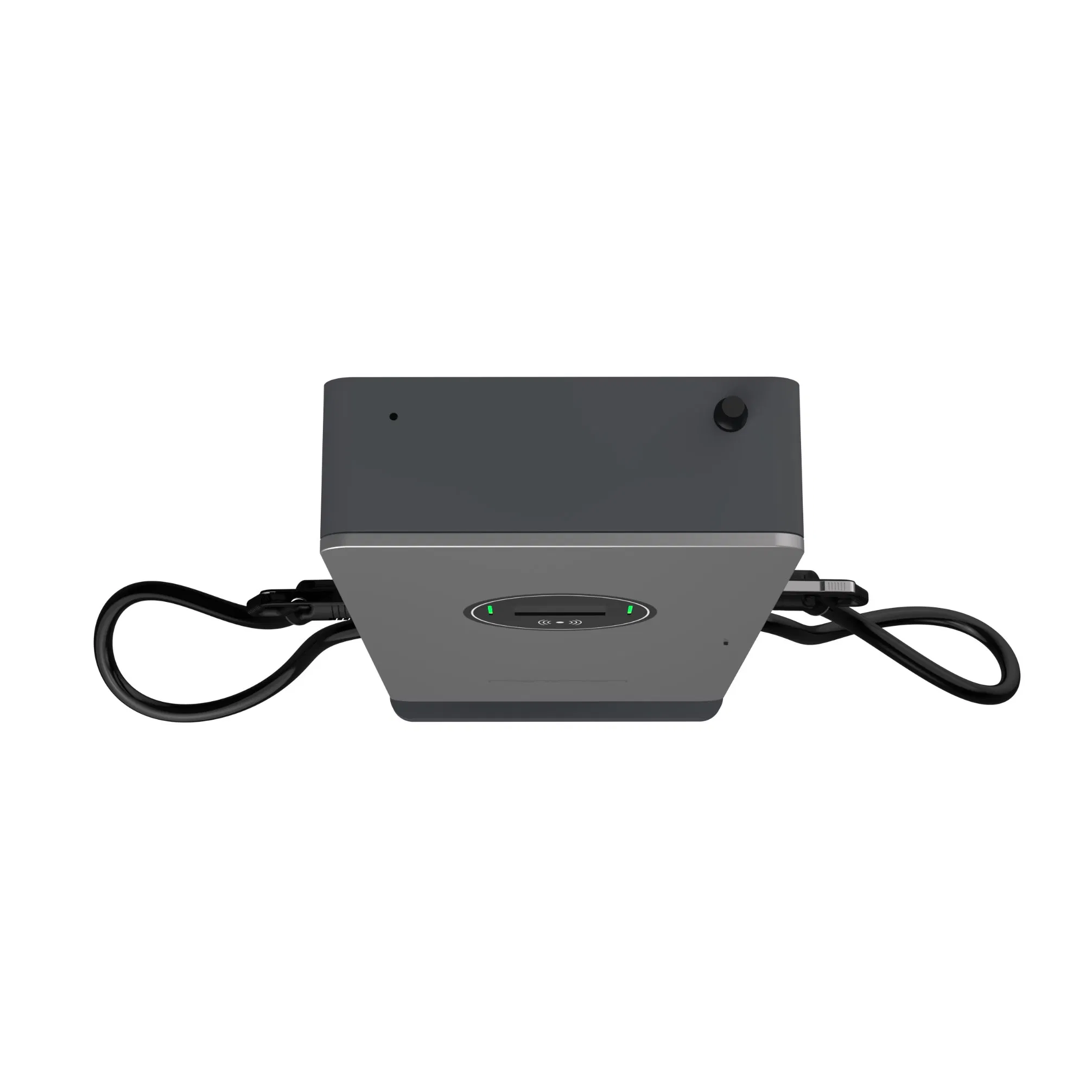

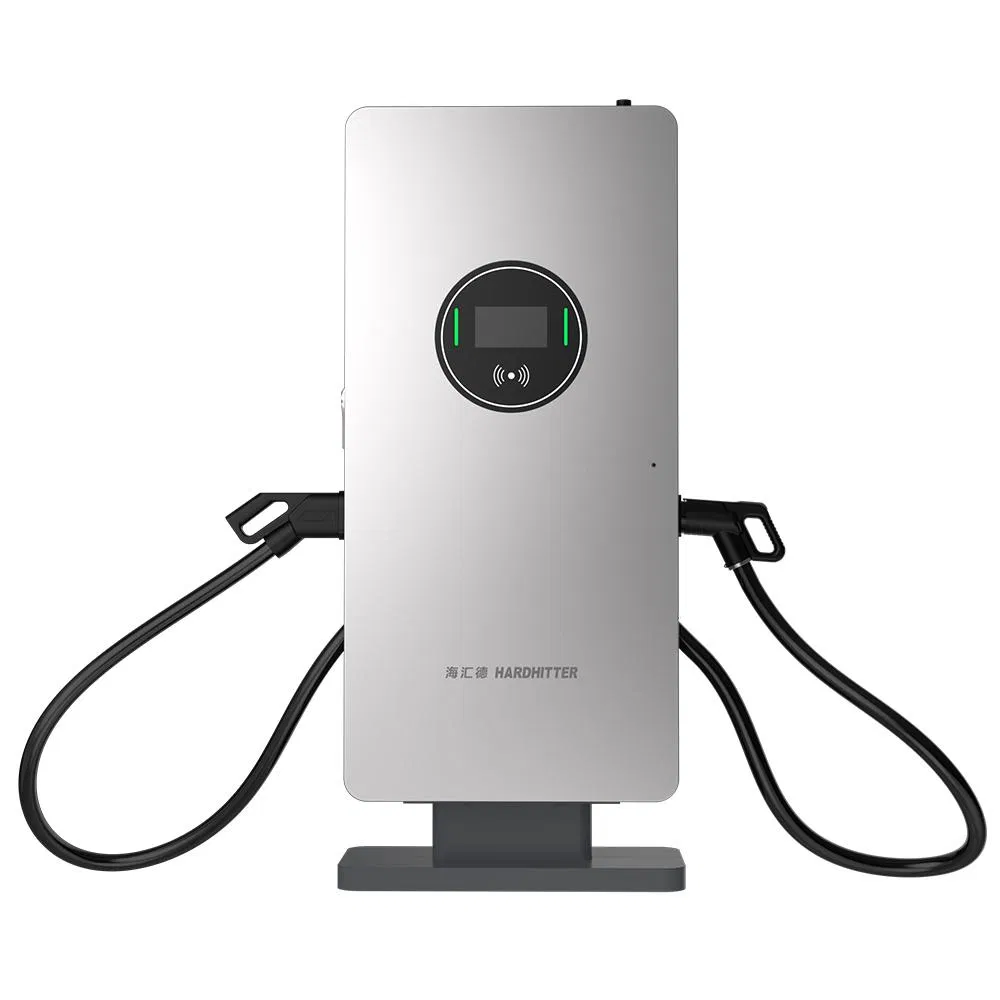

Product Gallery

Manufacturing Overview

Frequently Asked Questions

Q: How about your Lead time?

A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Does your products have quality certification?

A: Yes, we have a very strict quality controlling system. Our EV charging products pass with CE & TUV certifications.

Q: How long is the warranty?

A: The warranty of our products is 12 months upon the receipt of your shipment under normal circumstances.

Q: Can the EV charger charge all Electric Vehicles on the road?

A: Yes, all models of our EV Charger work with all Electric Vehicles. Tesla vehicles need the use of a J1772 to Tesla adapter to work with our EV chargers.

Q: Does the EV Charger need any APPs or internet?

A: Some models are standalone type using RFID cards or plug-and-play. Other models are Wi-Fi connected and work with Apps and OCPP 1.6j applications.

Q: Can you provide customized service?

A: Yes, we have been involved with OEM and ODM projects since 2012, providing professional customized services for our clients.
