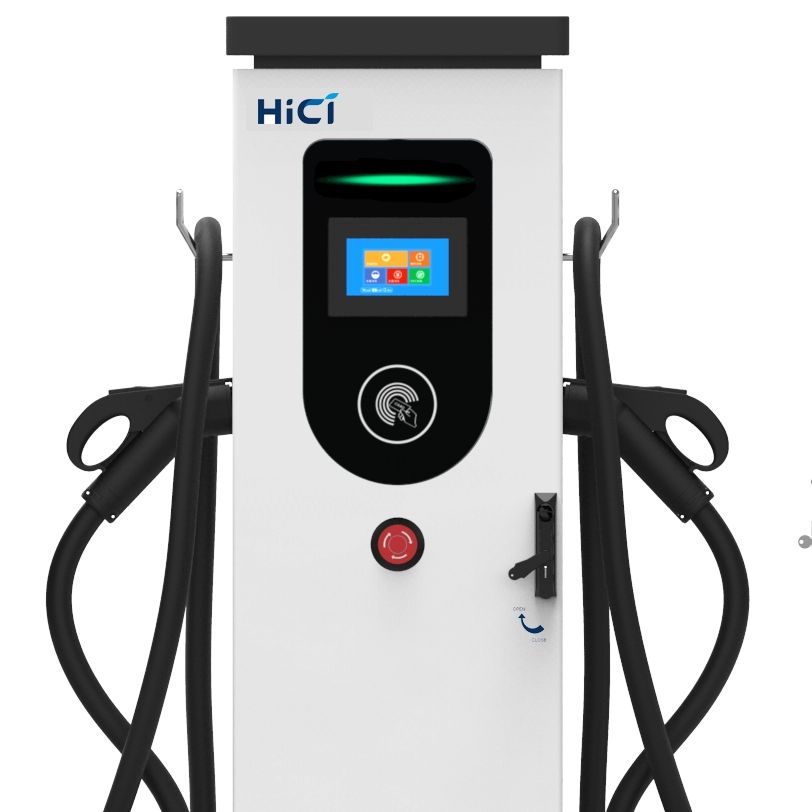

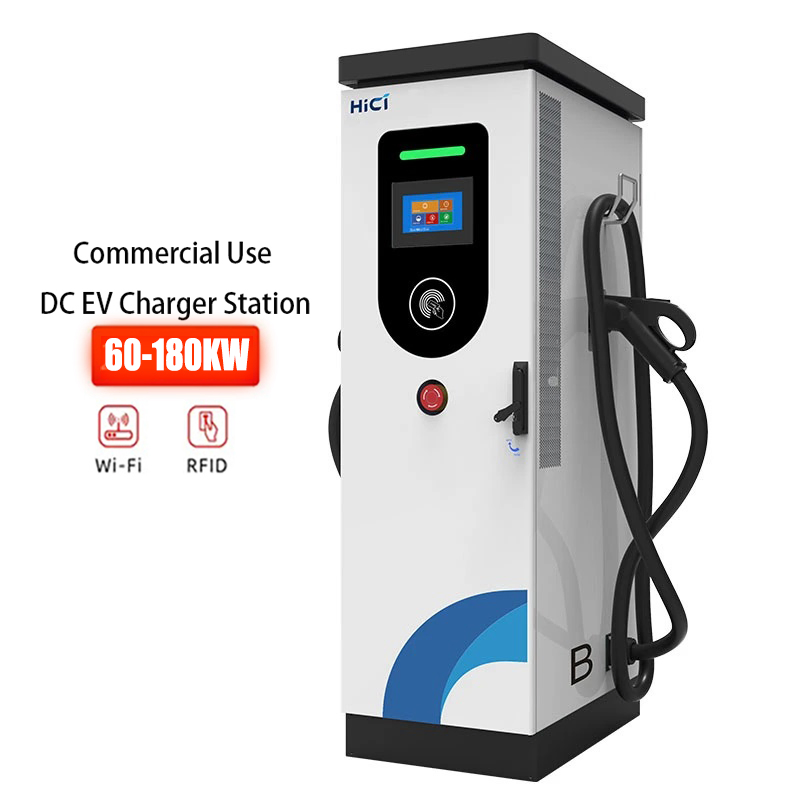

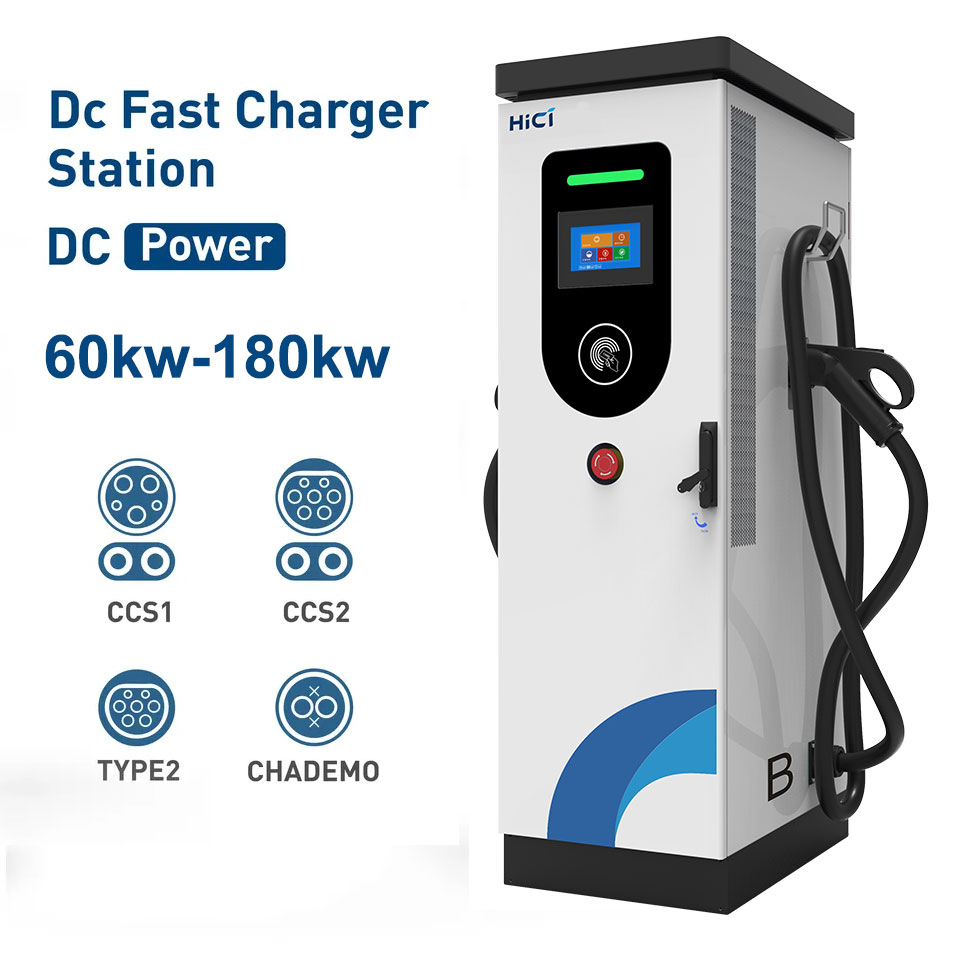

60kw /120kw/180kw CCS2+Gbt DC Fast EV Charger Station for EV Car

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview & Basic Info

Model NO.:HK-120-750-AE2
Location:Public Use
Charging Interfaces:Multiple Charges
Start Mode:RFID, Mobile, Credit Card
Charge Method:Quick Charge
Input Voltage:400V±15% VAC
Output Voltage:150-750VDC
Efficiency:Min 95%
Protection:IP54 / IK10
Communication:4G, Ethernet

Product Description

DC EV Fast Charging Station

60KW 120KW 180KW CCS2 GBT DC EV Charging Station

  • Support Max 180kw Power Output
  • CCS2 / GBT / CHAdeMO Connectors
  • 7 Inch Interactive Touch Screen
  • Dual Connector with Intelligent Allocation
  • Industrial Grade Durability

Technical Parameters

Specifications 60KW 120KW 180KW
Input Voltage 400Vac±15% (L1+L2+L3+N+PE)
Frequency 50 / 60 Hz
Power Factor >0.99 @ full load
Output Voltage Range DC 150V - 1000V
Max Output Current GBT/CCS 250A (Max)
Operation Temp -30°C to +55°C
Protection Class IP54 Fan Cooling
Communication OCPP 1.6 JSON / 4G / Ethernet
📷

Detailed Visuals

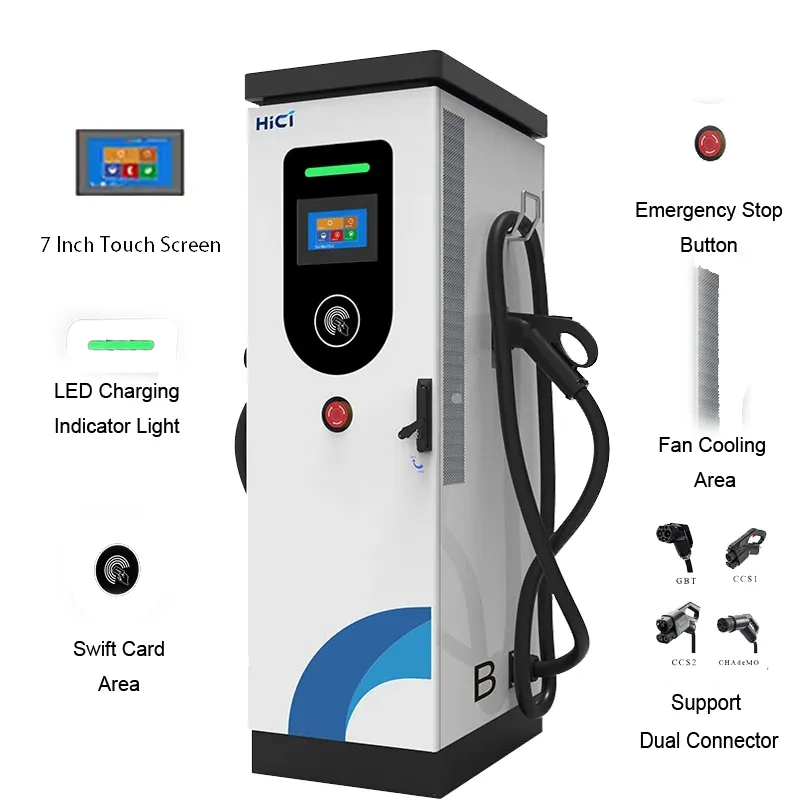

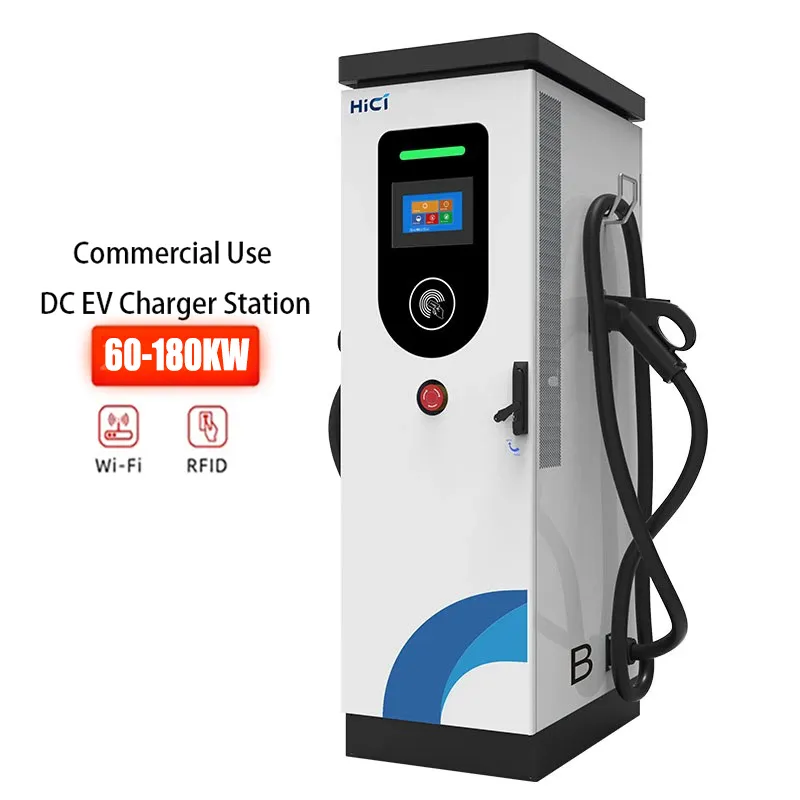

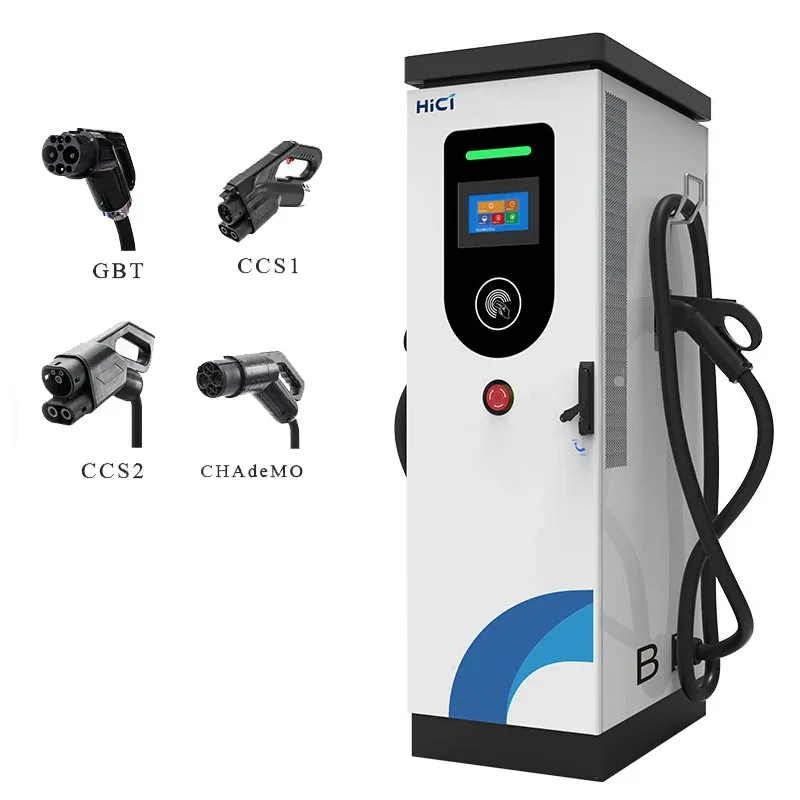

Charger Detail 1 Charger Detail 2 Charger Detail 3

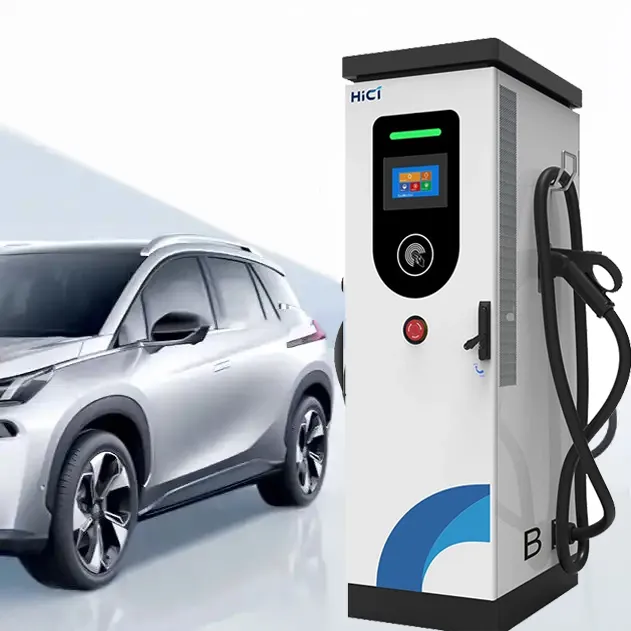

Charger Detail 4 Charger Detail 5 Charger Detail 6
🏢

Professional Capability

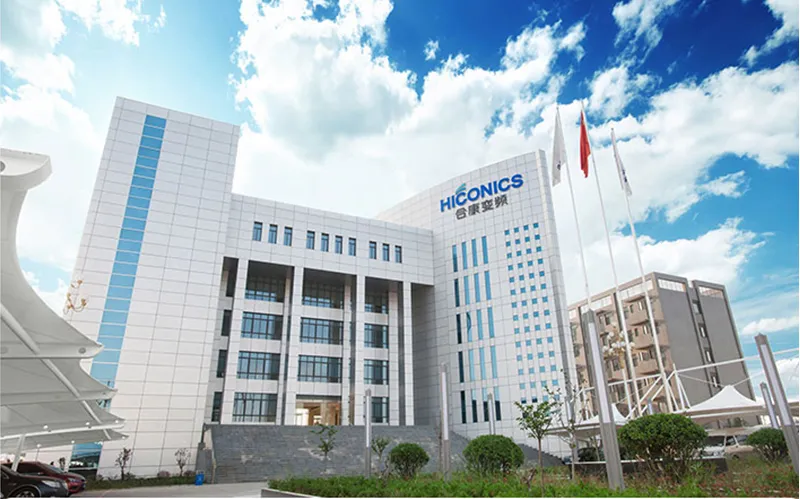

Production Facility
Established in 2015, we are a national high-tech enterprise as well as national tech little giant enterprise dedicated to providing customers with overall solution of "vehicle-charger-grid". With more than 330 employees, of which core R&D personnel account for about 30%, our business covers inner power systems and outer charging systems of EV vehicles. Product types include universal AC/DC chargers, HPC (high power charging) system, automatic charging systems as pantograph system and port specialized charging equipment, vehicle controllers, motors and air conditioning controllers. Our products have been applied to more than 200 cities and exported to more than 50 countries and regions globally.

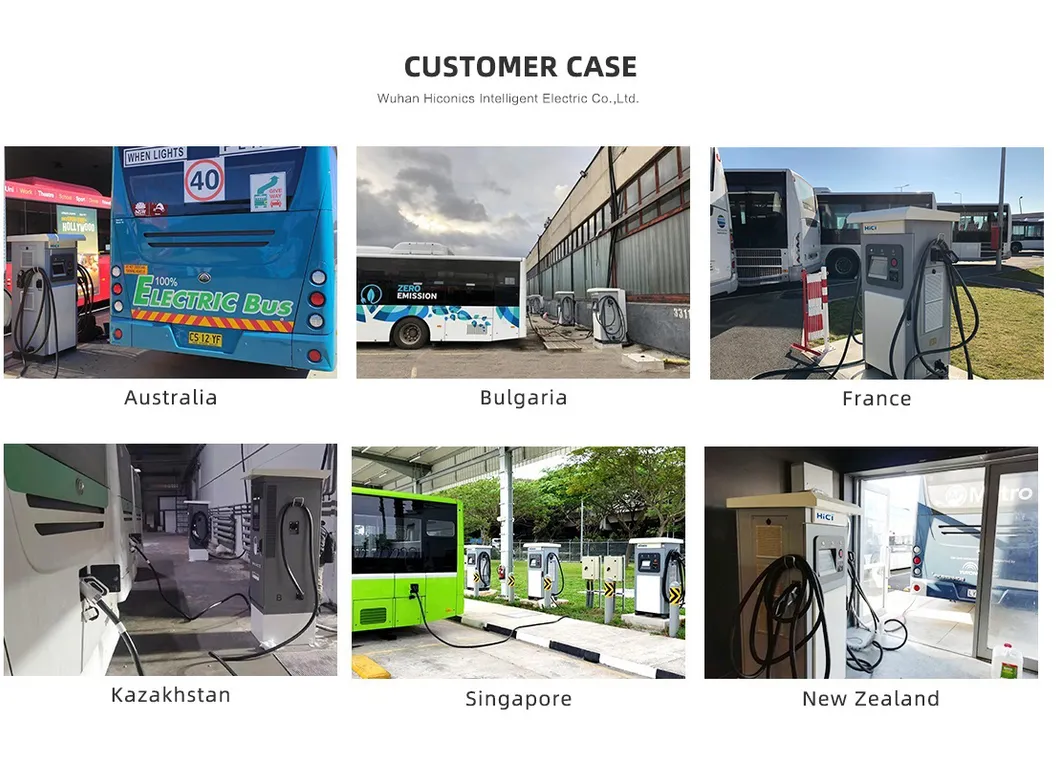

Workshop 1 Workshop 2 Workshop 3
?

Frequently Asked Questions

What connector types are supported by this station?
The station supports CCS2, GBT, and CHAdeMO connectors, making it compatible with a wide range of electric vehicles globally.
Can the power output be intelligently allocated?
Yes, the station supports an intelligent allocation mode for dual connectors, allowing a single gun to reach up to 180KW.
Is the charging station suitable for outdoor environments?
Absolutely. It features an IP54 protection level and IK10 impact resistance, designed to operate reliably in outdoor public locations.
What communication protocols are integrated?
The station uses OCPP 1.6 JSON for backend integration and supports 4G, 3G, and Ethernet for remote operation and monitoring.
What is the charging efficiency of this system?
The system offers high efficiency with a minimum of 95%, ensuring minimal energy loss during the fast-charging process.
What are the start-up options for users?
Users can initiate charging via RFID cards, mobile remote operation, or credit card payments for commercial convenience.
