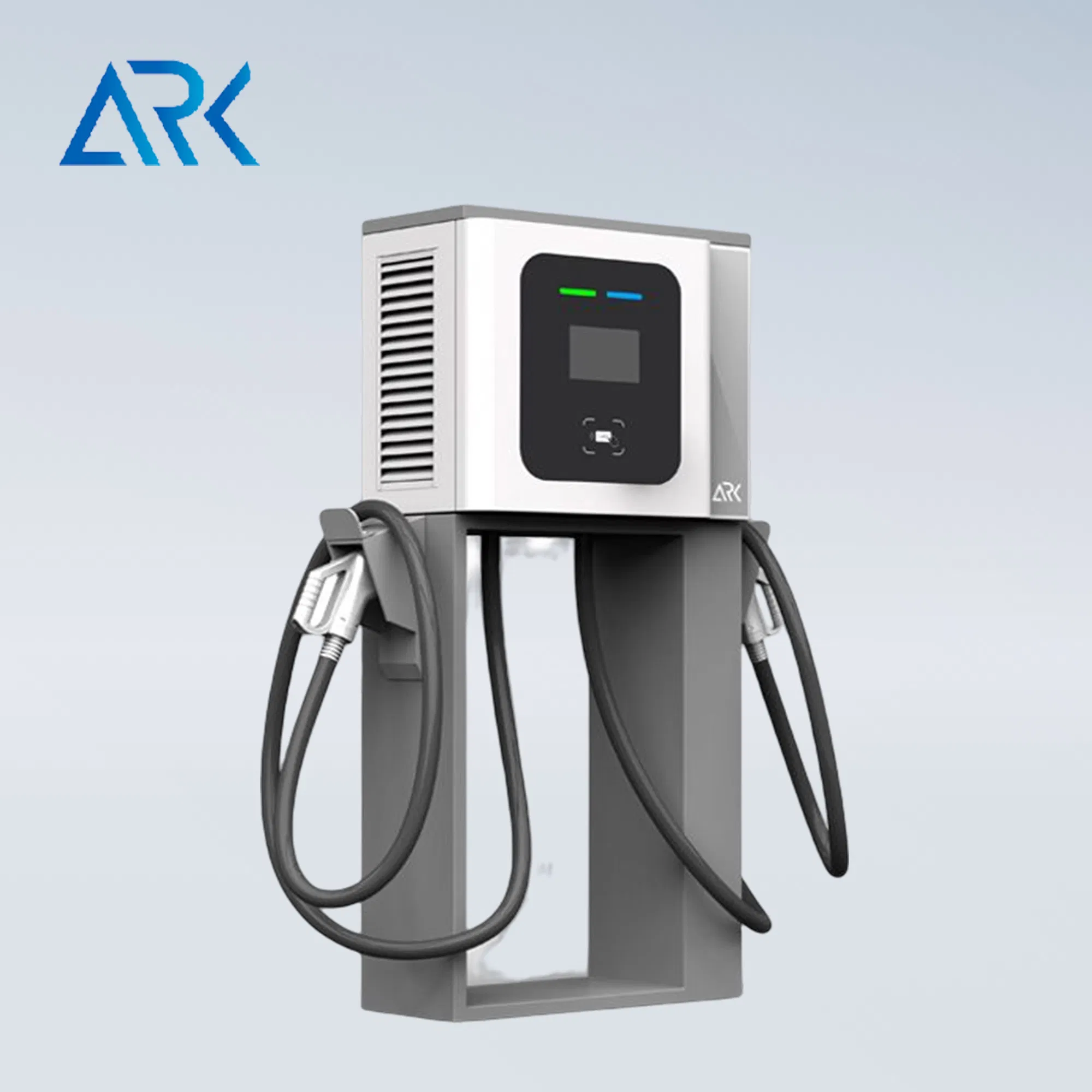

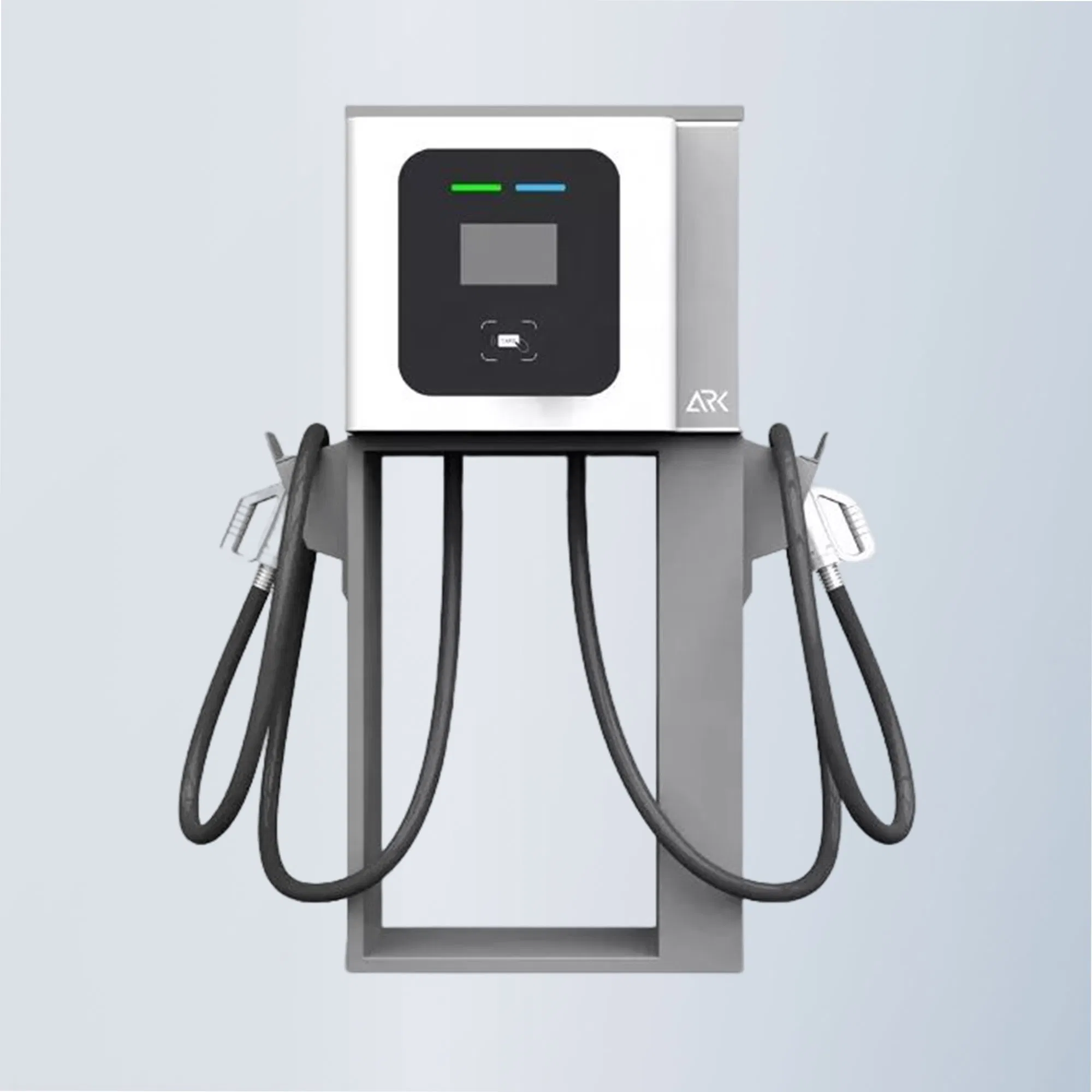

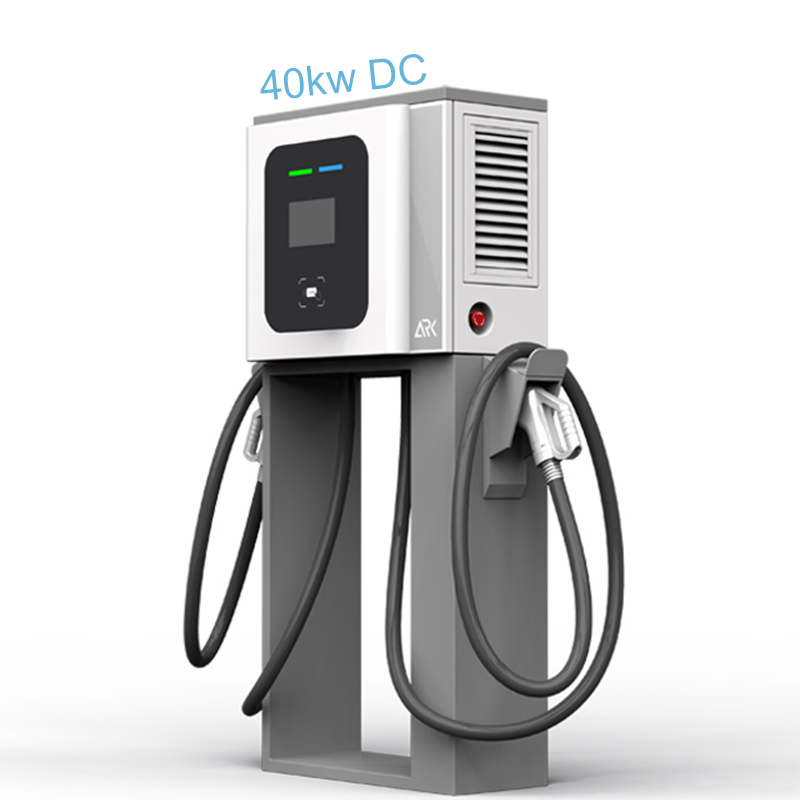

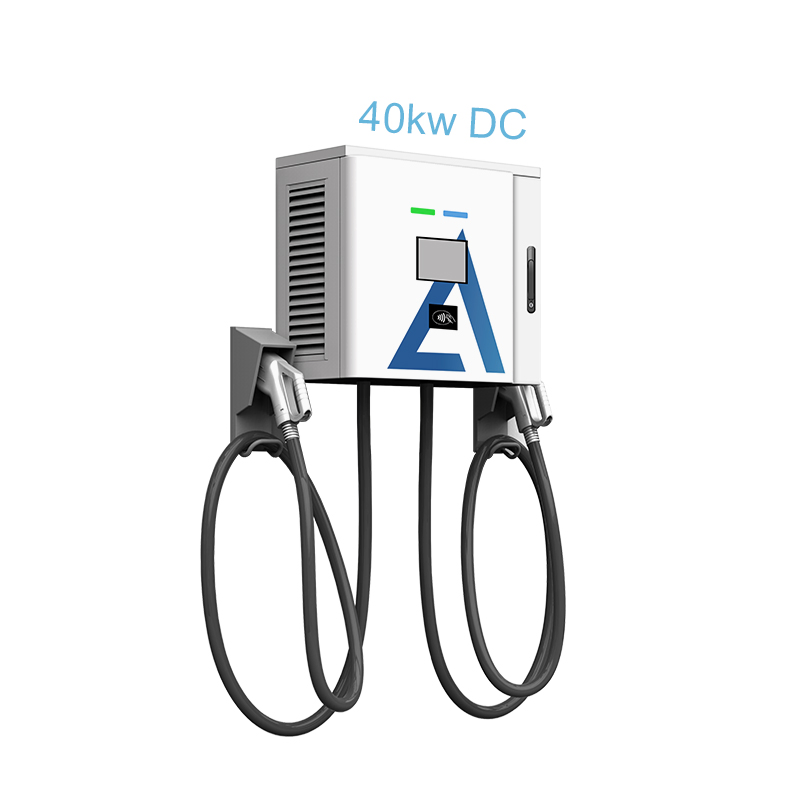

40kw Workplace EV Charger 380V Fast Floor Stand Electric Car Charging

1 / 5

40kw Workplace EV Charger 380V Fast Floor Stand Electric Car Charging

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EF040

Ocpp

Ocpp1.6j Supported

Screen

7 Inch Touch Screen

Protection Grade

IP54, IK10

Charging Type

Mode 4

Charging Standard

IEC 61851-1, IEC 61851-23, Chademo

Certification

CE, TUV

Warranty

12 Months

Production Capacity

1000 Unit/Units Per Month

HS Code

8504409999

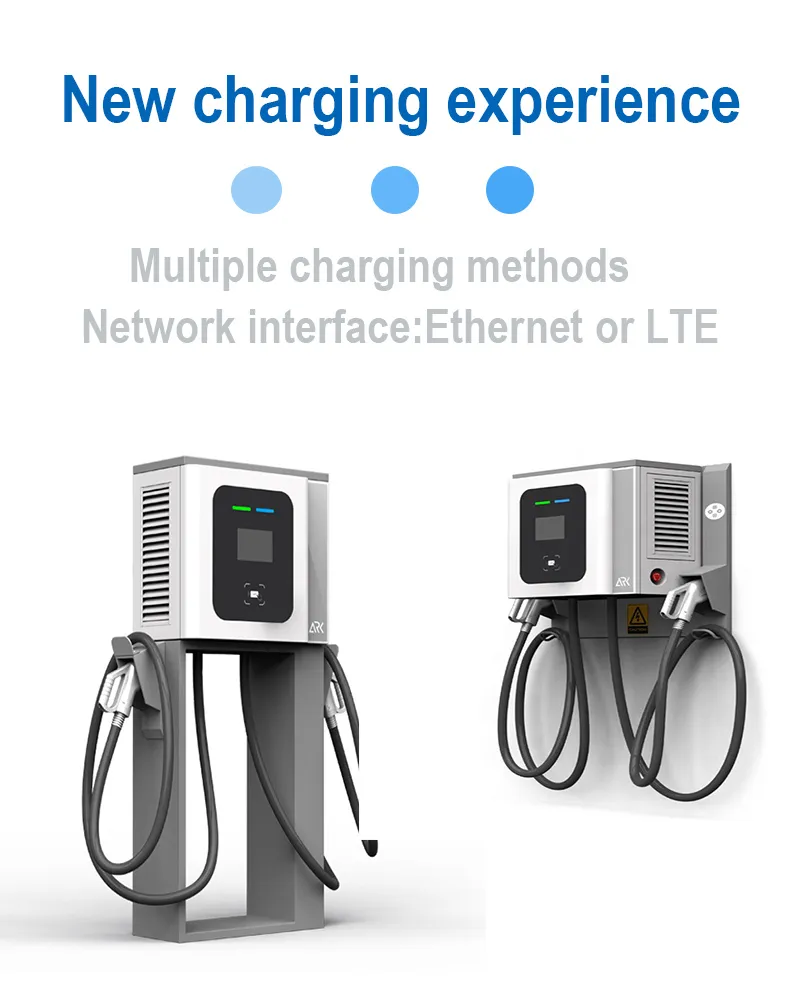

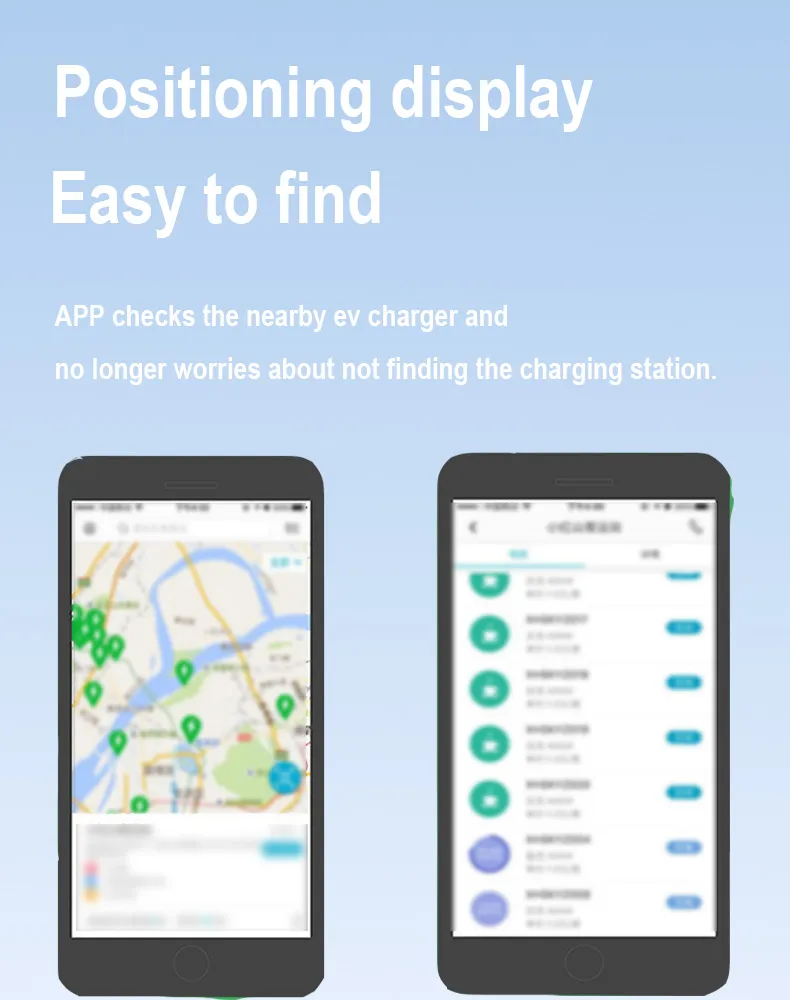

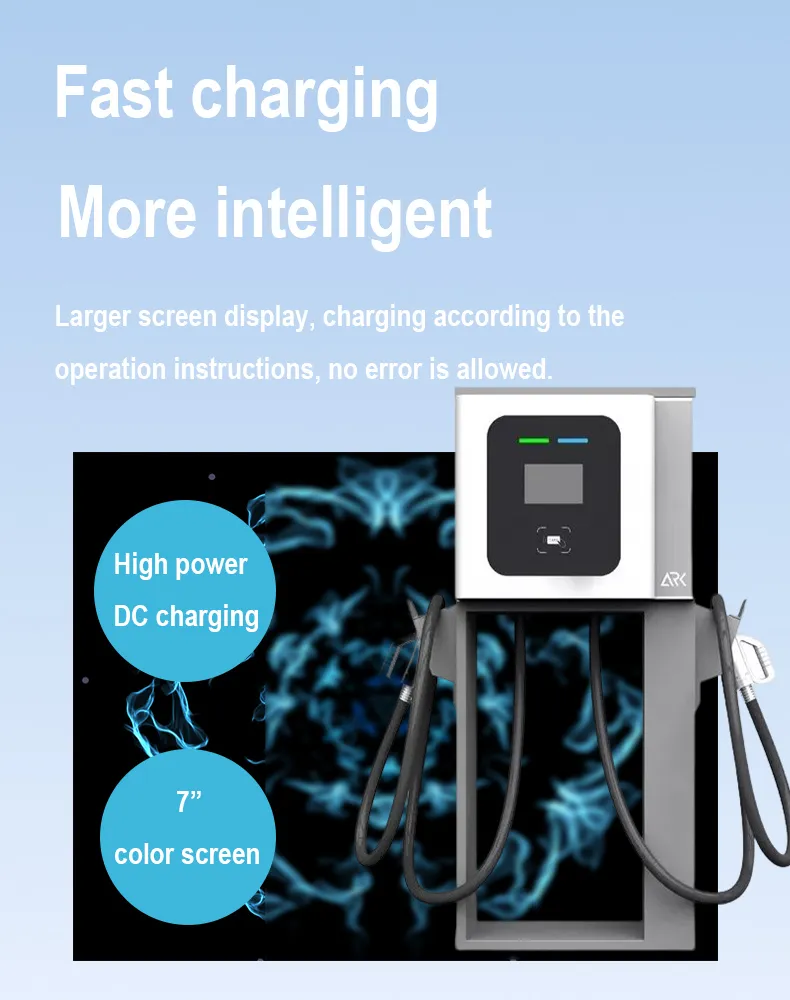

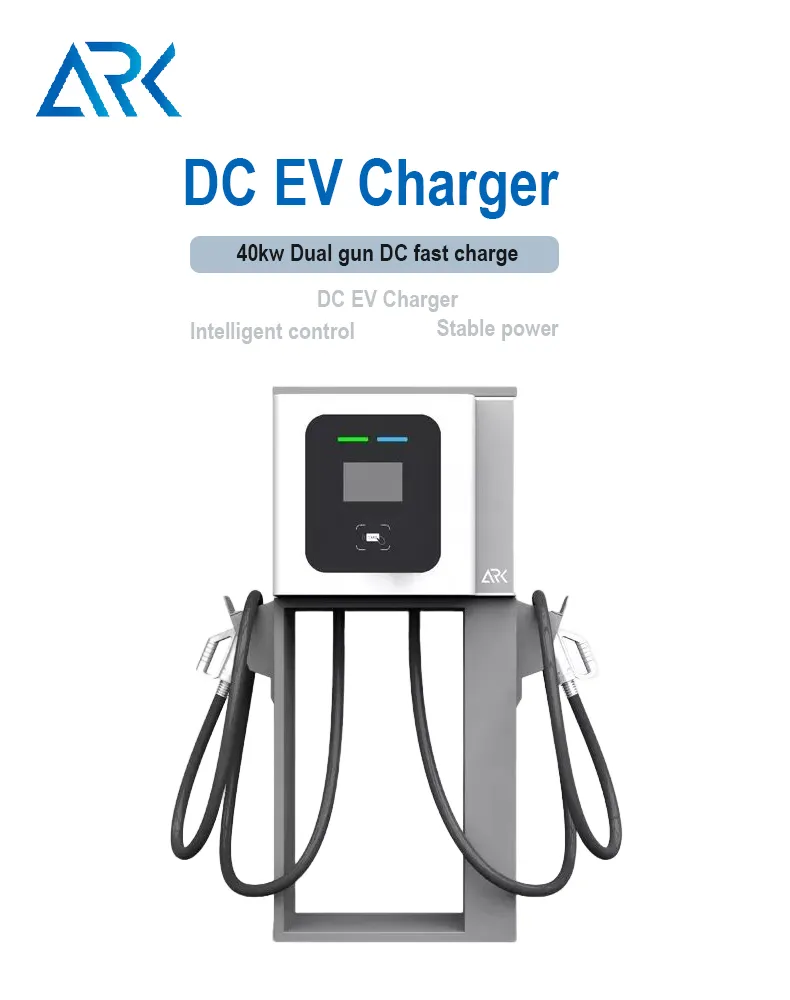

Product Visuals

Technical Specifications

Structure	Application Scenes	Commercial/Public charging station
	Housing Material	Metal case

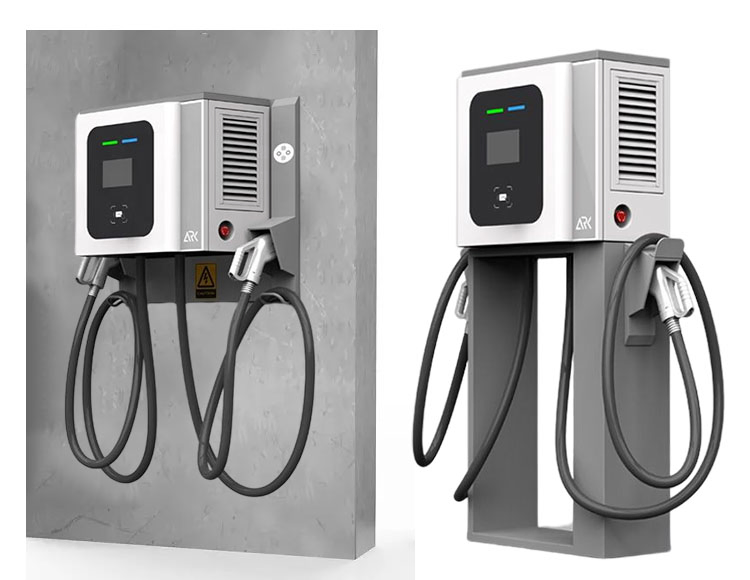

	Dimension	600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
	Cable Length	5m
	Cable Outlets	2, single charging
Electrical	Input Voltage	400Vac +/-10%, 50Hz, 3-phase + neutral + PE
	Output Voltage	200 - 1000V (constant output at above 300V)
	Output Current	125A max
	Efficiency	≥ 95%
	Power Factor	≥ 0.99
Design	User Interface	Emergency button, LED indicator, RFID, 7" Touch screen
Design	Communication	PLC, CAN, Wifi, 3G, 4G, OCPP 1.6
Environment	Working Temperature	-25°C to +50°C
	Protection Grade	IP54
	Safety Standards	IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 15118-3

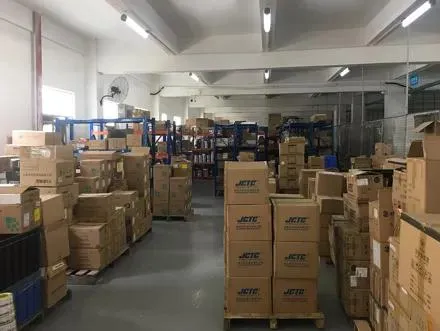

Production Capabilities

Packaging & Shipping

Frequently Asked Questions

Why choose our EV Charger solutions?

We provide a professional technical team and lead the industry with a wide range of product options. Our charging stations meet international standards (CE/UL), have passed rigorous laboratory tests, and are backed by extensive global project experience.

Do you have experience with overseas projects?

Yes, we are pioneers in overseas charger implementation. We have collaborated with power companies in the UK, charging operators in the US (from LA to San Francisco), and major automakers like GM to provide DC fast charging solutions.

What are the primary advantages of your products?

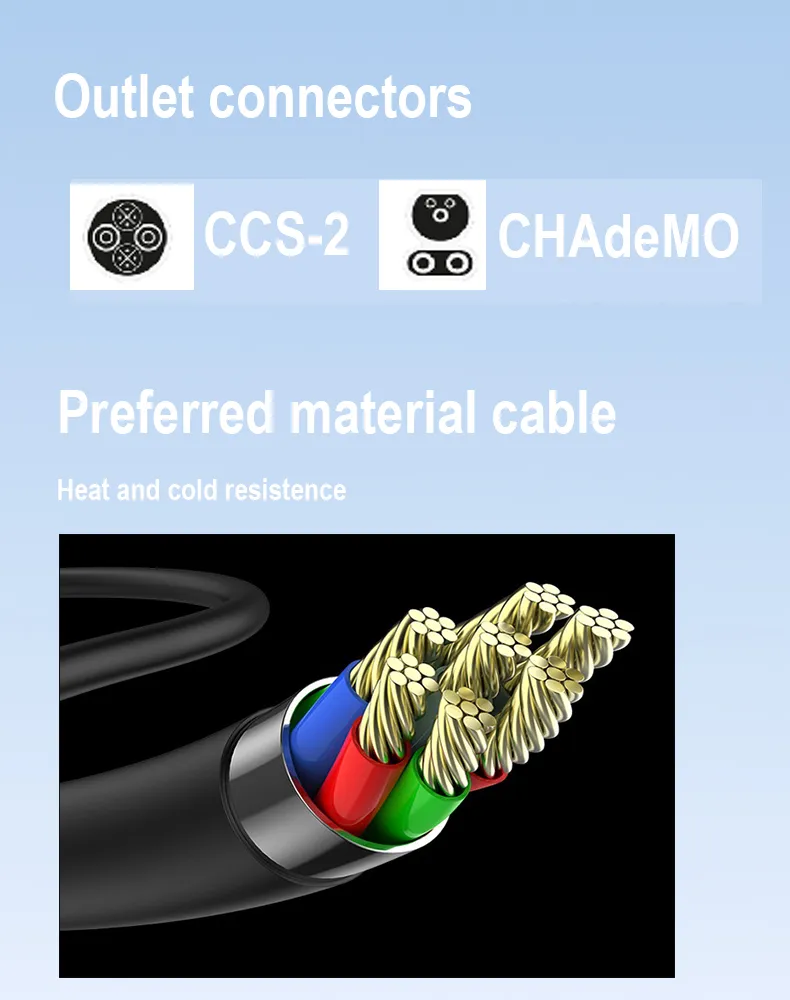

Our chargers feature telecom-level design, support multiple standards (CCS-1/2, CHAdeMO, GB/T), and offer wide voltage ranges with high efficiency (≥95%). The modular design ensures long-term reliability and easy maintenance.

What are the differences between global DC fast charging standards?

There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. We offer solutions that can incorporate these different standards based on your regional requirements.

Does higher output power always mean faster charging?

Not necessarily. Charging speed is limited by the vehicle's battery management system. However, high-power stations are significant because they can support dual connectors to charge two vehicles simultaneously at high speeds.

How is after-sales support handled?

We provide comprehensive technical training, including manuals and videos. For urgent situations, we master-train customer personnel for parts replacement or provide professional technical support to ensure minimal downtime.
