20 Kw Direct Current Electric Car Wallbox APP

1 / 5

20 Kw Direct Current Electric Car Wallbox APP

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	SC201KHG APP
Location	Public Use, Private Use
Charging Method	Quick Charge / Fast EV Charging Station
Input Voltage	380VAC
Output Voltage	200-1000VDC
Output Power	20kw
Output Current	60A
Connectors	GB/T
IP Level	IP54

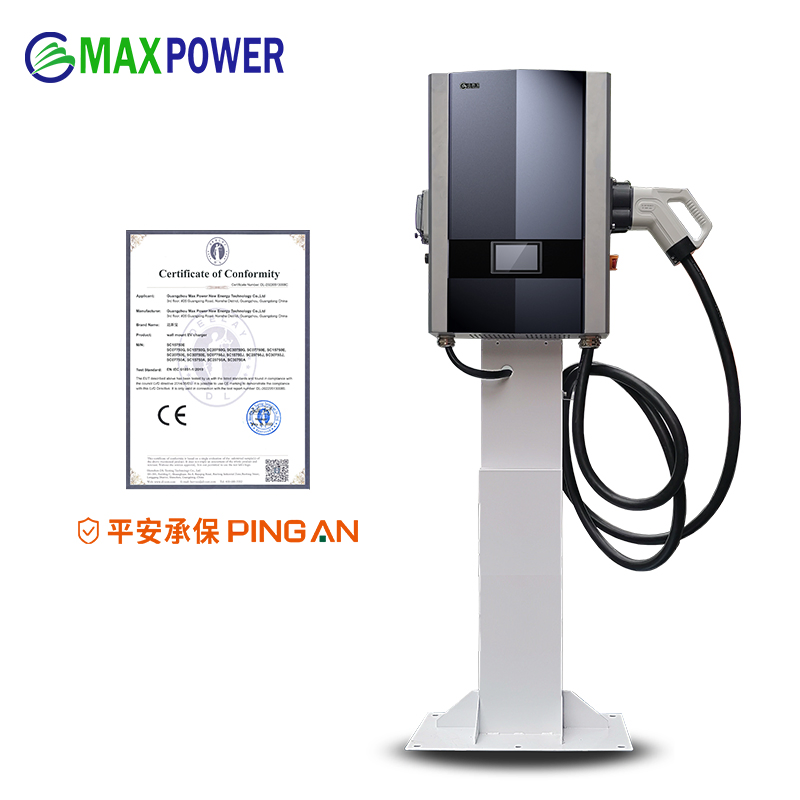

Certification	CE
Dimensions	826651cm

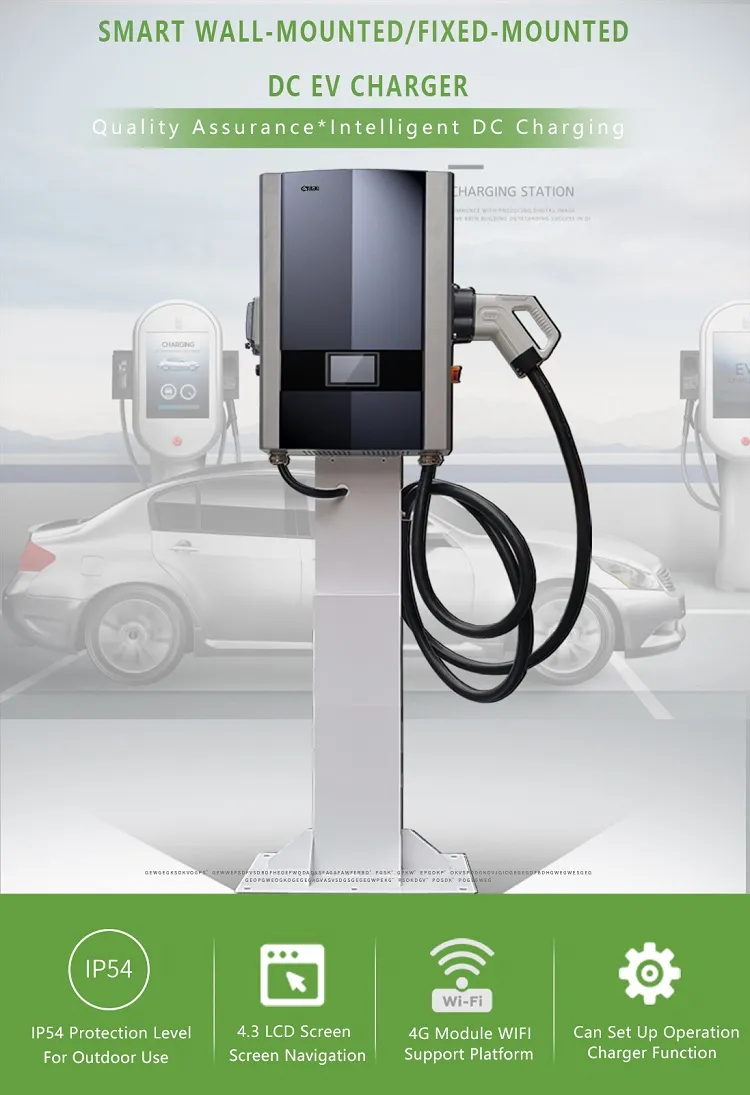

20KW Wallbox Charger Overview

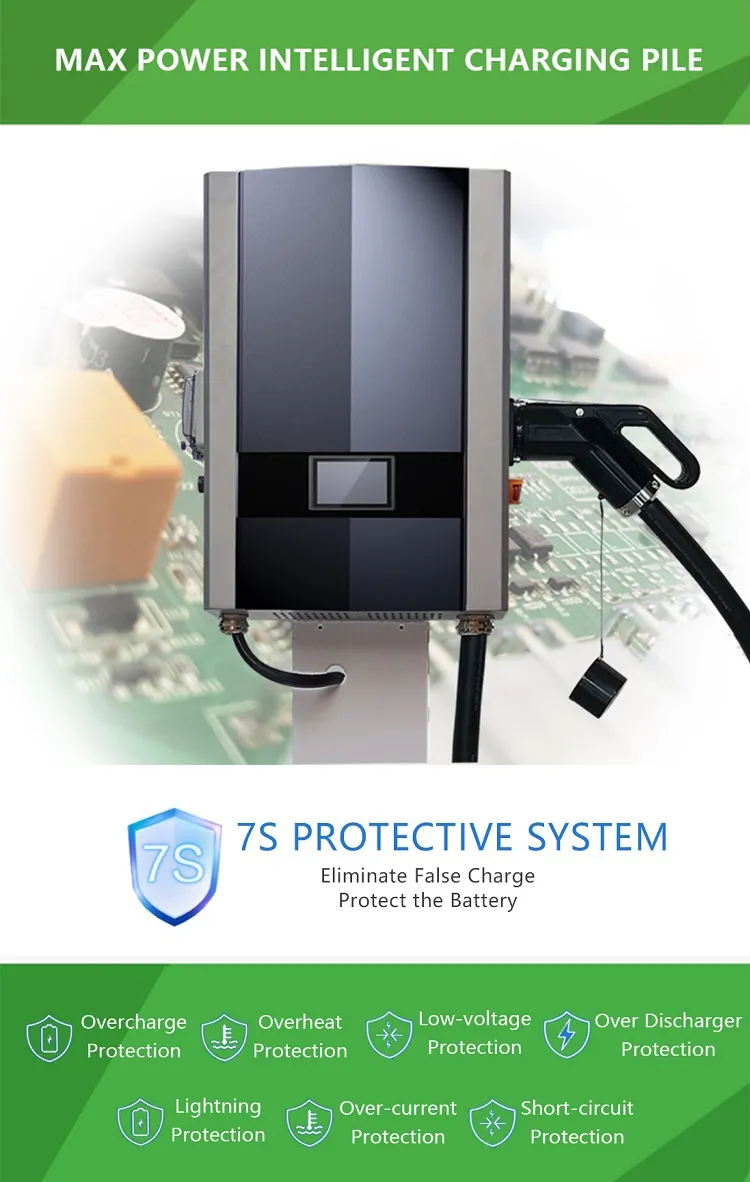

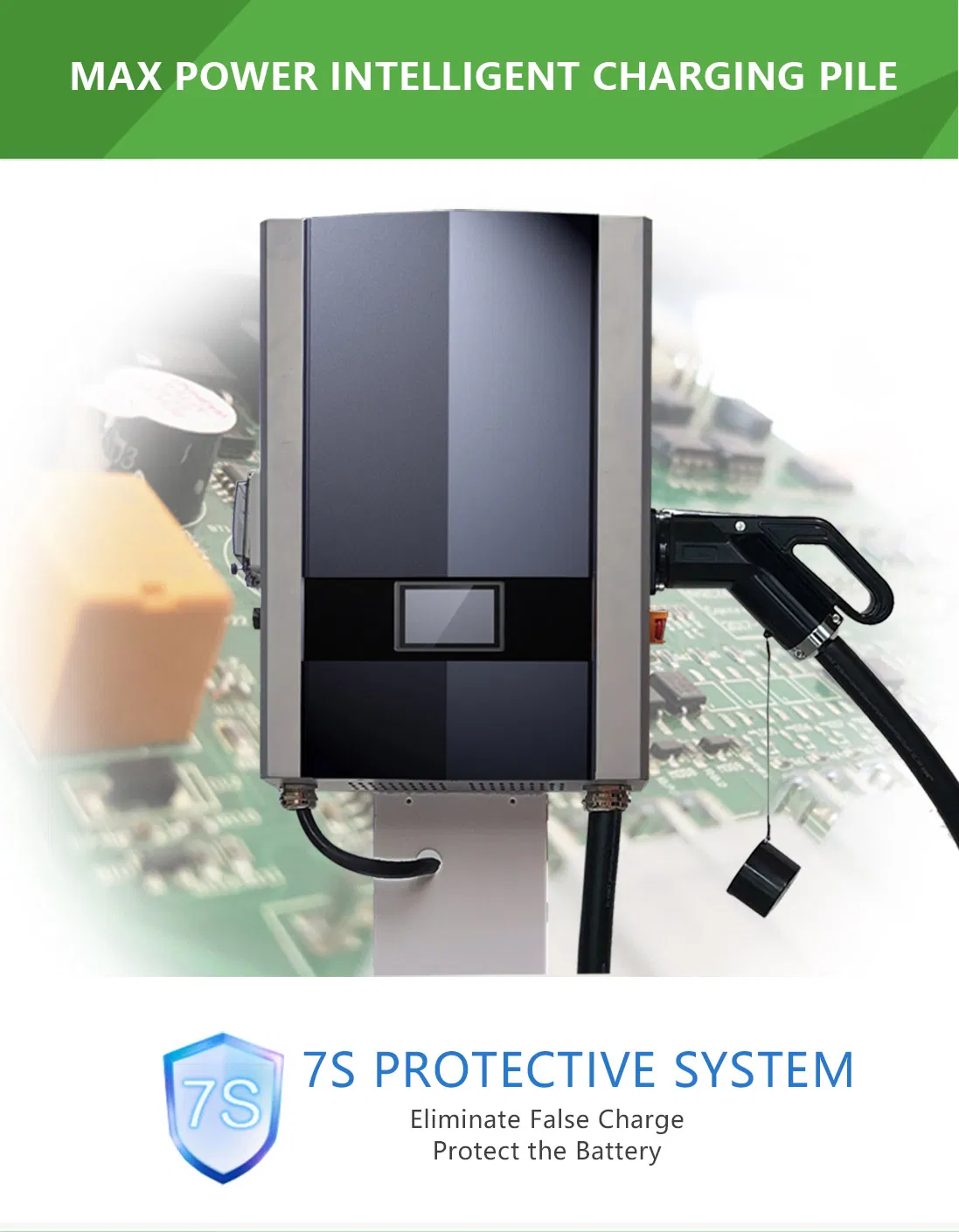

This 20kw DC charger is engineered for high performance with a 380V input voltage. It is designed for ease of use, featuring waterproof and dustproof capabilities alongside multiple safety protection layers.

High performance charging module with a super wide charging range.
Compact size and lightweight design for convenient service.
Efficiency rating: ≥95%.
Customizable production based on vehicle BMS parameters.

Key Features

4.3-inch touchscreen display for intuitive operation.

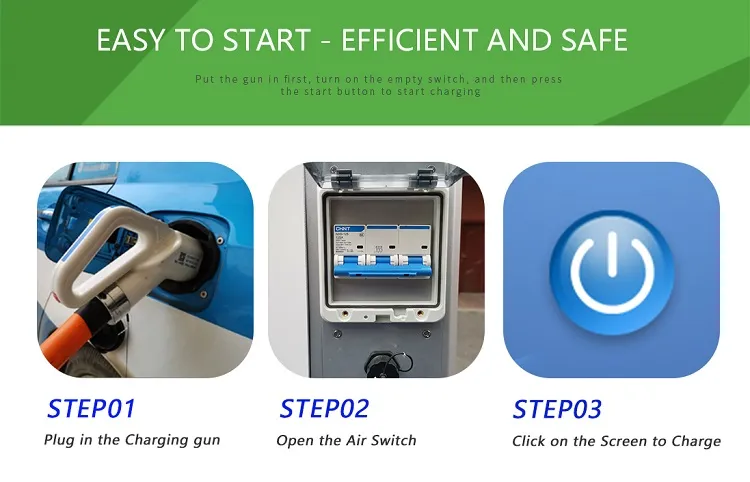

Dual activation: Scan QR code or swipe RFID card to charge.
Mobile remote monitoring and control via dedicated App.

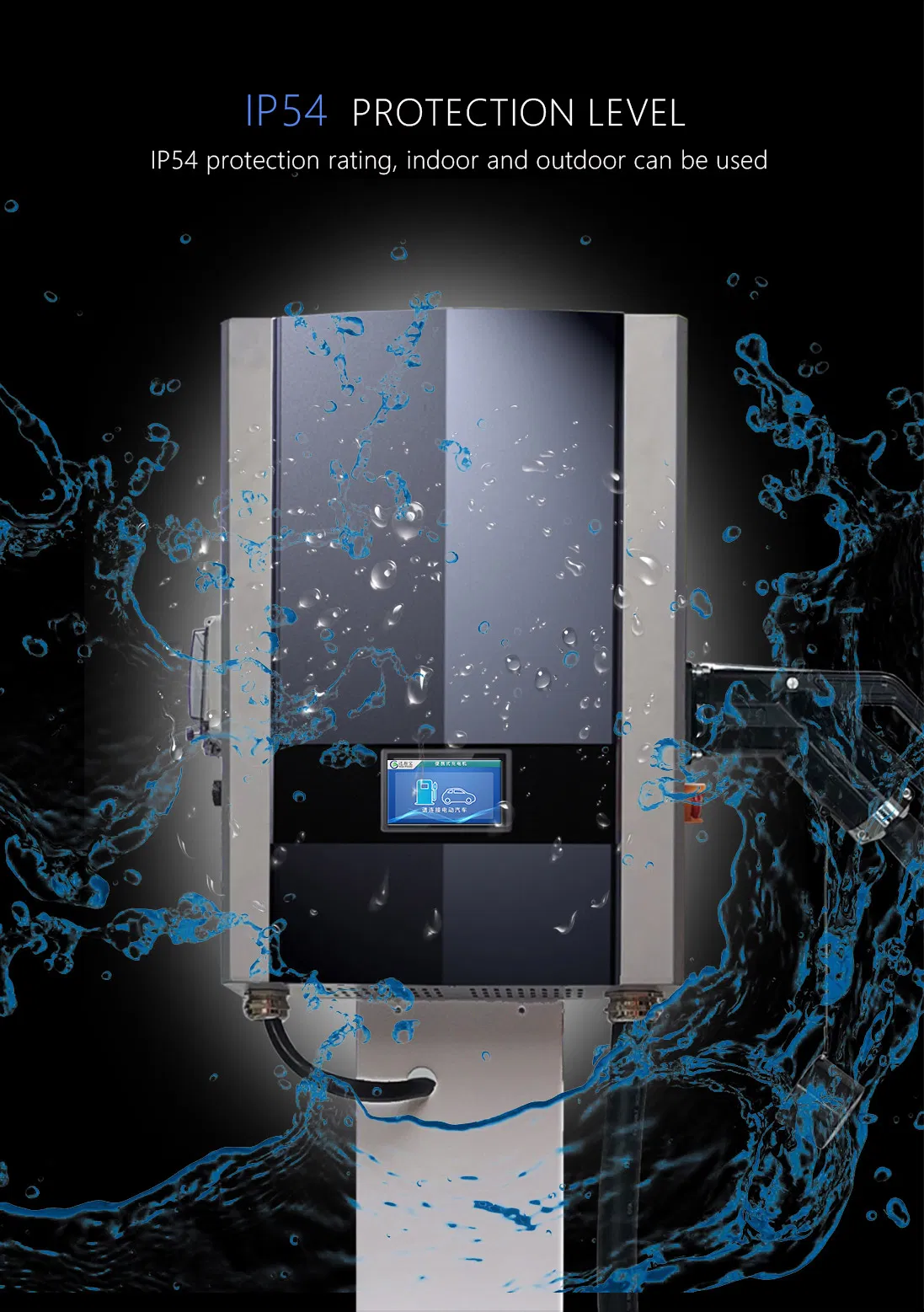

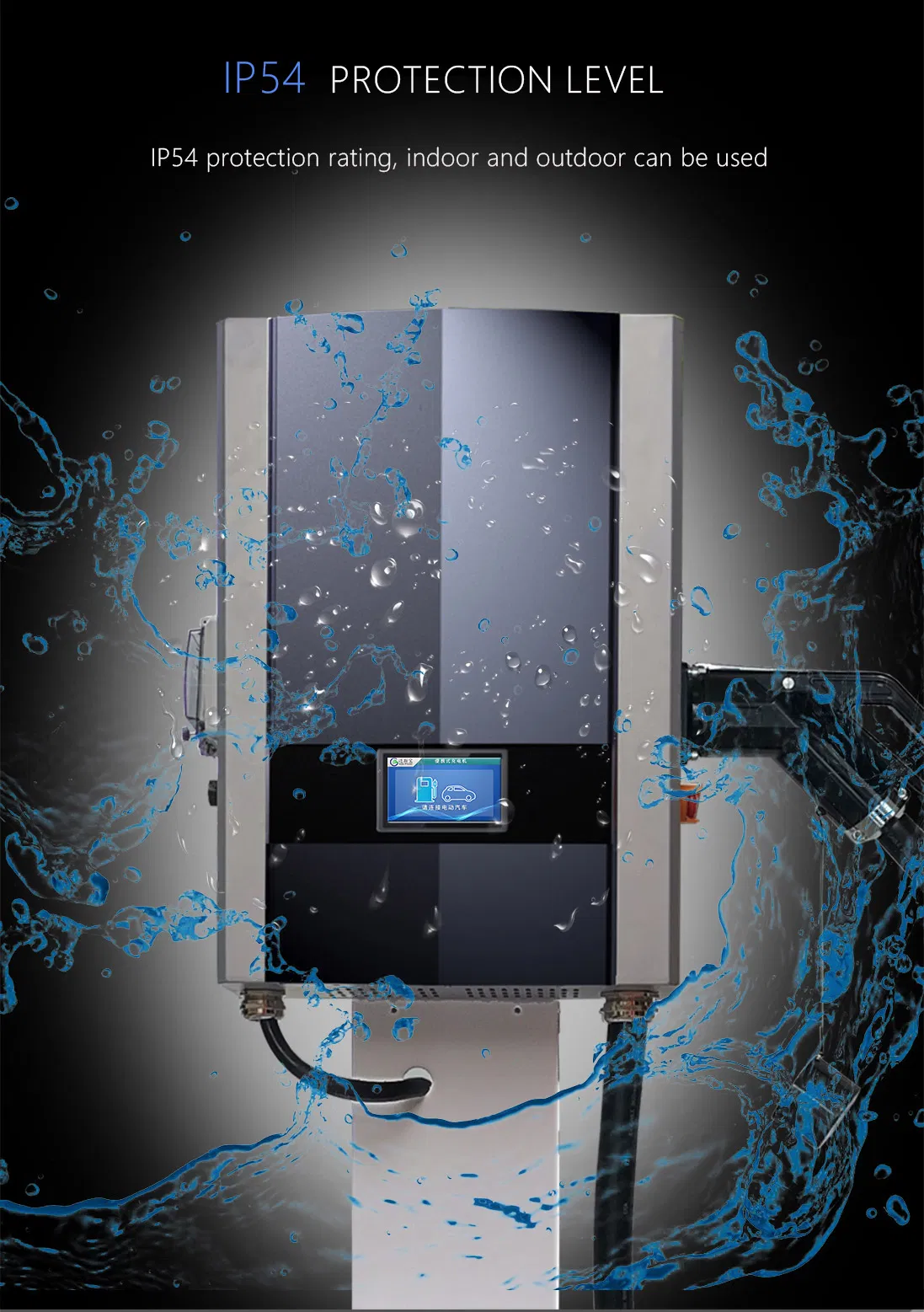

Robust IP54 protection level for reliable indoor/outdoor use.
Fashionable and high-end industrial modeling.

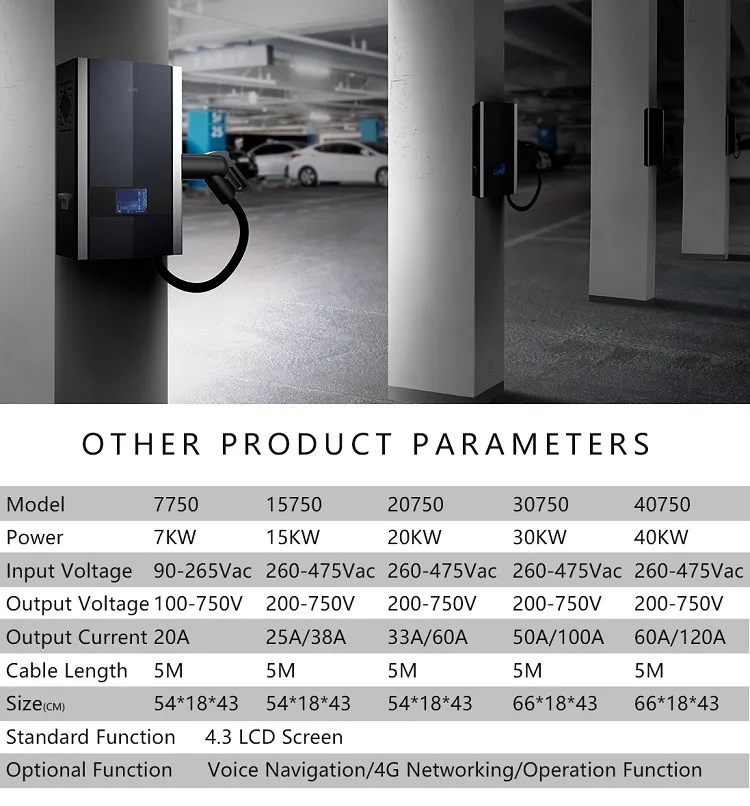

Production Parameters

Input & Output Parameters
AC Input Rating	380Vac ±10%
AC Connection	3 Phase 5 Wire
Frequency	50 / 60 Hz
Power Factor	>0.99 @ full load
DC Output Range	200-1000Vdc
Max Output Power	20KW
Environmental & Mechanical
Operating Temp	-40 ~ 85ºC
Humidity	5%-90% RH, non-condensing
Cable Length	5M (Standard) / Customized acceptable
Certification	CE, ROHS

Frequently Asked Questions

Q1. Are you a manufacturer?

Yes, we are a professional manufacturer of new and sustainable energy applications with over 18 years of experience.

Q2. What is the warranty period for this charger?

The warranty period is 12 months. During this time, we provide technical support and free replacement of new parts.

Q3. What are your payment terms?

Our standard terms are T/T 50% as a deposit and 50% before delivery. We provide photos of products and packaging before final payment.

Q4. How long does delivery take?

Generally, it takes 3 to 7 working days after receiving your advance payment, depending on the items and order quantity.

Q5. Do you test the units before they are shipped?

Yes, we conduct 100% testing on all goods before delivery to ensure quality and safety.

Q6. What is the difference between the Movable and Wallbox charger?

The main difference is the protection level. The Wallbox charger is IP54 rated, making it suitable for outdoor use. The Movable Charger is IP43 rated and should not be used outdoors during rain.
